315mm wide x 800mm long, with a 40mm profile thickness. Featuring a maximum capacity of 2000kg, these ramps can be used to load cars and light to medium equipment into or out of containers, over kerbs and other low obstacles. Price and capacity stated is for the PAIR.
Container Ramps (800x315x2000kg)
Length (mm)
800
Width (mm)
315
Height (mm)
40
Min. Load Height (mm)
160
Max Load Height (mm)
180
Weight per Ramp (kg)
6
Weight Per Pair (kg)
12
Capacity (kg)
2000
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here

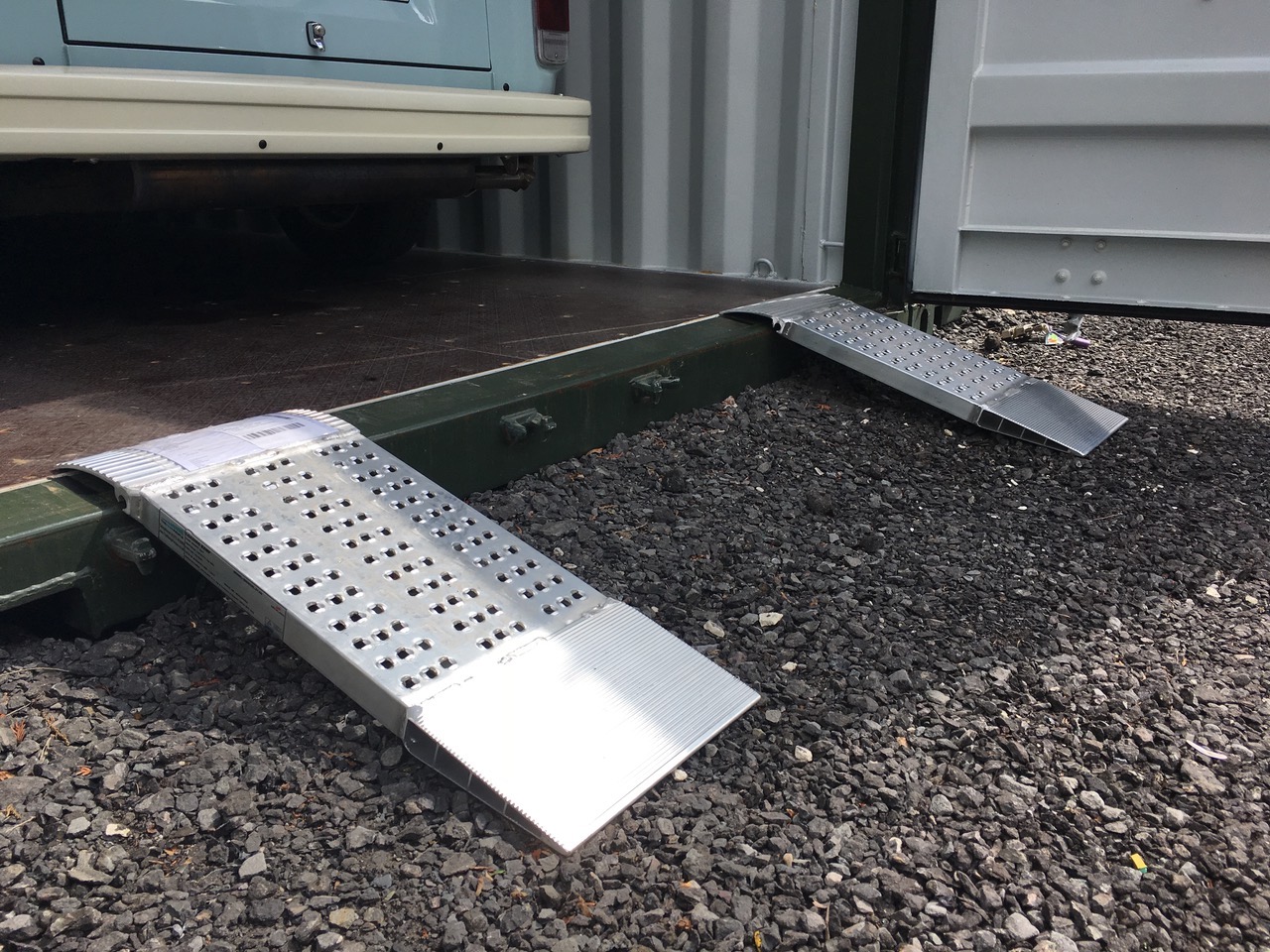

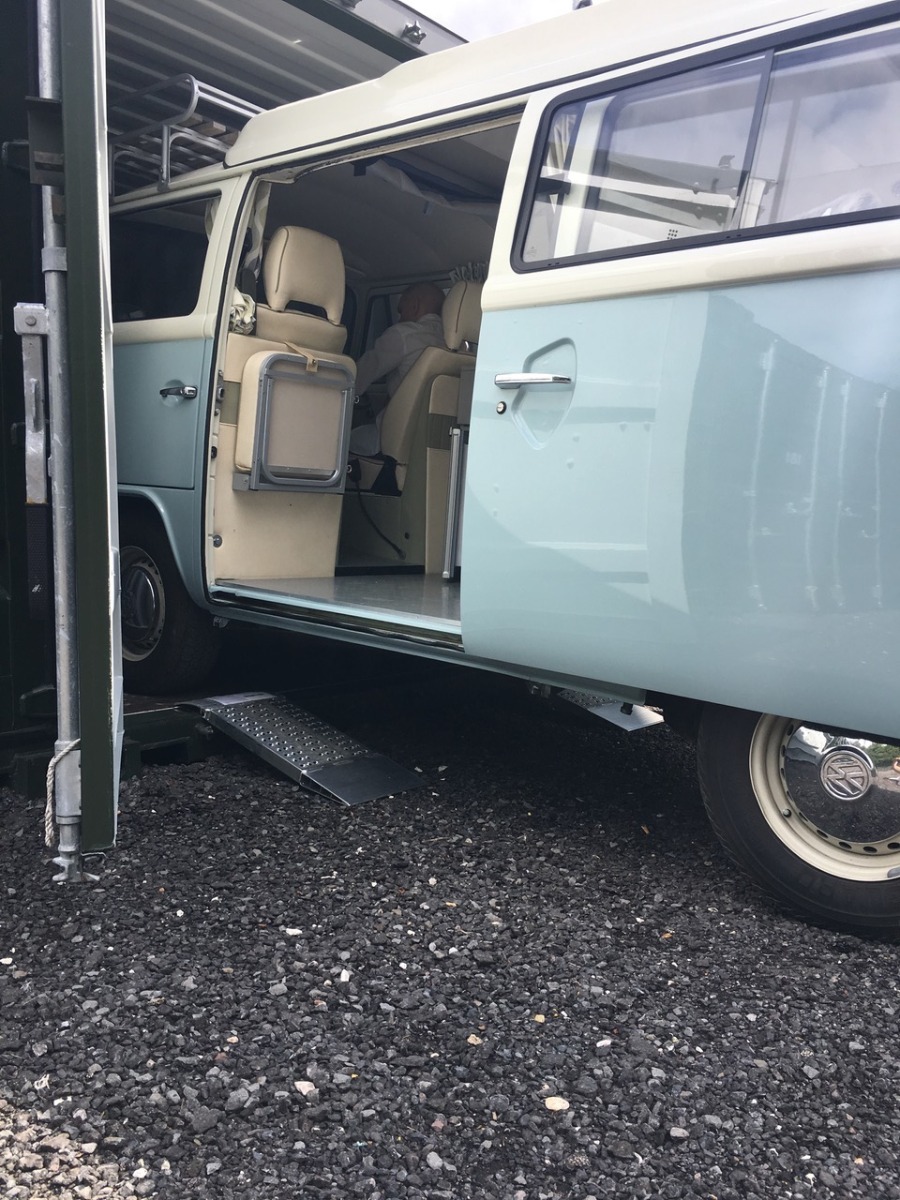

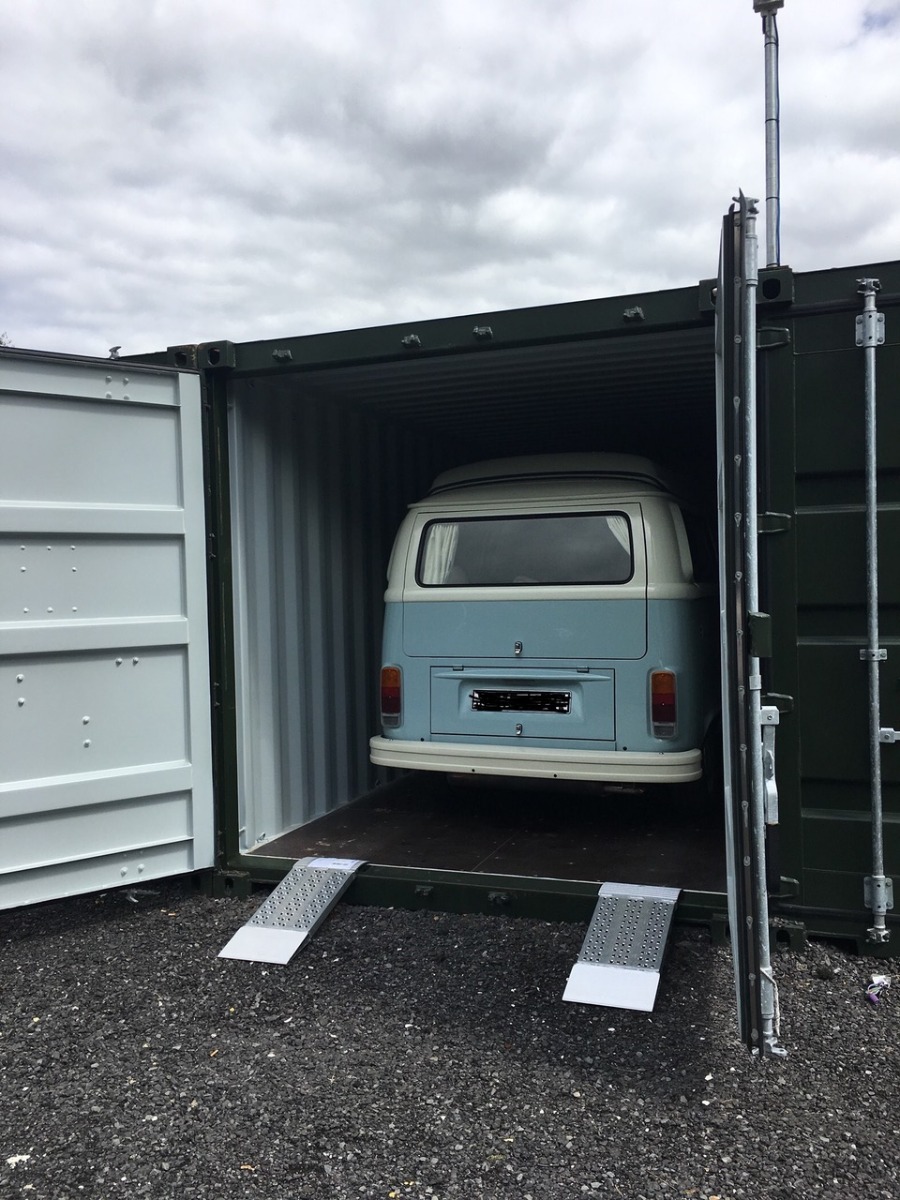

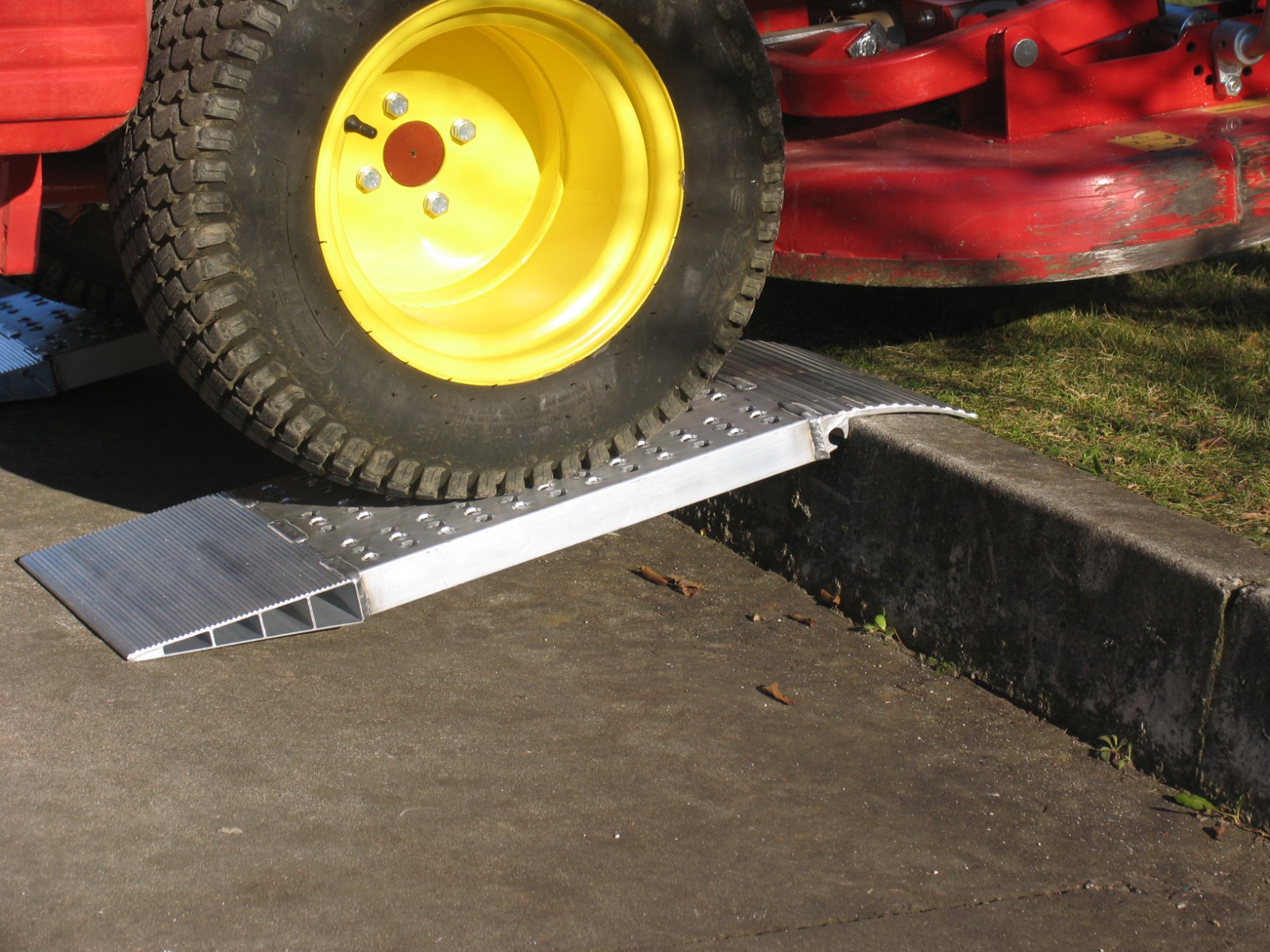

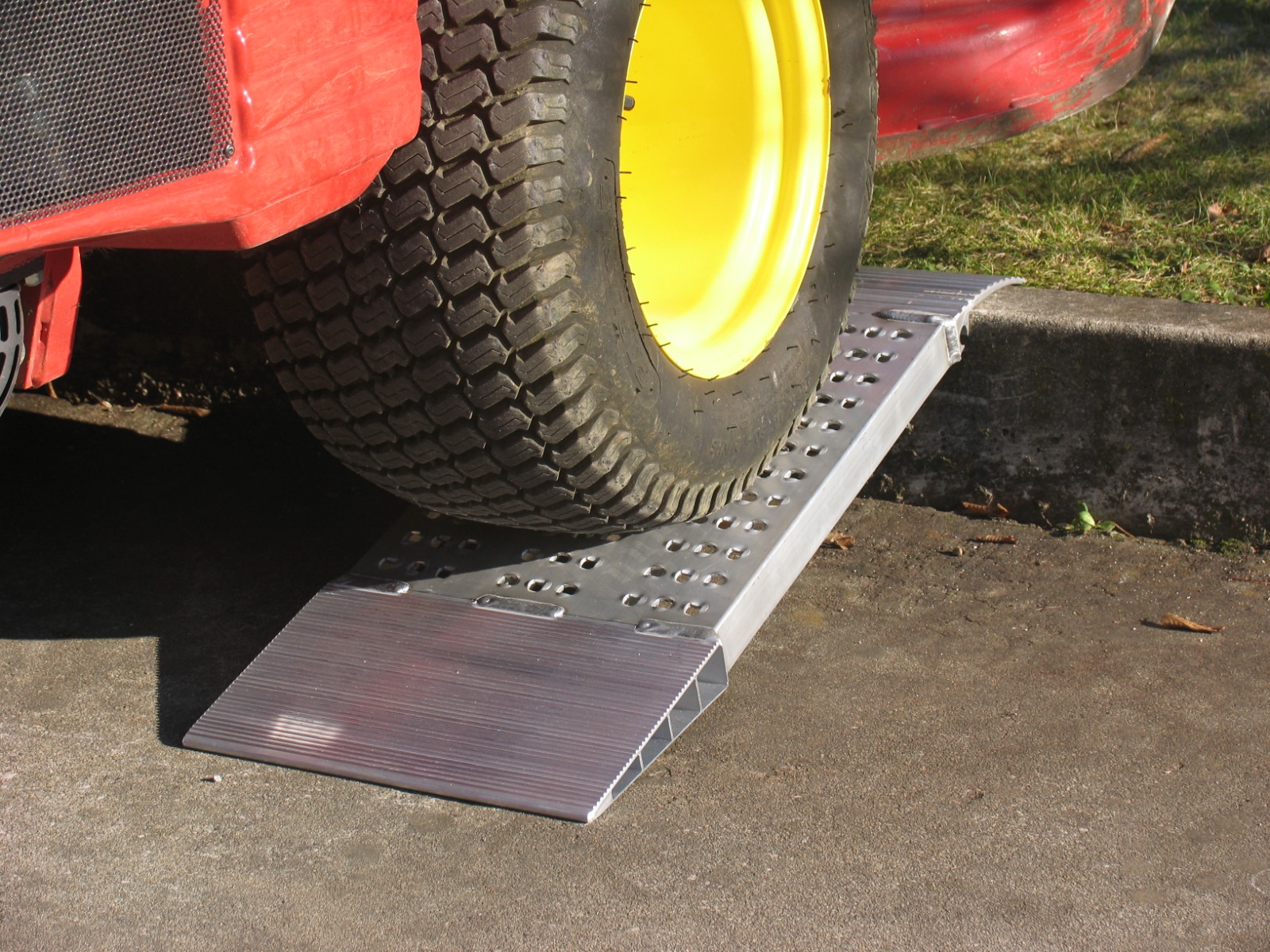

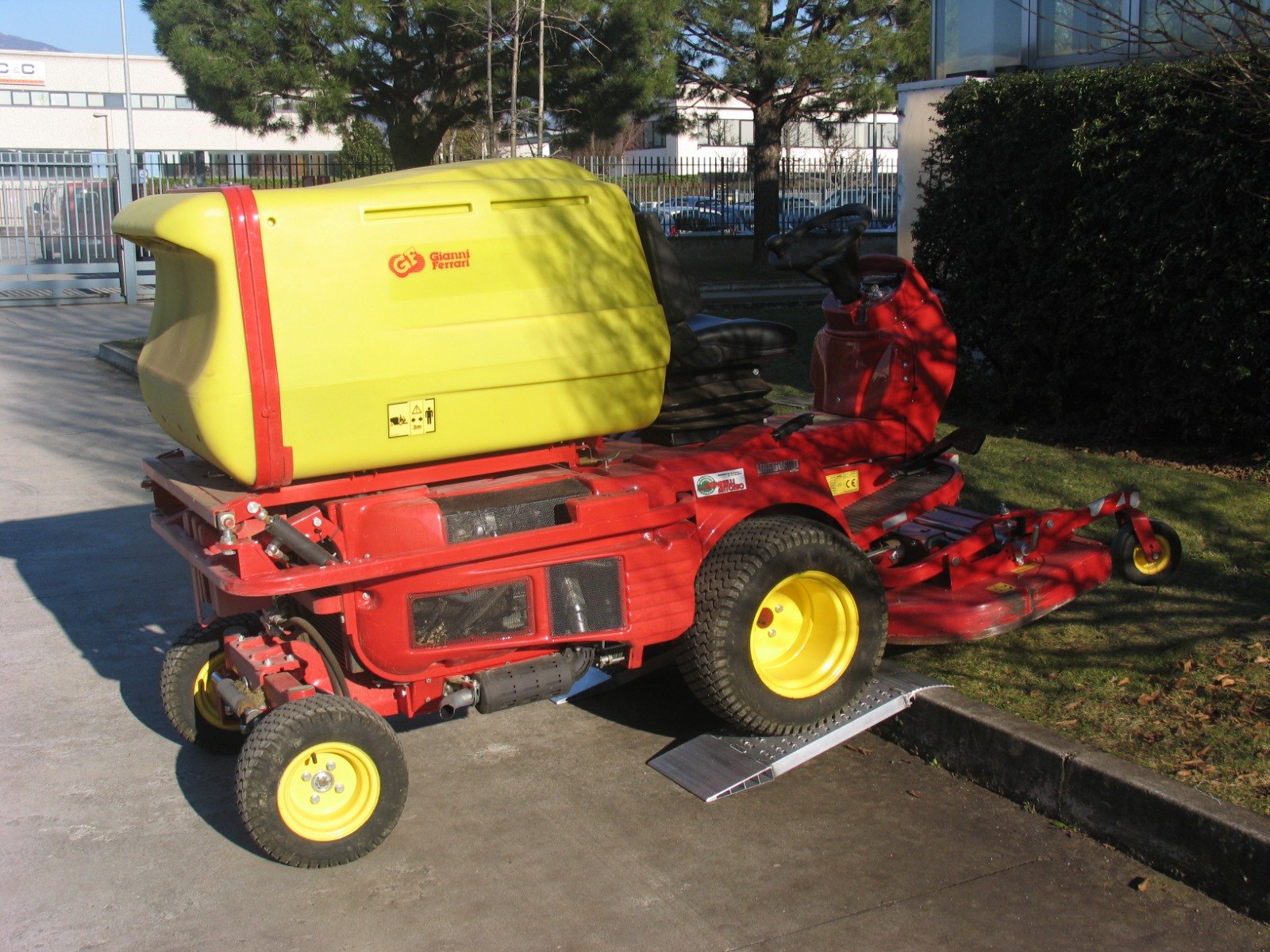

These aluminium kerb / container ramps can be used to load vehicles including cars, ride on lawn mowers and light to medium equipment into or out of containers, over kerbs and other low obstacles.
Custom load heights available
Made in Europe
Portable, only 6kg per ramps
Suitable for professional use
Foot of the ramp is cut for the load height to ensure it rests securely on the ground during loading
Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks.
Quotes for bespoke ramps can be supplied on request
