Aluminium Loading Ramps (5500x600x6070kg)

600mm wide x 5500mm long, with a 200mm profile thickness. Featuring a maximum capacity of 6070kg, this is one of our heaviest duty ramps and is ideal for use as an industrial plant ramp or heavy duty commercial ramp. Please note the minimum track width is 450mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)5500
Width (mm)600
Max. Load Height (mm)1650
Weight Per Ramp (kg)111.5
Weight Per Pair (kg)223
Capacity (kg)6070

Got a question?

Product: Aluminium Loading Ramps (5500x600x6070kg)
SKU: TRP200/55

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
€3,062.70 €2,490.00
Built to Order
TRP200/55
Talk to The Ramp People's sales team

One of our two heaviest duty ramps from our standard range. The TRP200 Series core profile thickness is 200mm.

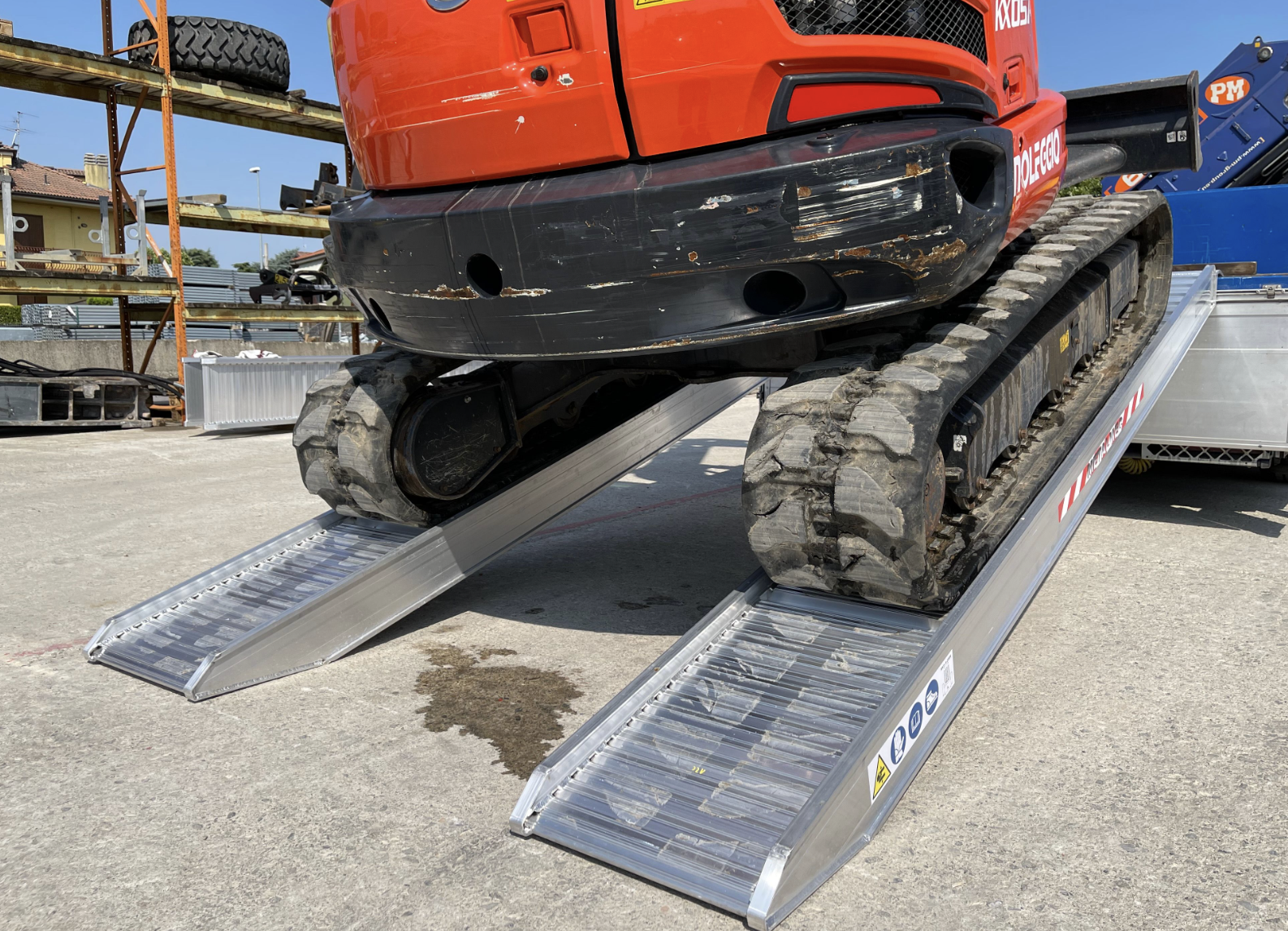

At 600mm these ramps are over half a metre wide, feature a capacity of up to 6070kg and are ideal for use as industrial plant ramps and as heavy duty commercial ramps.

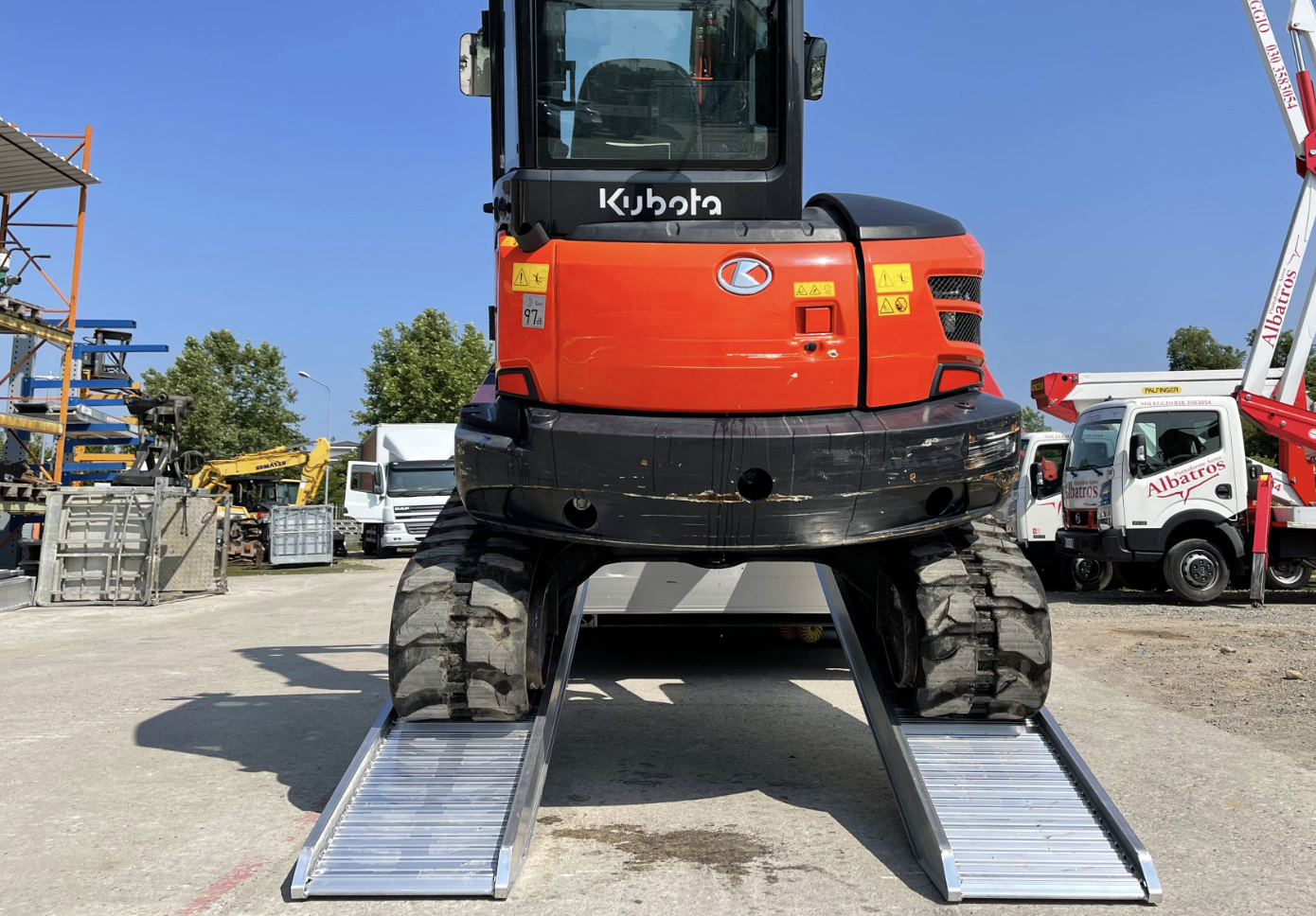

On the TRP200 series the minimum width of tracks/wheels is 450mm.

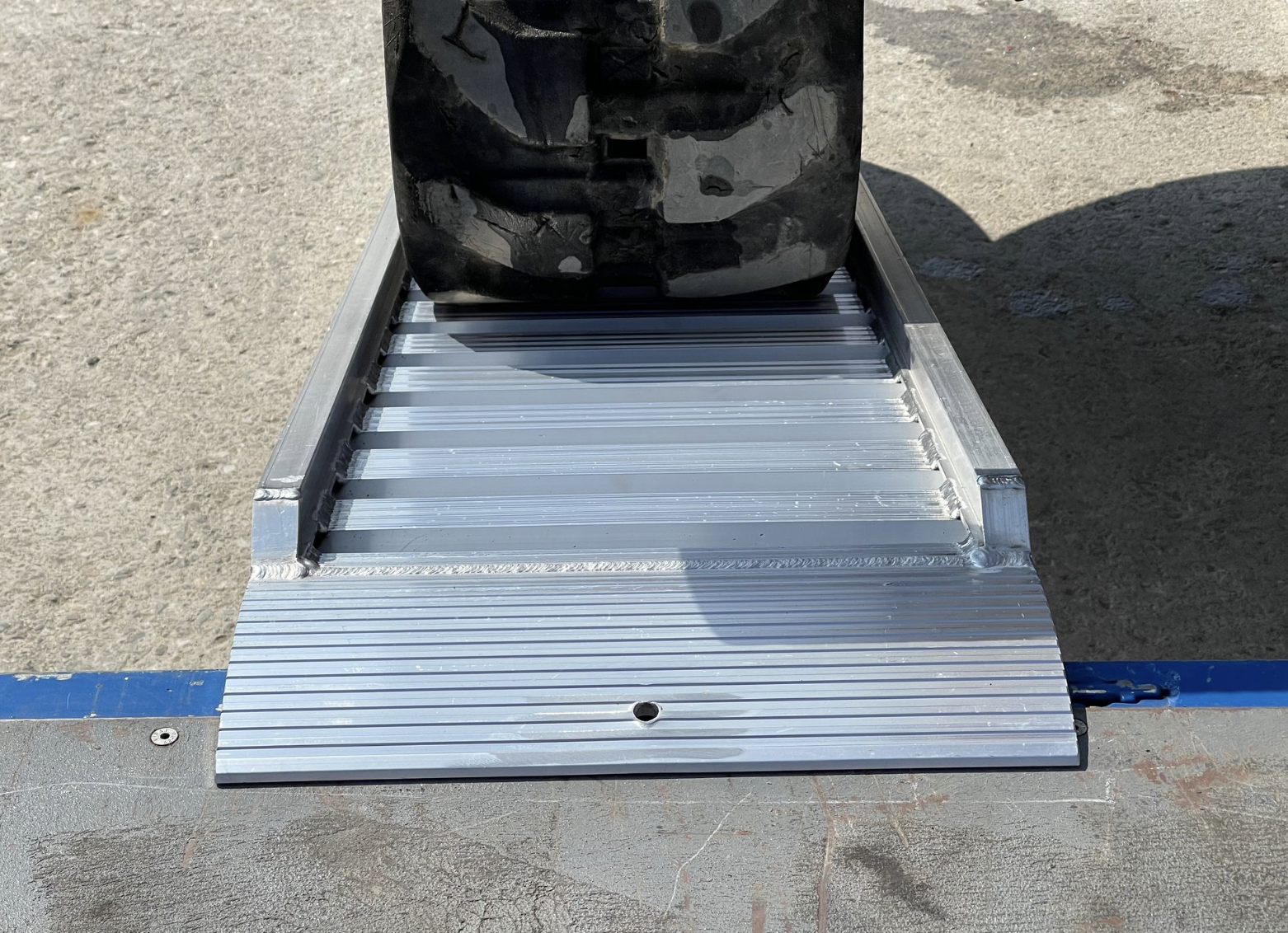

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Quotes for bespoke ramps can be supplied on request
  • Fully TÜV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP200/55
Default Connection Rest On Connection
Capacity (kg) 6070
Height of ramps profile (mm) 200
Length (mm) 5500
Weight per ramp (kg) 111.5
Weight Per Pair (kg) 223
Width (mm) 600
Minimum track width (mm) 450
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1500mm (kg) 5310
Capacity Wheelbase 1750mm (kg) 5665
Capacity Wheelbase 2000mm (kg) 6070
