€2,930.00
SKU
TRP201/45
Built to Order

Aluminium Loading Ramps (4500x580x8500kg)

580mm wide x 4500mm long, with a 200mm profile thickness. Featuring a maximum capacity of 8500kg, this is one of our heaviest duty ramps and is ideal for use as an industrial plant ramp or heavy duty commercial ramp. Please note the minimum track width is 300mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

One of our two heaviest duty ramps from our standard range. The TRP201 Series core profile thickness is 200mm.

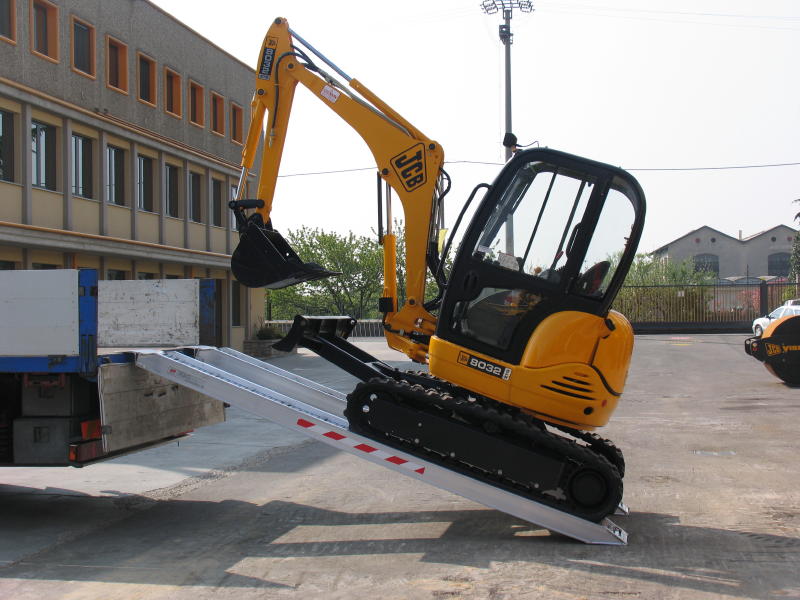

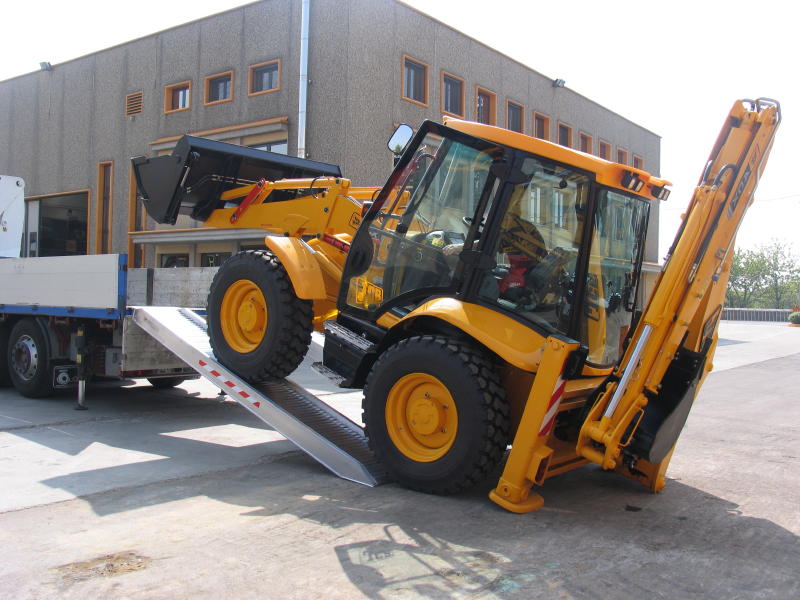

At 580mm these ramps are over half a metre wide, feature a capacity of up to 8500kg and are ideal for use as industrial plant ramps and as heavy duty commercial ramps.

On the TRP201 series the minimum width of tracks/wheels is 300mm.

  • These ramps are available both with and without edges. The default is however without edges.
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks.
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Quotes for bespoke ramps can be supplied on request
  • Fully TÜV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.

ere.


Details
SKU TRP201/45
Default Connection Rest On Connection
Capacity (kg) 8500
Height of Ramps Profile (mm) 200
Length (mm) 4500
Max Load Height (mm) 1350
Min. Load Height (mm) 1200
Weight per Ramp (kg) 90
Weight Per Pair (kg) 180
Width (mm) 580
Minimum Track Width (mm) 300
Maximum Track Width (mm) 480
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 6070
Capacity Wheelbase 1500mm (kg) 7080
Capacity Wheelbase 2000mm (kg) 8500
