4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

€2,875.00
SKU
TRP170/55
Built to Order

Aluminium Loading Ramps (5500x510x4110kg)

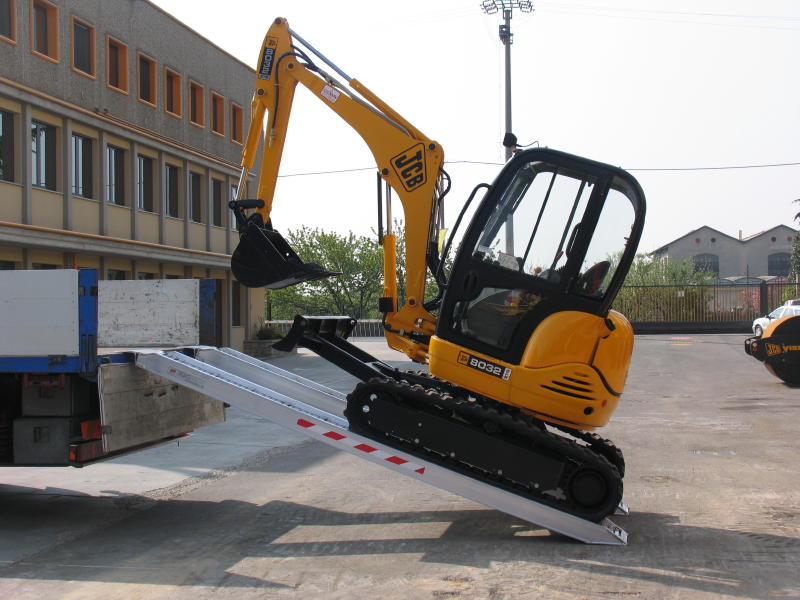

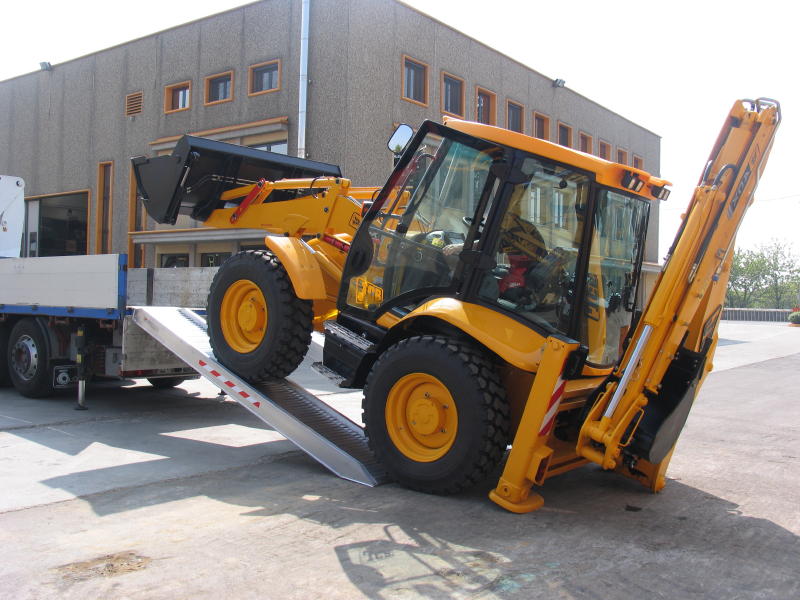

530mm wide x 5500mm long with a 170mm profile thickness. Featuring a maximum capacity of 4104kg, this heavy duty ramp is ideal for use as a plant ramp, digger ramp and for tele-handlers. Please note the minimum track width is 400mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

Some of our best selling heavy duty plant ramps, the TRP170 Series core profile thickness is 170mm.


At 530mm these ramps are over half a metre wide, feature a capacity of up to 4110kg and are ideal for use as plant ramps, digger ramps and tele-handlers.
On the TRP170 series the minimum width of the wheel/track is 200mm, the maximum width of the wheel or track is 430mm.

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Fully TÜV certified
  • Quotes for bespoke ramps can be supplied on request

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKU TRP170/55
Default Connection Rest On Connection
Capacity (kg) 4110
Height of Ramps Profile (mm) 170
Length (mm) 5500
Max Load Height (mm) 1650
Min. Load Height (mm) 1500
Weight per Ramp (kg) 79
Weight Per Pair (kg) 158
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 3200
Capacity Wheelbase 1500mm (kg) 3600
Capacity Wheelbase 2000mm (kg) 4110
