Aluminium Loading Ramps (4500x510x5760kg)

530mm wide x 4500mm long with a 170mm profile thickness. Featuring a maximum capacity of 5760kg, this heavy duty ramp is ideal for use as a plant ramp, digger ramp and for tele-handlers. Please note the minimum track width is 200mm. The maximum width of the wheel or track is 430mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)4500
Width (mm)510
Max. Load Height (mm)1350
Weight Per Ramp (kg)65
Weight Per Pair (kg)130
Capacity (kg)5760
Product Inquiry
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
€2,159.85 €1,785.00
SKU
TRP170/45
Built to Order
Talk to The Ramp People's sales team

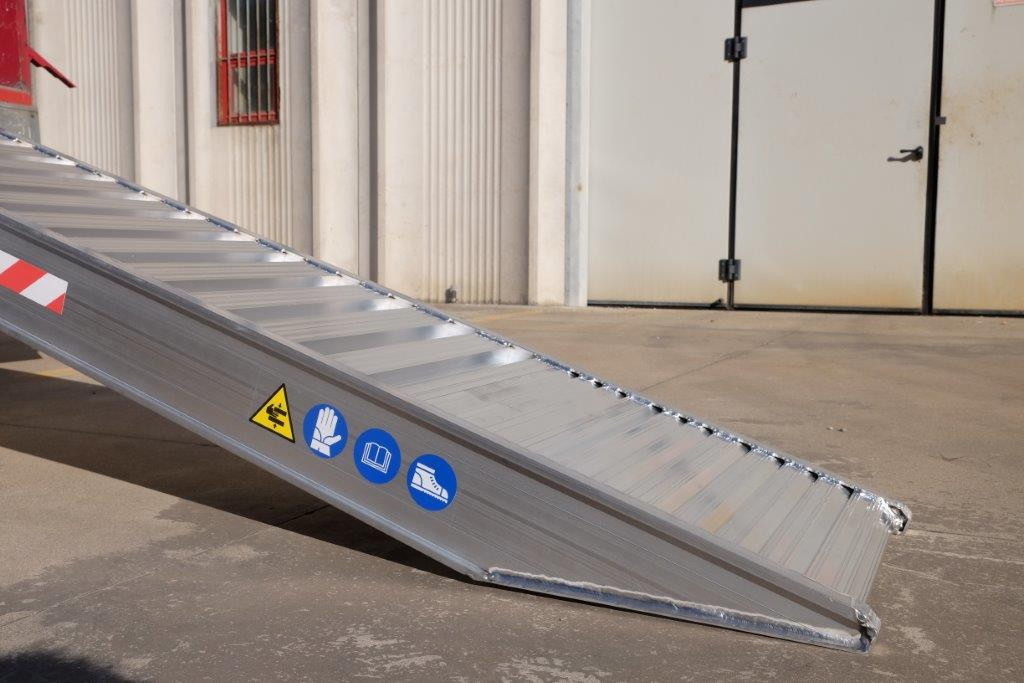

Some of our best selling heavy duty plant ramps, the TRP170 Series core profile thickness is 170mm.

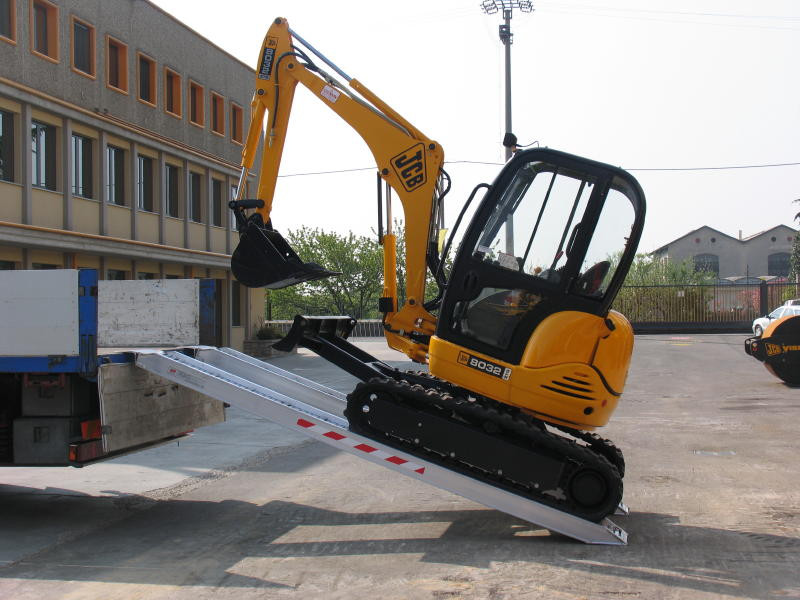

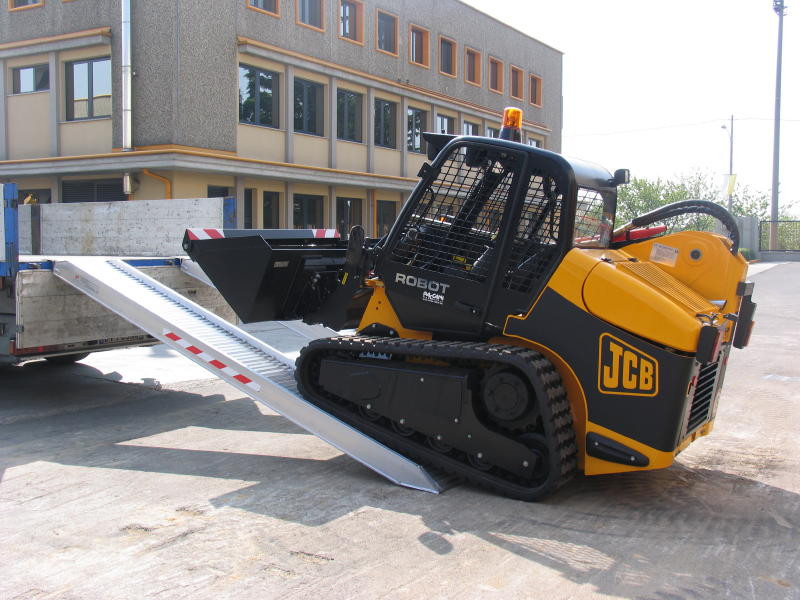

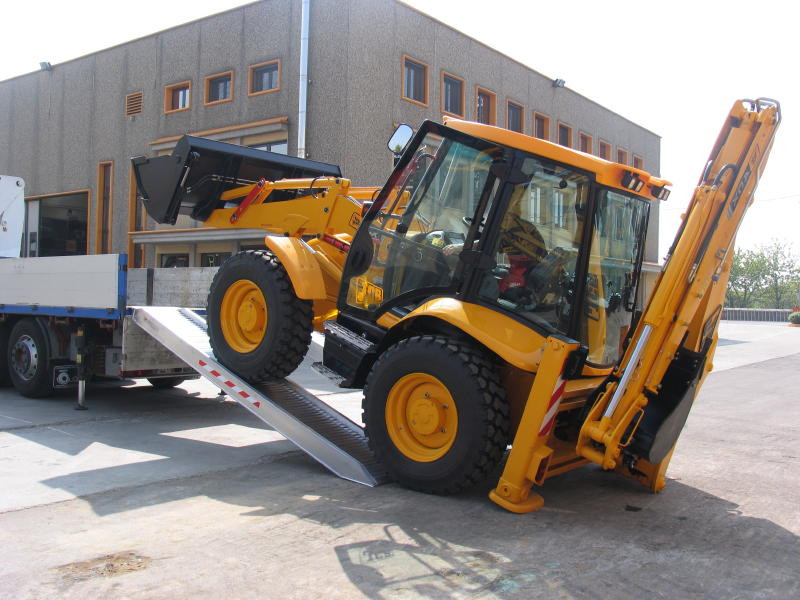

At 530mm these ramps are over half a metre wide, feature a capacity of up to 5760kg and are ideal for use as plant ramps, for digger ramps and tele-handlers.

On the TRP170 series the minimum width of the wheel/track is 200mm, the maximum width of the wheel or track is 430mm.

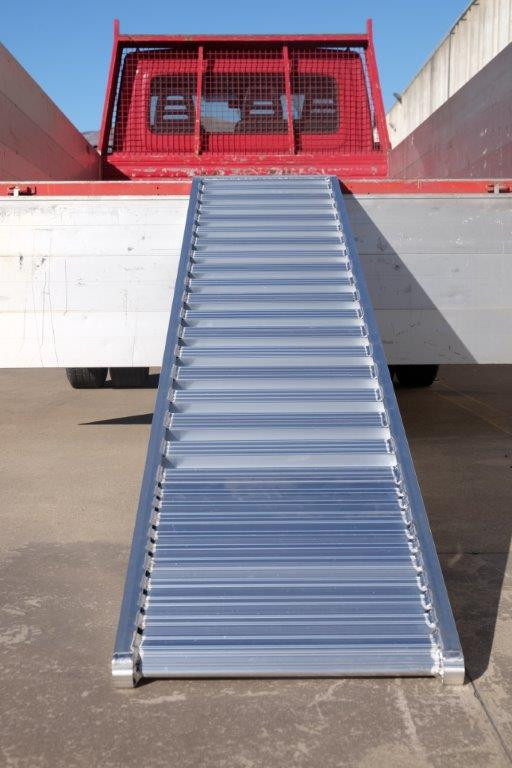

  • These ramps are available both with and without edges. The default is however without edges

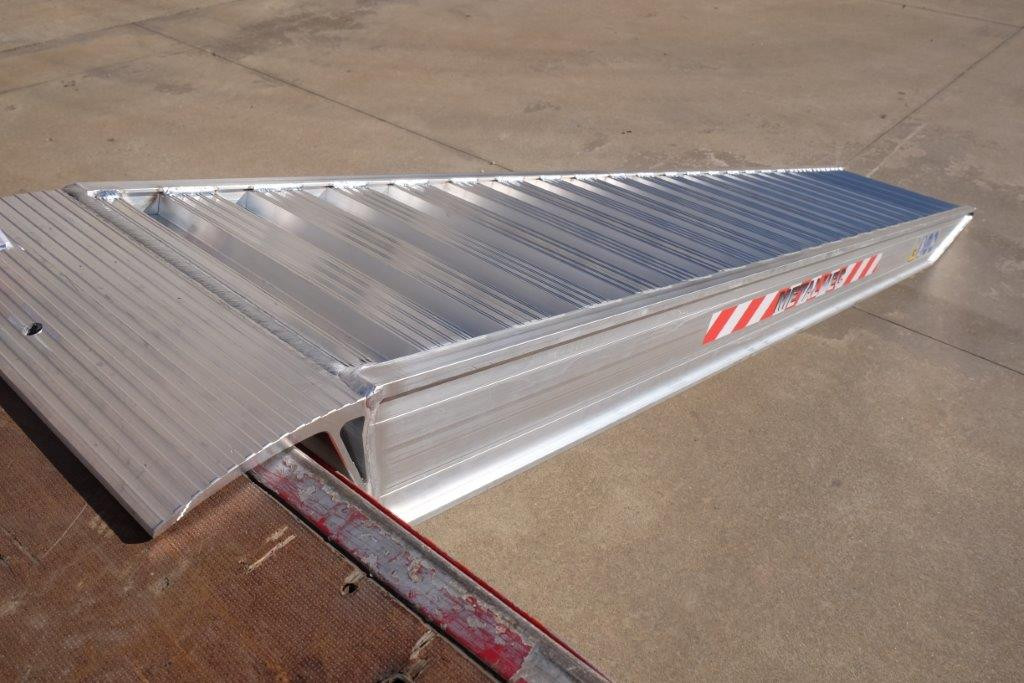

  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified
  • Quotes for bespoke ramps can be supplied on request

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP170/45
Default Connection Rest On Connection
Capacity (kg) 5760
Height of Ramps Profile (mm) 170
Length (mm) 4500
Max Load Height (mm) 1350
Min. Load Height (mm) 1200
Weight per Ramp (kg) 65
Weight Per Pair (kg) 130
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 4110
Capacity Wheelbase 1500mm (kg) 4800
Capacity Wheelbase 2000mm (kg) 5760
