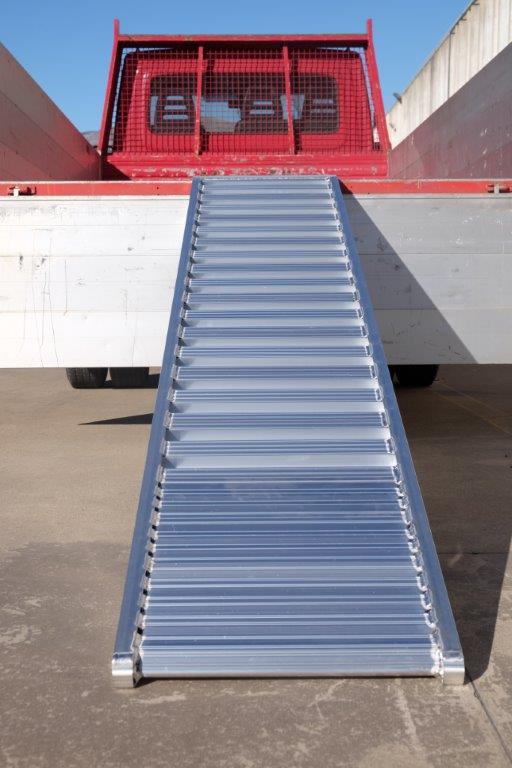

Aluminium Loading Ramps (2500x510x10000kg)

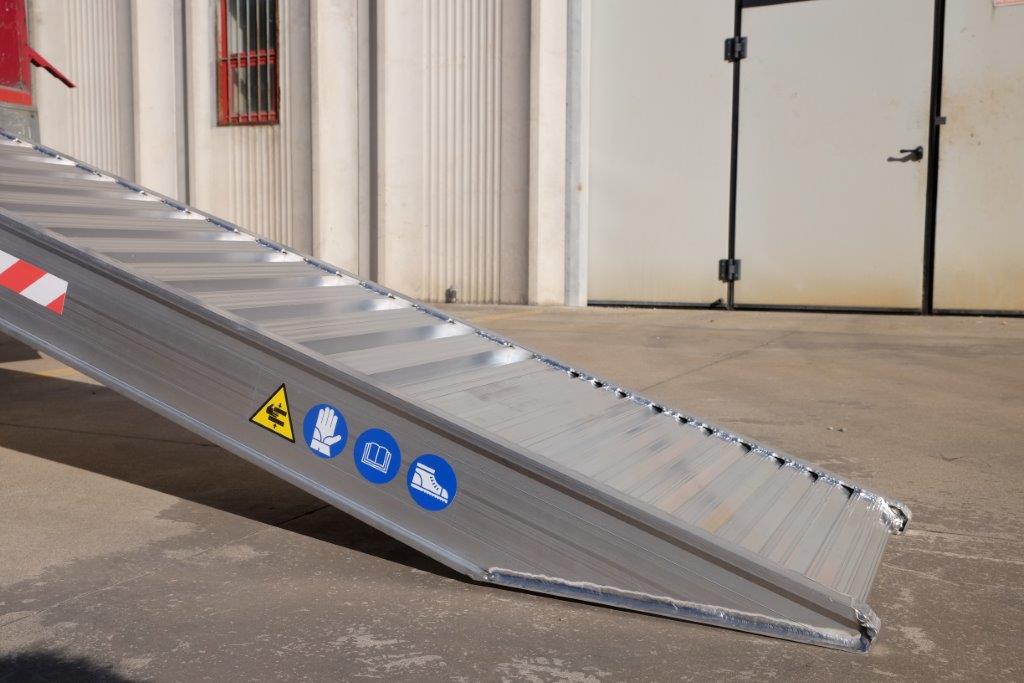

530mm wide x 2500mm long with a 170mm profile thickness. Featuring a maximum capacity of 8300kg, this heavy duty ramp is ideal for use as a plant ramp, digger ramp and for tele-handlers. Please note the minimum track width is 400mm.
Custom built sizes are available on request. Price and capacity stated is for the PAIR.
Some of our best selling heavy duty plant ramps, the TRP170 Series core profile thickness is 170mm.

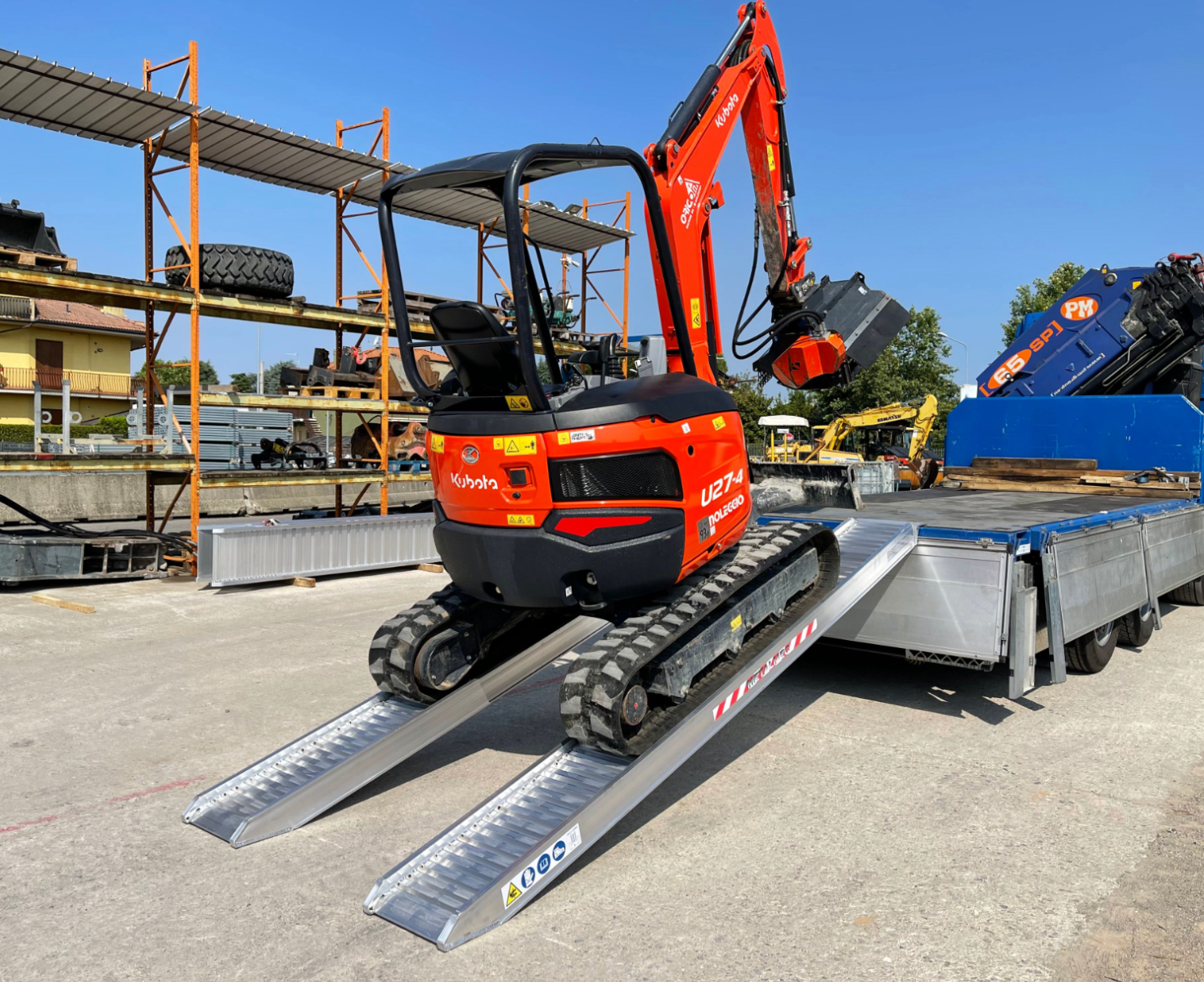

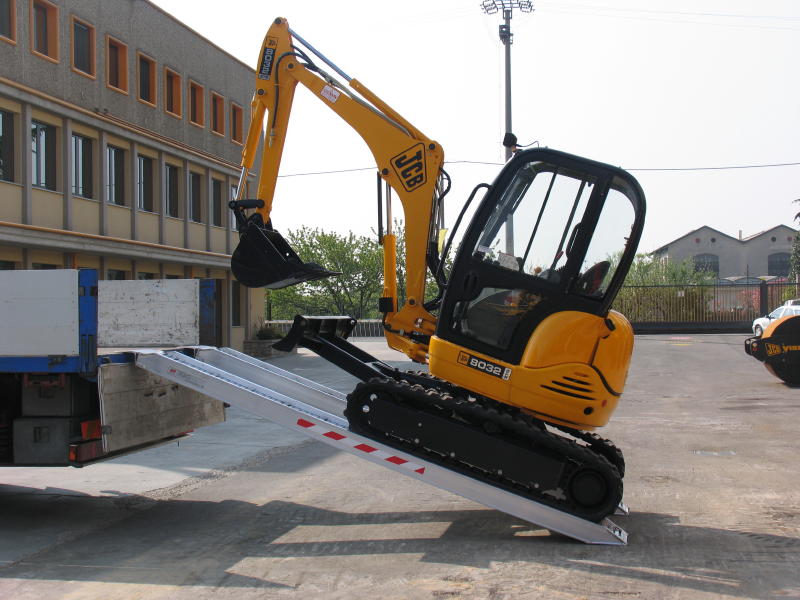

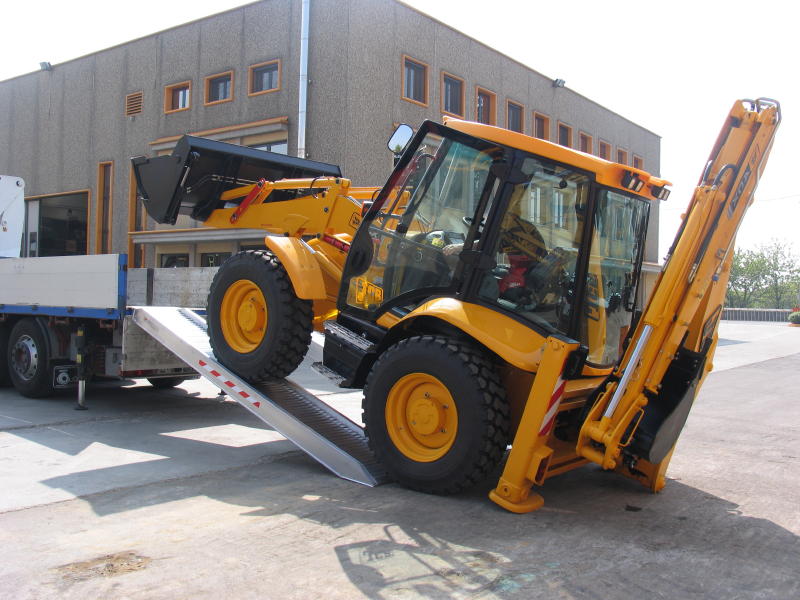

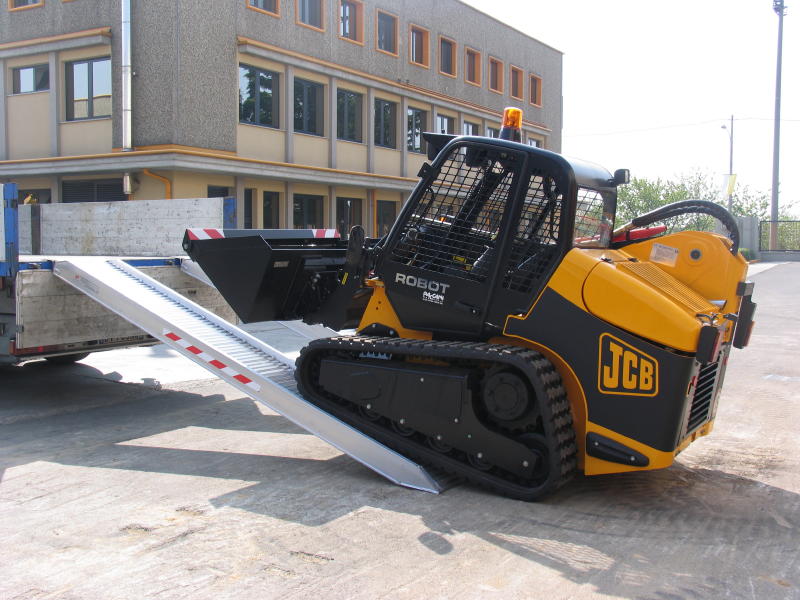

At 530mm these ramps are over half a metre wide, feature a capacity of up to 10000kg and are ideal for use as plant ramps, digger ramps and tele-handlers.

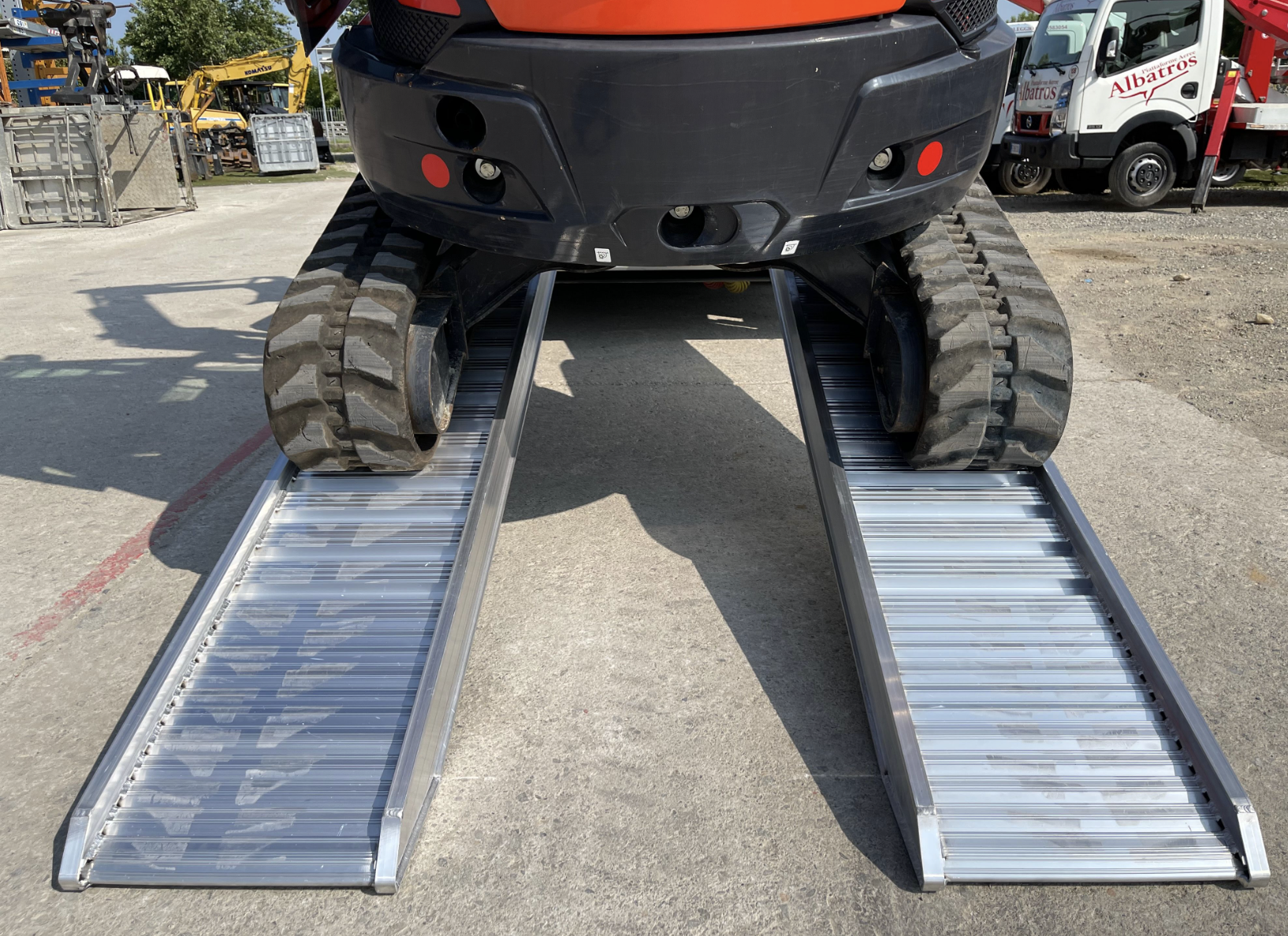

On the TRP170 series the minimum width of the wheel/track is 200mm, the maximum width of the wheel or track is 430mm.
- These ramps are available both with and without edges. The default is however without edges
- Four different connection options available, however the default connection is the rest on connection
- Custom load heights available
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
- Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
- Fully TÜV certified
- Quotes for bespoke ramps can be supplied on request
Usage guidelines and safety information for our full vehicle ramp range can be found here.
SKU | TRP170/25 |
---|---|

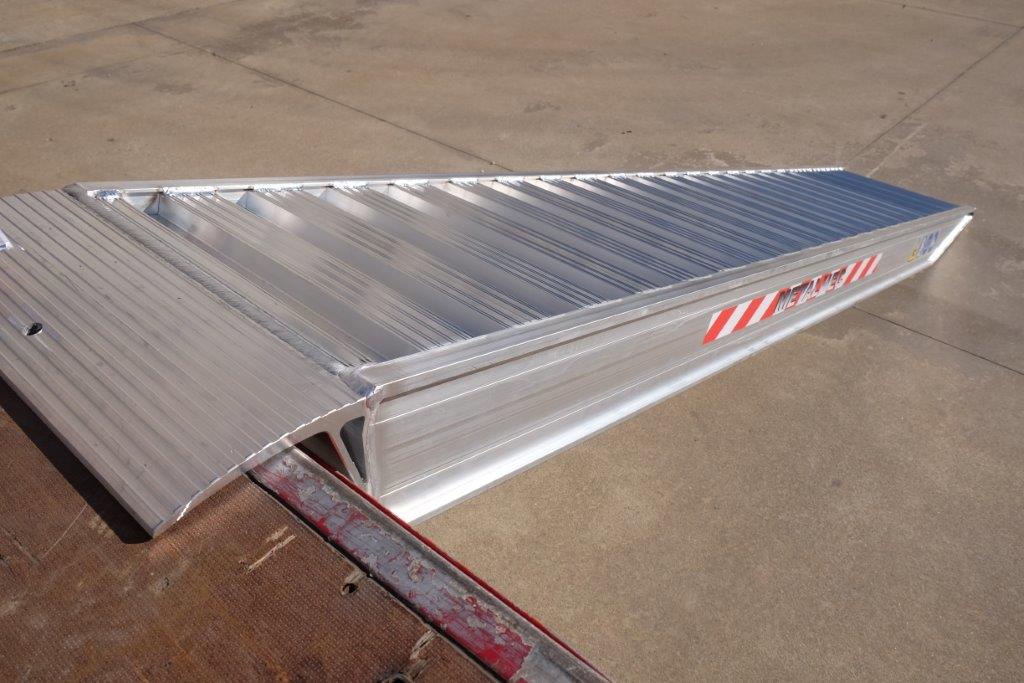

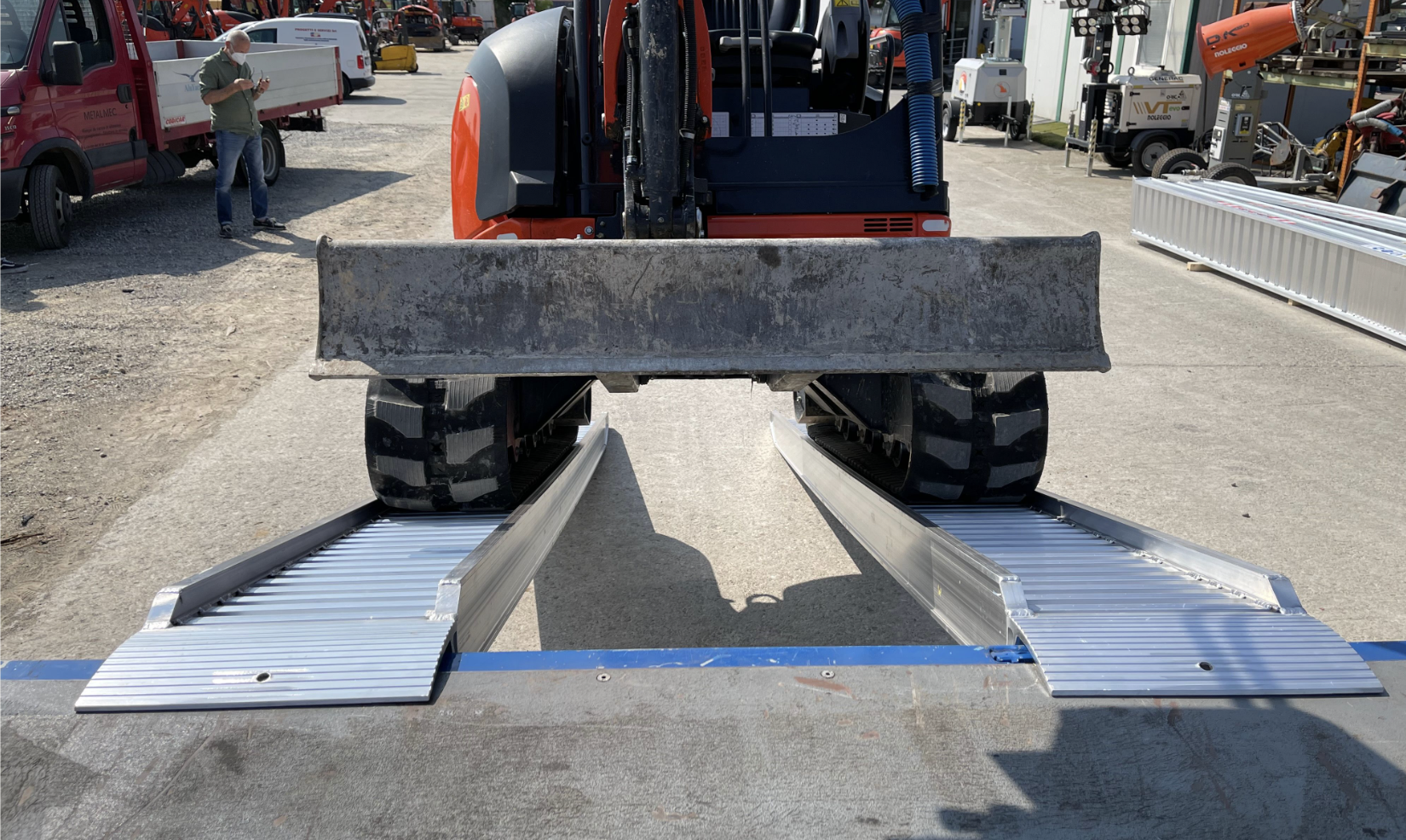

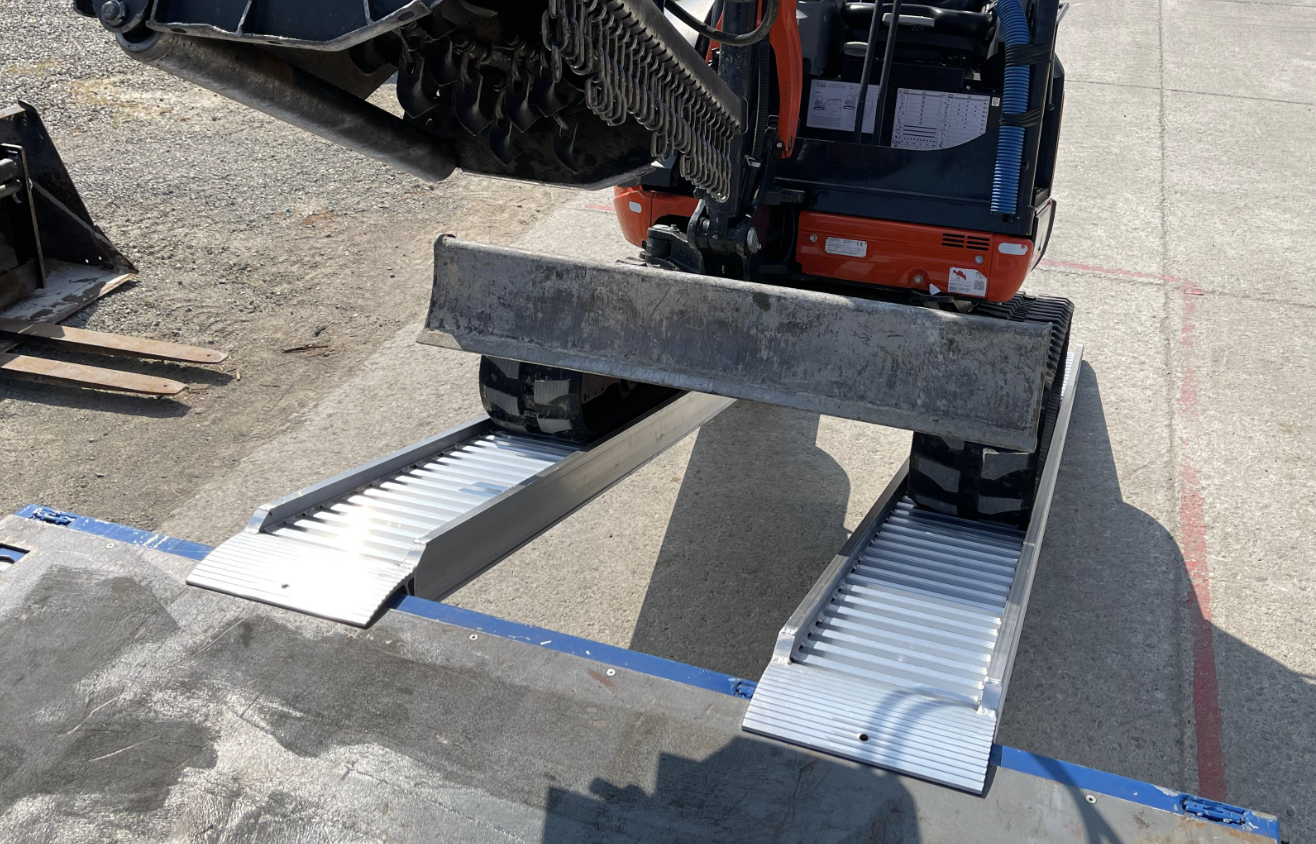

Default Connection | Rest On Connection |
Capacity (kg) | 10000 |
Height of Ramps Profile (mm) | 170 |
Length (mm) | 2500 |
Max Load Height (mm) | 750 |
Min. Load Height (mm) | 600 |
Weight per Ramp (kg) | 38 |
Weight Per Pair (kg) | 76 |
Width (mm) | 510 |
Minimum Track Width (mm) | 200 |
Maximum Track Width (mm) | 430 |
One Year Warranty | Yes |
Connection Options Available | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Not Solid Wheels | Yes |
Capacity Wheelbase 1000mm (kg) | 9600 |
Capacity Wheelbase 1500mm (kg) | 10000 |
Capacity Wheelbase 2000mm (kg) | 10000 |
