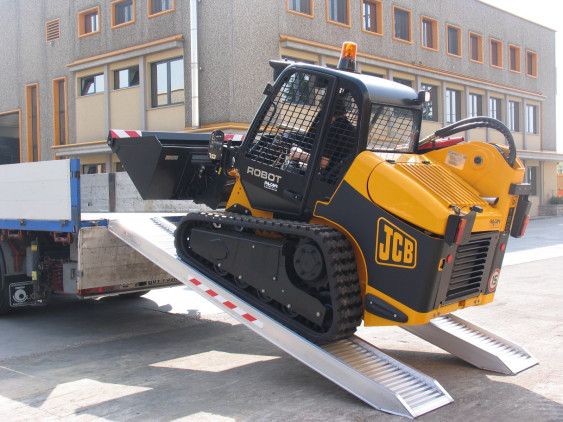

Extra Wide Aluminium Loading Ramps (2500x510x14000kg)
2500mm length, 510mm width and a profile height of 160mm . These ramps include a maximum capacity of 14000kg, ideal for loading plant machinery and vehicles. These ramps are made from aluminium, which makes them exceptionally thin and lightweight. Please note these ramps require a min track or tyre width of 400mm.
Capacity and price is for the PAIR.
The TRP65LTRP Series has a core profile thickness of 65mm and a width of 510mm. On the TRP65LTRP Series the minimum width of tracks/wheels is 400mm.
They feature a capacity of up to 14,000kg and are ideal for use as car ramps or plant ramps.
Designed for a maximum gradient of 30%
- These ramps are available both with and without edges, the default is however without edges
- Four different connection options available, however the default connection is the rest on connection
- Custom load heights available
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Quotes for bespoke ramps can be supplied on request
- Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
- Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
- Fully TÜV certified
Usage guidelines and safety information for our full vehicle ramp range can be found here.
SKU | TRP160/25LTRP |
---|---|
Default Connection | Rest On Connection |
Capacity (kg) | 14.000 |
Height of Ramps Profile (mm) | 160 |
Length (mm) | 2500 |
Max Load Height (mm) | 750 |
Min. Load Height (mm) | 600 |
Weight per Ramp (kg) | 39,5 |
Weight Per Pair (kg) | 79 |
Width (mm) | 510 |
Minimum Track Width (mm) | 400 |
Maximum Track Width (mm) | 580 |
One Year Warranty | Yes |
Connection Options Available | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Not Solid Wheels | Yes |
Capacity Wheelbase 1000mm (kg) | 8435 |
Capacity Wheelbase 1500mm (kg) | 12650 |
Capacity Wheelbase 2000mm (kg) | 14000 |
