Aluminium Loading Ramps (3500x400x5540kg)

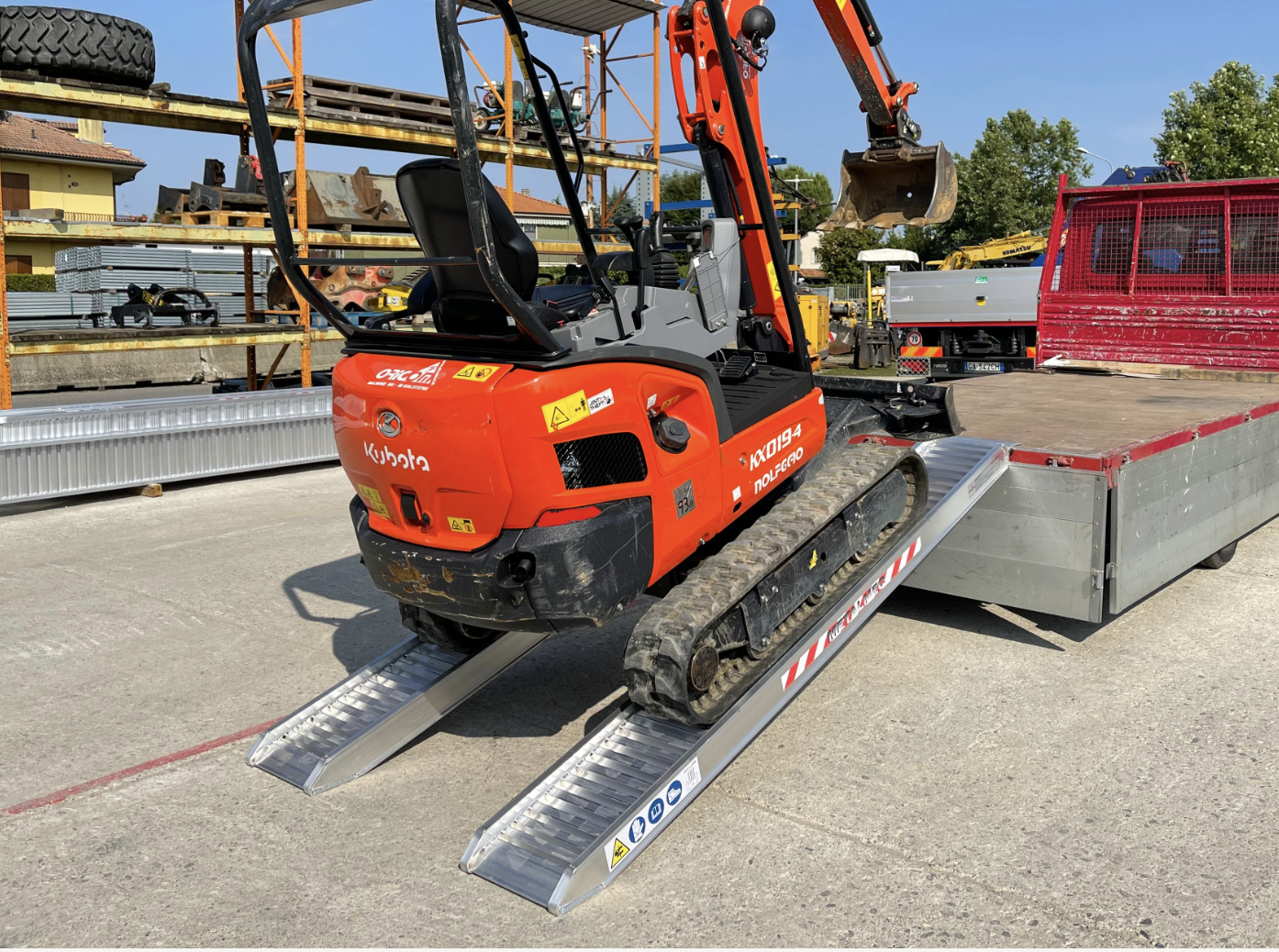

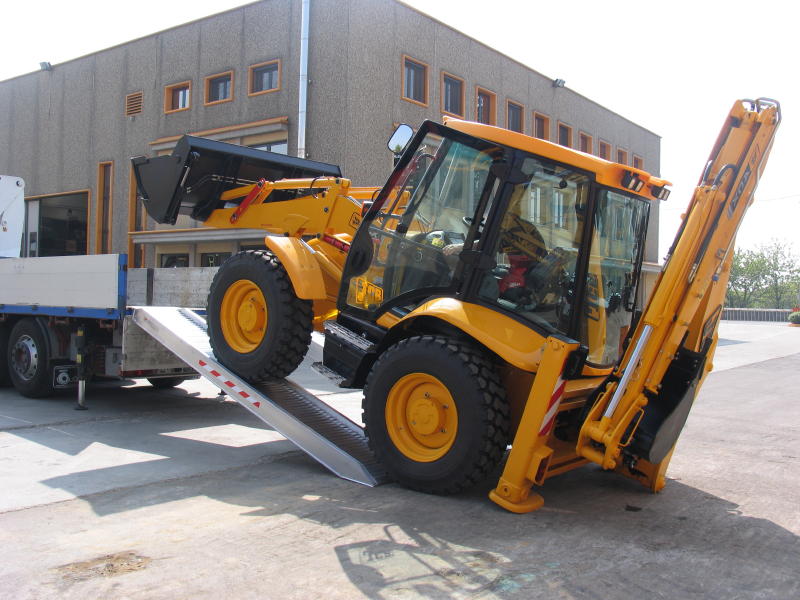

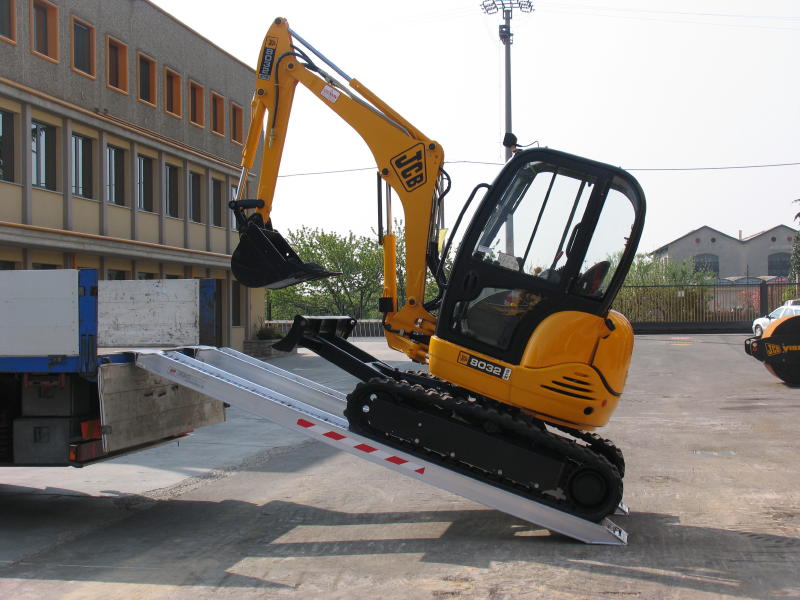

400mm wide x 3500mm long, with a 140mm profile thickness. Featuring a maximum capacity of 5540kg, this ramp is ideal for use as a plant ramp, digger ramp, or tele-handler ramp. Please note the minimum track width is 300mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

Some of our best selling medium to heavy duty plant ramp, the TRP140 Series has a core profile thickness of 140mm. The TRP140 Series has a width of 400mm, feature a capacity of up to 5540kg and are ideal for use as plant ramps, for digger ramps and for tele-handlers.

On the TRP140 series the minimum width of tracks/wheels is 200mm. These Ramps are not designed for use over a 30% gradient

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified
  • Quotes for bespoke ramps can be supplied on request

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKUTRP140/35
Default ConnectionRest On Connection
Capacity (kg)5540
Height of Ramps Profile (mm)140
Length (mm)3500
Max Load Height (mm)1050
Min. Load Height (mm)900
Weight per Ramp (kg)38
Weight Per Pair (kg) 76
Width (mm)400
Minimum Track Width (mm)200
Maximum Track Width (mm)320
One Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
Not Solid WheelsYes
Capacity Wheelbase 1000mm (kg)3325
Capacity Wheelbase 1500mm (kg)4155
Capacity Wheelbase 2000mm (kg)5540
External Width (mm)400
