€1,185.00
SKU
TRP116/40
Built to Order

Aluminium Loading Ramps (4000x360x2500kg)

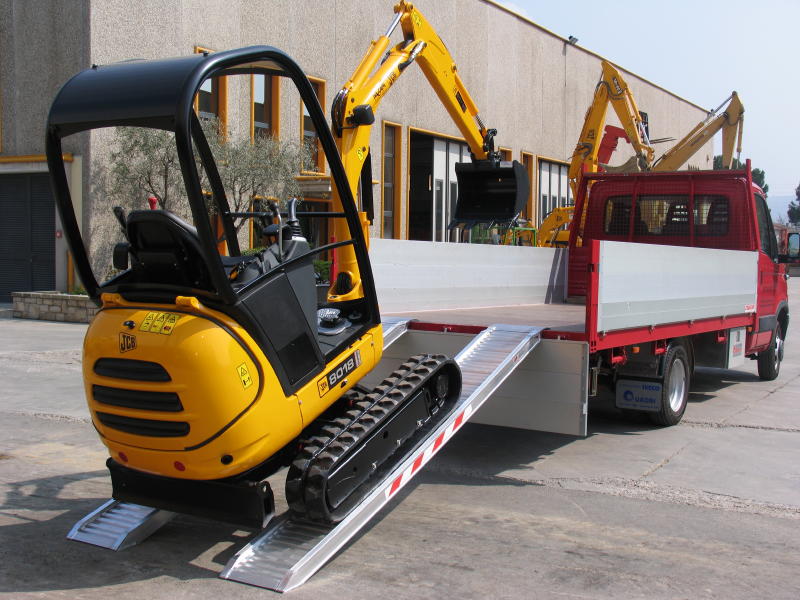

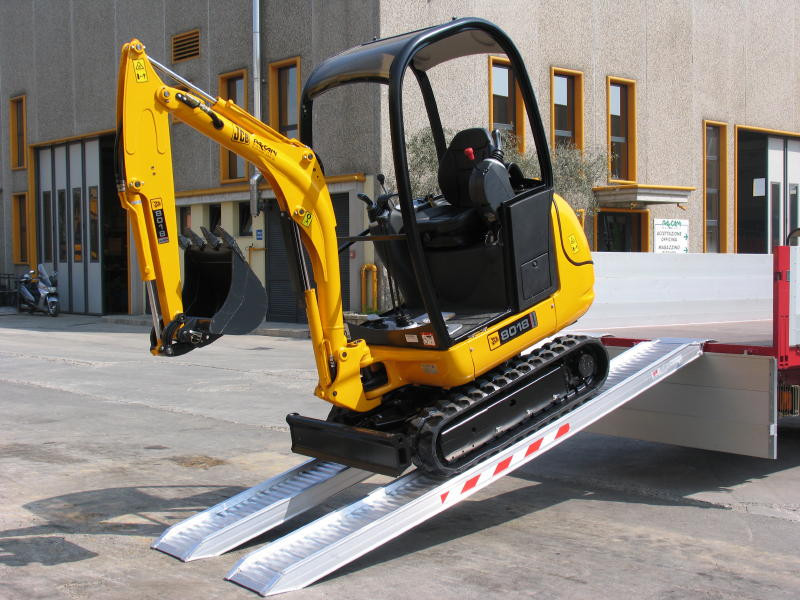

360mm wide x 4000mm long with a 115mm profile thickness. Featuring a maximum capacity of 2500kg, this ramp is ideal for use as a plant ramp or mini digger ramp. Please note the minimum track width is 200mm. Custom built sizes are available on request.

Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

Our best selling plant ramps, the TRP116 has a core profile thickness of 115mm. Their width is 360mm. They feature a capacity of up to 2500kg and are ideal for use as plant ramps and mini digger ramps.

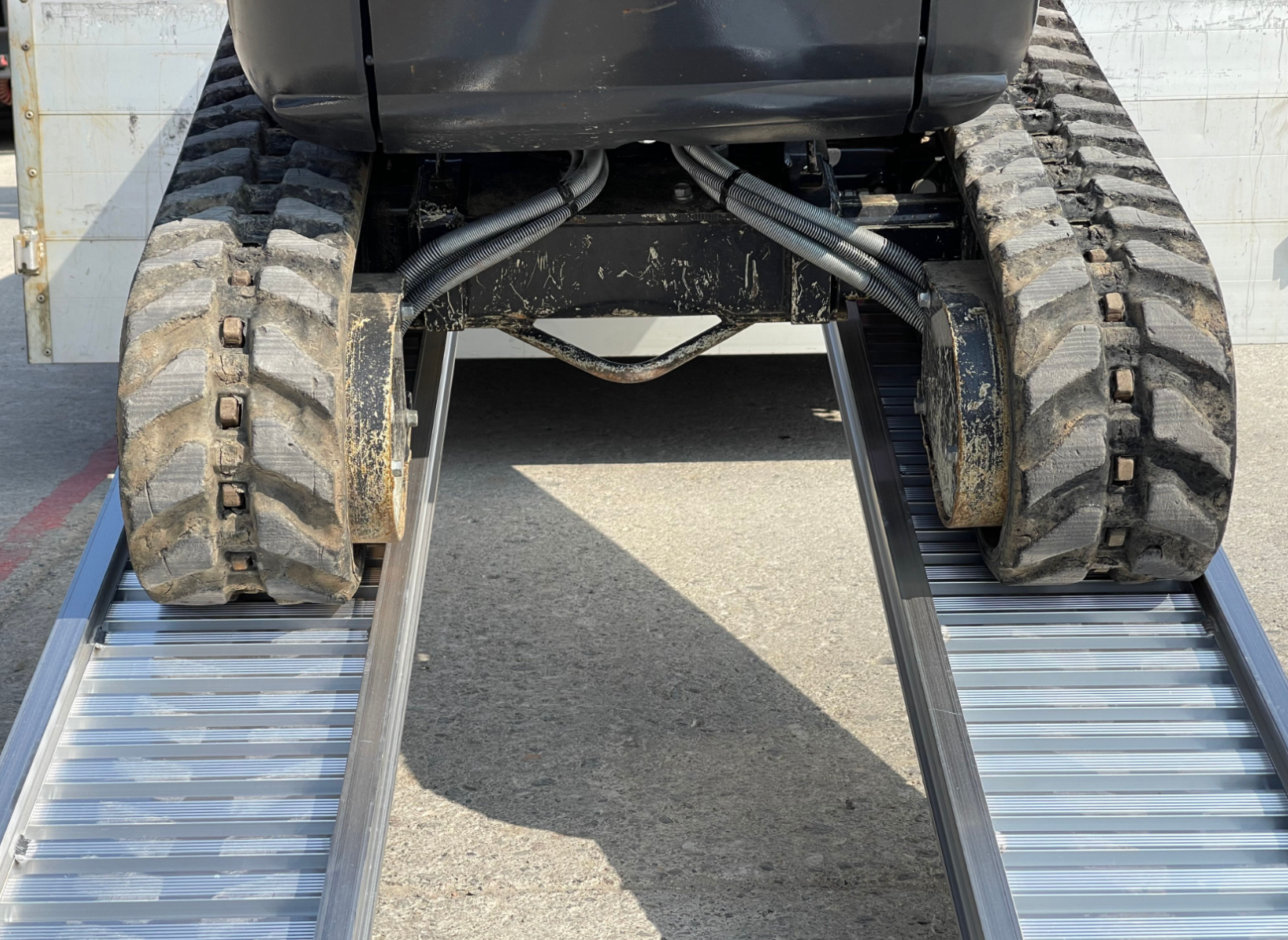

With a width of 360mm, a minimum track width of 200mm is recommended, the maximum track width of 280mm should not be exceeded . The height of the ramp profile is 115mm.
These ramps are not designed for use over 30% gradient

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image



Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKU TRP116/40
Default Connection Rest On Connection
Capacity (kg) 2500
Height of Ramps Profile (mm) 115
Length (mm) 4000
Max Load Height (mm) 1200
Min. Load Height (mm) 1050
Weight per Ramp (kg) 29
Weight Per Pair (kg) 58
Width (mm) 360
Minimum Track Width (mm) 200
Maximum Track Width (mm) 280
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 1500
Capacity Wheelbase 1500mm (kg) 1800
Capacity Wheelbase 2000mm (kg) 2500
