Aluminium Loading Ramps (4500x360x1800kg)

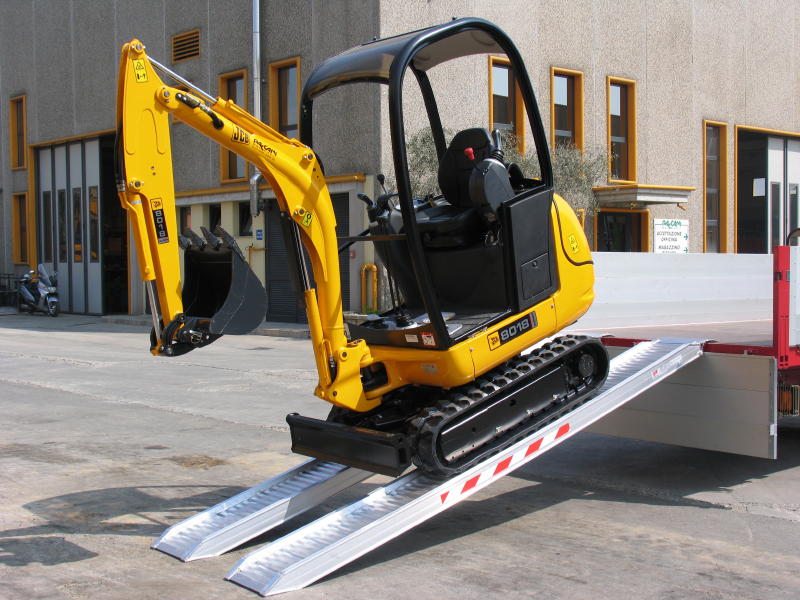

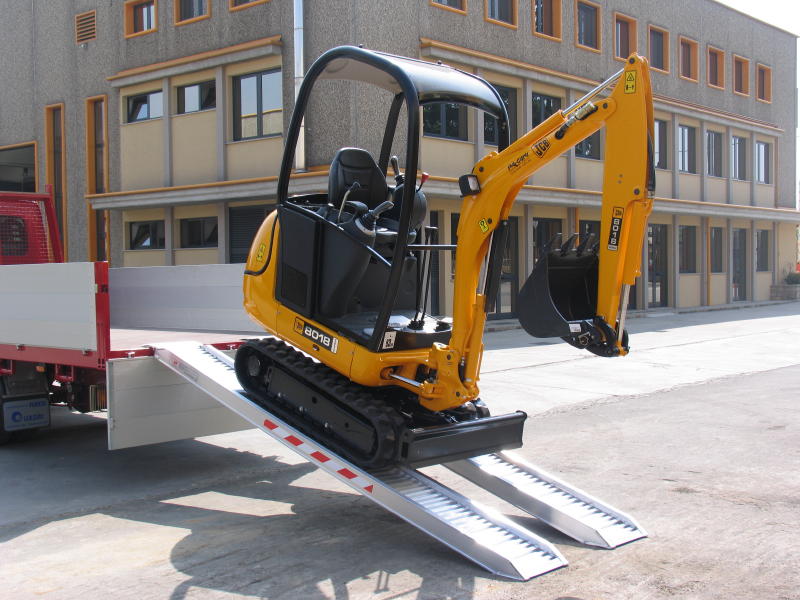

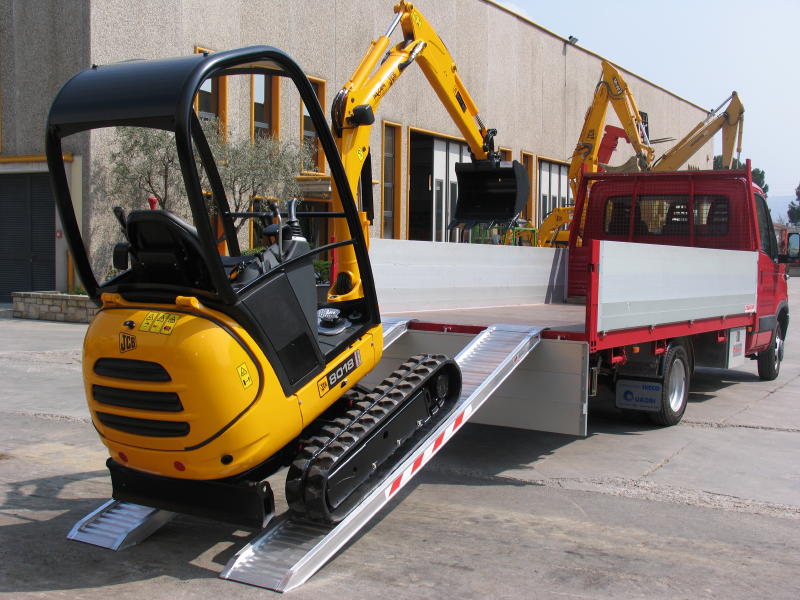

360mm wide x 4500mm long with a 115mm profile thickness. Featuring a maximum capacity of 1800kg, this ramp is ideal for use as a plant ramp or mini digger ramp. Please note the minimum track width is 200mm. Custom built sizes are available on request.
Price and capacity stated is for the PAIR.
Our best selling plant ramps, the TRP116 has a core profile thickness of 115mm. Their width is 360mm. They feature a capacity of up to 1800kg and are ideal for use as plant ramps and mini digger ramps.

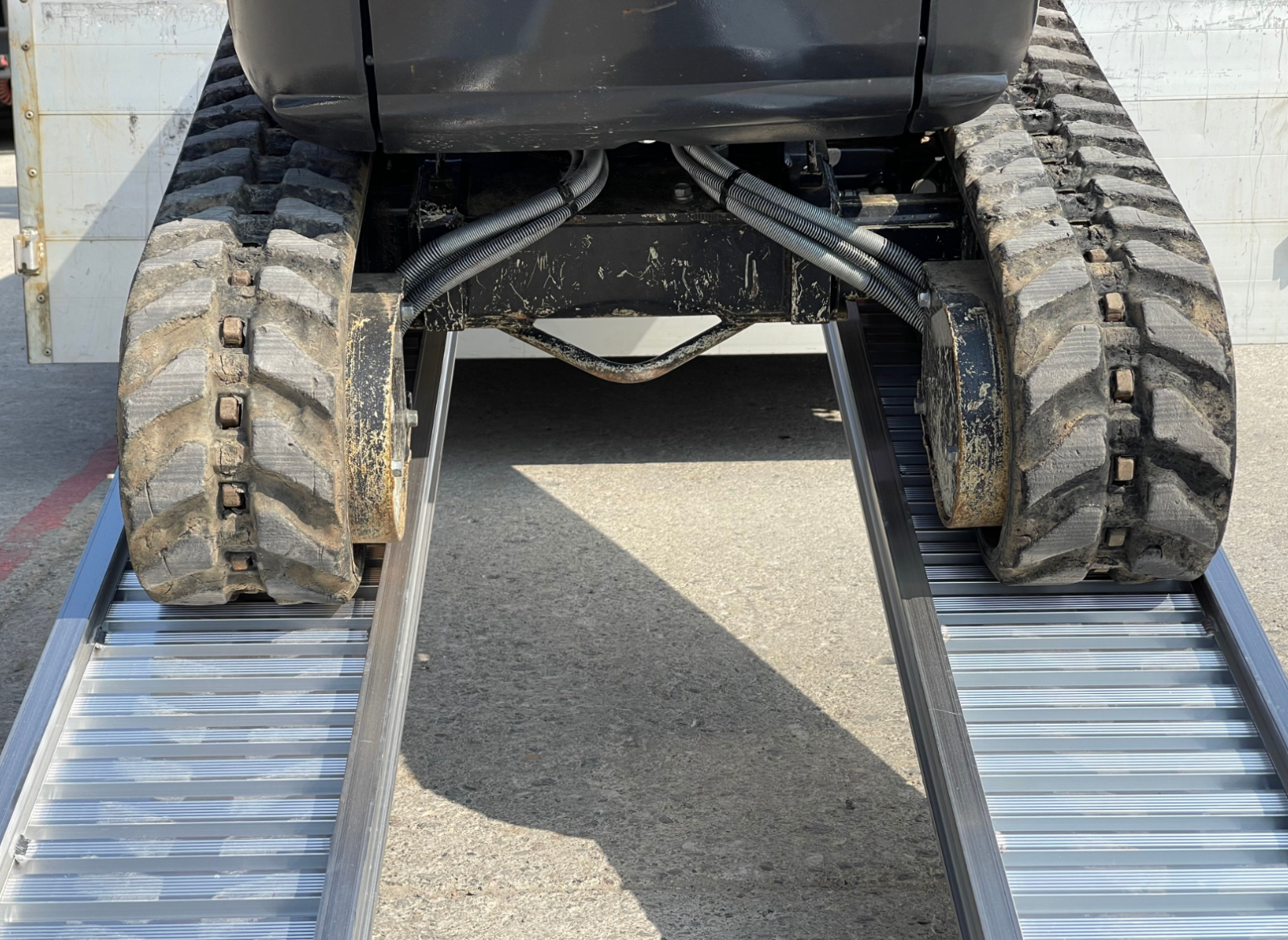

With a width of 360mm, a minimum track width of 200mm is recommended, the maximum track width of 280mm should not be exceeded . The height of the ramp profile is 115mm.
These ramps are not designed for use over 30% gradient
- These ramps are available both with and without edges. The default is however without edges
- Four different connection options available, however the default connection is the rest on connection
- Custom load heights available
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Quotes for bespoke ramps can be supplied on request
- Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
- Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
- Fully TÜV certified
Usage guidelines and safety information for our full vehicle ramp range can be found here.
SKU | TRP116/45 |
---|---|
Default Connection | Rest On Connection |
Capacity (kg) | 1800 |
Height of Ramps Profile (mm) | 115 |
Length (mm) | 4500 |
Max Load Height (mm) | 1350 |
Min. Load Height (mm) | 1200 |
Weight per Ramp (kg) | 32.5 |
Weight Per Pair (kg) | 65 |
Width (mm) | 360 |
Minimum Track Width (mm) | 200 |
Maximum Track Width (mm) | 280 |
One Year Warranty | Yes |
Connection Options Available | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Not Solid Wheels | Yes |
Capacity Wheelbase 1000mm (kg) | 1285 |
Capacity Wheelbase 1500mm (kg) | 1500 |
Capacity Wheelbase 2000mm (kg) | 1800 |
