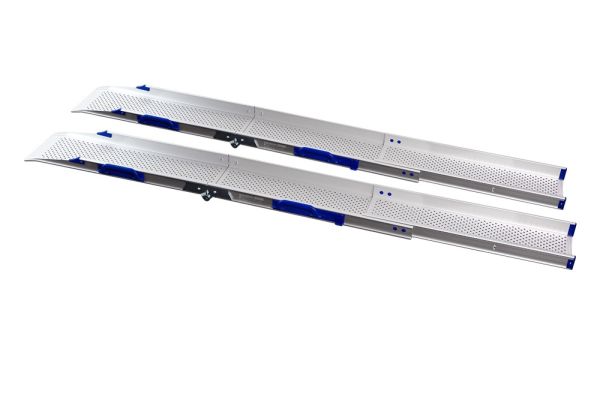

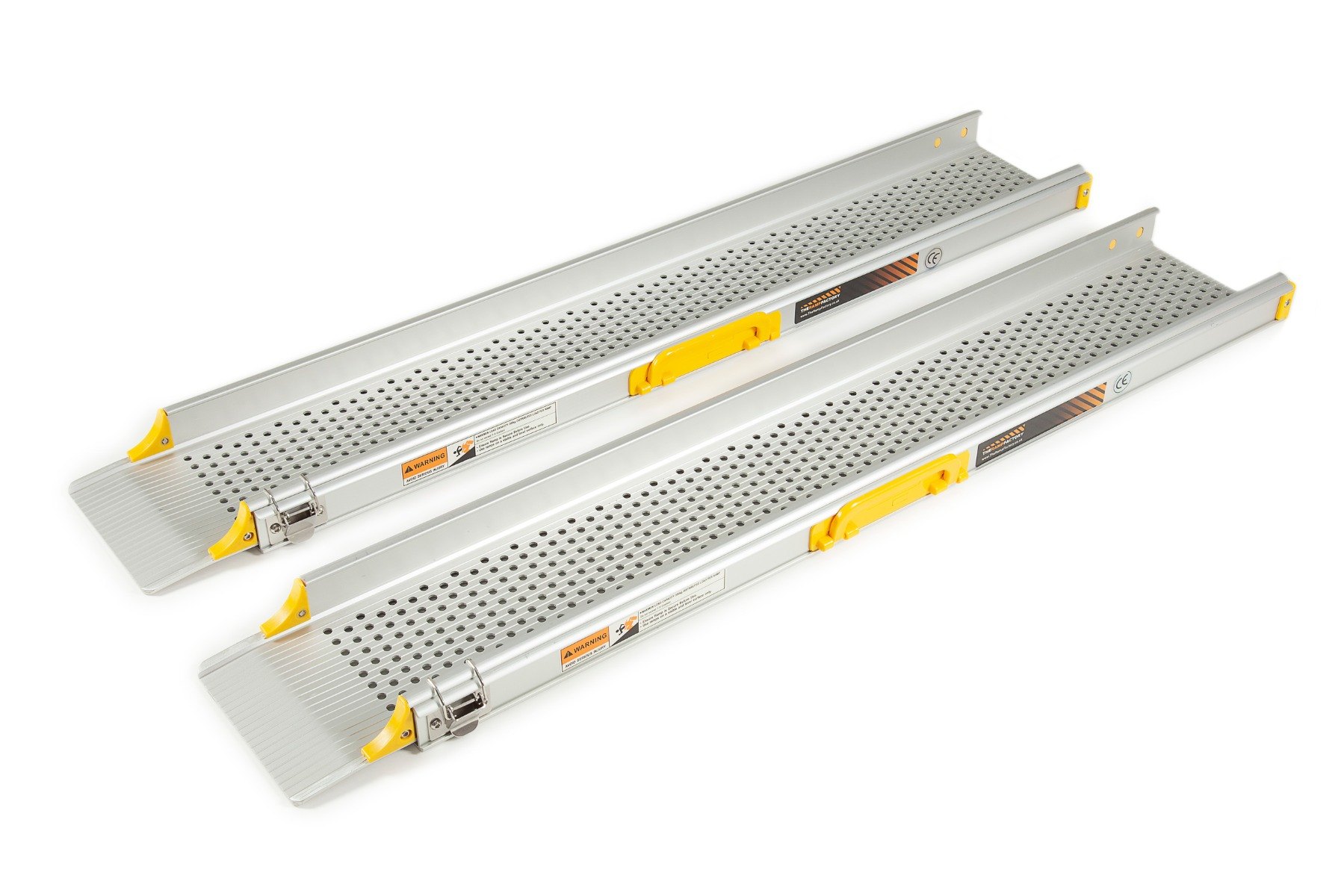

Economy Telescopic Channel Ramps 4ft - 12ft long

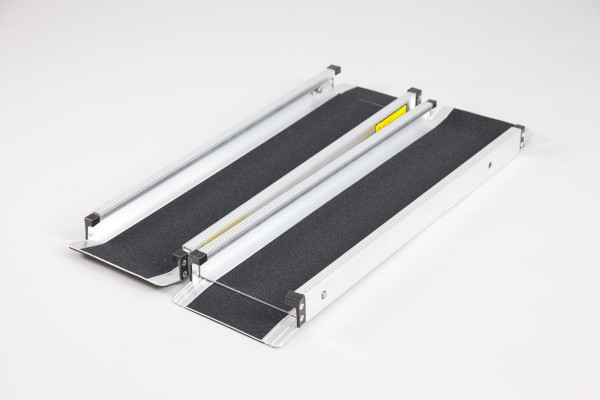

The Telescopic Economy Channel Ramp is suited for those that need unlimited adjustability and easy storage. Available in 6ft, 7ft, 8ft, 10ft and 12ft lengths, they are extremely versatile and ideal for home and commercial use. Price and capacity stated is for the PAIR. We have the 4ft, 5ft or 6ft long ramps, also available improved with the black grip surface.

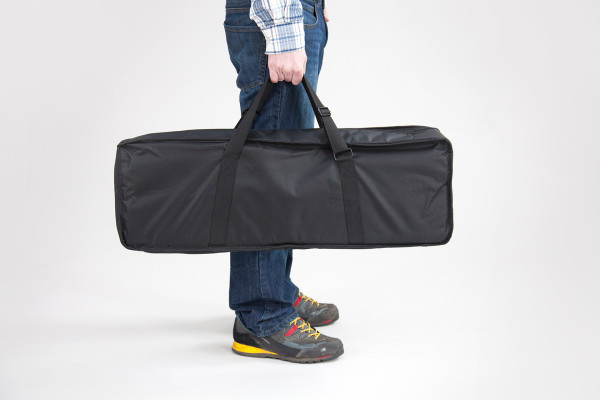

Wheelchair ramp bags available when you view the basket with 10% discount when buying with the ramps, just use the code TRP-BAGS at the Basket sumary before checkout.

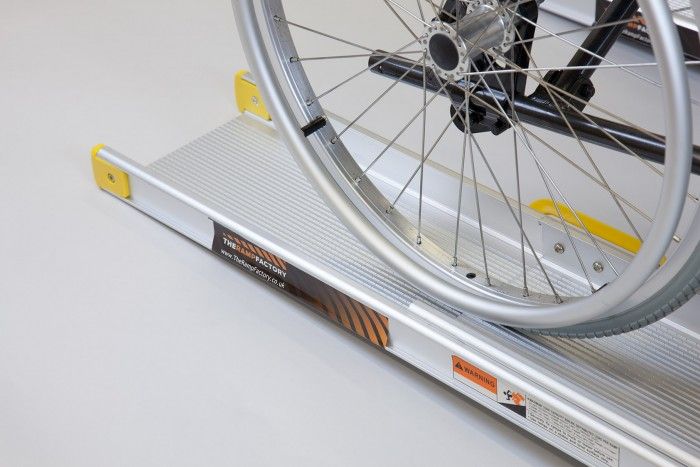

Please note that those channel ramps are ONLY suitable for manual wheelchairs.
- Maximum gradient = 1 in 6 although 1 in 8 is recommended
- 5cm High Walls
- Quick and easy to set up
- Durable non-slip surface
- Rest on connection, to fit just rest on and start loading
- Perfect for kerbs and steps
- Edges on each side of the ramp to prevent accidentally wheeling off
- 275kg capacity
- For help identifying the ramp length you require please use our ramp length calculator or contact our team.
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
-
These ramps are only suitable for use as mobility aids
Economy Channel Ramps Range
6ft
- Extended Length: 6ft(1830mm)
- 2 Part Ramp
- Min. Length (mm): 1090
- Weight per ramp (kg): 6
- Capacity (kg): 275
- Total width (mm): 210
- Internal width (mm): 165
- Max. load height (mm): 300
7ft
- Extended Length: 7ft(2130mm)
- 2 Part Ramp
- Min. Length (mm): 1260
- Weight per ramp (kg): 7
- Capacity (kg): 275
- Total width (mm): 210
- Internal width (mm): 165
- Max. load height (mm): 355
8ft
- Extended Length: 8ft(2440mm)
- 2 Part Ramp
- Min. Length (mm): 1370
- Weight per ramp (kg): 8
- Capacity (kg): 275
- Total width (mm): 210
- Internal width (mm): 165
- Max. load height (mm): 405
10ft
- Extended Length: 10ft(3040mm)
- 3 Part Ramp
- Min. Length (mm): 1270
- Weight per ramp (kg): 10
- Capacity (kg): 275
- Total width (mm): 190
- Internal width (mm): 180
- Max. load height (mm): 505
12ft
- Extended Length: 12ft(3650mm)
- 3 Part Ramp
- Min. Length (mm): 1460
- Weight per ramp (kg): 11.5
- Capacity (kg): 275
- Total width (mm): 190
- Internal width (mm): 180
- Max. load height (mm): 610
SKU | TRP107-channel |
---|---|
Capacity (kg) | 275 |
Length (ft) | 6- 12 |
Max Load Height (mm) | 610 |
Weight per Ramp (kg) | 6- 11.5 |
One Year Warranty | Yes |
Easy to Fit | Yes |
Manual Wheelchair | Yes |
Not Mobility Scooter Friendly | Yes |
