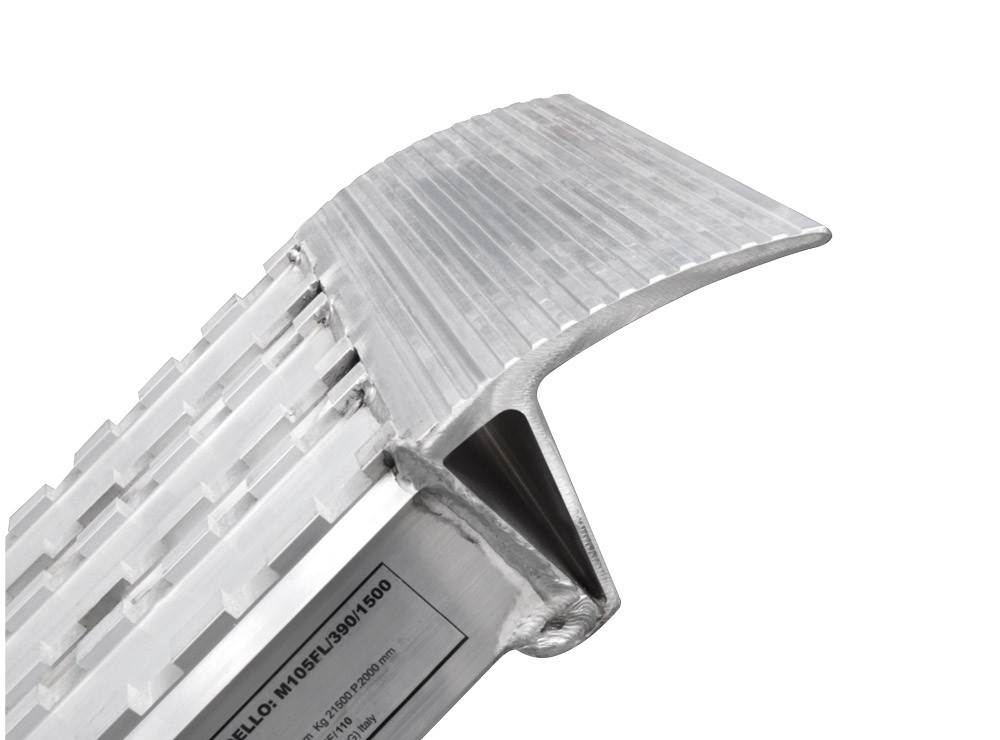

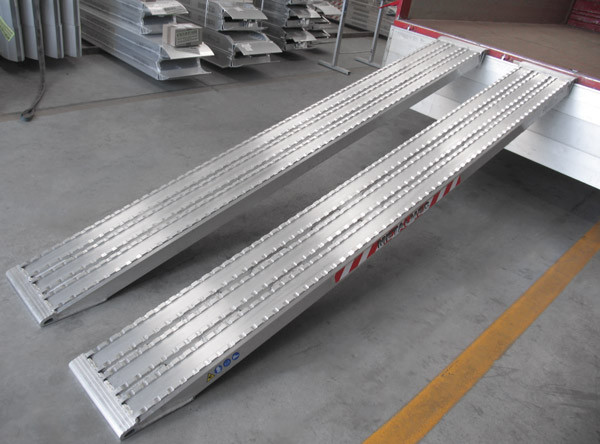

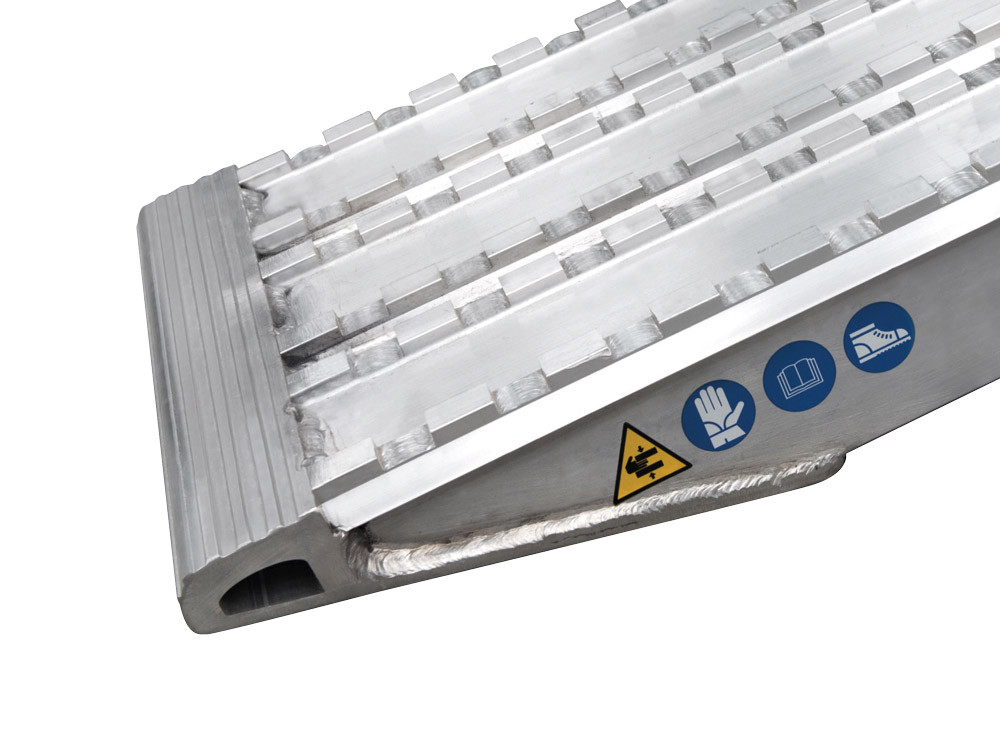

PAIR of ALUMINIUM RAMPS (105X520X3500 - 12195kg) Standard. Milled surface

520mm wide x 3500mm long, with a 105mm profile thickness. Featuring a maximum capacity of 12,195kg, this heavy duty ramp is ideal for use as a plant ramp, digger ramp and for tele-handlers. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)3500
Width (mm)520
Max. Load Height (mm)1050
Weight Per Ramp (kg)80.5
Weight Per Pair (kg)161
Capacity (kg)12195
Product Inquiry
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • One Year Warranty
€3,630.00 €3,000.00
SKU
TRP-105F/520/3500
Built to Order
Talk to The Ramp People's sales team

Our heaviest duty ramps, designed to carry steel tracked vehicles and equipment. The Ramp People range of steel tracked ramps' core profile thickness is 105mm. Available 520mm wide, these ramps feature no external welds and offer a capacity of up to 29,000kg. They are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.

  • Flat top with no external welds
  • On capacities over 20,000kg only Bottom Hook Connection or Tube Connection possible
  • Custom load heights available
  • Quotes for bespoke ramps can be supplied on request
  • Special 25/30 surface available on request, suitable for when using rubber tracked and steel tracked machinery
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Fully TUV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP-105F/520/3500
Default Connection Rest On Connection
Capacity (kg) 12195
Height of Ramp Profile (mm) 105
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 80.5
Weight Per Pair (kg) 161
Width (mm) 520
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Capacity Wheelbase 1000mm (kg) 7315
Capacity Wheelbase 1500mm (kg) 9145
Capacity Wheelbase 2000mm (kg) 12195
