Checkers LineBacker 3 Channel 45 Deg Left Turn

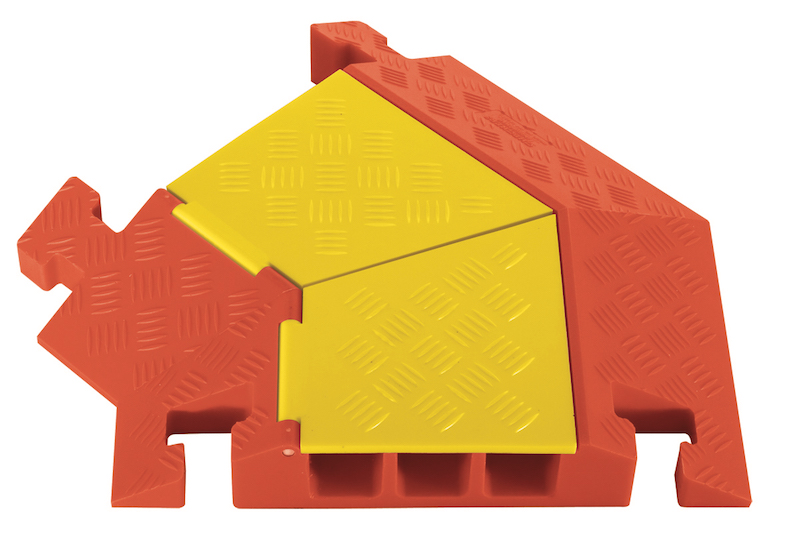

The 45 degree corner section to the left for the Linebacker 3-Channel cable protector in orange/yellow.
4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.
Linebacker 3-Channel cable protector 45 degree corner section to the left with hinged lid provides a safe crossing for vehicles and pedestrian traffic while protecting valuable electrical cables and hose lines from damage in extreme weather conditions and work environments. Modular interlocking design is ideal for use in oil and gas applications, mining, military, and other industrial environments with heavy trucks and forklifts. With a capacity from 12,892kg it is one of our stronger cable protectors.
- Protects cables and hoses up to 2.25" outside diameter
- T-connector to extend to any desired length, suitable for the Linebacker 3-Channel cable protector
- Reinforced hinged lid for easy cable placement
- All-weather polyurethane construction
- Patented 5-bar tread surface for maximum traction
- Modular interlocking design for easy setup
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
|One Year Warranty||Yes|
|Easy to Fit||Yes|
|Channel Width (mm)||57|
|Channel Height (mm)||57|
|Max Cable/ Hose Diameter (mm)||57.2|
