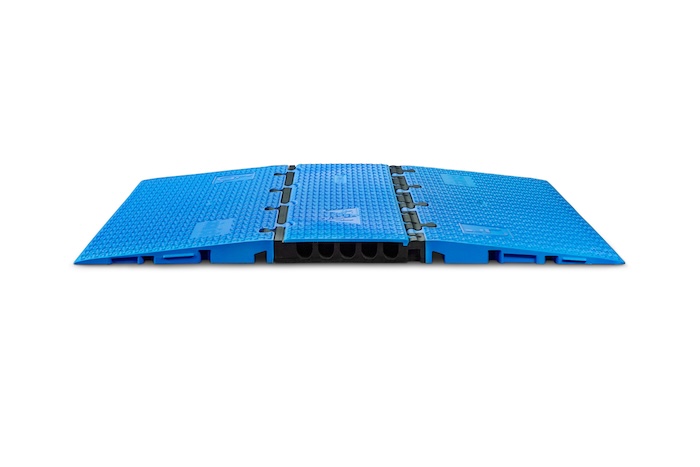

Defender Midi 5 2D Set Blue - Wheelchair Ramp Cable Protector Set
The Defender Wheelchair Ramp Cable protector set has been designed for use with the Defender MIDI 5 cable protection system also providing easy access for walking frames, wheelchairs, mobility scoters and trolleys .

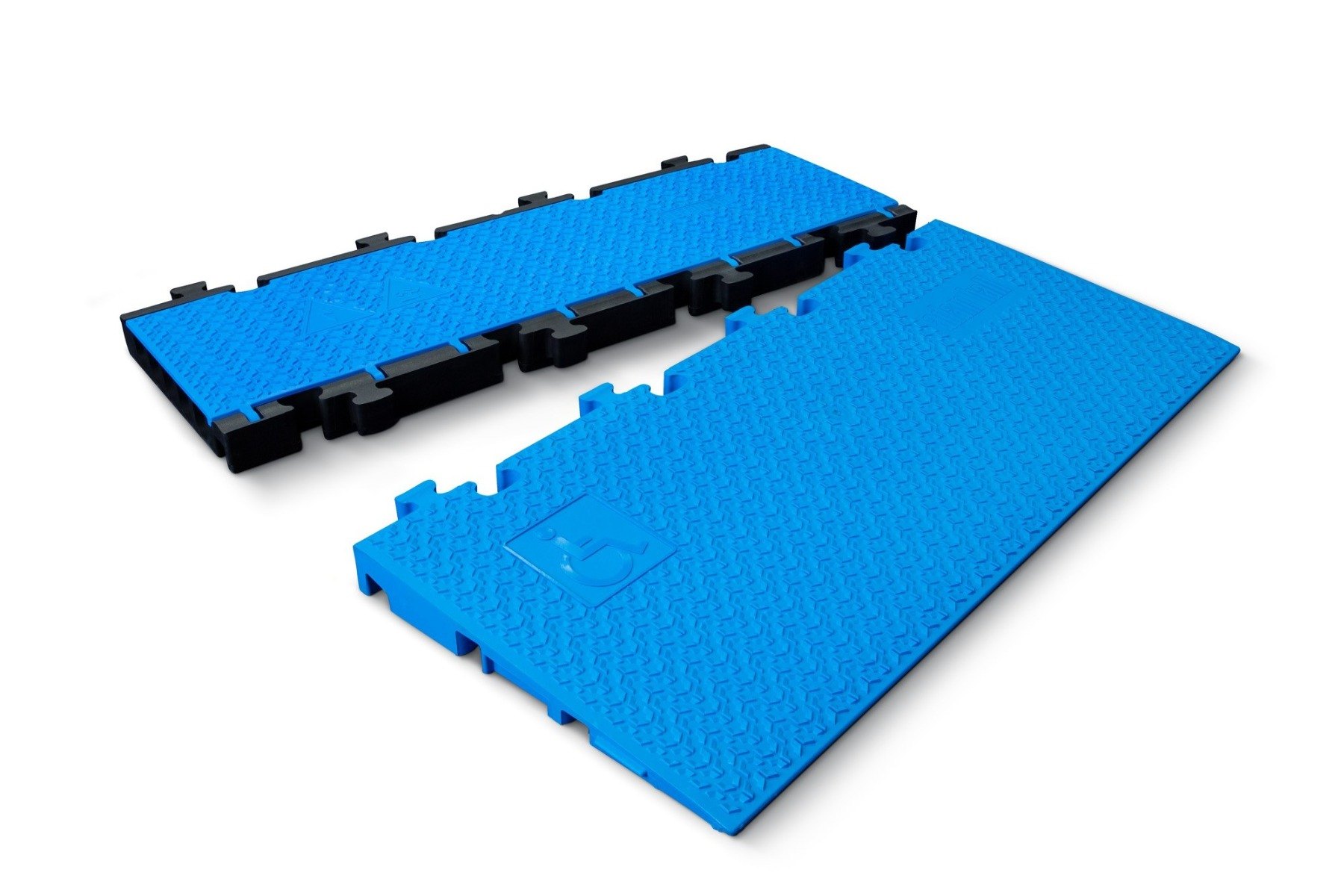

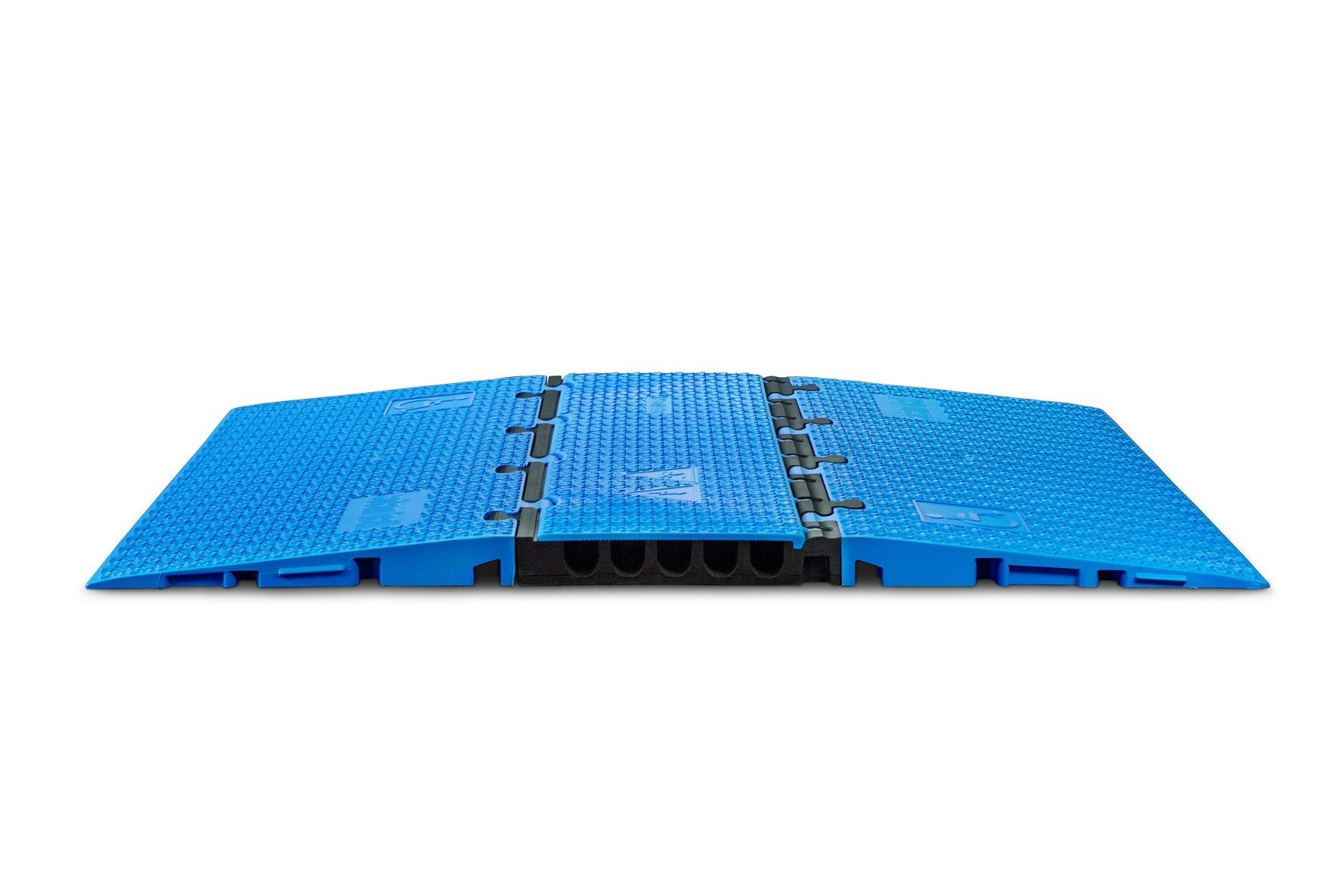

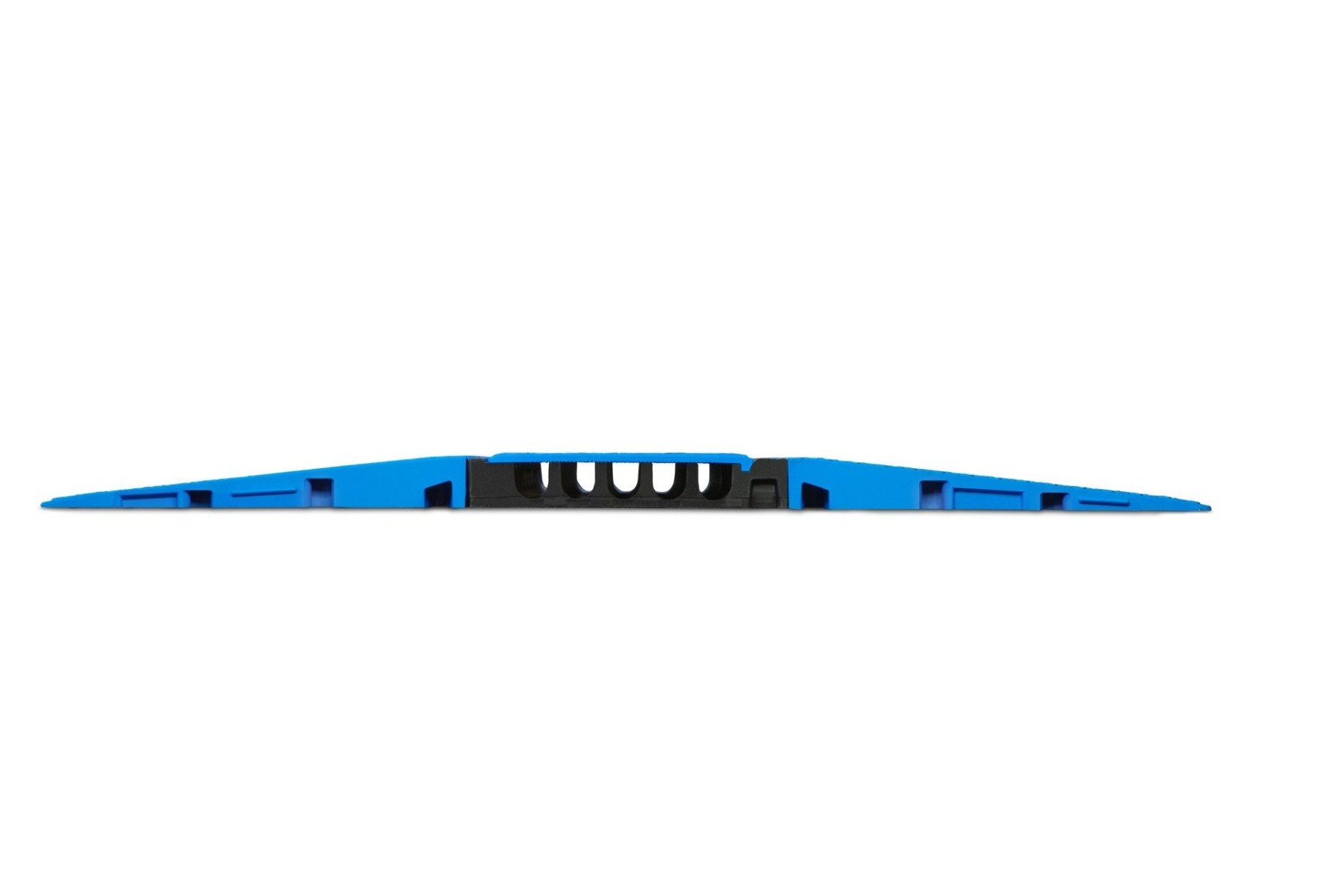

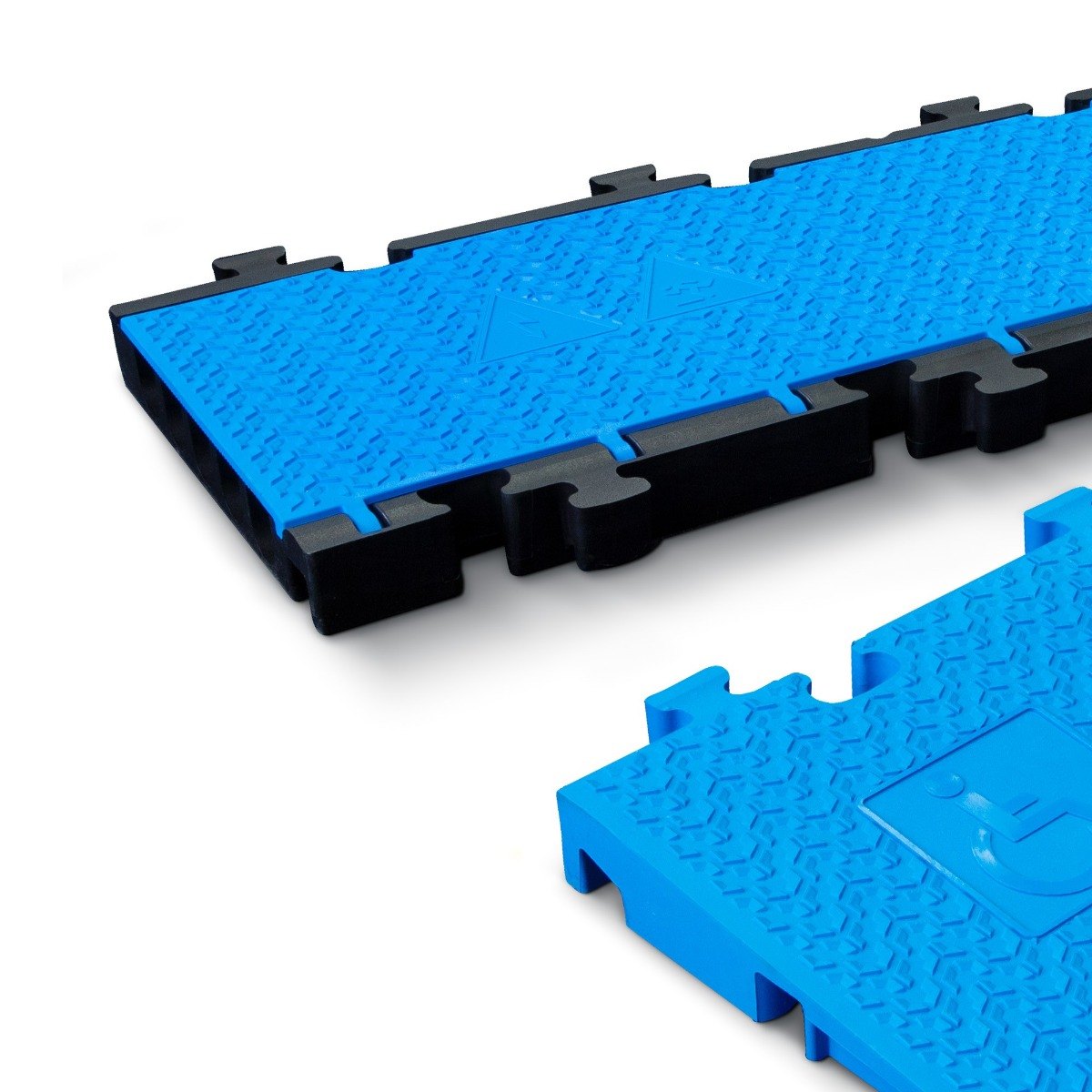

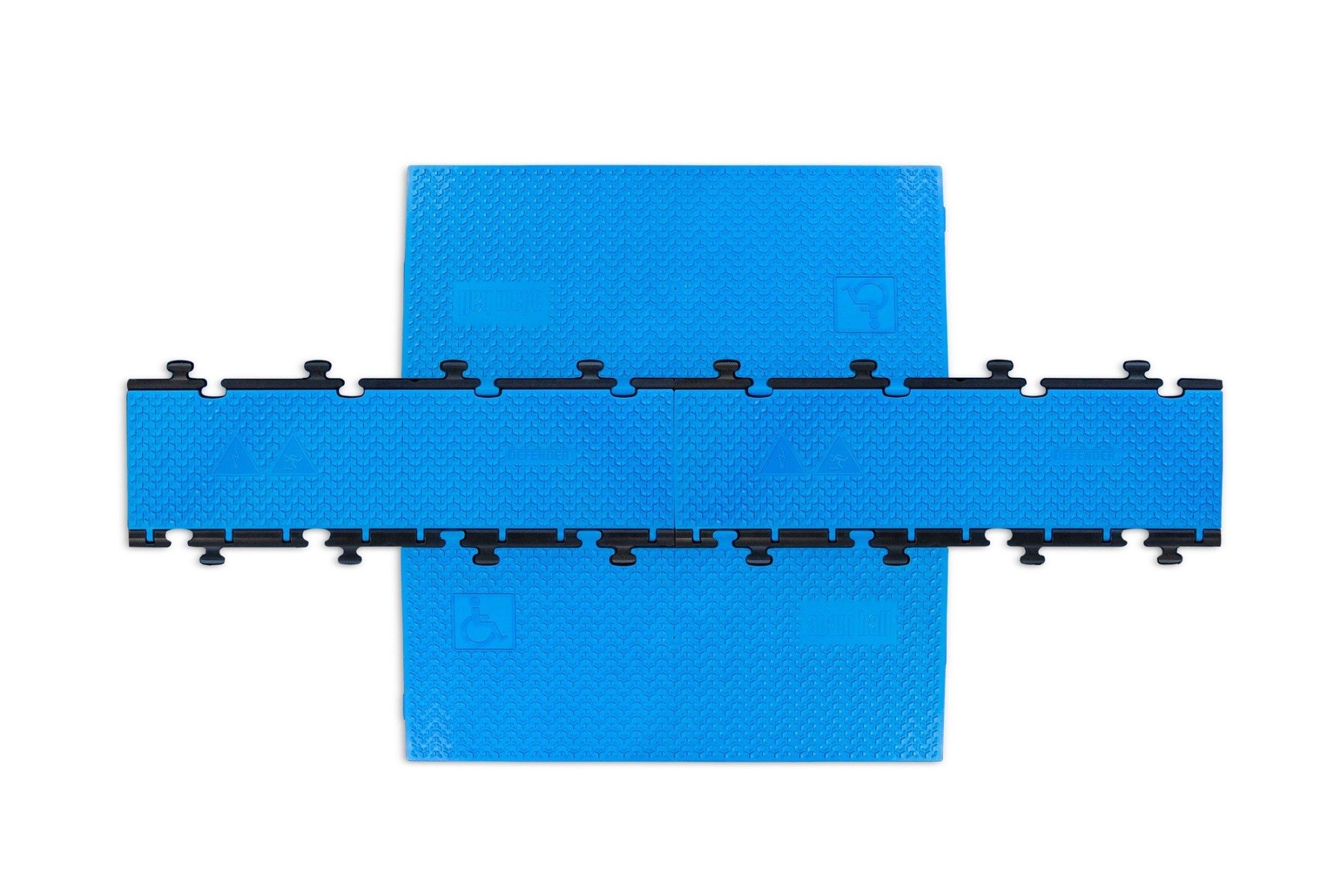

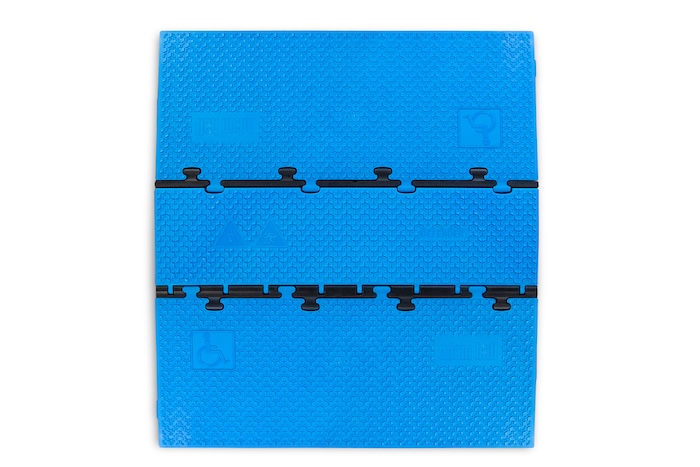

Set consisting of 2 ramps and a middle section and is compatible with the MIDI 5 cable protector range that can be combined and extended as required, both in length and width.
Please contact us for more information.
- Made of extremely robust and break-proof TPU
- TÜV SÜD certified

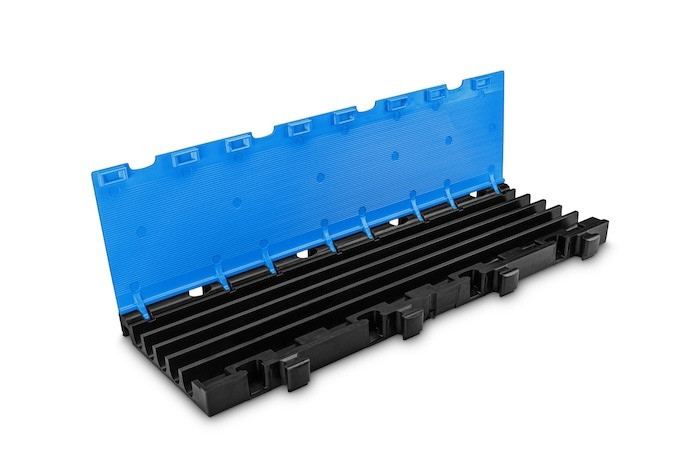

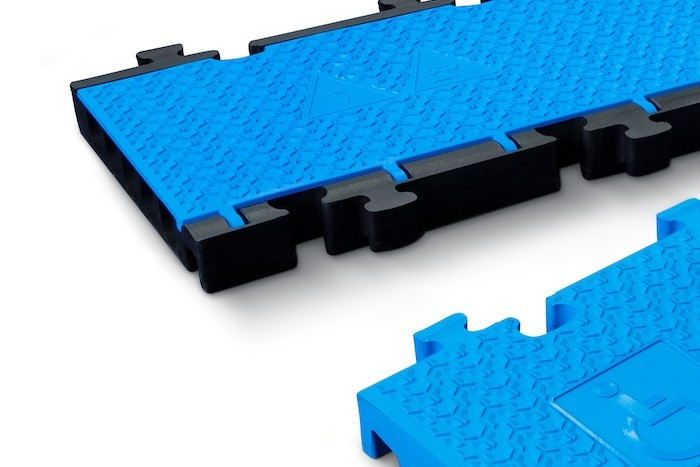

- Heavy-duty all-round cable bridge with 3D laser grip anti-slip surface made of blue recycled polyurethane and patented self-cleaning lid hinge
- Safe and convenient access for wheelchairs, rolling walkers, walkers, trolleys, etc.
- Drive-across zone 80 cm, expandable to any desired width
- Simple, multidirectional modular structure with unlimited expandability in width and length
- Resistant to oil, acids, solvents, and petrol
- Load capacity: approx. 5 t / 25 × 30 cm
- Suitable for motor vehicles
- All components also available separately
- User guide available here
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

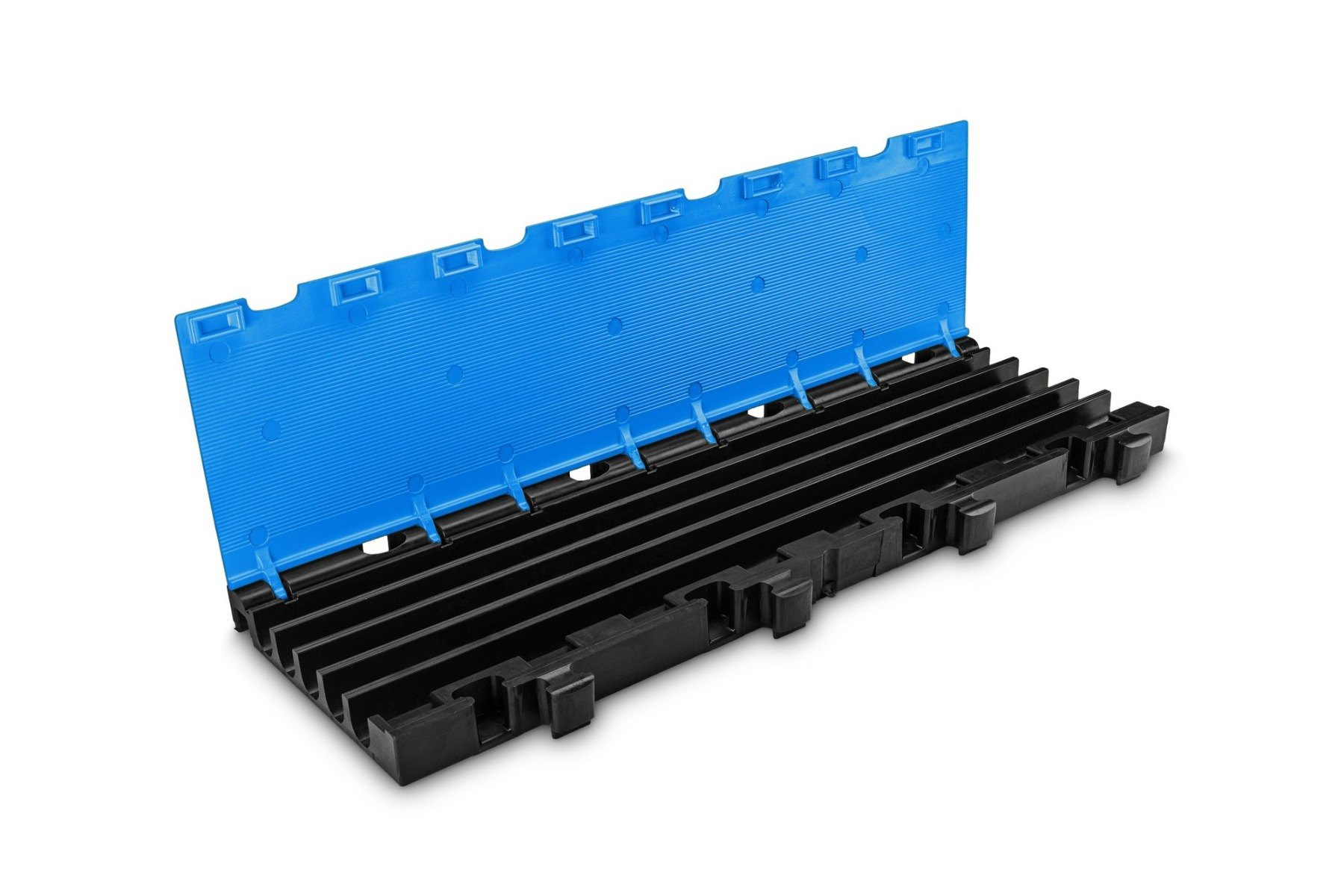

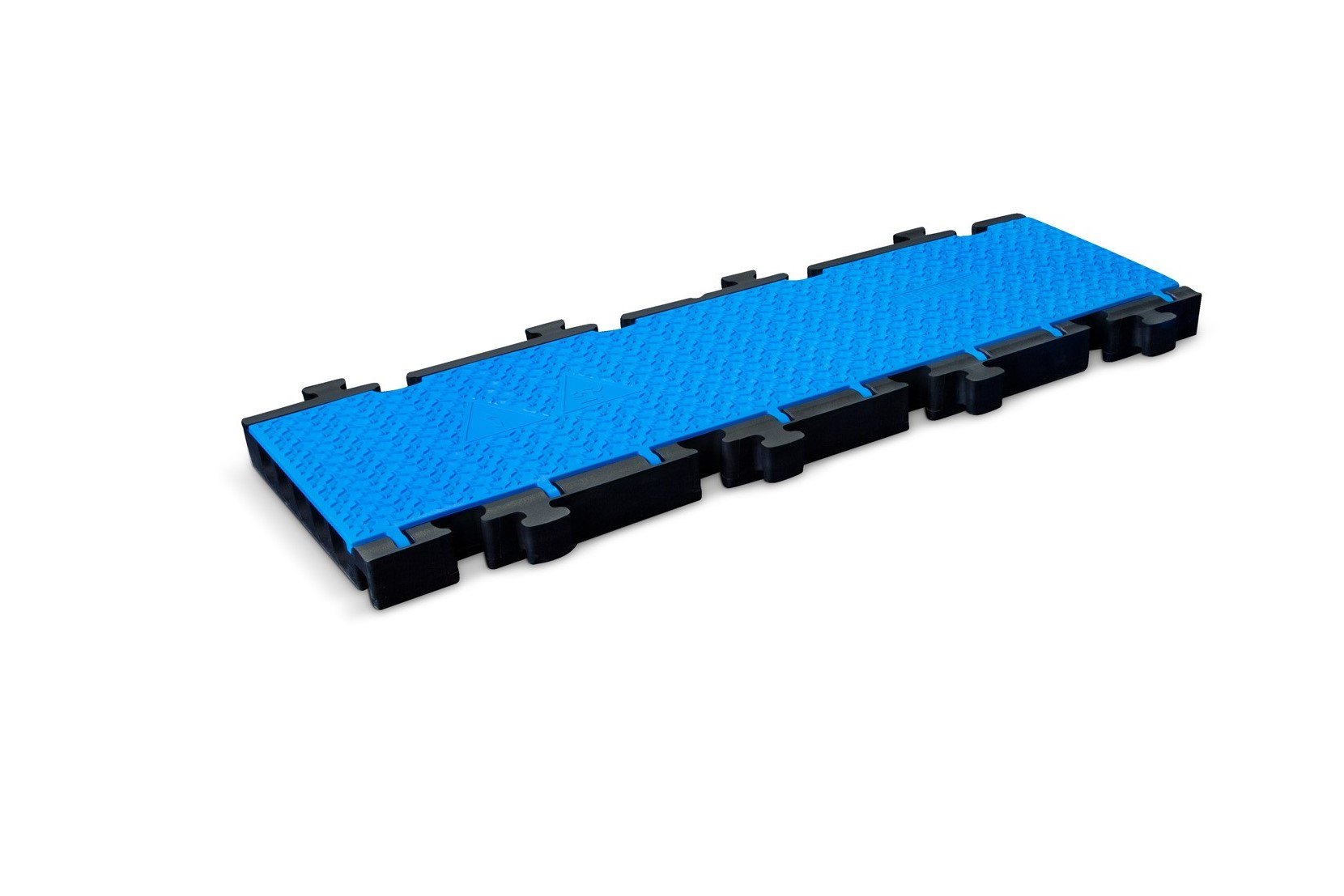

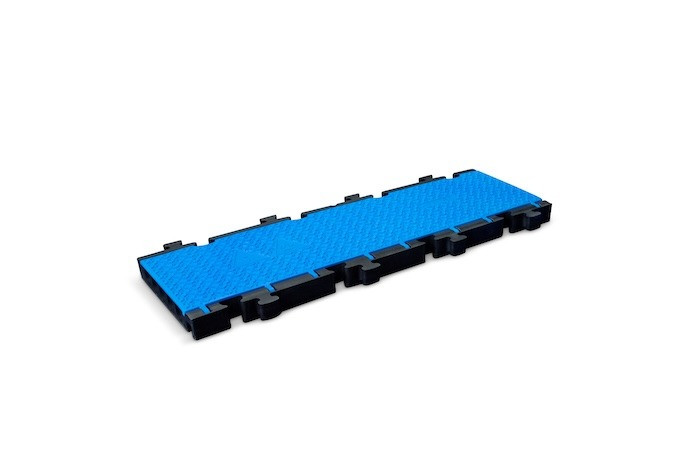

Defender MIDI 5 2D BLU Midi 5 2D module system for wheelchair ramp and wheelchair accessible transition - middle part blue lid .
Dimensions Cable Protector 5-channels 34.5 x 38.6 mm, dimensions 1000mm x 325mm x 54mm; Weight 10.2 kg
- Material : Polyurethane
- Max load : Approx. 5 t on a surface area of 25 x 30 cm
- Chemical resistance : Oil-resistant, Petrol-resistant, Short-term contact with solvents
- Hardness range : 88 Shore ± 4 A Shore
- Fire protection class : Class E in accordance with DIN EN 13501-1 (B-s1 pending)
- Temperature range : - 30 to 60 °C

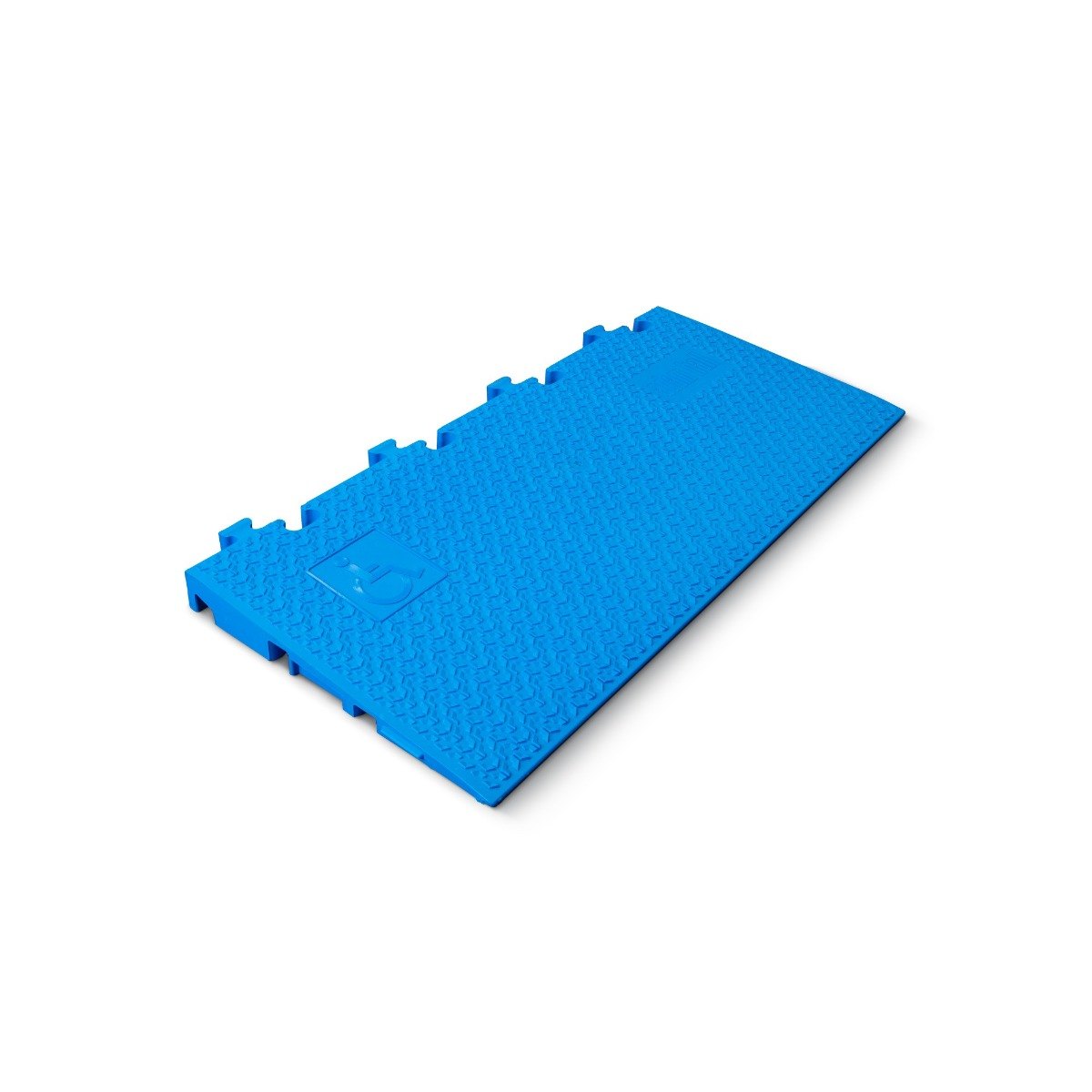

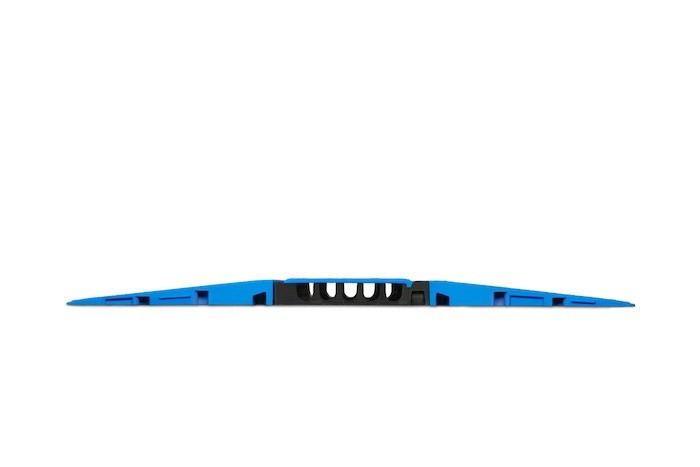

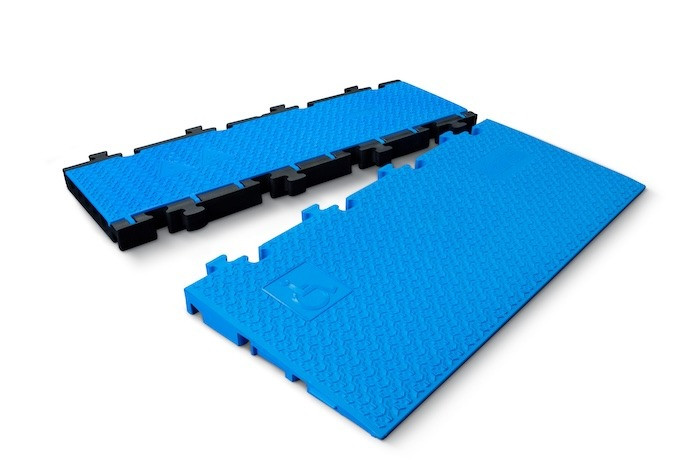

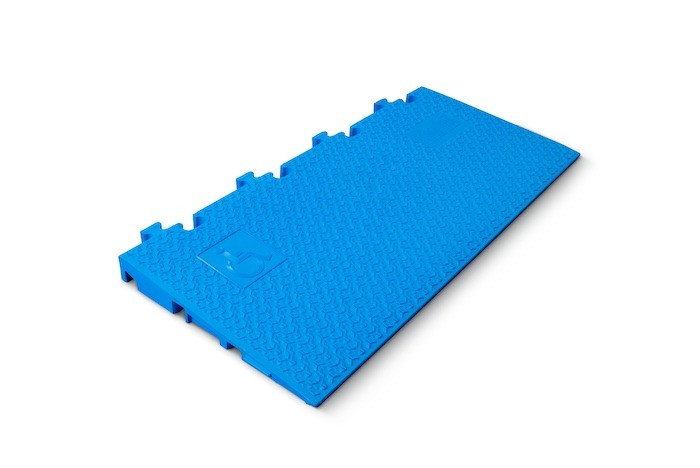

Defender MIDI 5 2D R BLU Midi 5 2D blue ramp - modular system for wheelchair accessible transition - Ramp Section
Ramp section Dimensions 1000mm x 430mm x 54mm; Weight 8.5kg
- Blue Material : Polyurethane
- Max load : Approx. 5 t on a surface area of 25 x 30 cm
- Chemical resistance : Oil-resistant, Petrol-resistant, Short-term contact with solvents
- Hardness range : 88 Shore ± 4 A Shore
- Fire protection class : Class E in accordance with DIN EN 13501-1 (B-s1 pending)
- Temperature range : - 30 to 60 °C
SKU | TRP-869300SETBLU |
---|---|
Capacity (kg) | 5000kg / 25 × 30 cm |
Height (mm) | 54 |
Length (mm) | 1000 |
Total Width (mm) | 755 |
Weight (kg) | 31.76 |
Weight per Ramp (kg) | 9.5 |
Width (mm) | 430 + 325 |
One Year Warranty | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Manual Wheelchair | Yes |
Mobility Scooter Friendly | Yes |
Channel Width (mm) | 345 |
Channel Size (mm) | 34.5 x 38.6 mm |
Channel Height (mm) | 386 |
No. Channels | 5 |
Durometer A | 88 Shore ± 4 A Shore |
