Cable Protector TRP-BPCP2S (5 Channels) Black

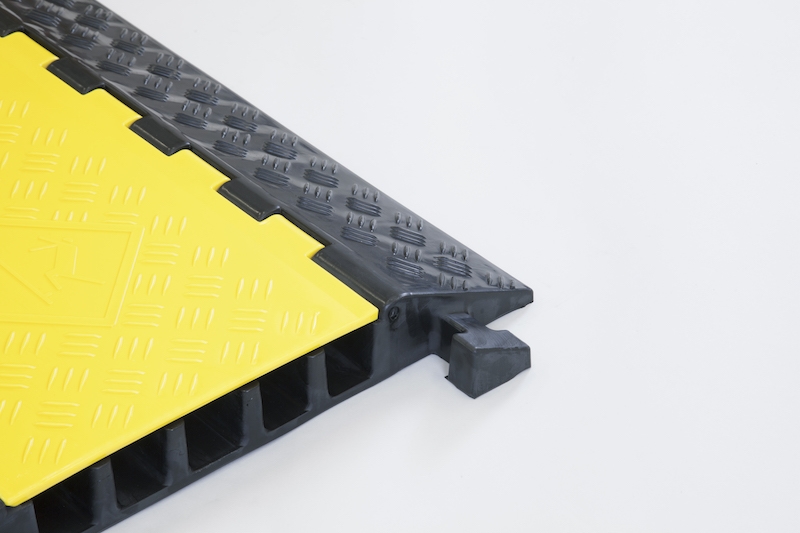

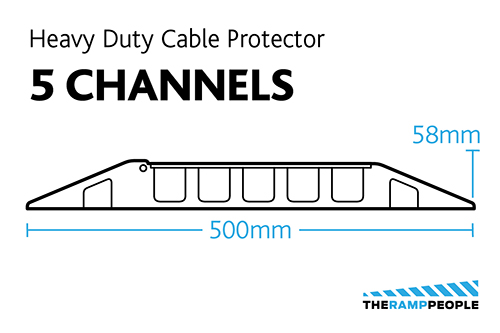

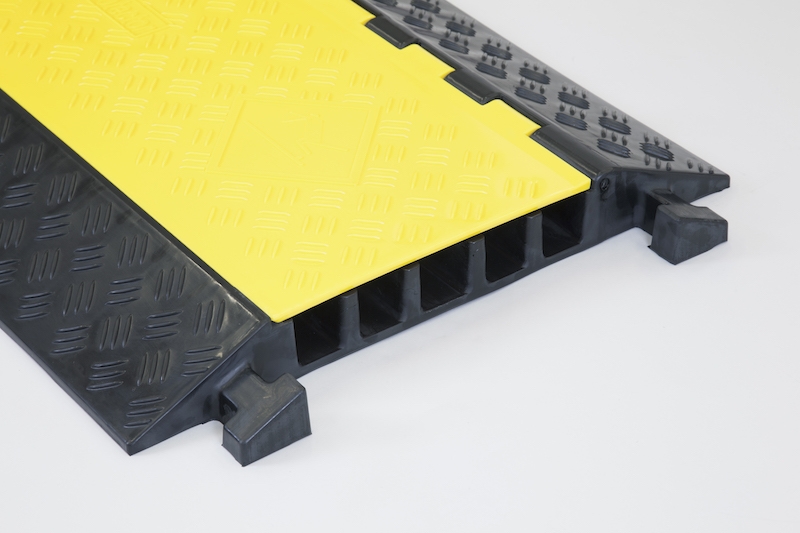

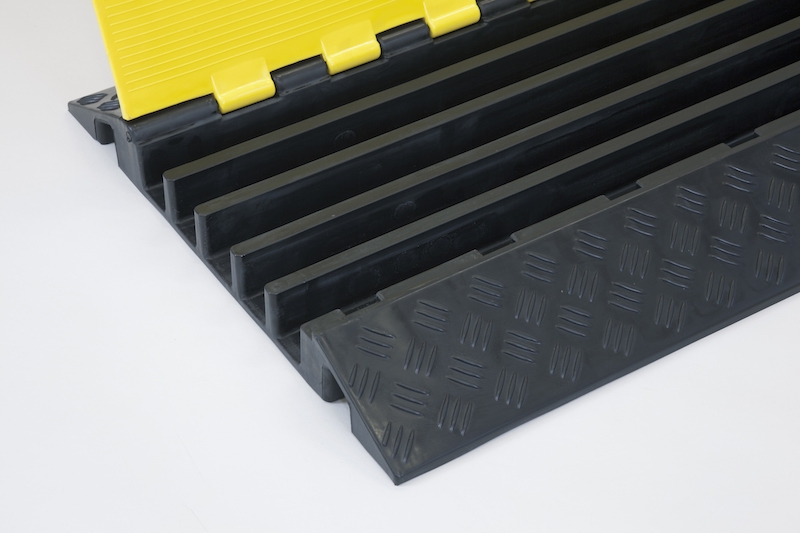

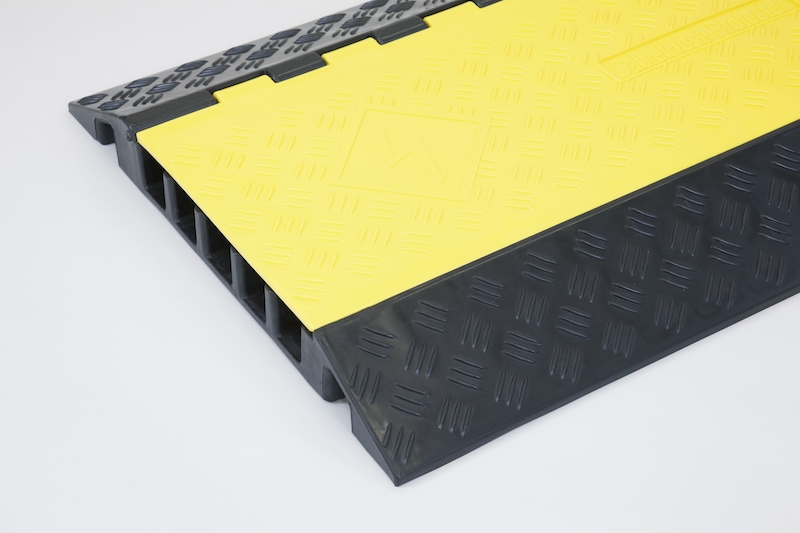

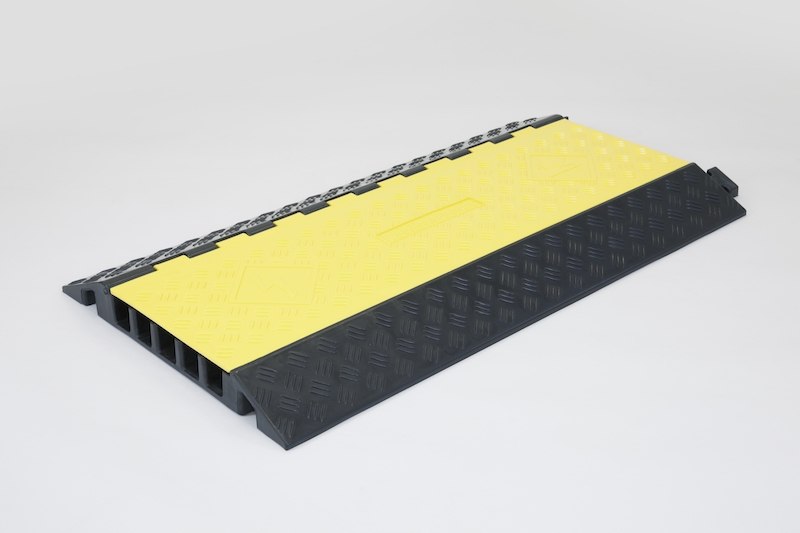

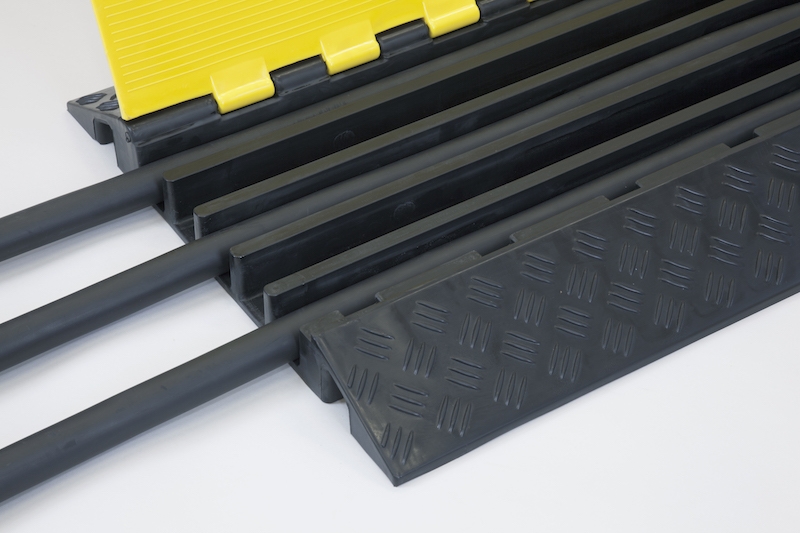

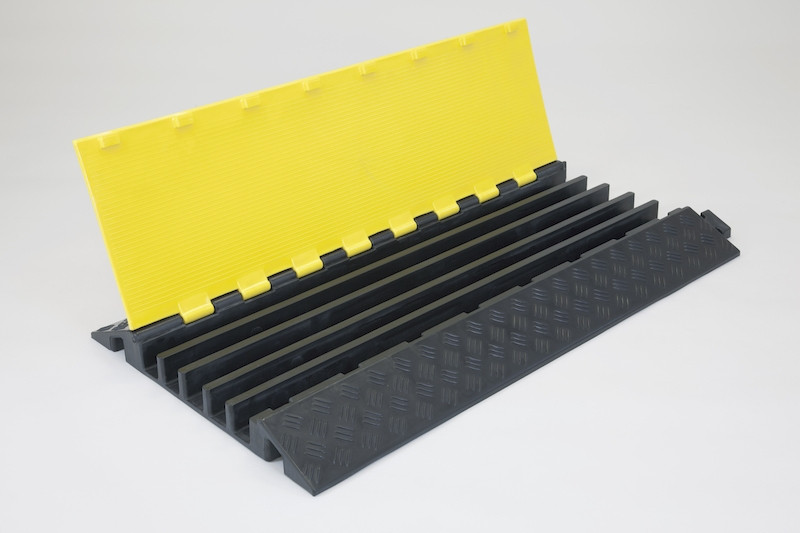

Straight 5-channel heavy-duty cable protector suitable for outdoor and indoor use. 58mm High x 900mm Long x 500mm Wide. 5 channels (31mm x 44mm). Dog-bone connectors allow the cable protectors to easily be secured to one another. Suitable for vehicle and pedestrian traffic, the cable protectors have a 12000kg capacity and come in contrasting black and yellow for high visibility.
Length (mm) | 900 |
---|---|
Width (mm) | 500 |
Height (mm) | 50 |
Weight (kg) | 8.6 |
Capacity (kg) | 12000 |
4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.
These are designed to be crossed at a max speed of 8km/h (5mph) and the maximum weight should not exceed 6000kg per tyre.
Please note, when specifying the required cable protector, we recommend selecting the lowest possible height to ensure maximum clearance for the greatest number of vehicles. We recommend using speed bump signs to slow down traffic and alert road users to the cable protectors.

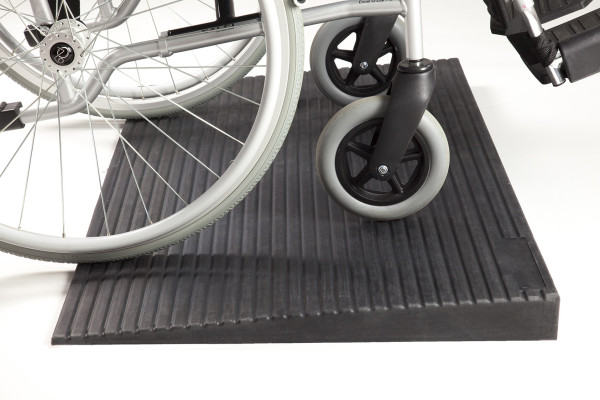

If wheelchairs will be passing over the cable protectors, we recommend purchasing our rubber wheelchair ramp for cable protectors which are compatible with these 5 channel cable protectors.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
SKU | TRP-BPCP2S |
---|---|
Capacity (kg) | 12000 |
Height (mm) | 50 |
Length (mm) | 900 |
Weight (kg) | 8.6 |
Width (mm) | 500 |
One Year Warranty | Yes |
Bulk Prices Available | Yes |
Easy to Fit | Yes |
High Visability | Yes |
Leave Outside | Yes |
Cable Protector Color | Black/Yellow |
Channel Width (mm) | 31.1 |
Channel Size (mm) | 31 x 44 |
Channel Height (mm) | 44 |
Max Cable/ Hose Diameter (mm) | 31,1 |
No. Channels | 5 |
Capacity per Axle (kg) | 12000 |
Capacity per Tyre (kg) | 6000 |
Operating Temperature (deg. F) | -40 °F up to 131 °F |
Durometer A | A93 |
Elongation At Break | 500% |
Tensile Strength | 12 MPa |
Speedlimit (mph) | 5 |
