Aluminium Loading Ramps (2500x400x8000kg)

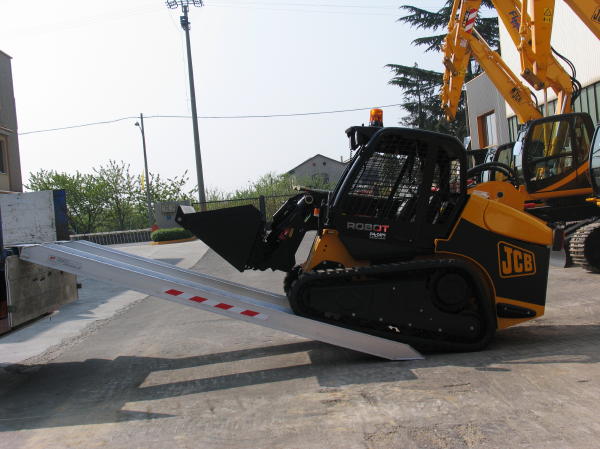

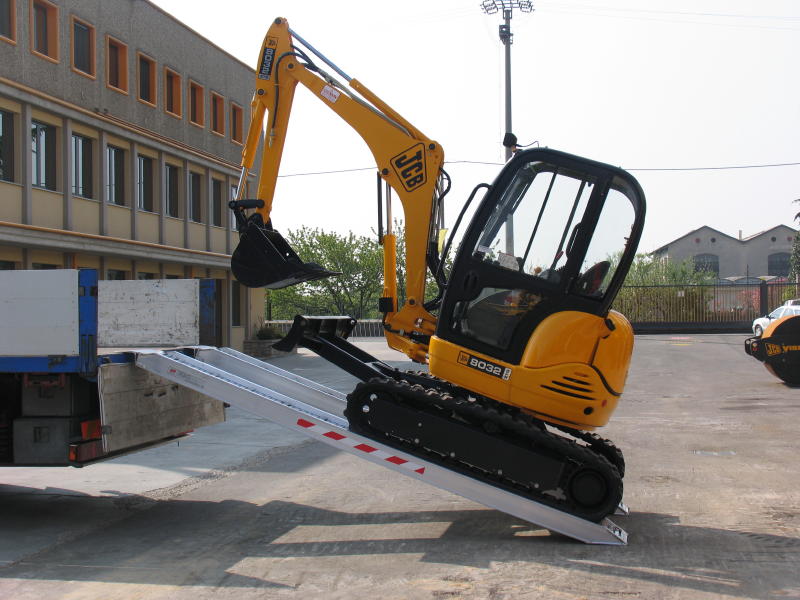

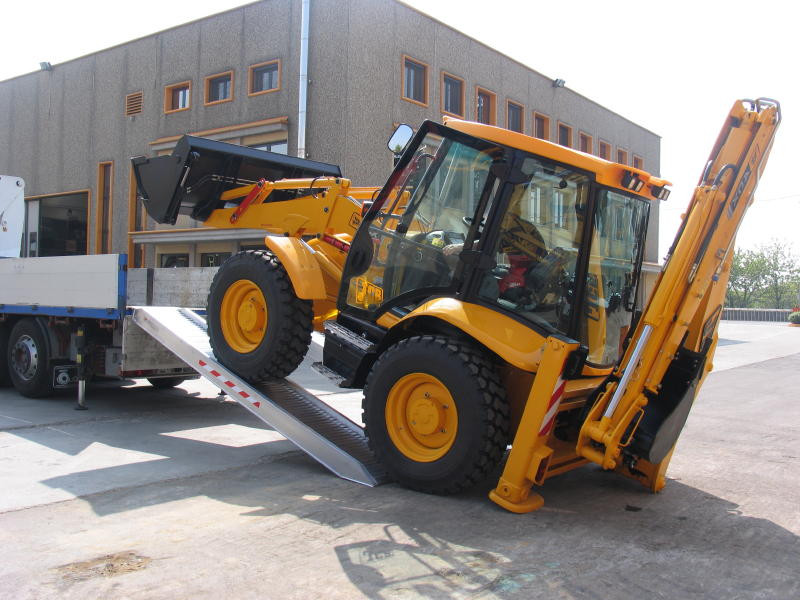

400mm wide x 2500mm long with a 150mm profile thickness. Featuring a maximum capacity of 6000kg, this ramp is ideal for use as a plant ramp, digger ramp or telehandler ramp. Please note the minimum track width is 200mm and maximum 320mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)2500
Width (mm)400
Max. Load Height (mm)750
Weight Per Ramp (kg)29.5
Weight Per Pair (kg)59
Capacity (kg)8000
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty

4-10 business day delivery* throughout Ireland from the UK for all products on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

€1,125.00
SKU
TRP150/25
Built to Order
Description

Some of our best selling medium to heavy duty plant ramp, the TRP150 Series core profile thickness is 150mm. The TRP150 Series has a width of 400mm. They feature a capacity of up to 6000kg and are ideal for use as plant ramps, for digger ramps and for tele-handlers.

On the TRP150 series the minimum width of tracks/wheels is 300mm. These Ramps are not designed for use over a 30% gradient.

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified
  • Quotes for bespoke ramps can be supplied on request

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

Details
SKU TRP150/25
Default Connection Rest On Connection
Capacity (kg) 8000
Height of Ramps Profile (mm) 150
Length (mm) 2500
Max Load Height (mm) 750
Min. Load Height (mm) 600
Weight per Ramp (kg) 29.5
Weight Per Pair (kg) 59
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 6870
Capacity Wheelbase 1500mm (kg) 8000
Capacity Wheelbase 2000mm (kg) 8000
Usable Width (mm) 340
