Aluminium Loading Ramps (2500x360x3800kg)

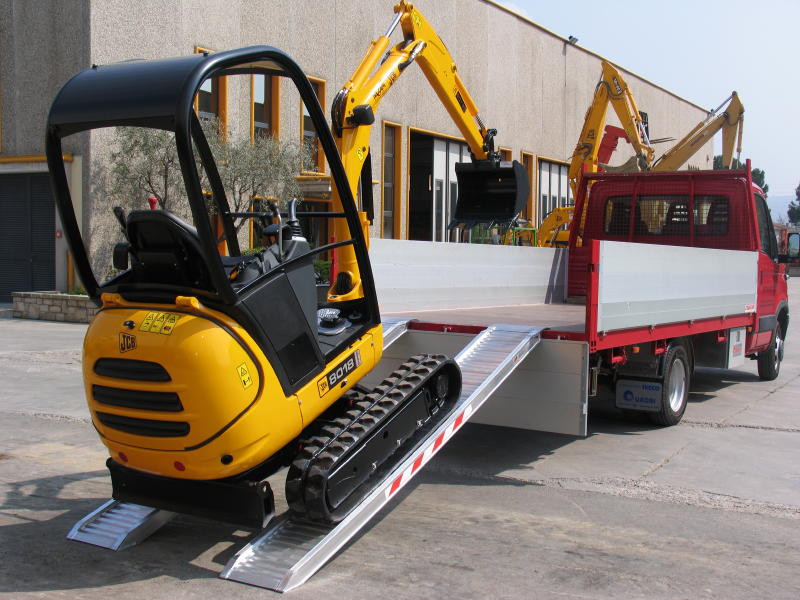

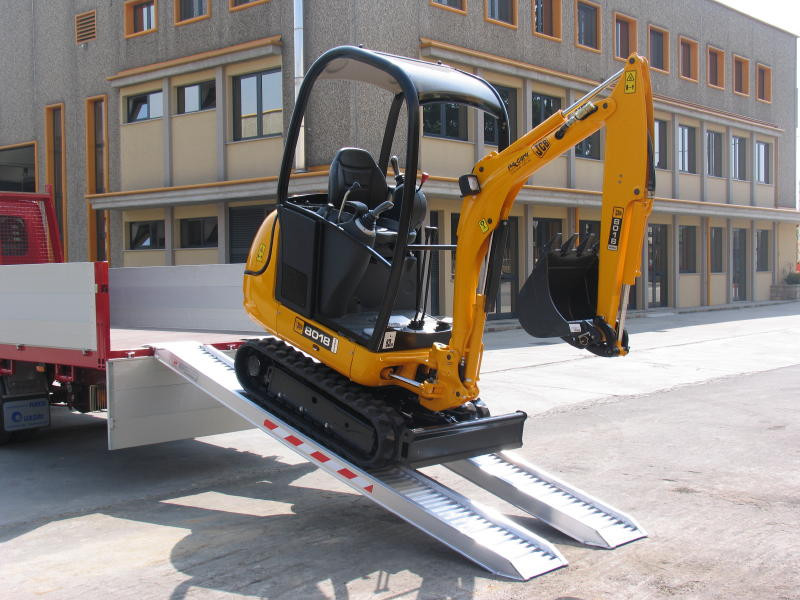

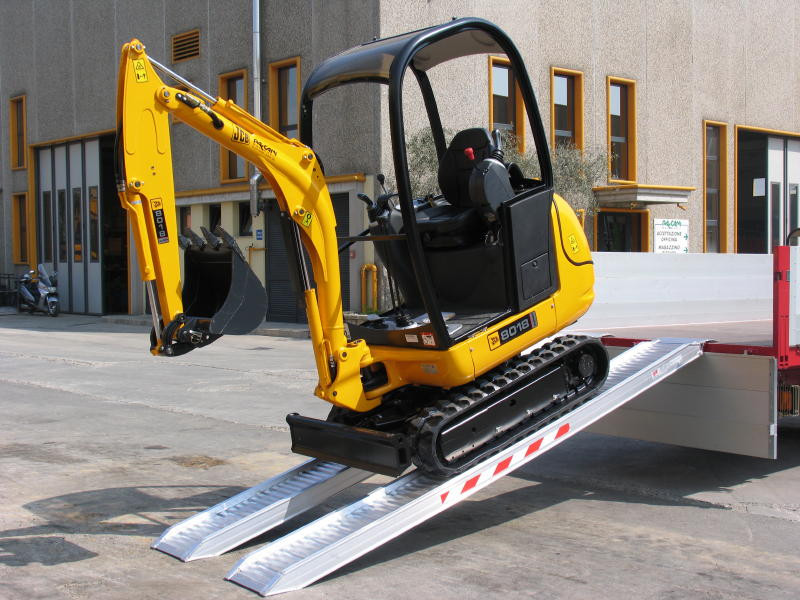

360mm wide x 2500mm long, with a 100mm profile thickness. Featuring a maximum capacity of 3800kg, this ramp is ideal for use as a car ramp or lightweight plant ramp. Please note the minimum track width is 200mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.
The TRP101 Series core profile thickness is 100mm and have a width of 360mm. They feature a capacity of up to 3800kg and are ideal for use as car ramps or lightweight plant ramps. The TRP101 Series has a minimum width of tracks/wheels is 200mm.
These ramps are designed for use at a gradient of 30%.
- These ramps are available both with and without edges. The default is however without edges
- Four different connection options available, however the default connection is the rest on connection with a pin which is a popular choice for flatbed vehicles and tipper trucks. For beaver tail trailers, a hook connection is normally recommended
- Custom load heights available
- Quotes for bespoke ramps can be supplied on request
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
- Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
- Fully TÜV certified
Usage guidelines and safety information for our full vehicle ramp range can be found here.
SKU | TRP101/25 |
---|---|
Default Connection | Rest On Connection |
Capacity (kg) | 3800 |
Height of Ramps Profile (mm) | 100 |
Length (mm) | 2500 |
Max Load Height (mm) | 750 |
Min. Load Height (mm) | 600 |
Weight per Ramp (kg) | 18 |
Weight Per Pair (kg) | 36 |
Width (mm) | 360 |
Minimum Track Width (mm) | 200 |
Maximum Track Width (mm) | 280 |
One Year Warranty | Yes |
Connection Options Available | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Not Solid Wheels | Yes |
Capacity Wheelbase 1000mm (kg) | 2500 |
Capacity Wheelbase 1250mm (kg) | 3020 |
Capacity Wheelbase 1500mm (kg) | 3800 |
