Folding Viper Premium Heavy Duty Van Ramp Standard Width 1000mm

Single Piece Aluminium Loading Heavy Duty folding Van Ramp with a capacity of up to 1000kg and is 1000mm in width. Available in the lengths 1800mm, 2000mm, 2400mm, 2600mm, 3000mm .

Truck and Van Ramps FAQ's

Length (mm)1800-3000
Width (mm)1000
Max. Load Height (mm)540-900
Weight Per Ramp (kg)38-55
Capacity (kg)500-1000

2 customer(s) had already inquired for this product.

Product Inquiry
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
€1,185.80 €980.00
SKU
TRP-Viper1000F
Built to Order
Talk to The Ramp People's sales team

Viper Premium Heavy Duty Folding Van Ramp 1000mm wide

Dimensions

1800mm

  • Length (mm): 1800
  • Folded Length (mm): 986
  • Height of Raised Edges (mm): 23
  • Max Load Height (mm): 540
  • Min Load Height (mm): 390
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 38
  • Capacity (kg): 1000
  • Height of ramp profile (mm): 80

2000mm

  • Length (mm): 2000
  • Folded Length (mm): 1051
  • Height of Raised Edges (mm): 23
  • Max Load Height (mm): 600
  • Min Load Height (mm): 450
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 41
  • Capacity (kg): 1000
  • Height of ramp profile (mm): 80

2400mm

  • Length (mm): 2400
  • Folded Length (mm): 1251
  • Height of Raised Edges (mm): 37
  • Max Load Height (mm): 720
  • Min Load Height (mm): 570
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 47
  • Capacity (kg): 800
  • Height of ramp profile (mm): 80

2600mm

  • Length (mm): 2600
  • Folded Length (mm):1386
  • Height of Raised Edges (mm): 23
  • Max Load Height (mm): 780
  • Min Load Height (mm): 630
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 49
  • Capacity (kg): 700
  • Height of ramp profile (mm): 80

3000mm

  • Length (mm): 3000
  • Folded Length (mm):1586
  • Height of Raised Edges (mm): 23
  • Max Load Height (mm): 900
  • Min Load Height (mm): 750
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 55
  • Capacity (kg): 500
  • Ramp Profile Height (mm):100

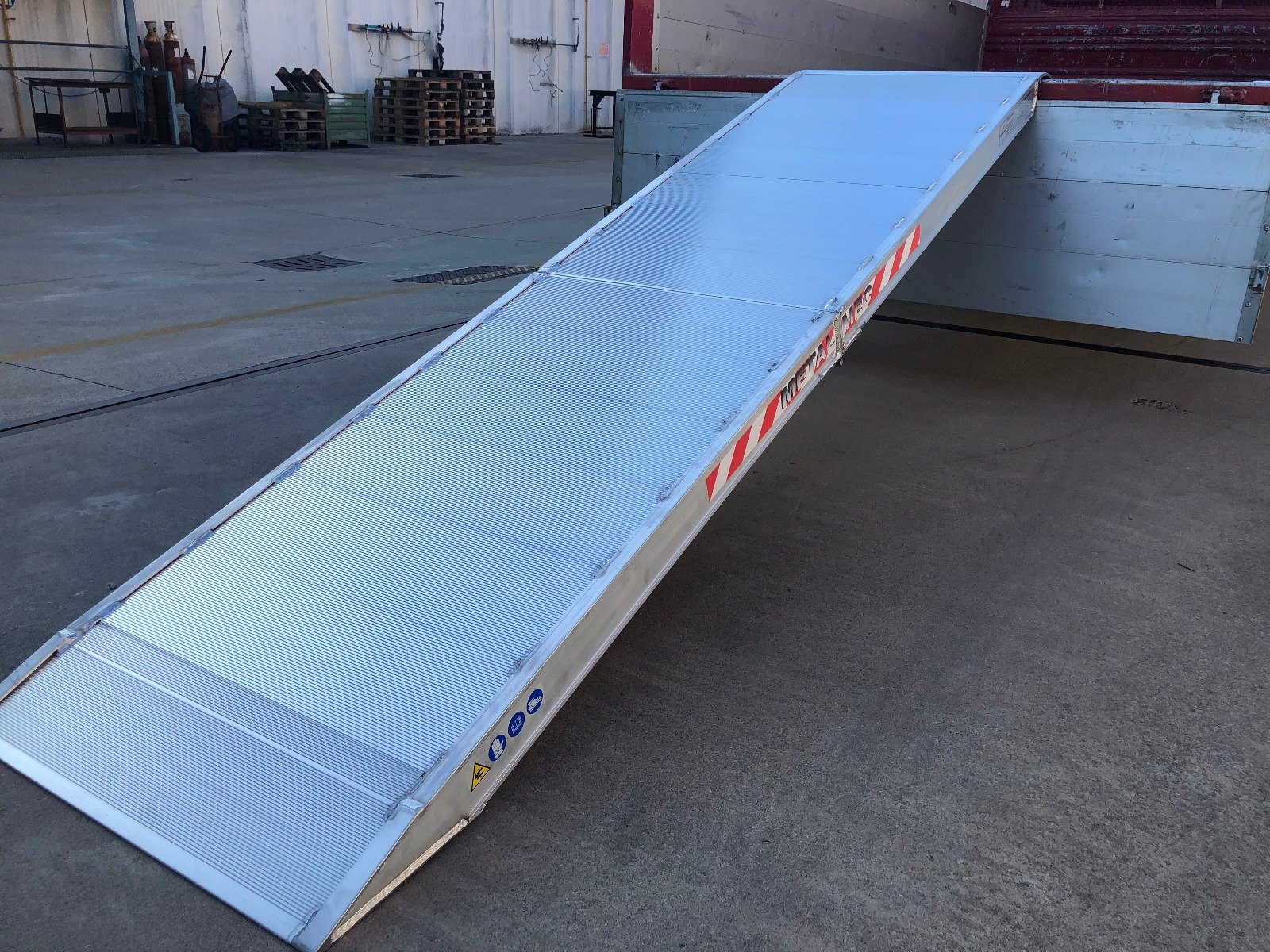

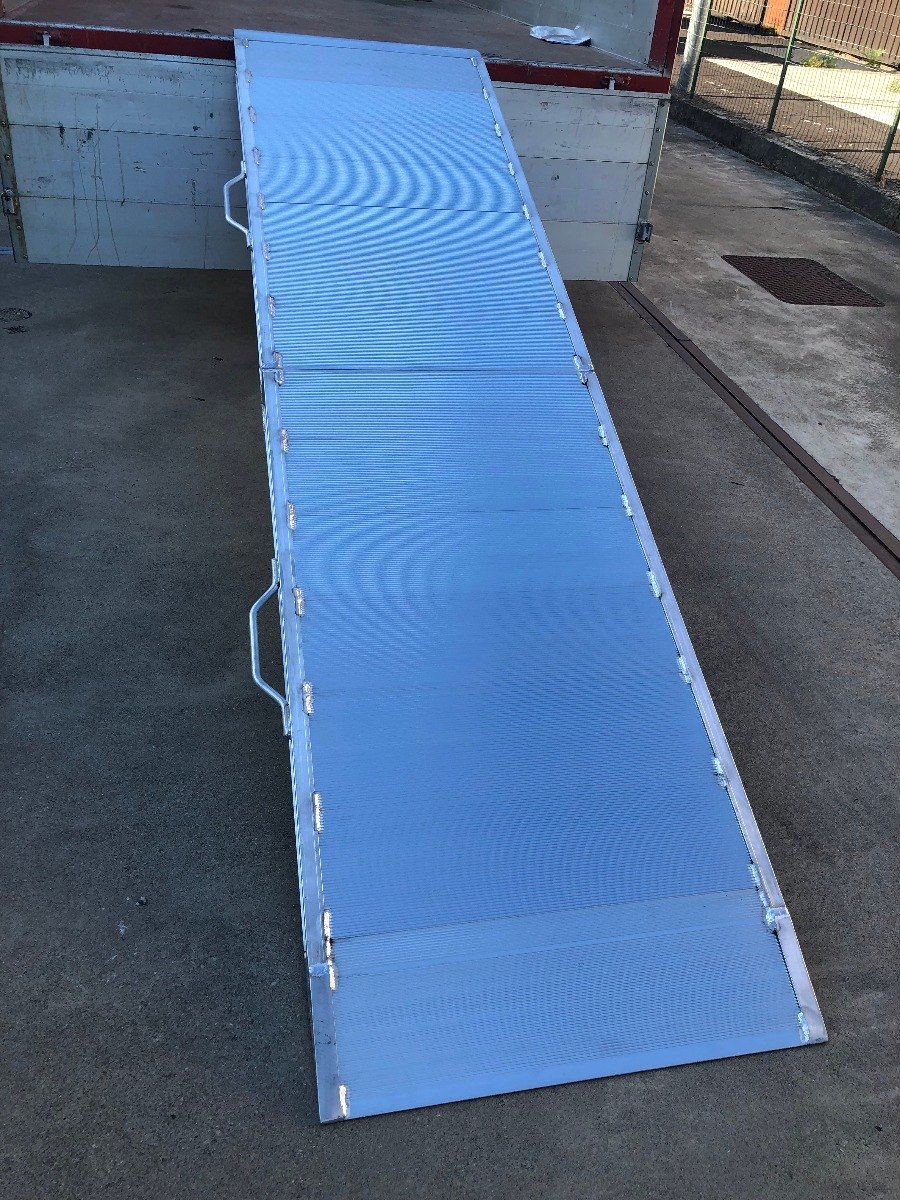

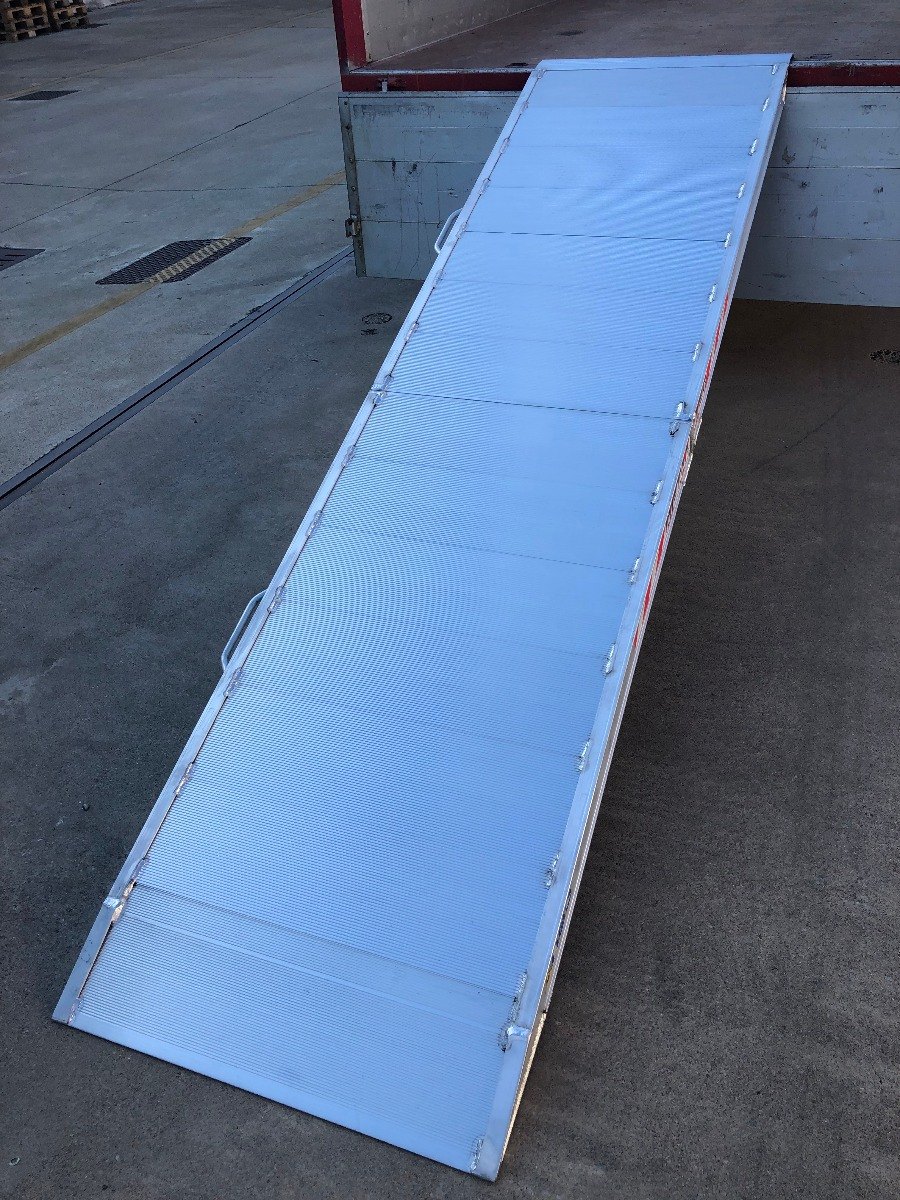

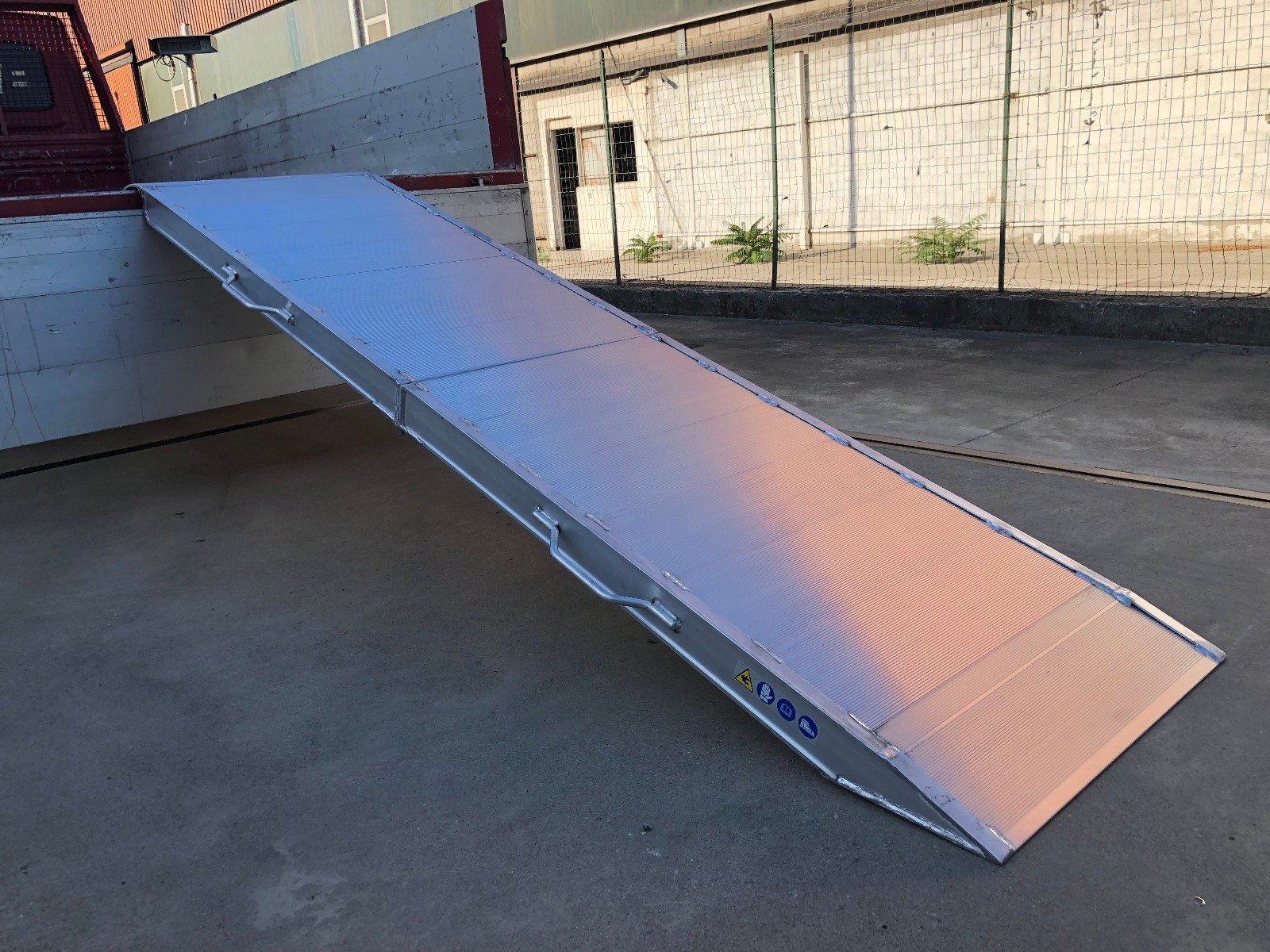

Aluminium Loading Heavy Duty Fodling Van Ramp.

Available in the lengths 1800mm, 2000mm, 2400mm, 2600mm and 3000mm with a capacity up to 1000kg and the width 1000mm. These ramps are ideally suited for flight cases.

  • Rest on connection: to fit just rest on and start loading
  • No vehicle or van modification required
  • Perfect for flight cases
  • Entry onto ramp slightly smoother than our economy version.
  • Lies flat for easy storage when not being used
  • Manufactured from lightweight aluminium (type 6005A)

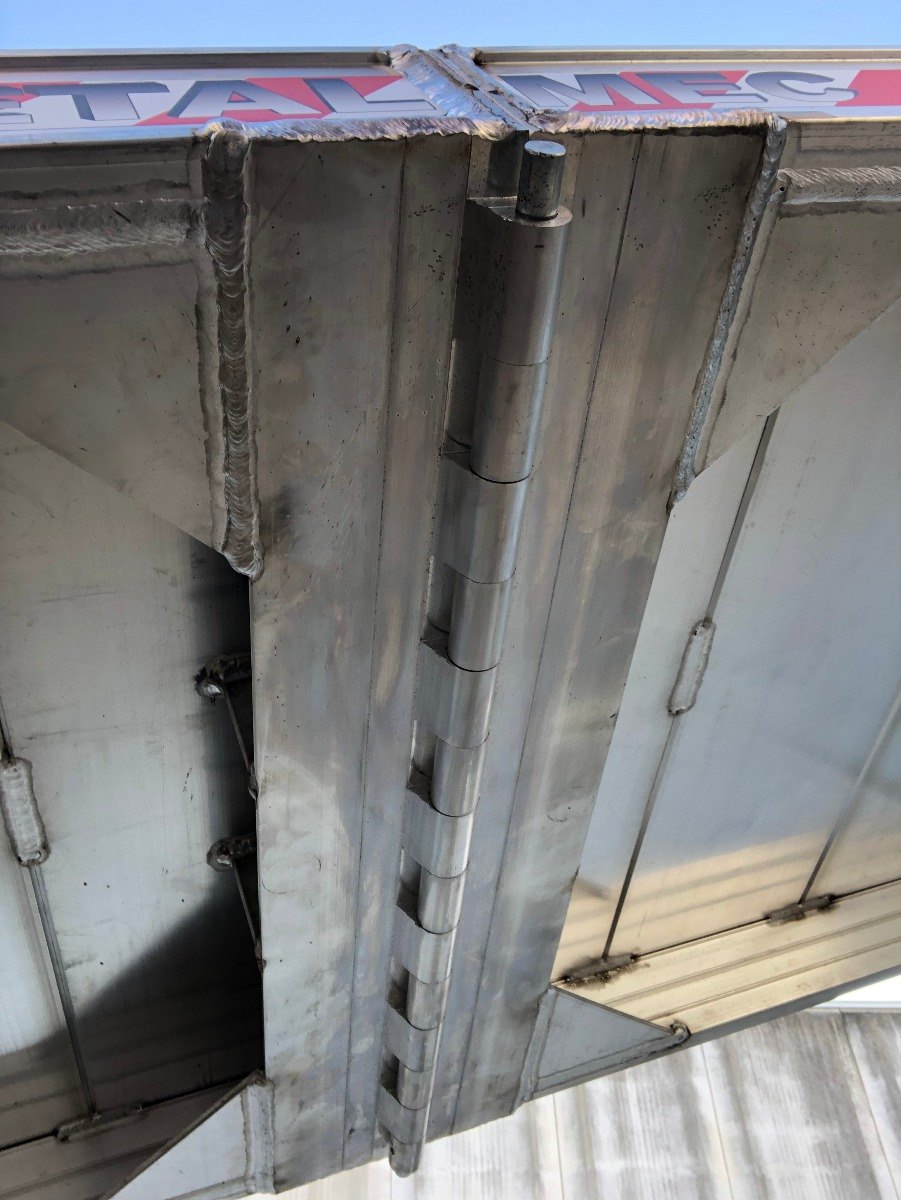

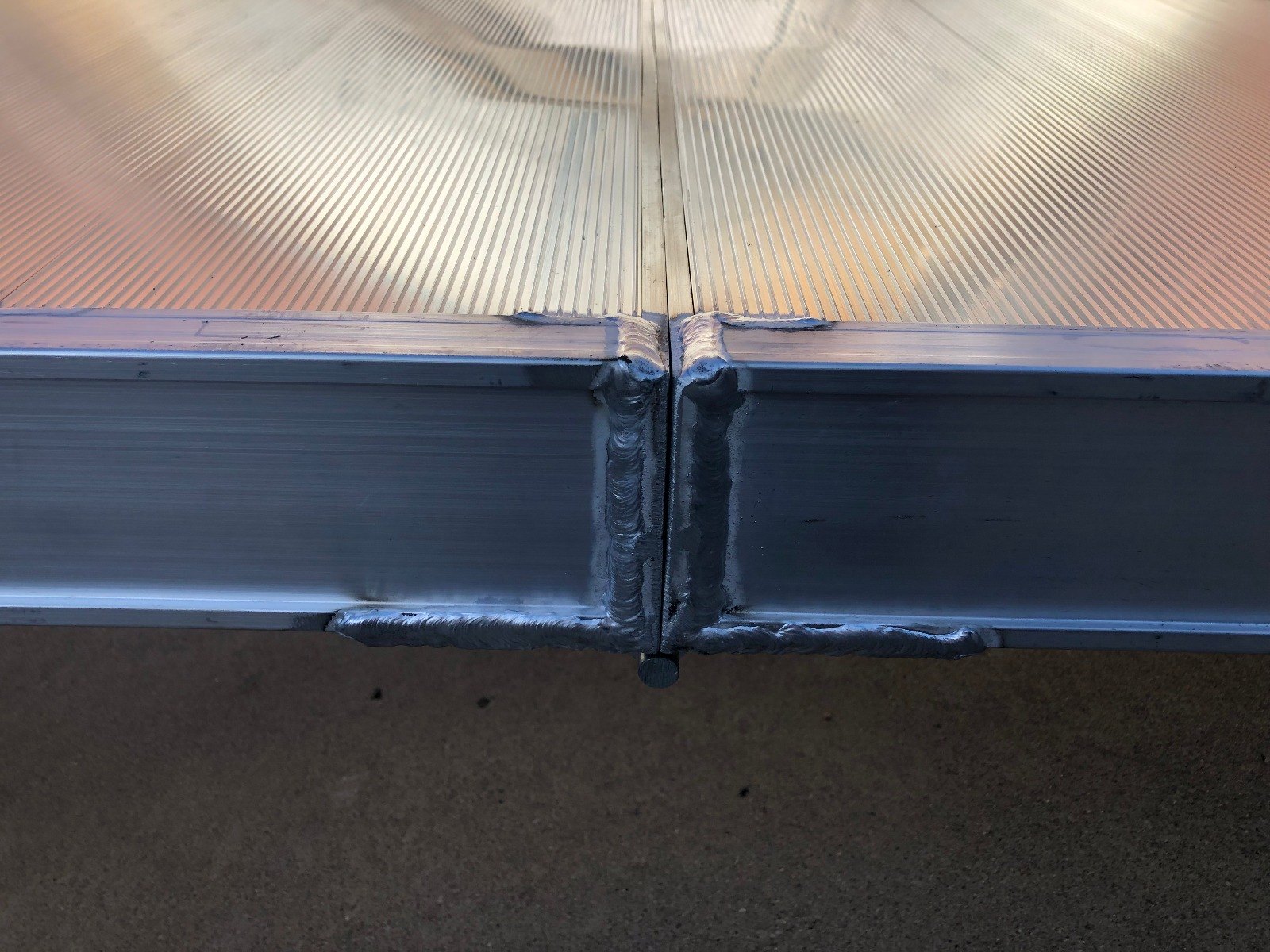

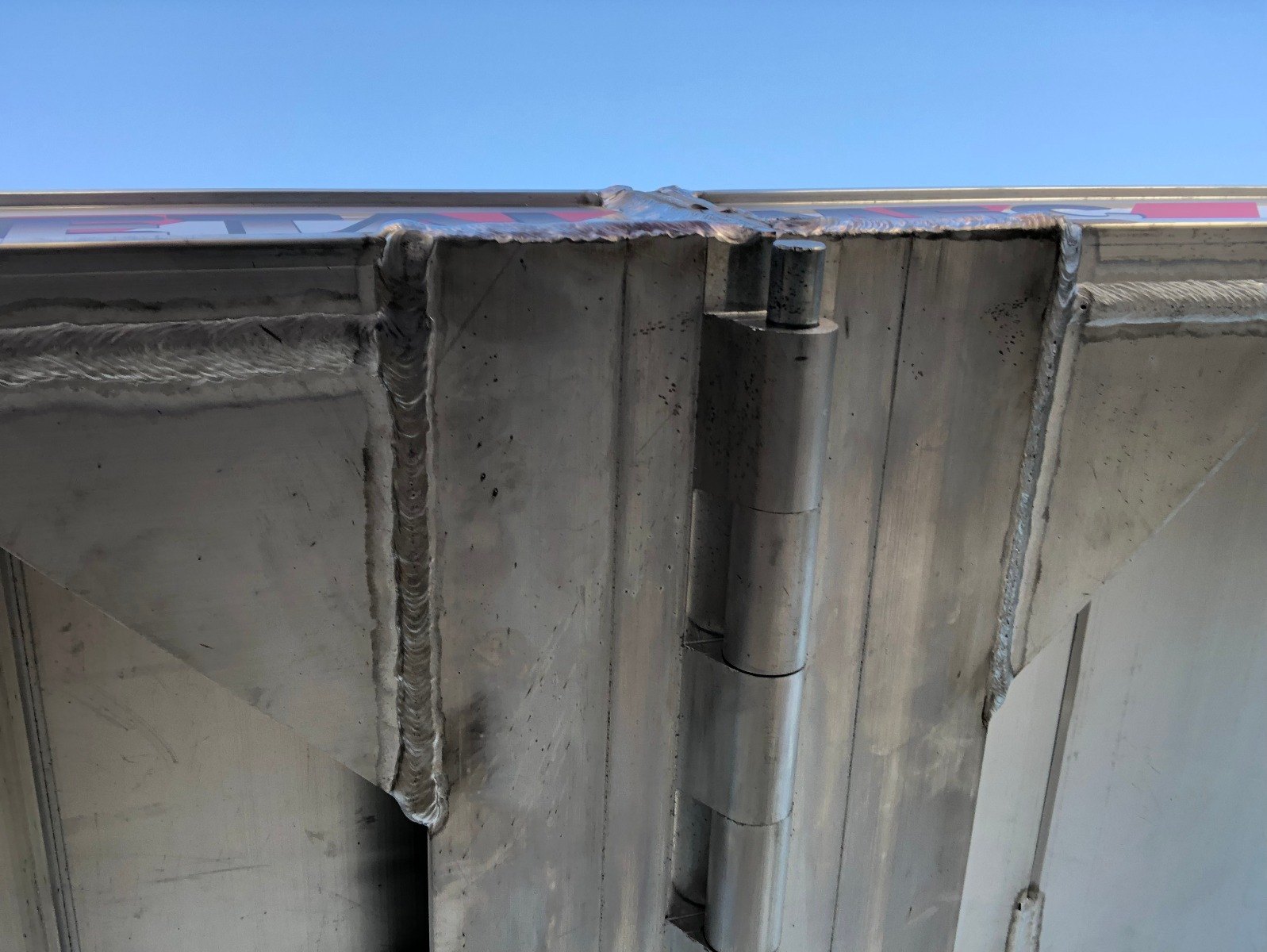

  • Robot welded for solid, strong and durable construction
  • Lightweight for easy handling
  • Fully TUV Certified to 1000kg capacity as standard
  • Angled foot, this allows for smooth access onto the van ramp when using casters or wheels
  • Edges on each side of the van ramp to prevent accidentally wheeling off
  • Ramps without edges are also available
  • Optimised ramp weight ensures the ramp stays connected to the van
  • Hook connection option available
  • Extended connection terminal bridges most bumpers, crash bars and tow bars
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP-Viper1000F
Default Connection Rest On Connection
Capacity (kg) 500-1000
Folded Length (mm) 986-1586
Height of Raised Side (mm) 23
Internal Width (mm) 940
Length (mm) 1800-3000
Weight per Ramp (kg) 38-55
Width (mm) 1000
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
External Width (mm) 1000
