Aluminium Loading Ramps (3000x300x1674kg)

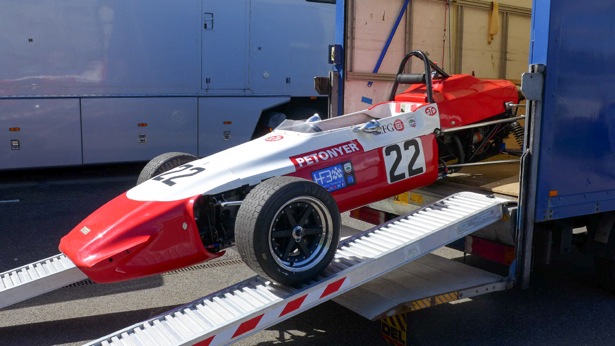

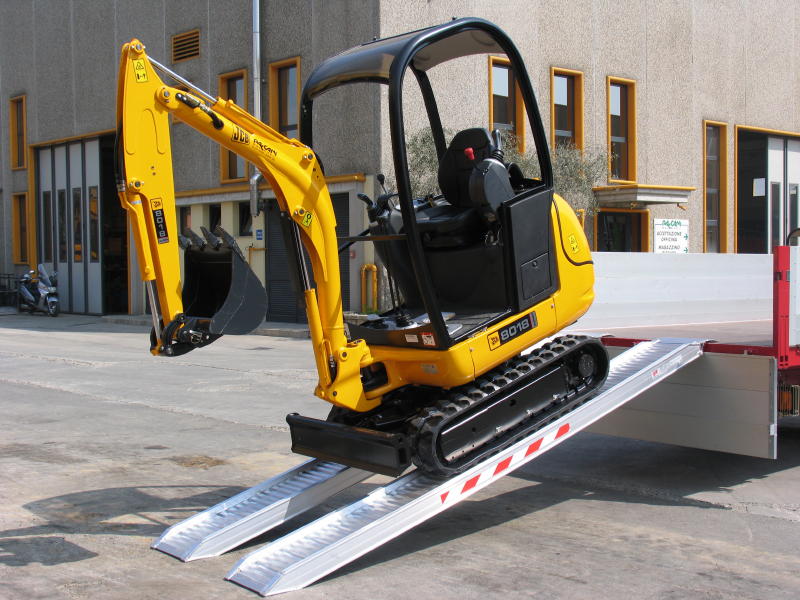

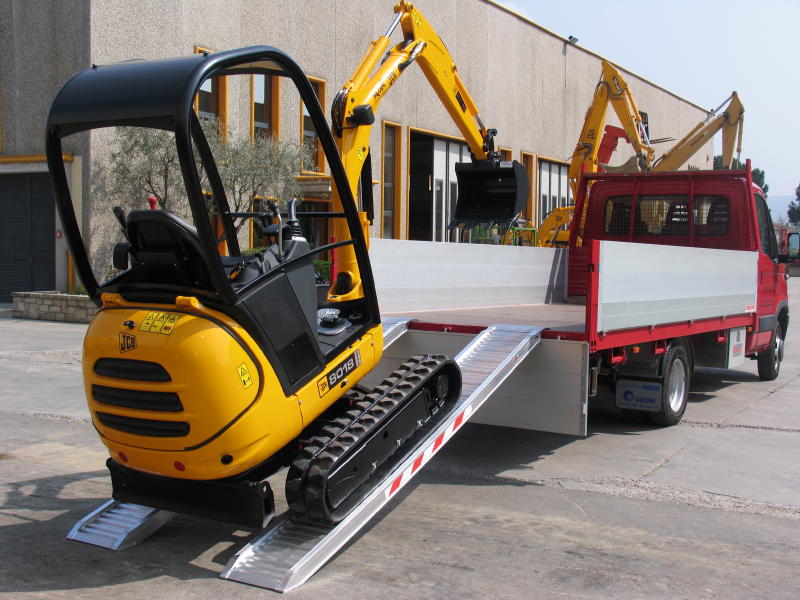

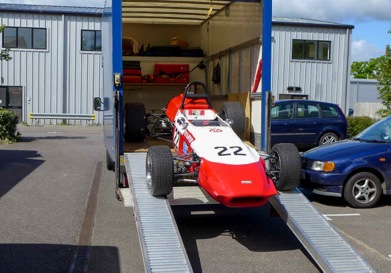

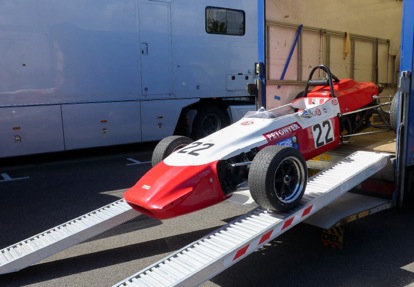

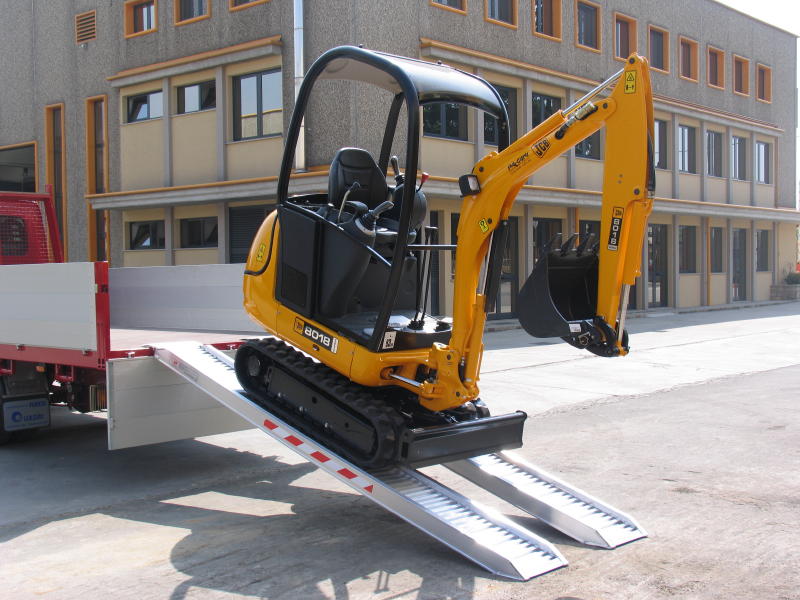

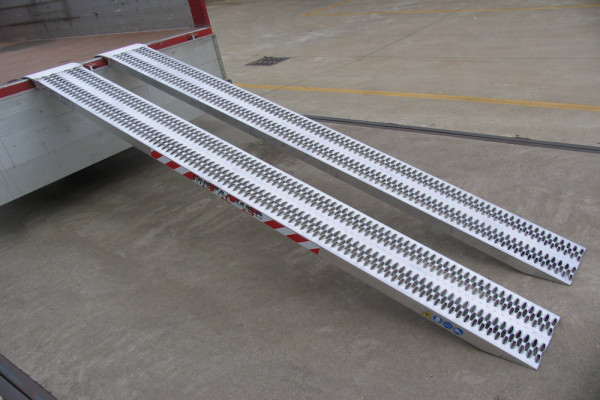

300mm wide x 3000mm long, with an 80mm profile thickness. Featuring a maximum capacity of 1674kg, this ramp is ideal for use as a car ramp or lightweight plant ramp. Please note the minimum track width is 150mm. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)3000
Width (mm)300
Max. Load Height (mm)900
Weight Per Ramp (kg)19
Weight Per Pair (kg)38
Capacity (kg)1674

Got a question?

Product: Aluminium Loading Ramps (3000x300x1674kg)
SKU: TRP80/30

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
€738.00 €600.00
In Stock
TRP80/30
Talk to The Ramp People's sales team

The TRP80 Series has a core profile thickness is 80mm and a width of 300mm. On the TRP80 Series the minimum width of tracks/wheels is 150mm.

They feature a capacity of up to 1674kg and are ideal for use as car ramps or lightweight plant ramps.

Designed for a maximum gradient of 30%

  • These ramps are available both with and without edges, the default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP80/30
Due Date 5 Jul 2019
Default Connection Rest On Connection
Capacity (kg) 1674
Height of Ramps Profile (mm) 80
Length (mm) 3000
Weight per Ramp (kg) 19
Weight Per Pair (kg) 38
Width (mm) 300
Minimum Track Width (mm) 150
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 1255
Capacity Wheelbase 1250mm (kg) 1435
Capacity Wheelbase 1500mm (kg) 1674
Mat Type Options GSII Nitrile FR
