Platforms/Landings for 900mm Wide Ramp System.
Platforms/Landings for 900mm Wide Ramp System.
We also make specially adapted panels and wedge angled platforms available upon request.
5 type options of landings for use with the 900mm ramps. Please note: price is for platform only, handrails, legs and fixings are not included
5 type options of landings for use in 900mm ramp constructions. 3 landings for turning , 1250mm x 12500mm and 1500mm x 1500mm are used for 90 degree turns and 1250mm x 2000mm for 180 degree switchbacks. 2 landings, 1250mm x 12500mm and 1500mm x 1500mm are used for square landings or to extend an existing landing in front of an entrance.

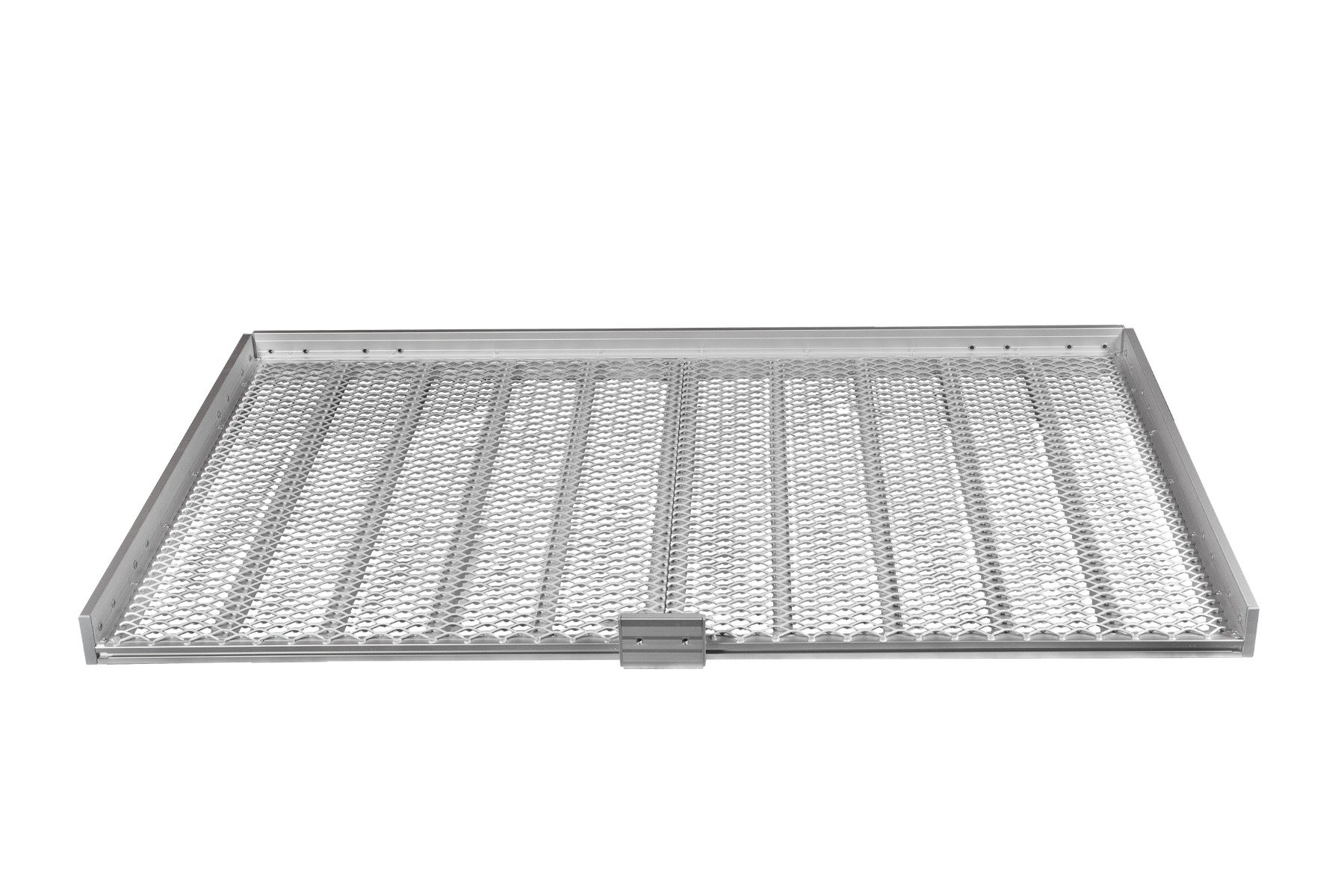

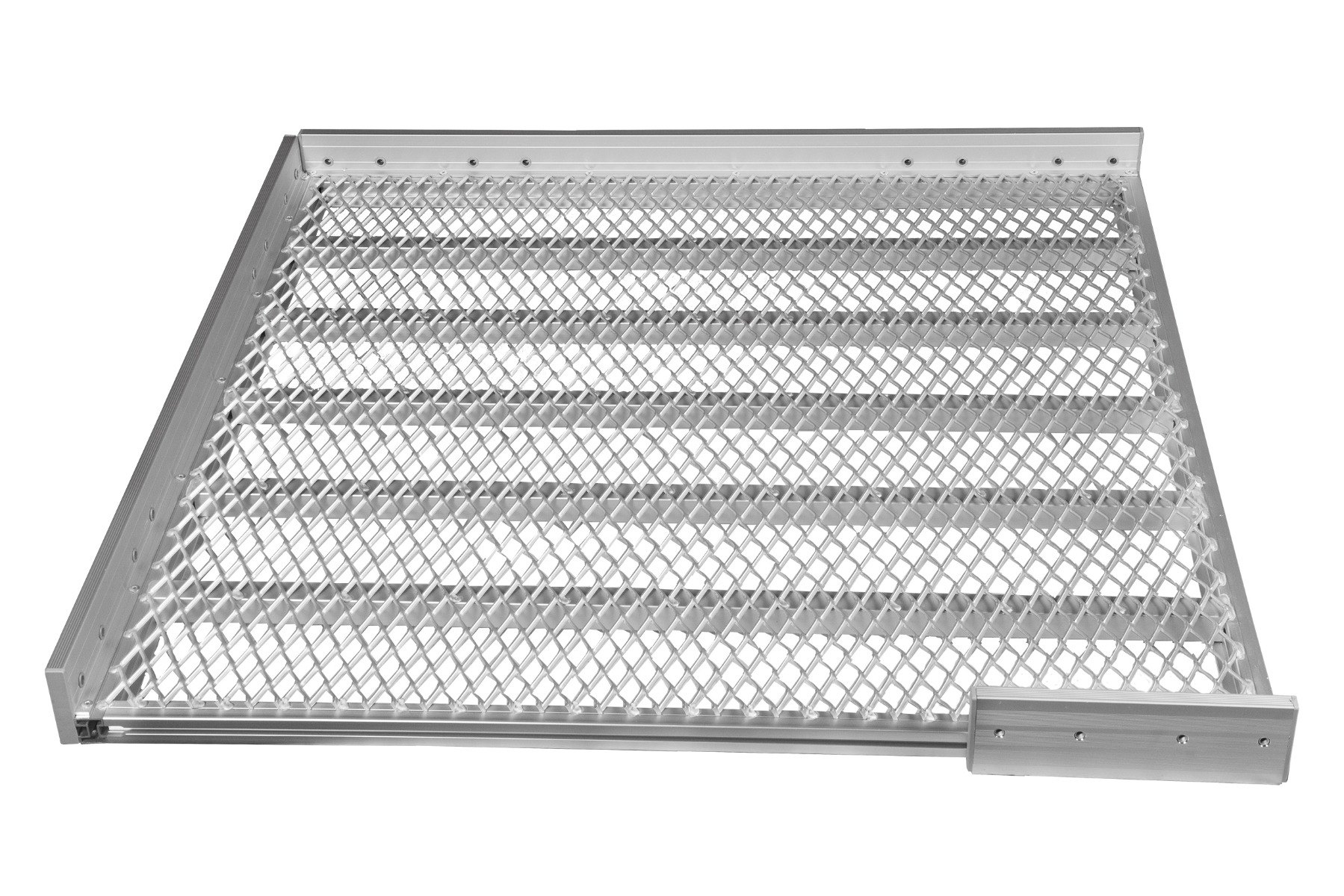

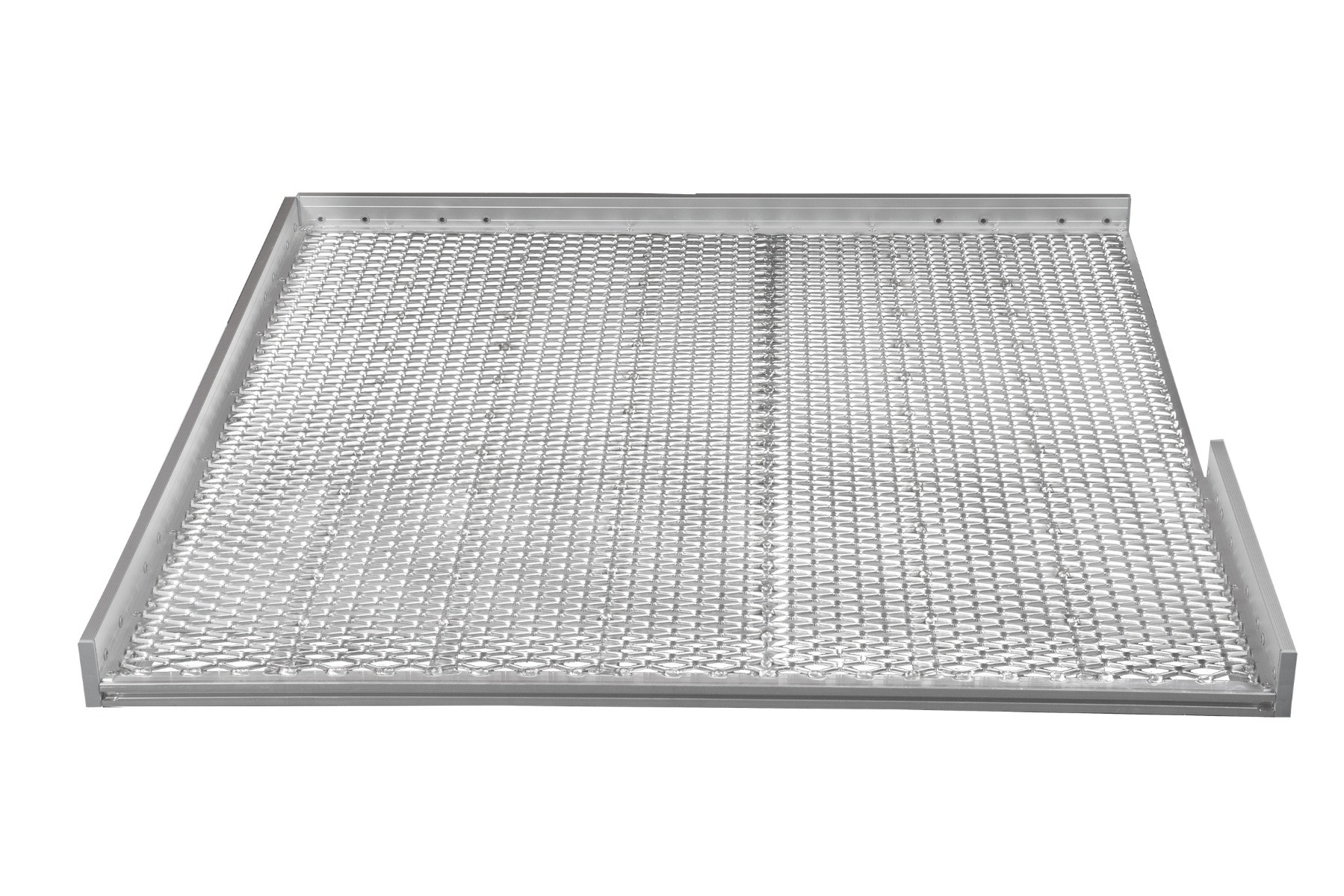

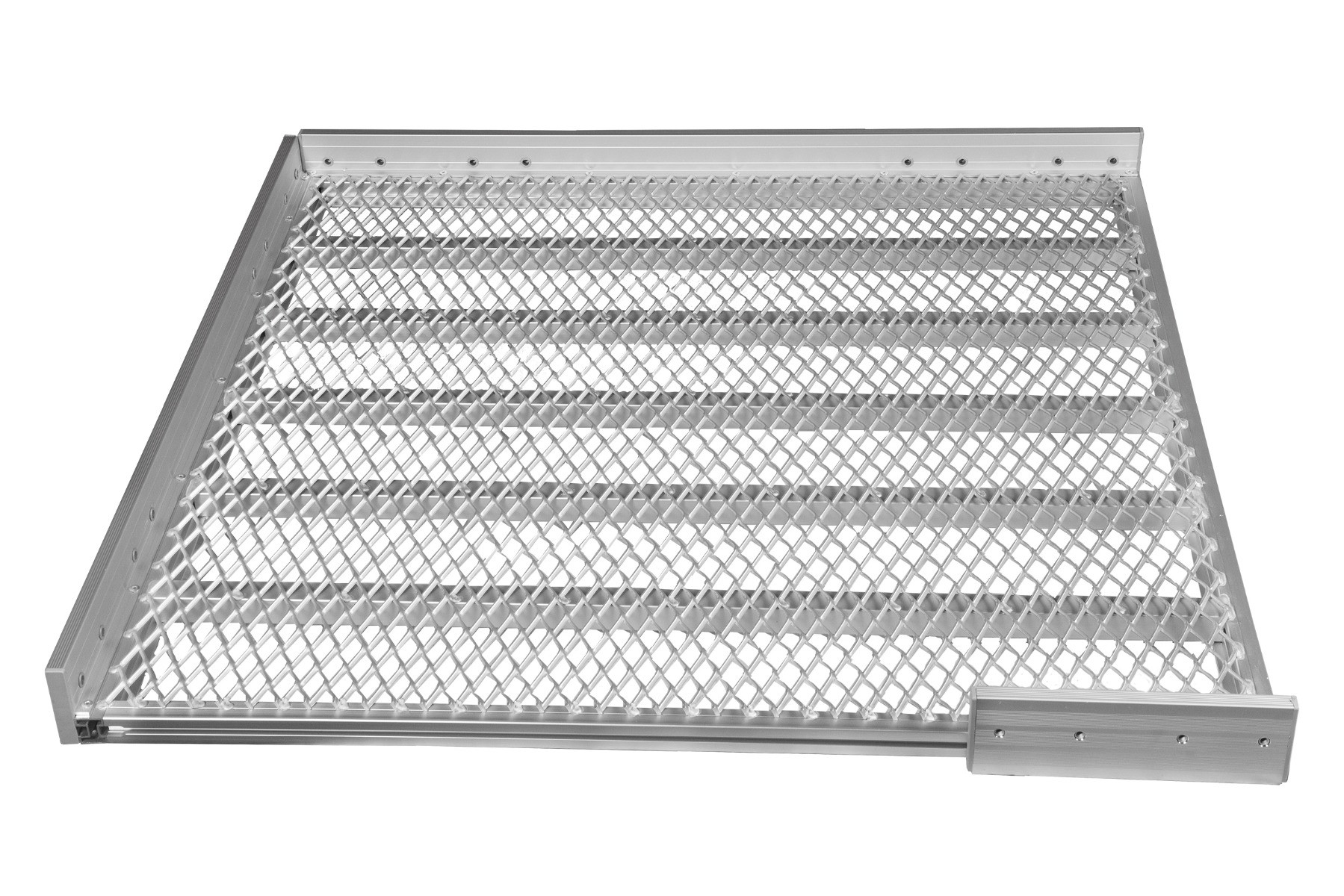

Platform range for the 900mm ramp system
1250mm x 1250mm Turn
- Dimensions (cm/in): 125 x 125 / 49 x 49
- Weight (kg/lb): 18/39,7
- Max. load (kg/lb): 400/880
- Angle: 90°
- Ideal for turn on ramp system
1250mm x 1250mm Square
- Dimensions (cm/in): 125 x 125 / 49 x 49
- Weight (kg/lb): 19/41,9
- Max. load (kg/lb): 400/880
- Angle: 90°
- Ideal for door entrance on ramp system
1500mm x 1500mm Turn
- Dimensions (cm/in): 150 x 150 / 59 x 59
- Weight (kg/lb): 24/52,9
- Max. load (kg/lb): 400/880
- Angle: 90°
- Ideal for turn on ramp system
1500mm x 1500mm Square
- Dimensions (cm/in): 150 x 150 / 59 x 59
- Weight (kg/lb): 28/61,7
- Max. load (kg/lb): 400/880
- Angle: 90°
- Ideal for door entrance on ramp system
1250mm x 2000mm U-turn
- Dimensions (cm/in): 125 x 200 / 49 x 79
- Weight (kg/lb): 30/66,1
- Max. load (kg/lb): 400/880
- Angle: 180°
Please note free delivery on parts when buying with a existing ramp kit, delivery charges might be applicable if purchase as single prats only. All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
SKU | TRP-LMRS-900Platforms |
---|---|
Capacity (kg) | 400 |
Weight (kg) | 18-28 |
Customisable | Yes |
Easy to Fit | Yes |
Electric Wheelchair | Yes |
European Made | Yes |
Manual Wheelchair | Yes |
Mobility Scooter Friendly | Yes |
Leave Outside | Yes |
