TB Davies mobile steel narrow ladder with platform and handrails on wheels
TB Davies mobile steel narrow ladder with platform and handrails on wheels

4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge VAT at checkout. Once your order has been shipped, the courier will contact you regarding any import charges due, including 23% VAT, customs clearance fees, and any applicable import duties. These fees will need to be paid to the courier. Learn more.

Products are shipped from our UK Warehouse to Ireland on DDP Incoterms. The price displayed is the total price, with the shipping fee calculated at the checkout. There is no additional import, duty or customs charges. Learn more.

As low as €800.00
Built to order / 5-7 weeks

Narrow Ladder

SKU
TRP-TB2023

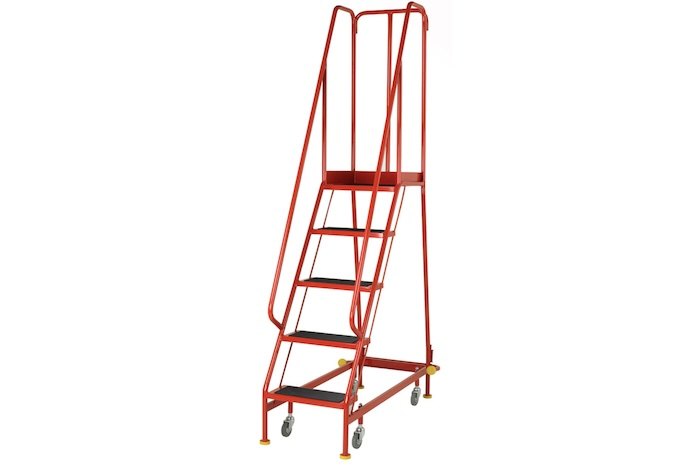

The narrow steel mobile steps with a platform and handrails are designed for to allow workers to safely pick goods in warehouses with narrow aisles. Manufactured from steel in the UK, the 500mm wide narrow ladders offer a 150kg safe working load. The ladder features a spacious platform with guardrails, double handrails, retractable spring-loaded castors and slide-out stabilisers for optimum safety whilst undertaking work at elevated heights. Built in line with BS EN131-7 Ladders to meet UK health and safety requirements in the workplace.

  • Customisable
  • Made in Britain
  • One Year Warranty
Description
  • Manufactured from steel with a powder-coated finish
  • Suitable for industrial use, including in warehouses
  • Narrow steps, only 500mm wide
  • Durable 150kg capacity / Safe Working Load (SWL)
  • Double handrails for optimum safety
  • Spring-loaded castors which retract when weight is applied
  • Slide out stabilisers for additional safety, extends to a maximum reach of 1085mm
  • Safety platform with an anti-slip surface and guardrails, the platform is 406mm x 46mm
  • Kitemarked to BS EN131-7 Ladders - Mobile ladders with platform British Standard
  • Made in the UK
  • Designed for regular professional use
  • Only designed for internal use, not suitable for outdoor use
  • Custom solutions available, including double-hinged bars, hook-on tool trays and platform gates. Please contact our team for more information.

Please view the mobile ladders with platform safety manual prior to use

For details on how to use the step safely, view the mobile ladders with platform user manual.

The working height is calculated based on 1.75m (5'8") plus platform height.

The ladder is set at an angle of circa 75 degrees.

Please note the number of treads includes the top platform step/tread. For example, if you select 3 treads, this includes 2 treads plus the platform.

Specifications
Units:
SKUTRP-TB2023 TRP-TB2023
Capacity (kg)150 331
Platform Length (mm)406 406
Platform Width (mm)406 406
Handrail Height (mm) 950 950
Rung Depth (mm)180 7.09
Distance Between Rungs (mm)250 9.84
Safety StandardEN131-7:2013 EN131-7:2013
One Year WarrantyYes 1
CustomisableYes 1
Colour OptionWhite 7702
Product Questions
Do warehouse workers need training to use ladders?
Yes, users should be trained and competent prior to using a ladder.
I am interested in the Narrow Ladder. Do the stabilisers need to be used at all times?
In accordance with BS EN 131-7, the stabilisers must be in the fully extended position prior to ascending the steps.
Can The Ramp People's Narrow Ladder be used on uneven ground?
No, ladders should not be used on uneven ground as it can be dangerous for the user. Moving the ladder on rough ground may also damage the wheels on the ladder.
Can the Narrow Ladder be used within the workplace?
Yes, the Narrow Ladder is designed for professional use. It is Kitemarked to BS EN 131-7, the standard for mobile ladders with a platform. The HSE and the Ladder Association recommend using ladders that comply with BS EN 131-7 in the workplace to ensure safety and reliability.
