Modular Wheelchair Ramp Kit with Platform and Double Handrails (1080mm x 4500mm)

SKU
TRP-HA-MS1100-4500

The 4.5m metal modular ramp is designed to allow mobility aids, inclusive of wheelchairs, mobility scooters and rollators, to safely overcome steps and doorways. Designed for heights up to 375mm, this durable access solution is perfect for ensuring homes, workplaces and temporary buildings remain accesible to all. Produced from steel, the ramp offers a self-draining expanded mesh surface to ensure it is safe to use in all weathers. The turning platform allows users to safely take a left or right turn out of the property whilst the handrails provide additional support when required.

We have a dedicated modular team to provide advice on finding the most suitable ramp for you, please contact us for more information.

  • Customisable
  • Easy to Fit
  • Electric Wheelchair
  • European Made
  • Fixings Included
  • Manual Wheelchair
  • Mobility Scooter
  • Two Year Warranty
  • Leave Outside
Description
  • Expanded metal mesh surface with a DIN 51130 anti-slip rating
  • Suitable for pedestrians, wheelchairs, mobility scooters and walkers
  • Produced from durable steel, 200kg capacity
  • Suitable for use in all weathers, including when wet or icy, the quiet expanded mesh allows water to quickly drain through the ramp surface
  • Integrated safety edges
  • Double handrails for additional stability and security
  • Turning platform to allow users to easily take a left or right turn onto the ramp
  • Hot-dip galvanised design for a virtually maintenance-free ramp
  • Suitable for use in homes, schools, businesses, offices and more
  • Meets the TIL2 requirements, inspected and verified by a TIL2-certified expert based on standards and usability for individuals with reduced mobility
  • Manufactured in accordance to ISO 9001 and 14001
  • Meets requirements Eurocodes, the European Standards relating to the design of buildings, civil engineering works and construction products
  • Manufactured in Sweden
  • Comprehensive two year warranty

These systems are designed to be both portable and temporary; therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant, please get in contact as this something we can provide but the specification would need to be altered.

Recommended to be used at a 1:12 gradient; however they can be built to a maximum of a 1:10 gradient when required.

Modular Wheelchair Ramp Systems - Legal Compliance

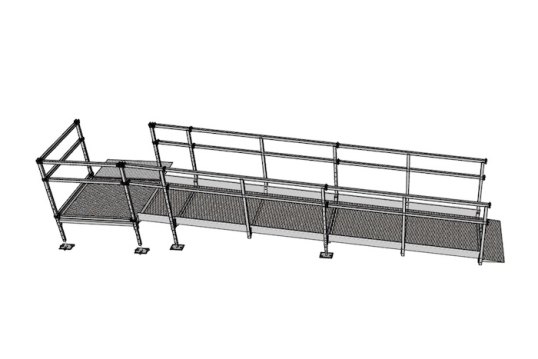

The 4.5m Modular Ramp Kit includes:

  • Lead In Ramp: 300mm deep x 960mm long
  • Ramp Module incl. Double Height Handrails: 4500mm long x 1080mm wide (usable width 920mm)
  • Platform incl. 2x Double Height Handrails: 1080mm wide x 1080mm long
  • Connection to step/threshold: 500mm deep x 960mm long; can be ordered cut to size if required. The necessary door measurements can be found here

Assembly is required.

We have a dedicated modular team available to provide advice around modular wheelchair ramps. Please email pictures and measurements of your area to our team for recommendations or a custom quote if required. Examples of customisations include: adding steps to the side of the ramp, an additional platform, U-shaped handrails at the end of the ramp, contrast markers for those with impaired vision, longer ramp lengths, alternative ground connections and more.



Details
SKUTRP-HA-MS1100-4500
Capacity (kg)200kg / sq. meter
Internal Width (mm)920
Length (mm)4500
Max Load Height (mm)450
Min. Load Height (mm)120
Platform Length (mm)1080
Platform Width (mm)1080
Connection to Step/Threshold (mm)500mm deep x 960mm long
Lead In Ramp (mm)300mm deep x 960mm wide
Handrail Height (mm) 900
Total Width (mm)1080
Weight (kg)185.9
Two Year WarrantyYes
CustomisableYes
Easy to FitYes
Electric Wheelchair Yes
European MadeYes
Fixings IncludedYes
Manual WheelchairYes
Mobility Scooter FriendlyYes
Leave OutsideYes
Product Questions
Does The Ramp People provide site visits to identify the most suitable wheelchair ramp?
As an online business, we do not offer site visits. If you need advice you can send us photos and measurements of your home or business and our team will gladly provide tailored advice to help you find the right solution.
Do The Ramp People's Modular Wheelchair Ramps comply with building regulations?
As semi-permanent access ramps, the ramps do not need to comply with building regulations (Part M or Part K). For a compliant system please contact our team.
I am interested in a modular wheelchair ramp, what information do you require to provide a quote?
Please email pictures and measurements of the area to us, you can also provide a sketch. Please include measurements of the doorway and whether the door opens inwards or outwards. We may request further information.
Can The Ramp People create customised modular wheelchair ramps?
Yes, please email us with your requirements, pictures of the area and measurements to allow us to quote for a ramp which is suitable for your area and needs.
What gradient can The Ramp People's Modular Wheelchair Ramps be built to?
Our modular ramps are usually provided at a 1:12 gradient, a smoother gradient can be provided when required. The maximum gradient the kits can be built to is 1:10.
Do The Ramp People Install Modular Wheelchair Ramps?
As an online business we only supply the ramps, we do not install them. The ramps are provided in modular pieces with instructions. A confident DIY'er or builder should be able to fit the ramp for you.
