Mini Ramp Platform and Accessories

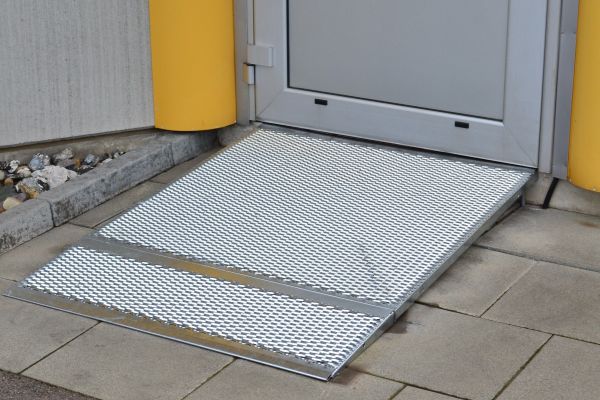

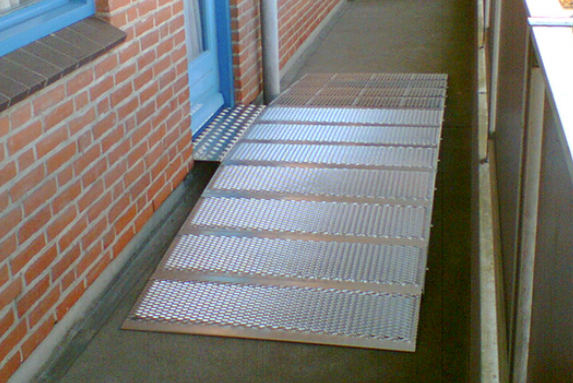

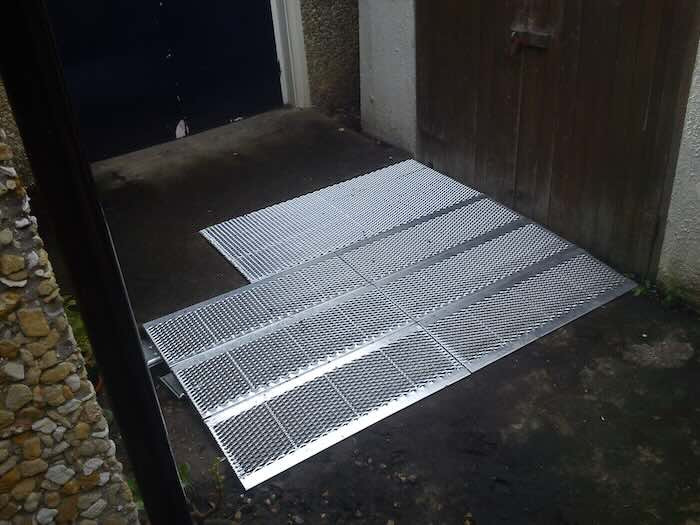

Mini ramp Kit platform and accessories are additional modules

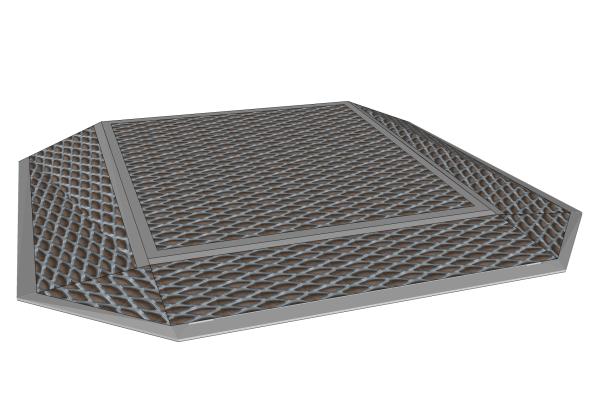

The platform 960mm x 960mm or the ramp extension 960mm x 320mm sections can be added to the existing ramp section of your choice and extend the ramp length or give the possibility to turn on a 90º angle , create the perfect ramp combination for limited spaces or for doors and thresholds with small gap in height differences.
The kick plate 960mm x 100mm can be added on the side of the ramps and/or platform creating a safety edge to avoid the wheelchair slipping over the ramp.
Connection plate 960mm x 130mm can be added on platform or ramp for a smoother transition into the step or door threshold
- Perfect for limited spaces and small height differences
- Made of galvanised steel
- Easy handling and fast assembling
- Optional modules parts available to extend ramp length, add a level platform are or add safety edges ramp kit to prevent accidentally wheeling off
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Mini Ramp - Platform and Accessories
Platform Section
- Length 960mm
- Width 960mm
- Weight 19.2 kg
- Capacity 300kg
- Max. load height 160mm
Ramp extension module
- Length 320mm
- Width 960mm
- Weight 7.4 kg
- Capacity 300 kg
- Max. load height 160mm* if added with a ramp section
Kick plate/Safety edge
- Length 960mm
- Width 100mm
- Weight 2.8 kg
Connection plate
- Length 130mm
- Width 960mm
- Weight 1.9 kg
SKU | TRP-Miniramp - platforms accessories |
---|---|
One Year Warranty | Yes |
Easy to Fit | Yes |
Electric Wheelchair | Yes |
European Made | Yes |
Fixings Included | Yes |
Manual Wheelchair | Yes |
Leave Outside | Yes |
