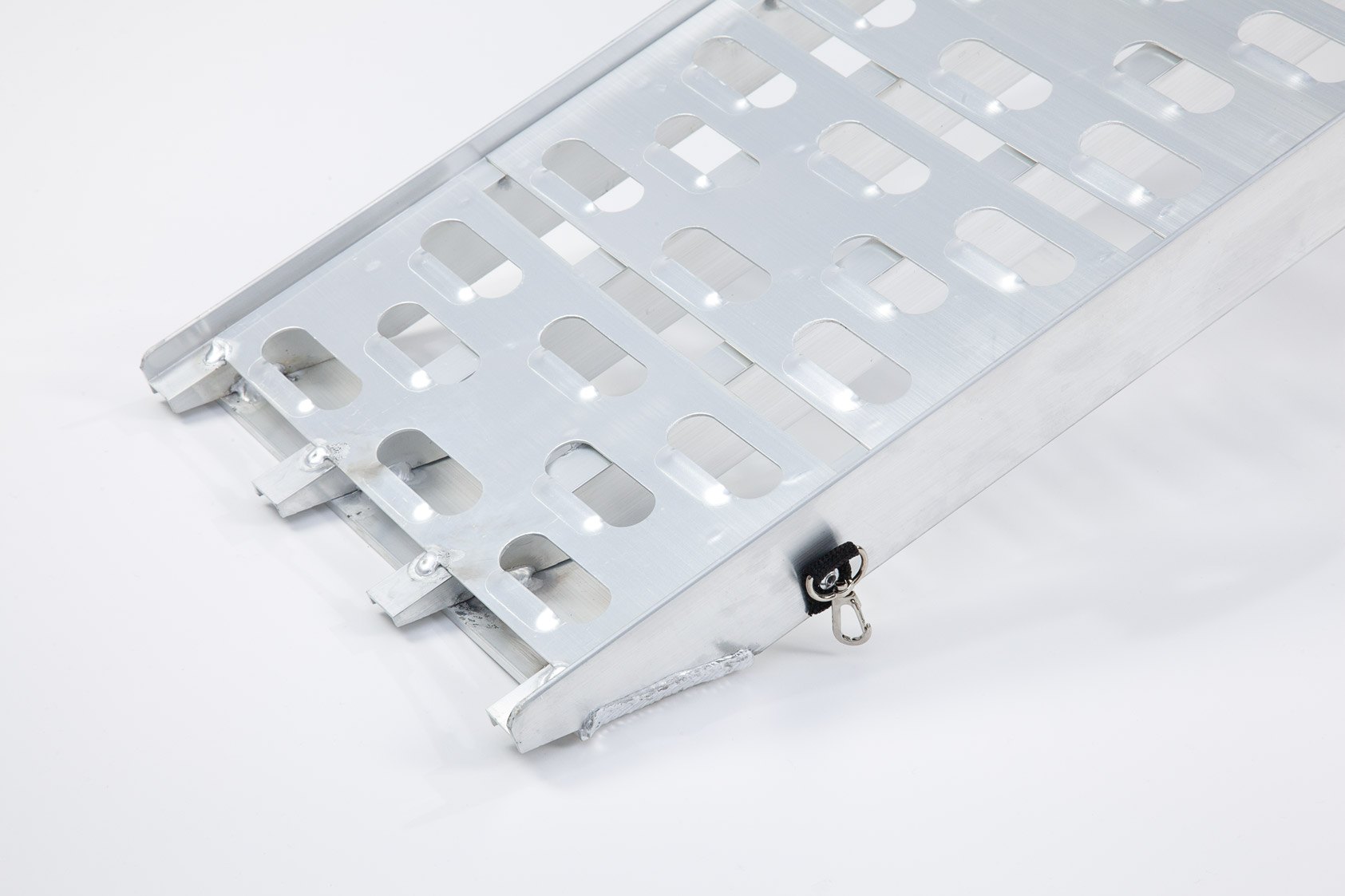

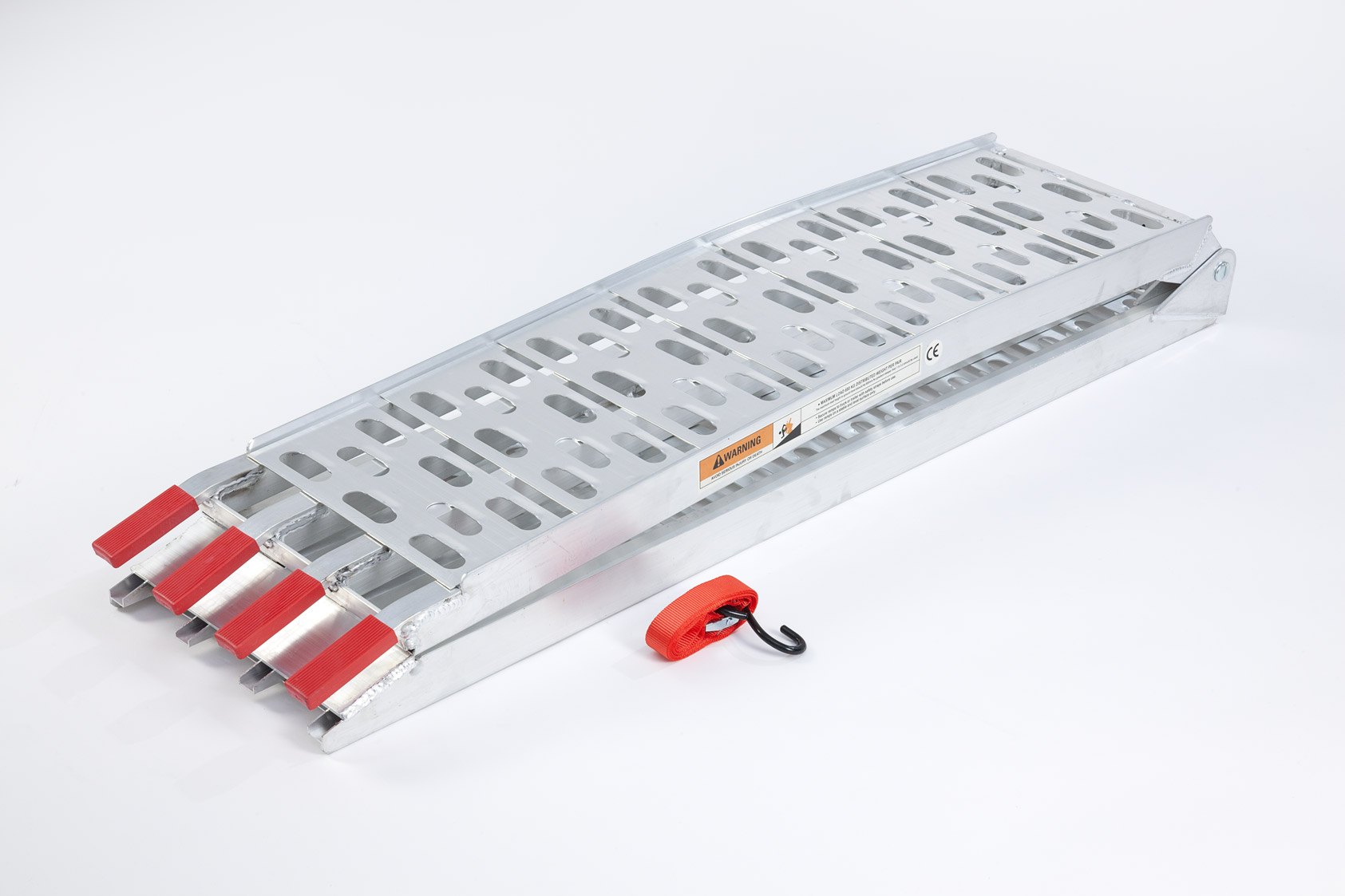

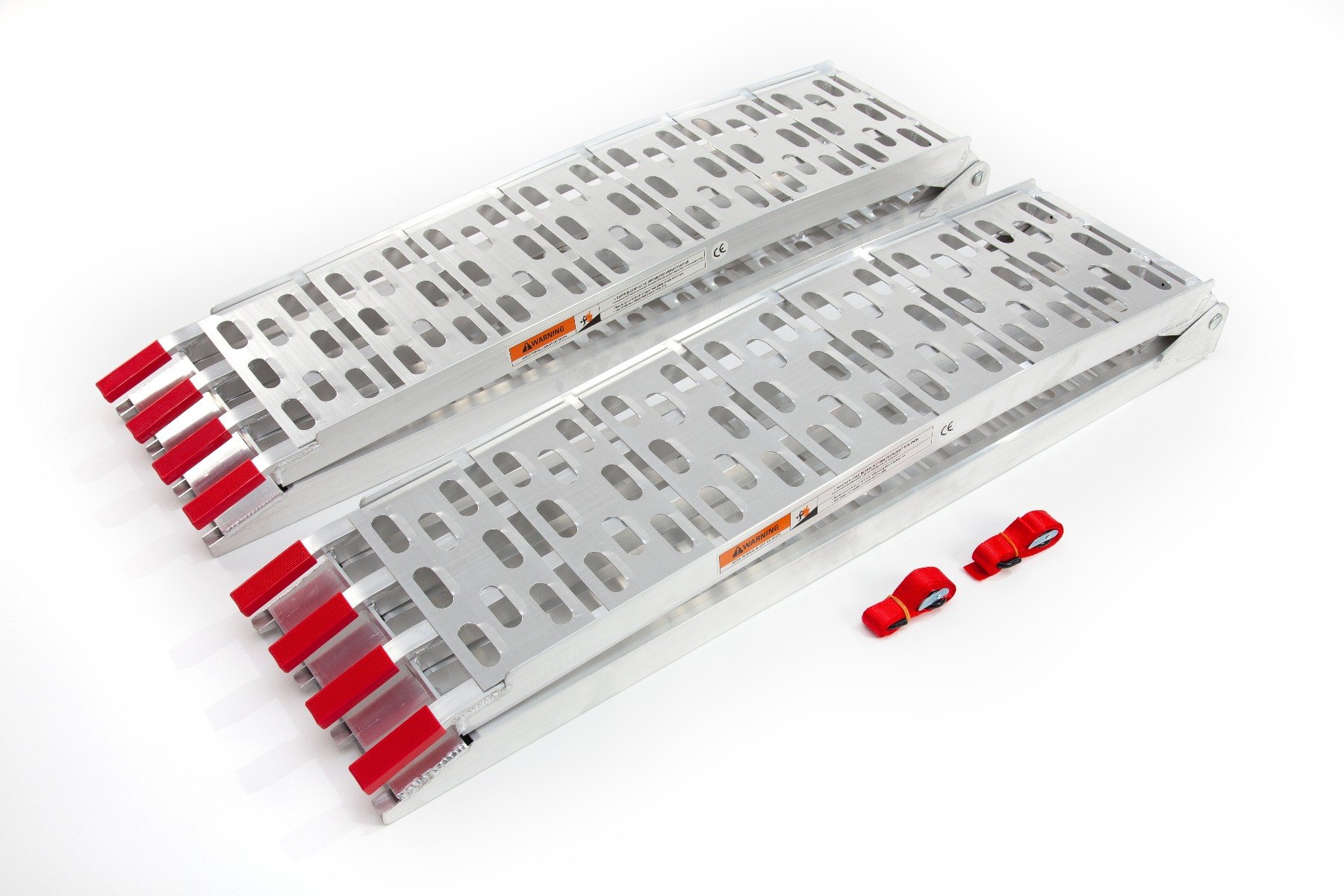

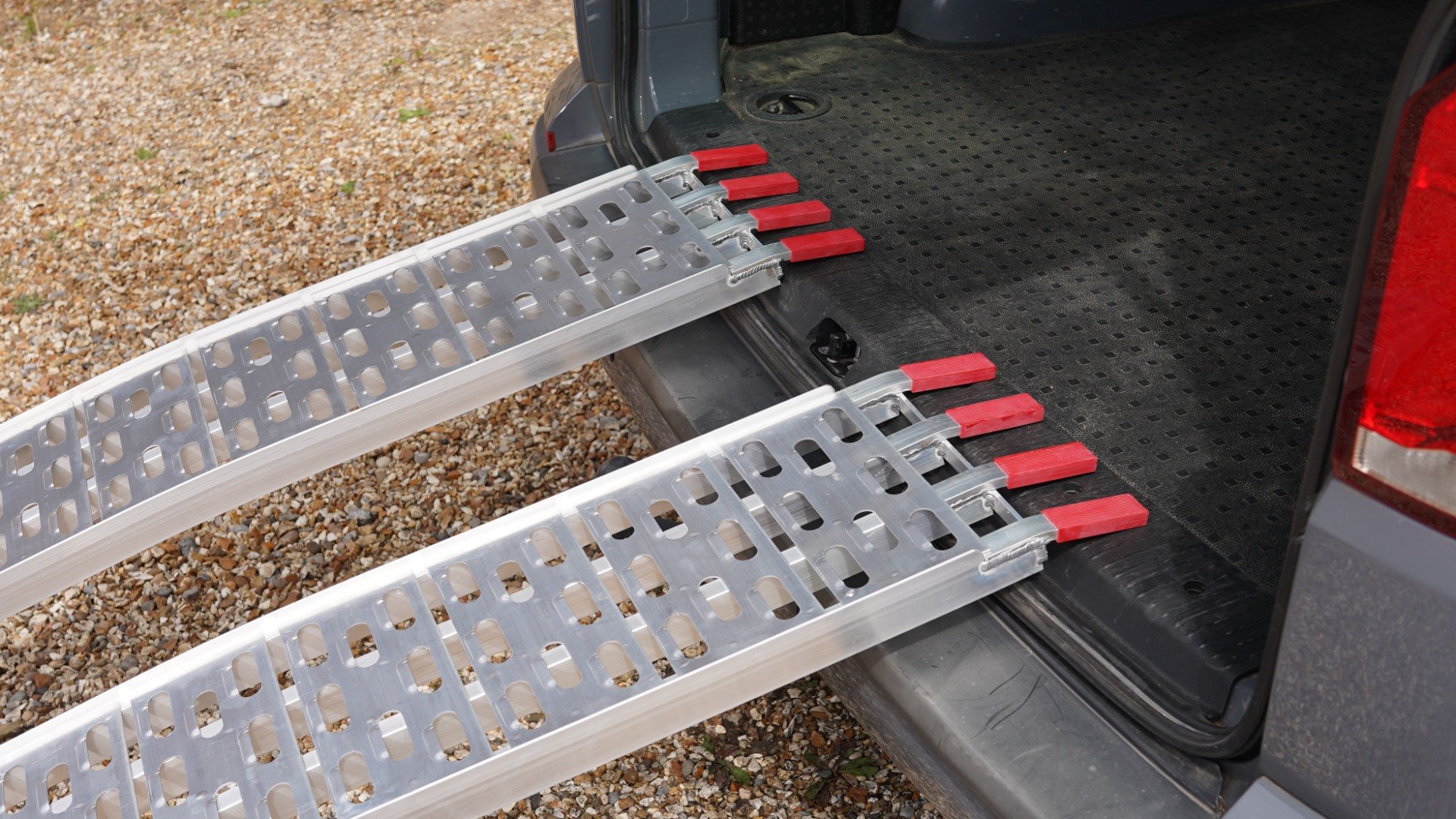

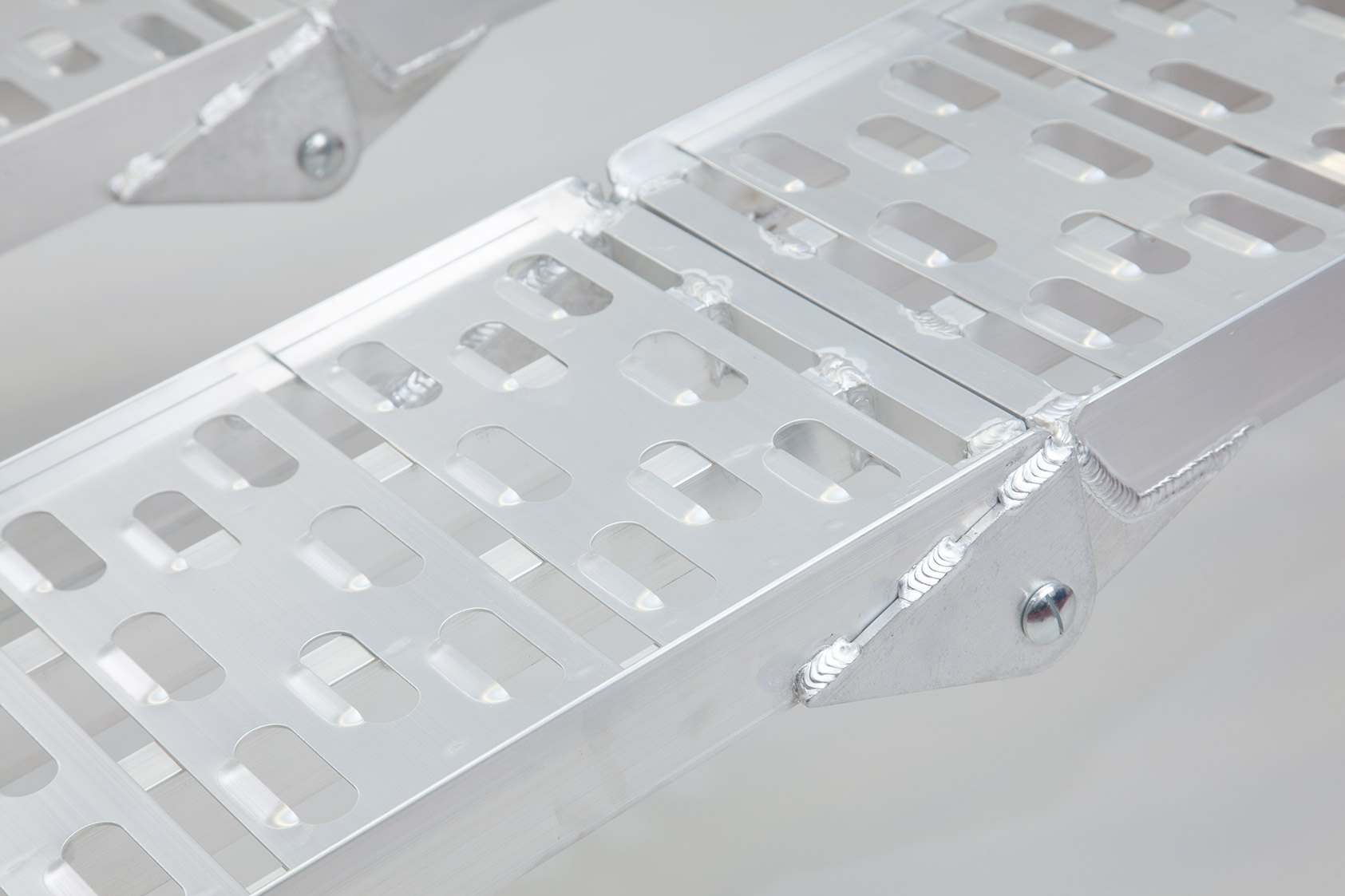

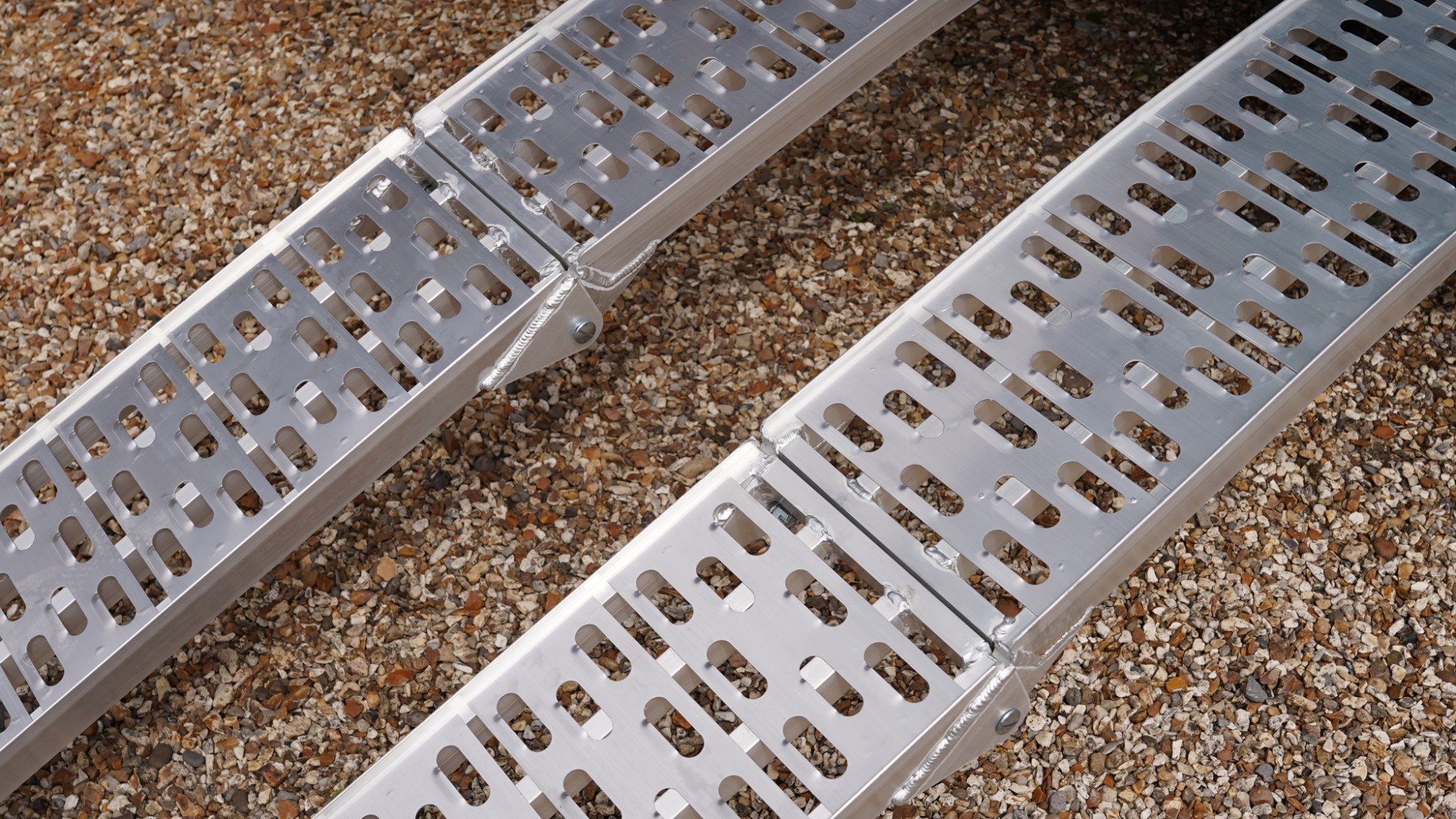

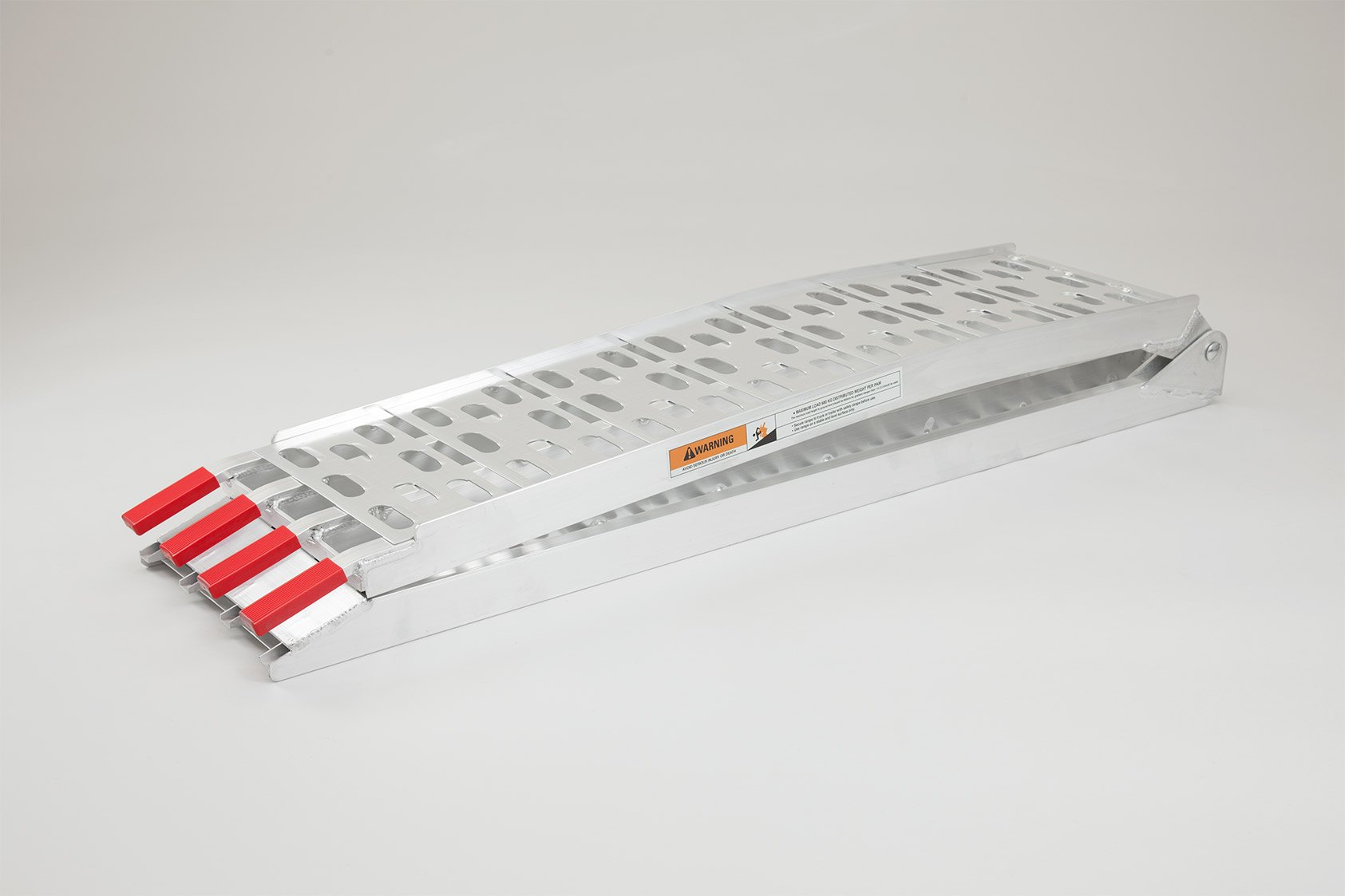

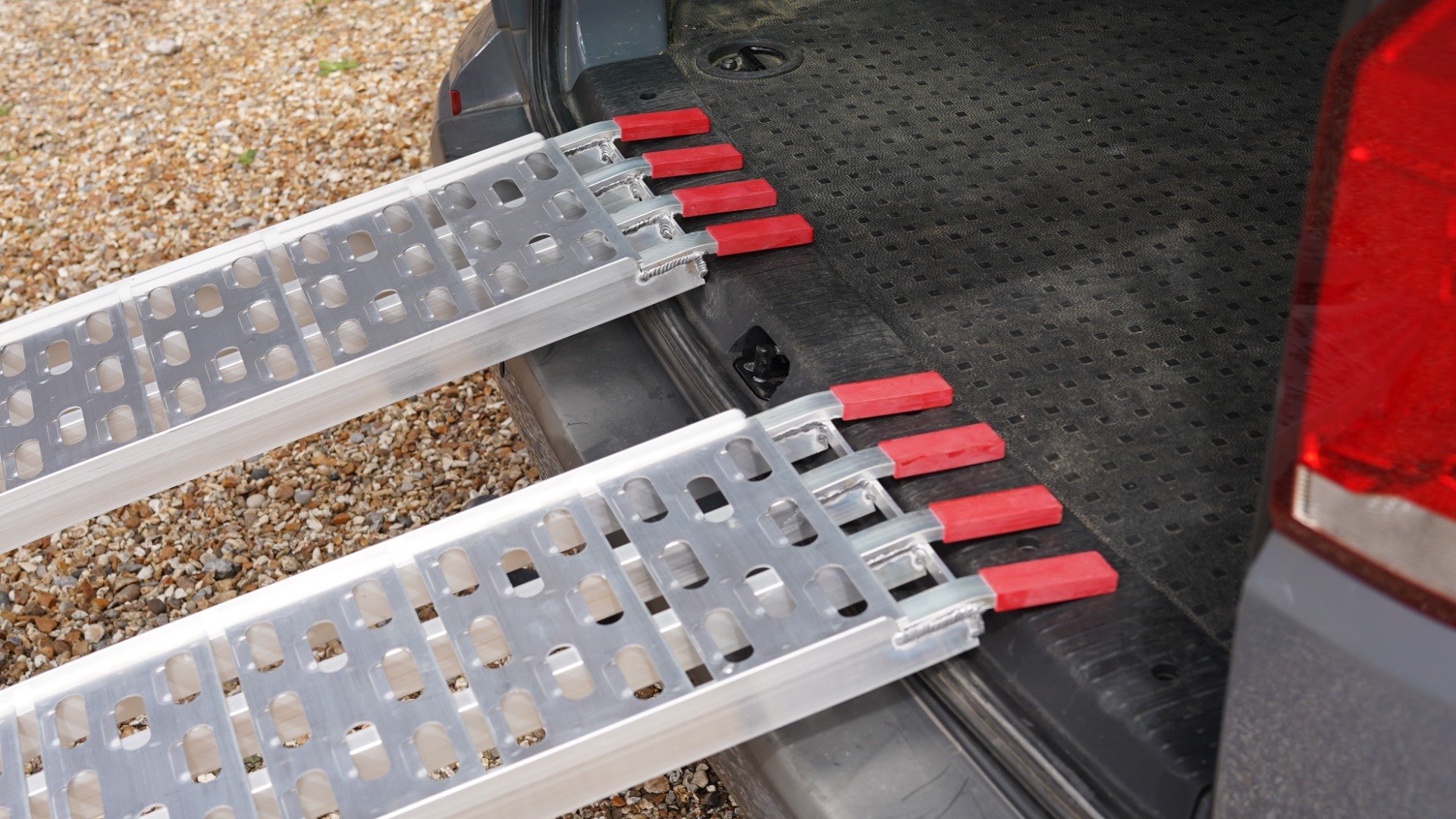

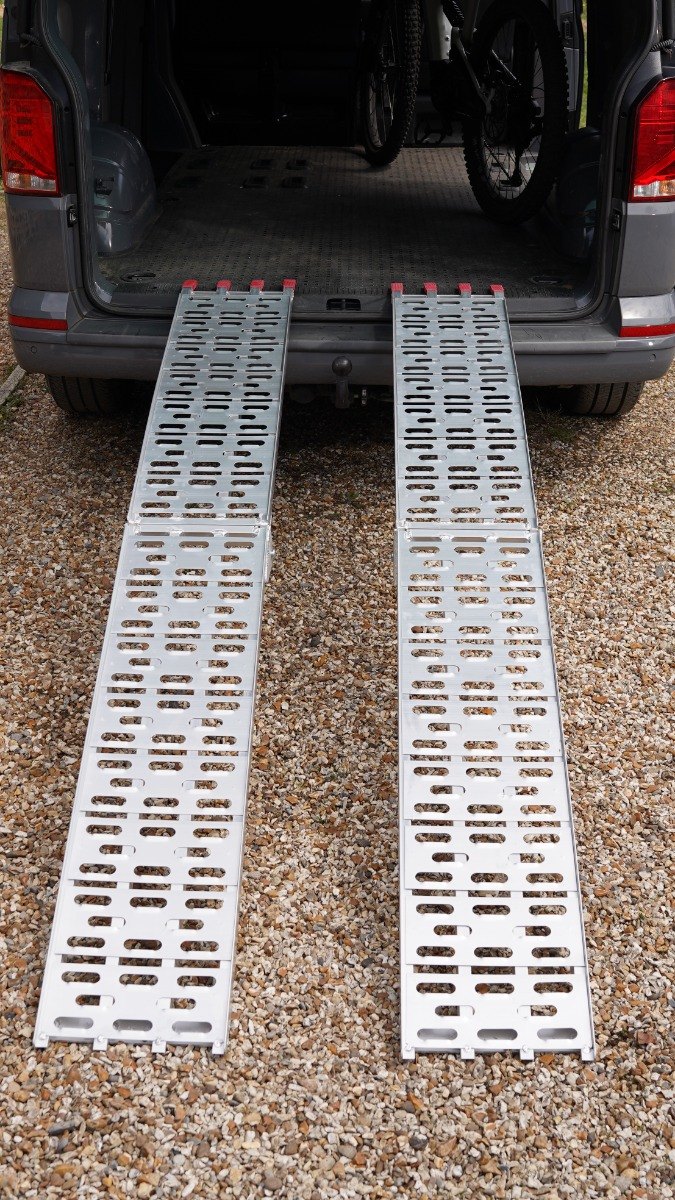

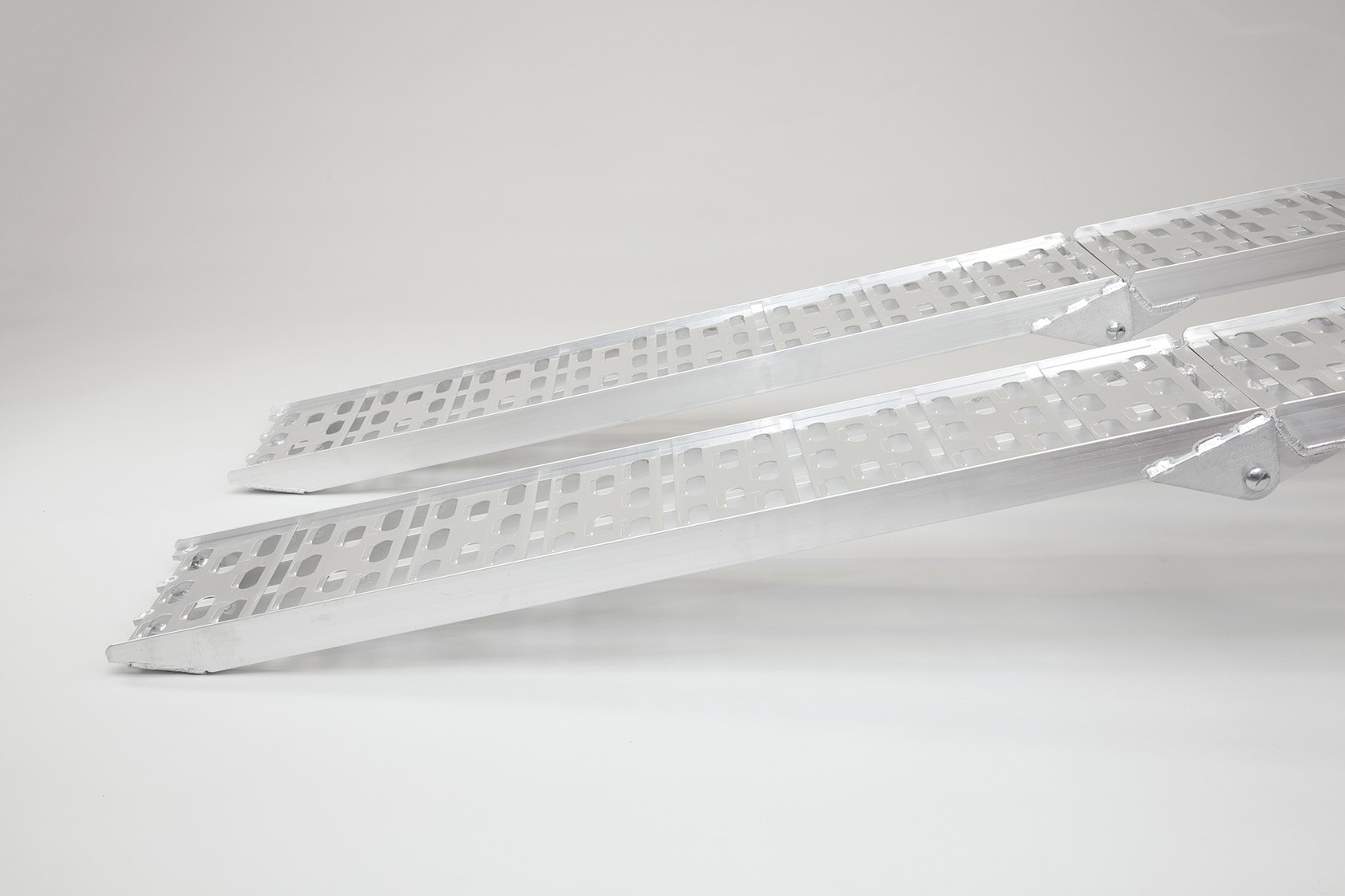

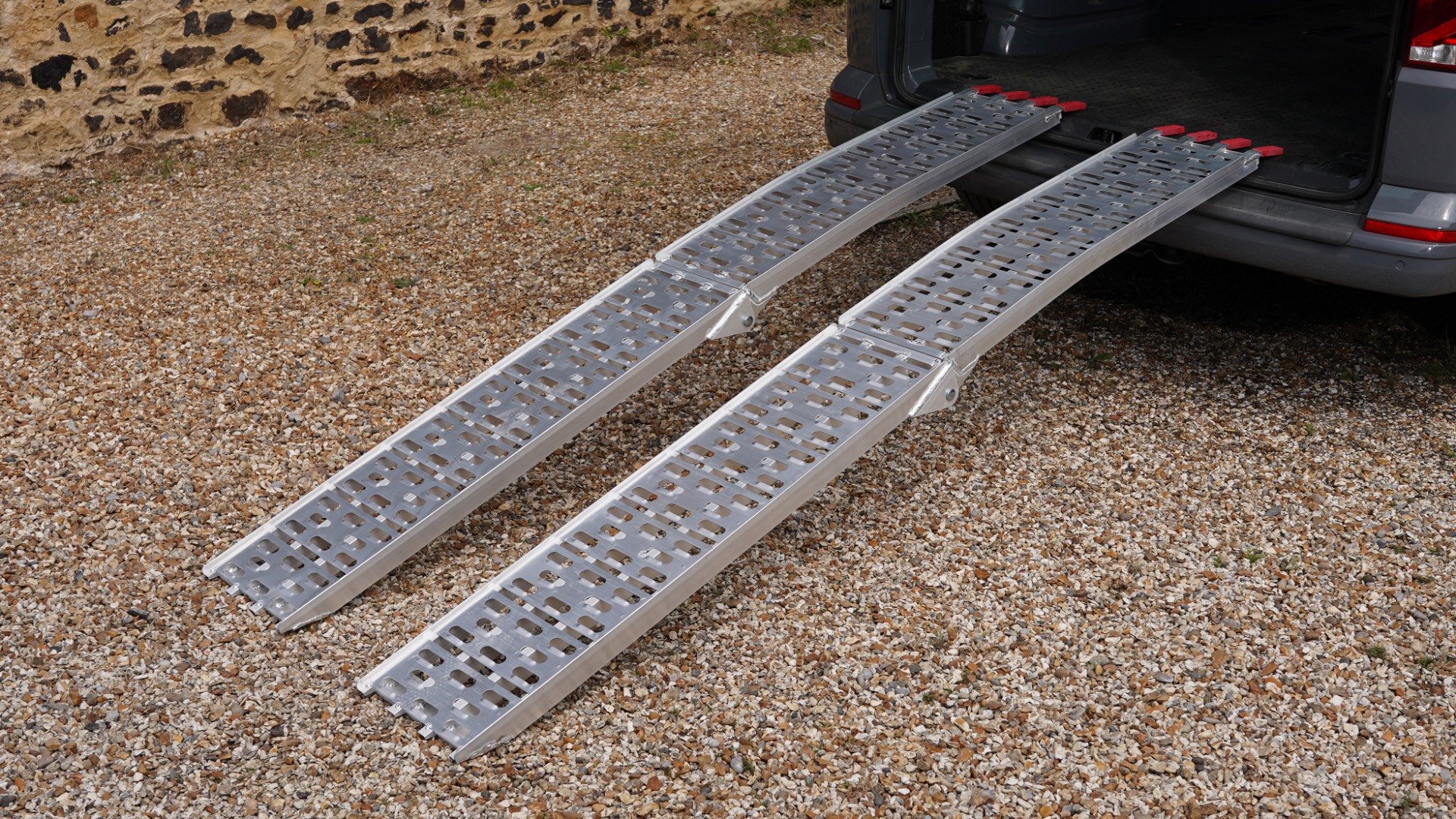

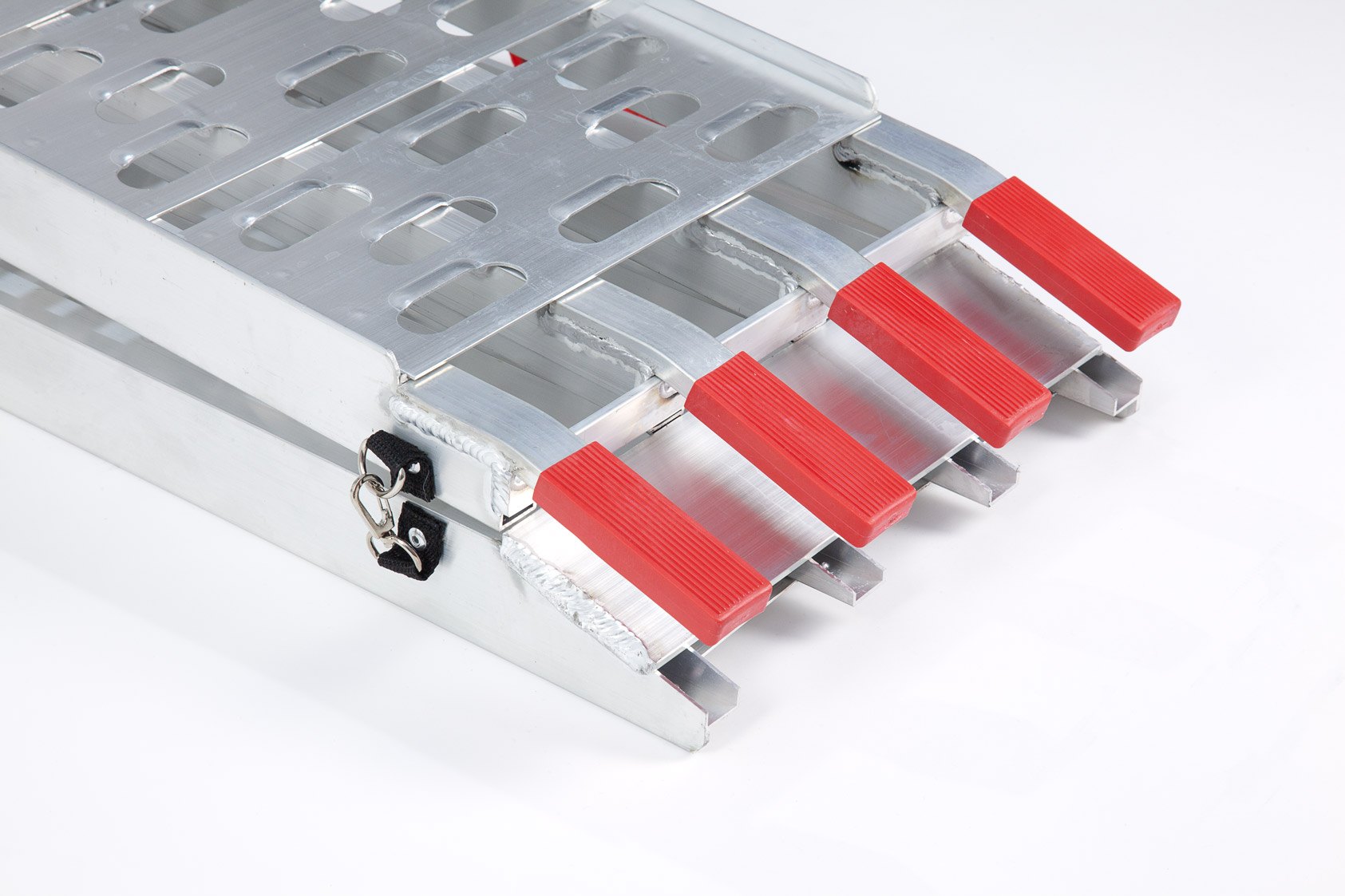

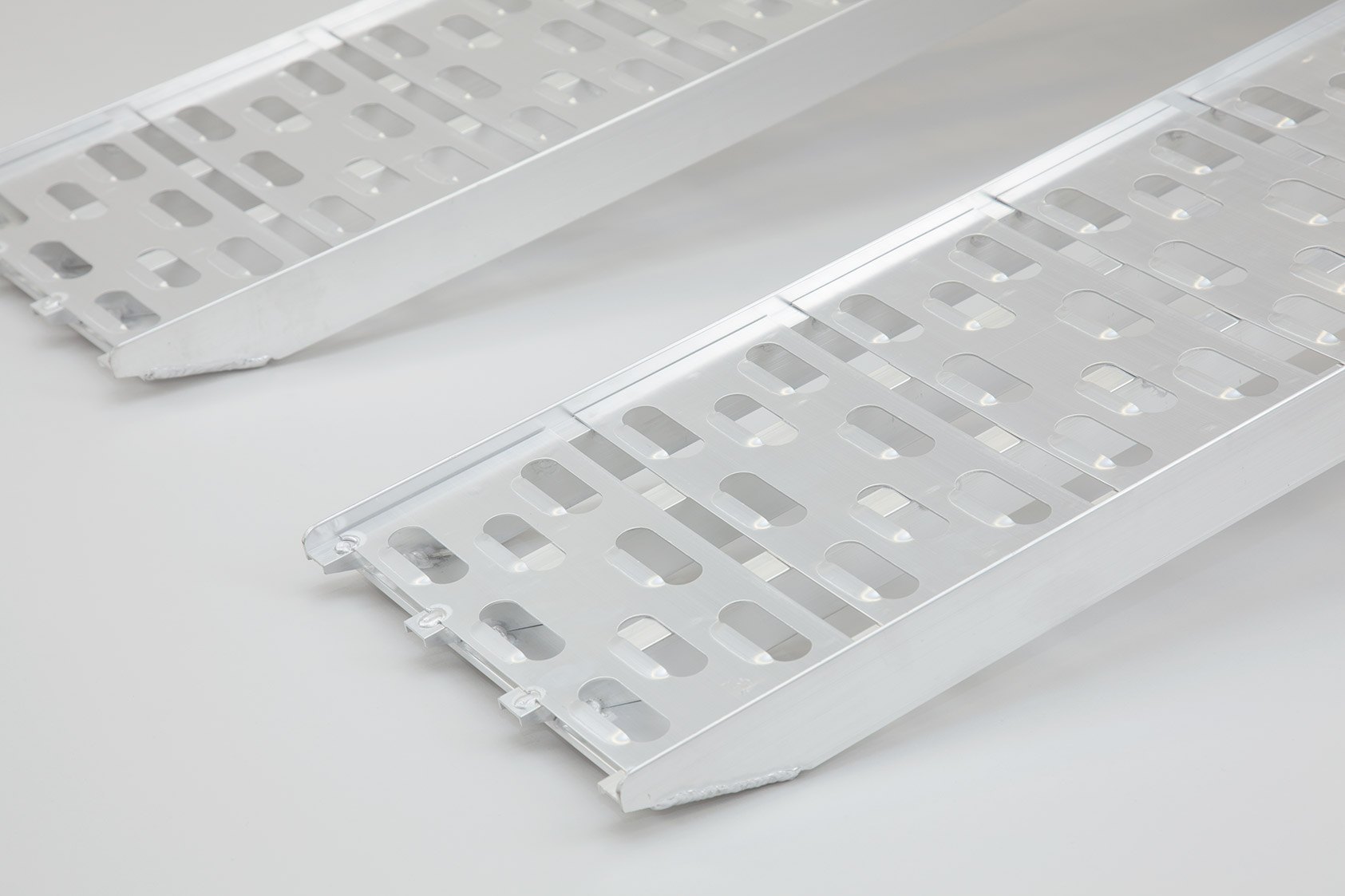

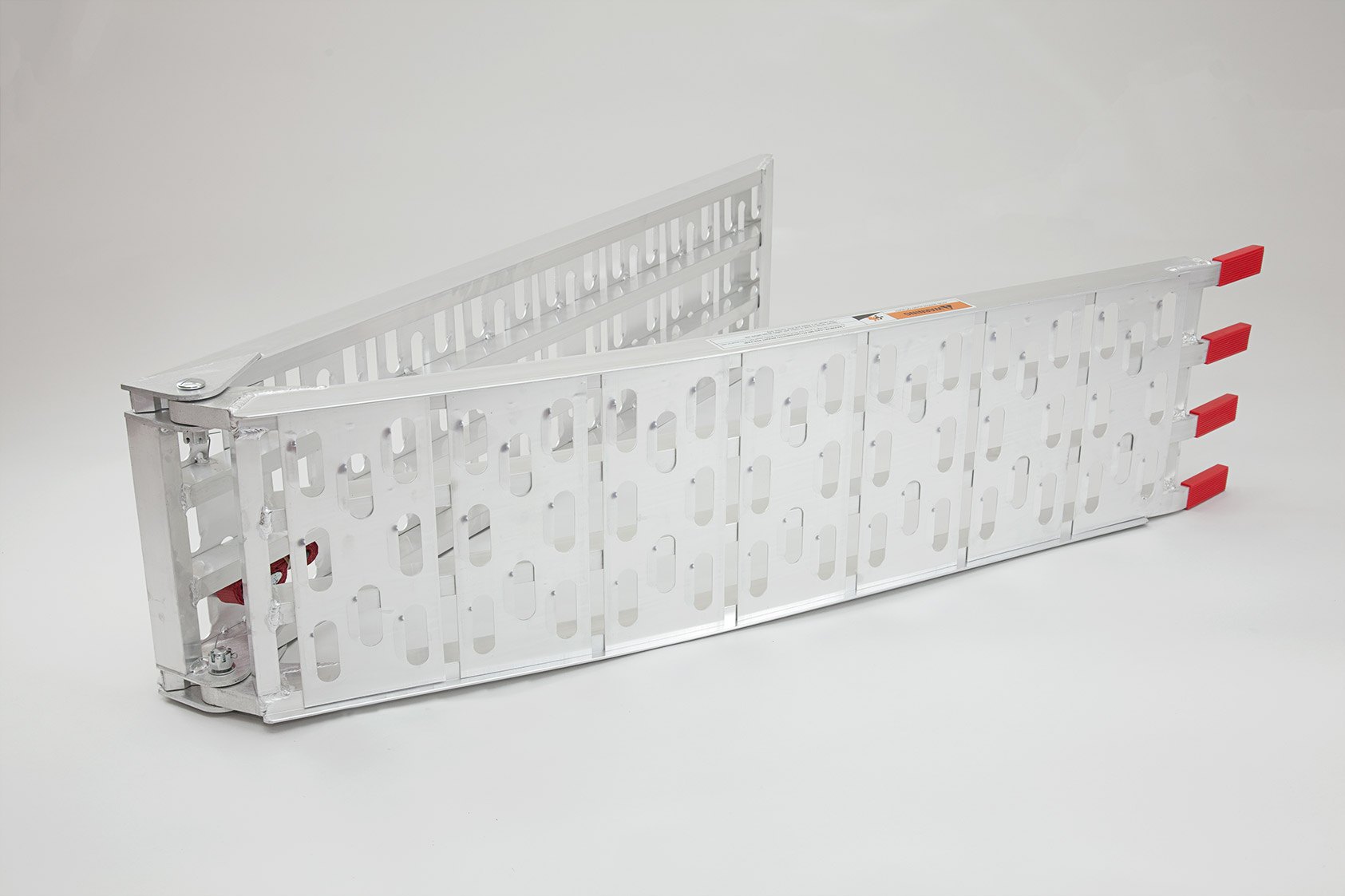

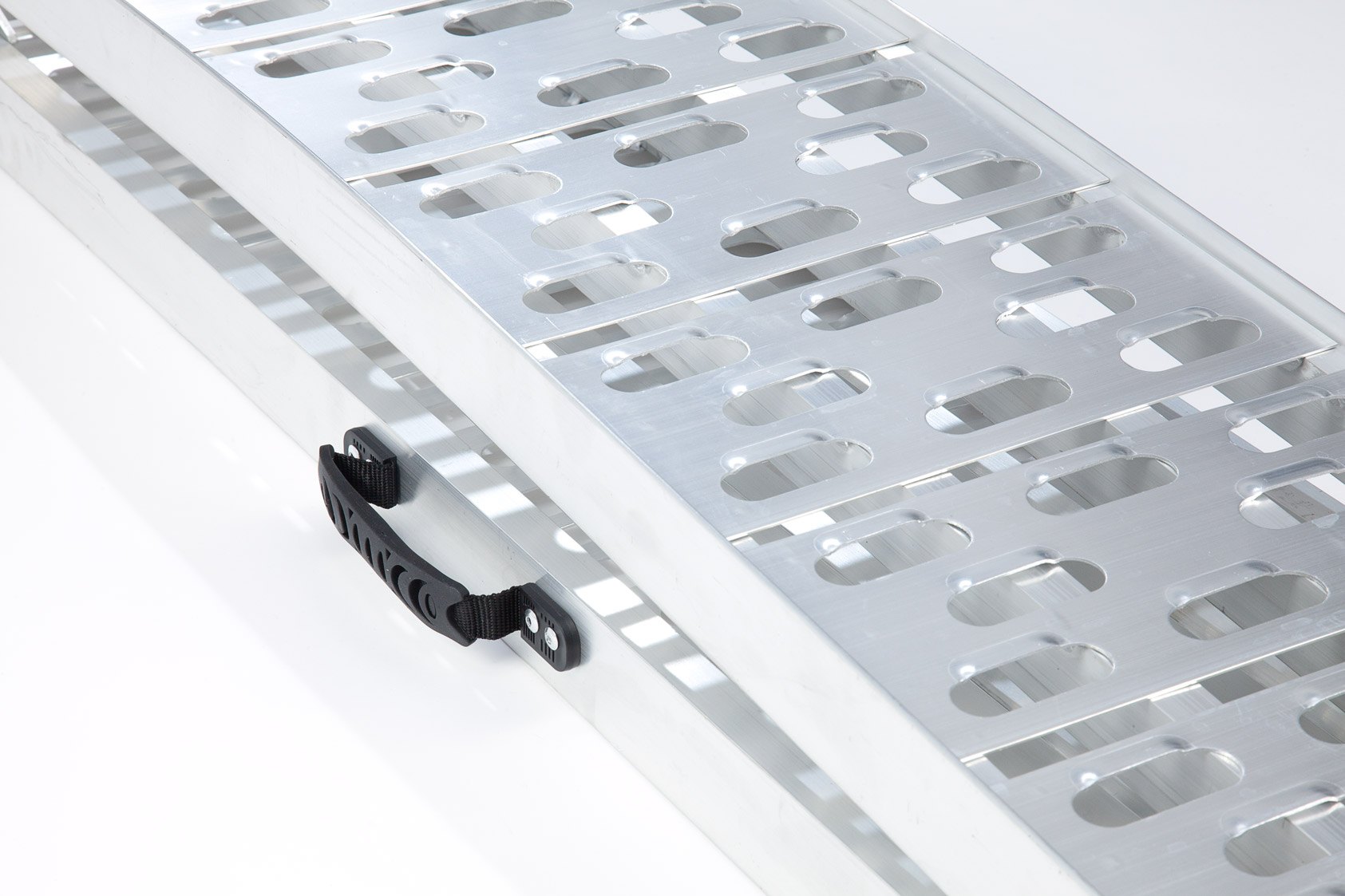

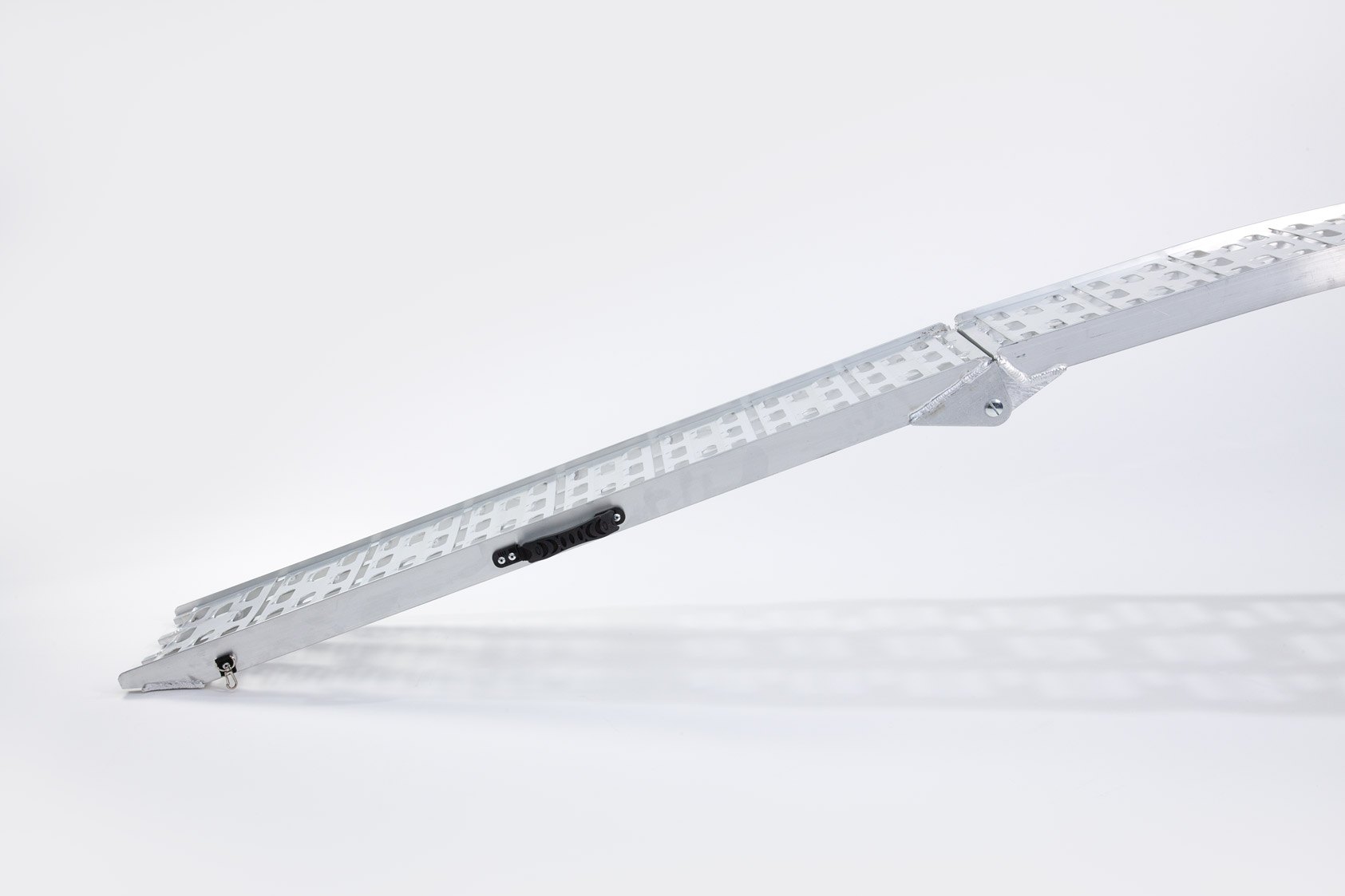

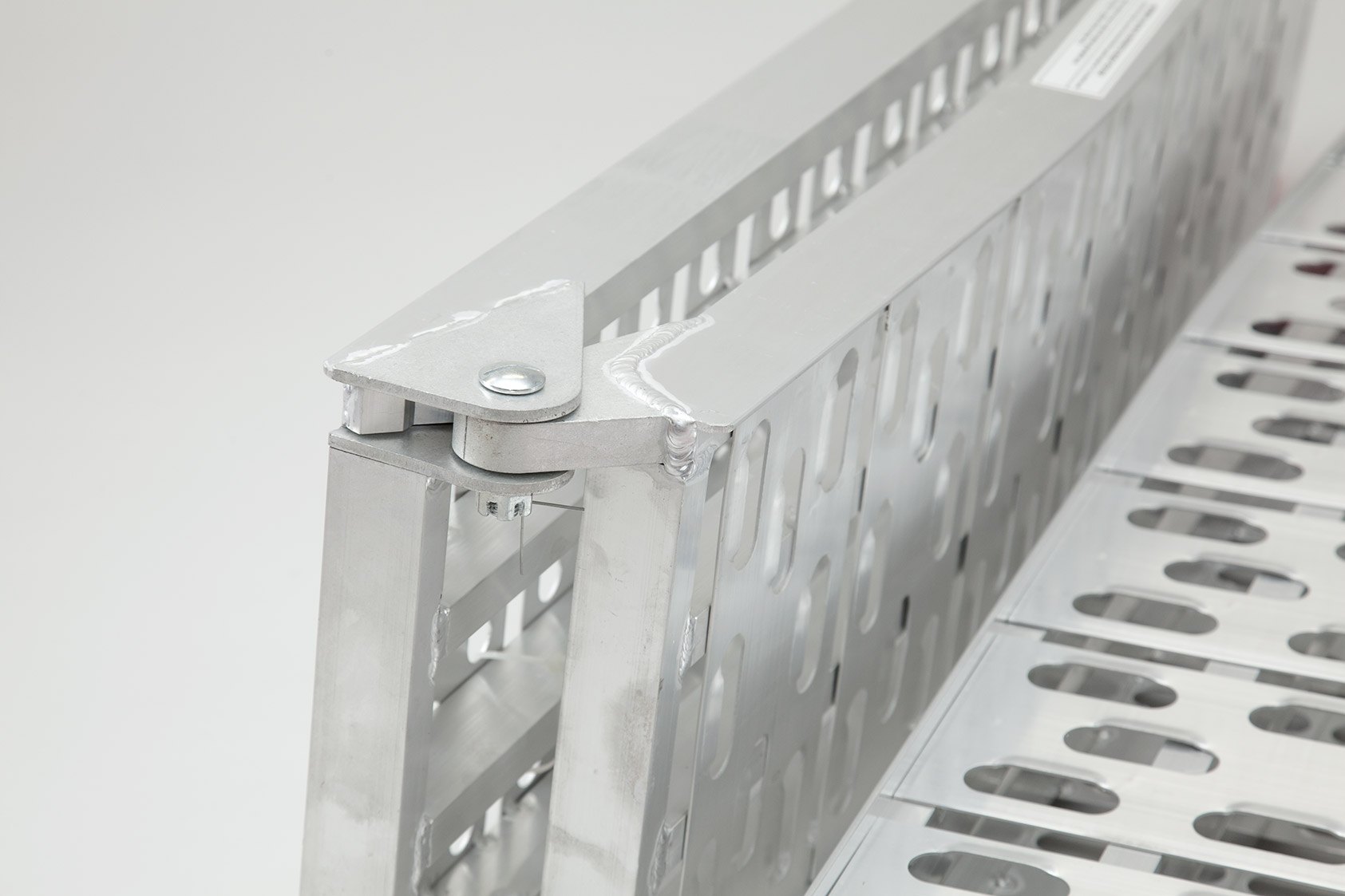

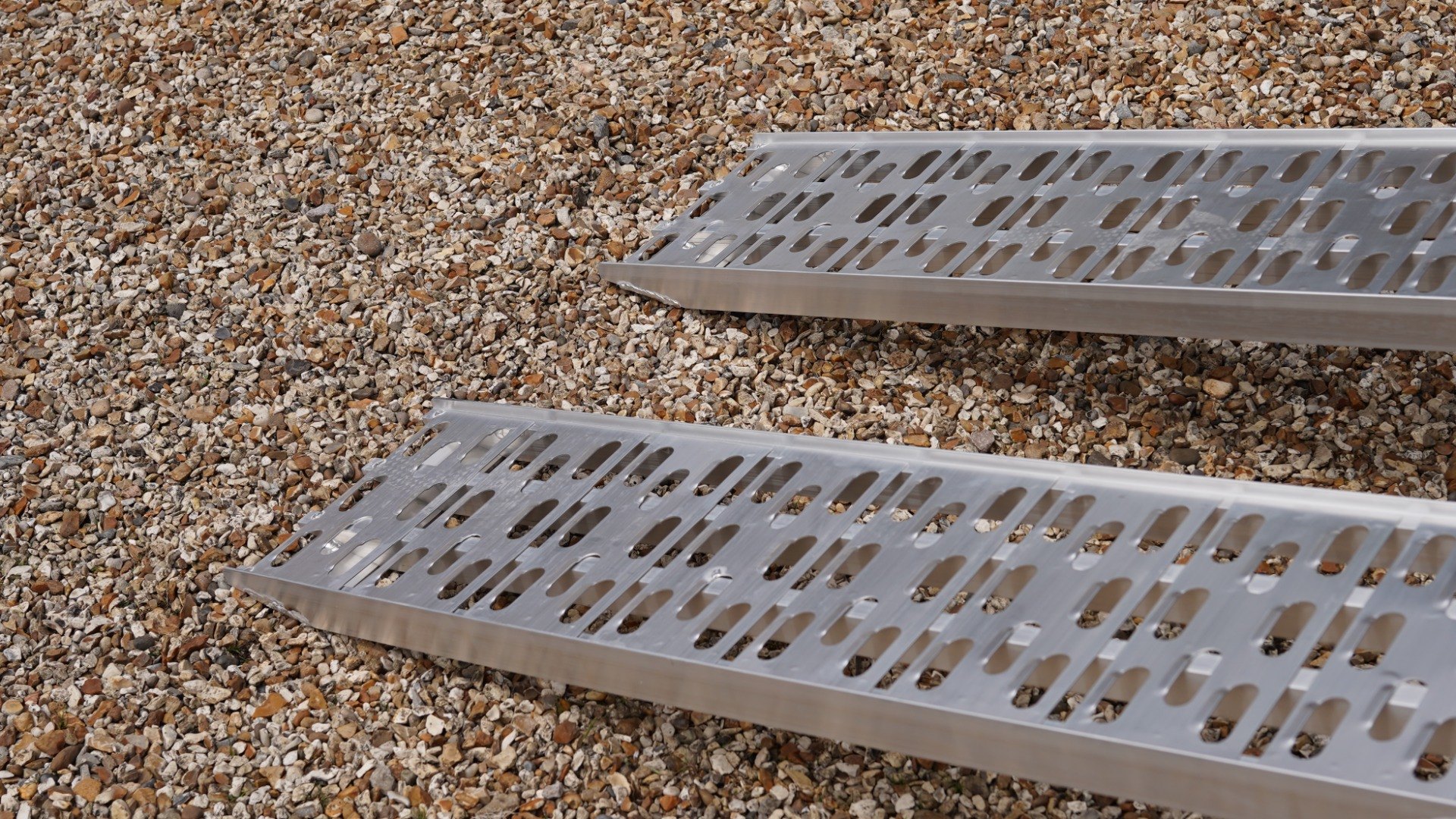

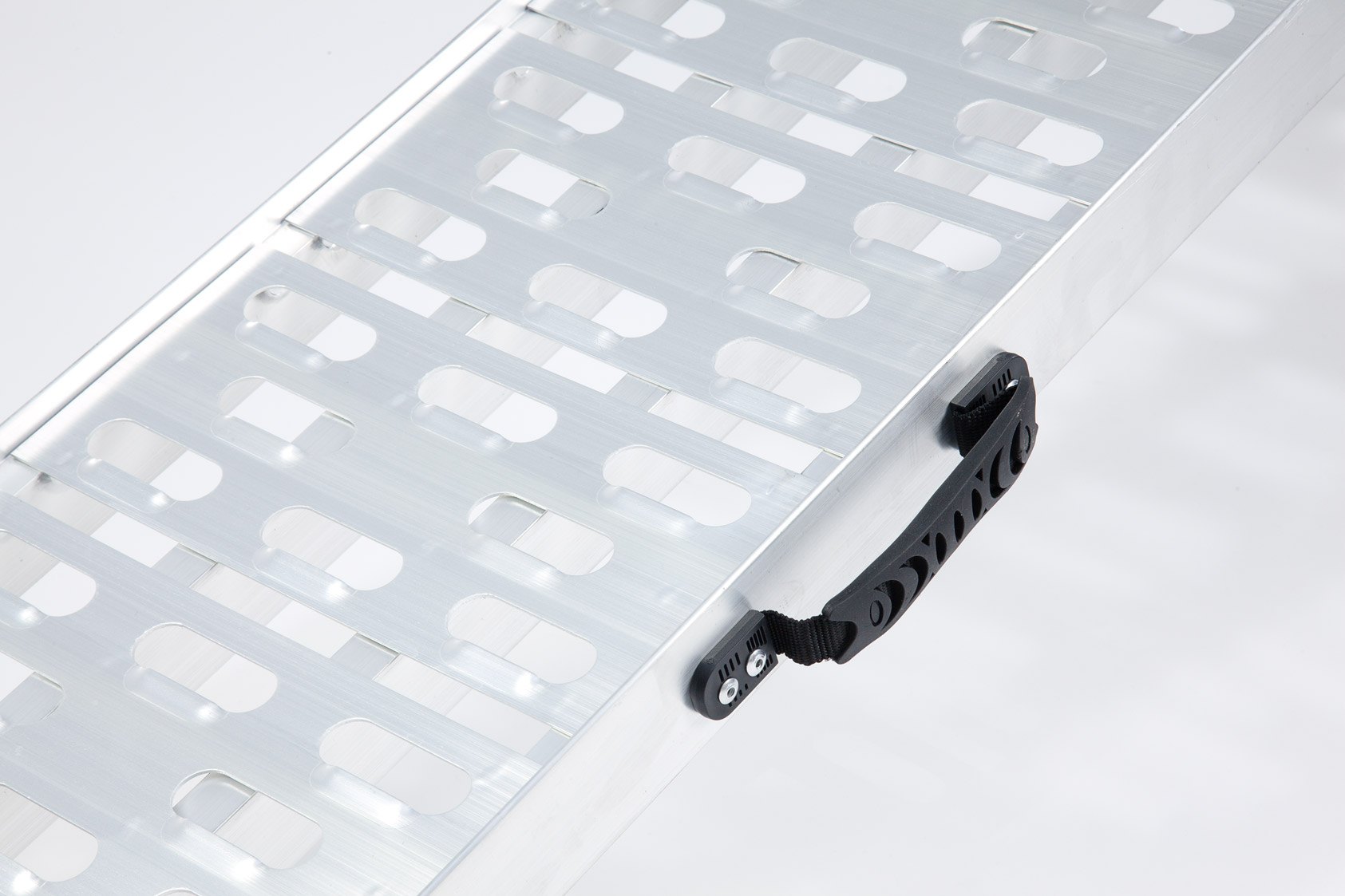

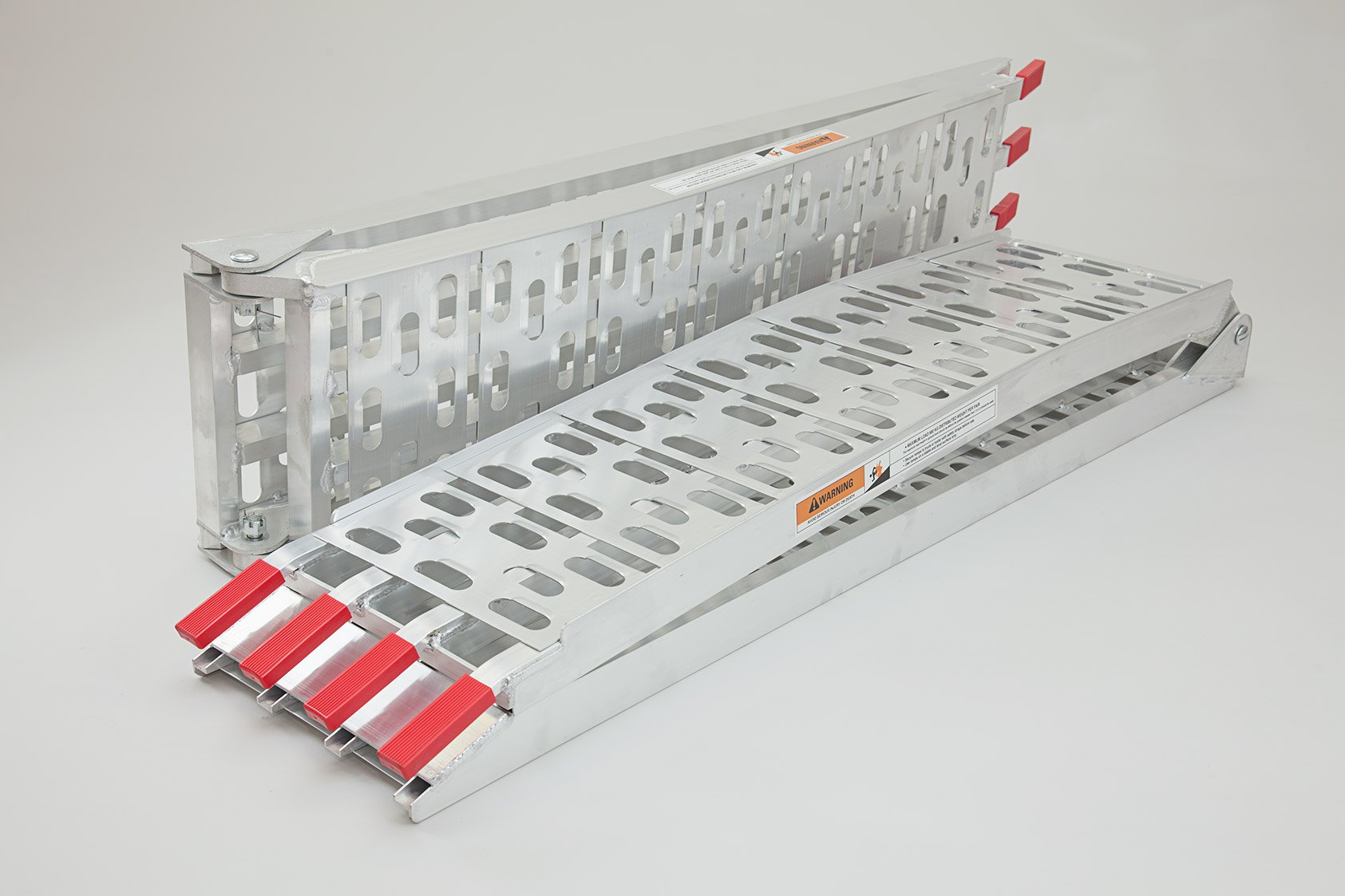

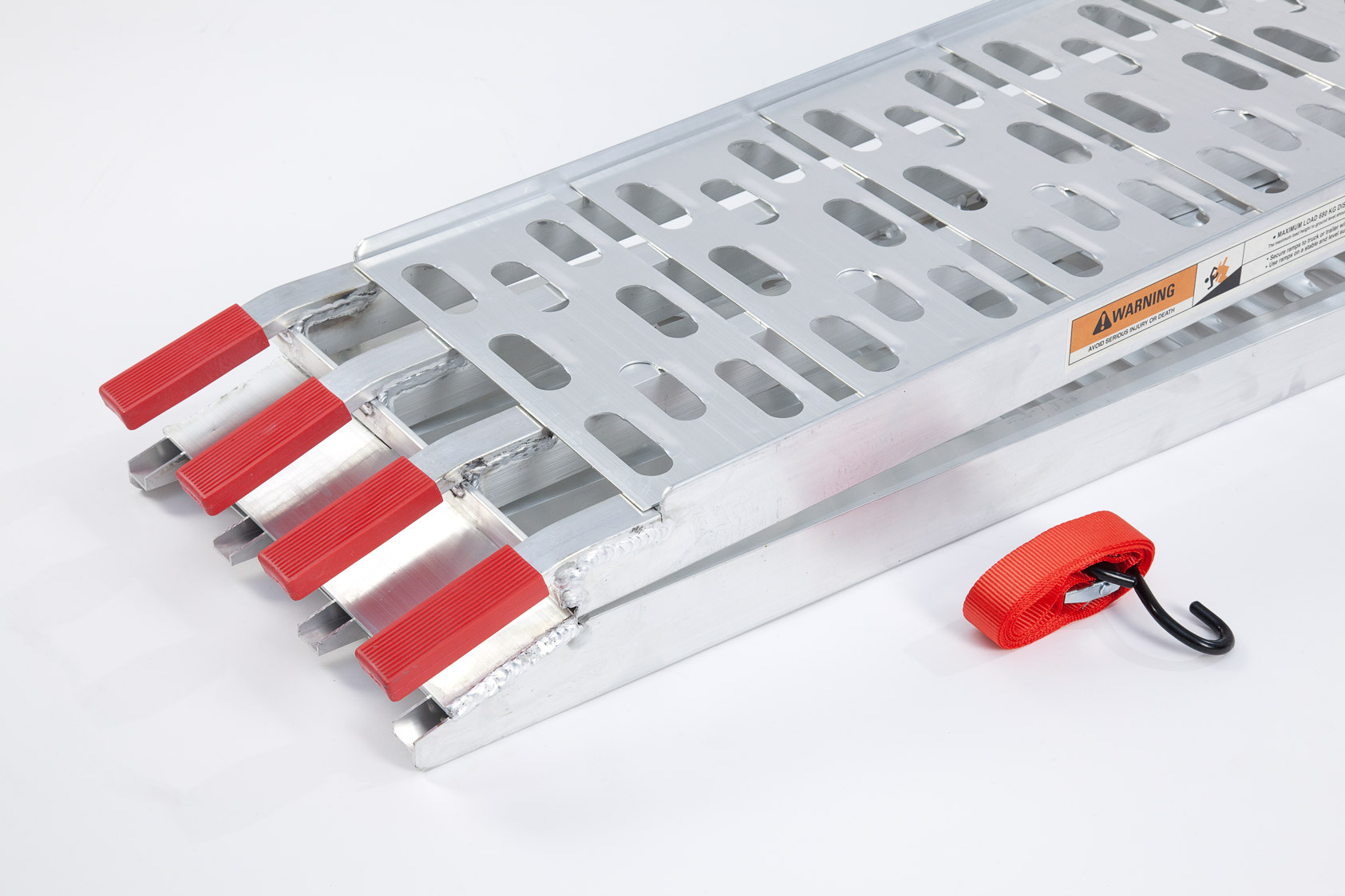

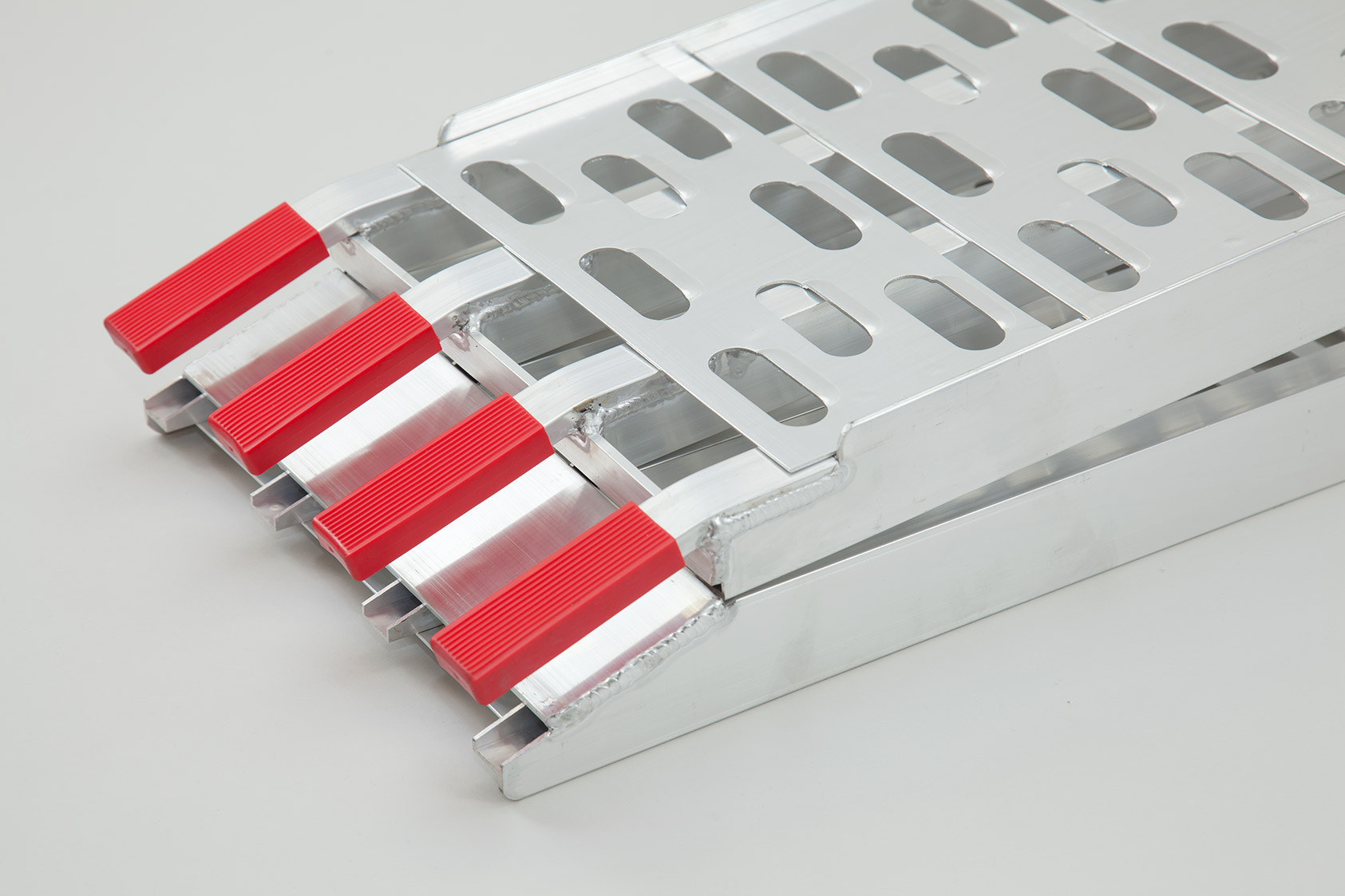

Pair of lightweight aluminium folding loading ramps with cut-out grip system and double support bar underneath making them much stronger. Suitable for ride-on lawn mowers, ATV/quad bikes and other wheeled garden machinery. Slightly curved for improved ground clearance. Price and capacity stated is for the PAIR. Please note: These ramps are unsuitable for single axle machinery or vehicles.
Motorcycle Loading Ramp Pair with Double support Bar (2200mm long x 285mm wide)
Length (mm)
2200
Width (mm)
285
Max Load Height (mm)
666
Weight per Ramp (kg)
8.5
Weight Per Pair (kg)
17
Capacity (kg)
680
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
