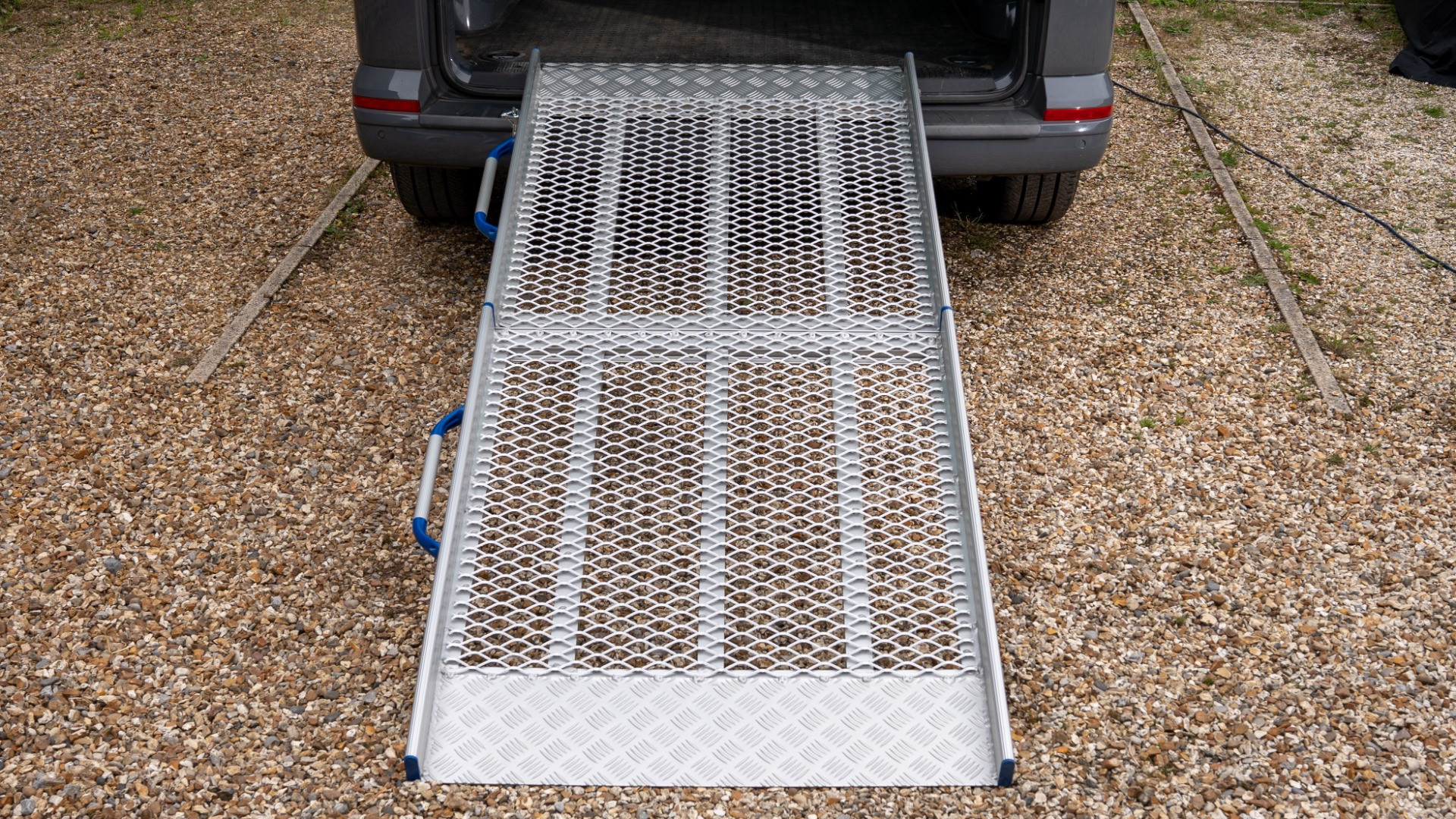

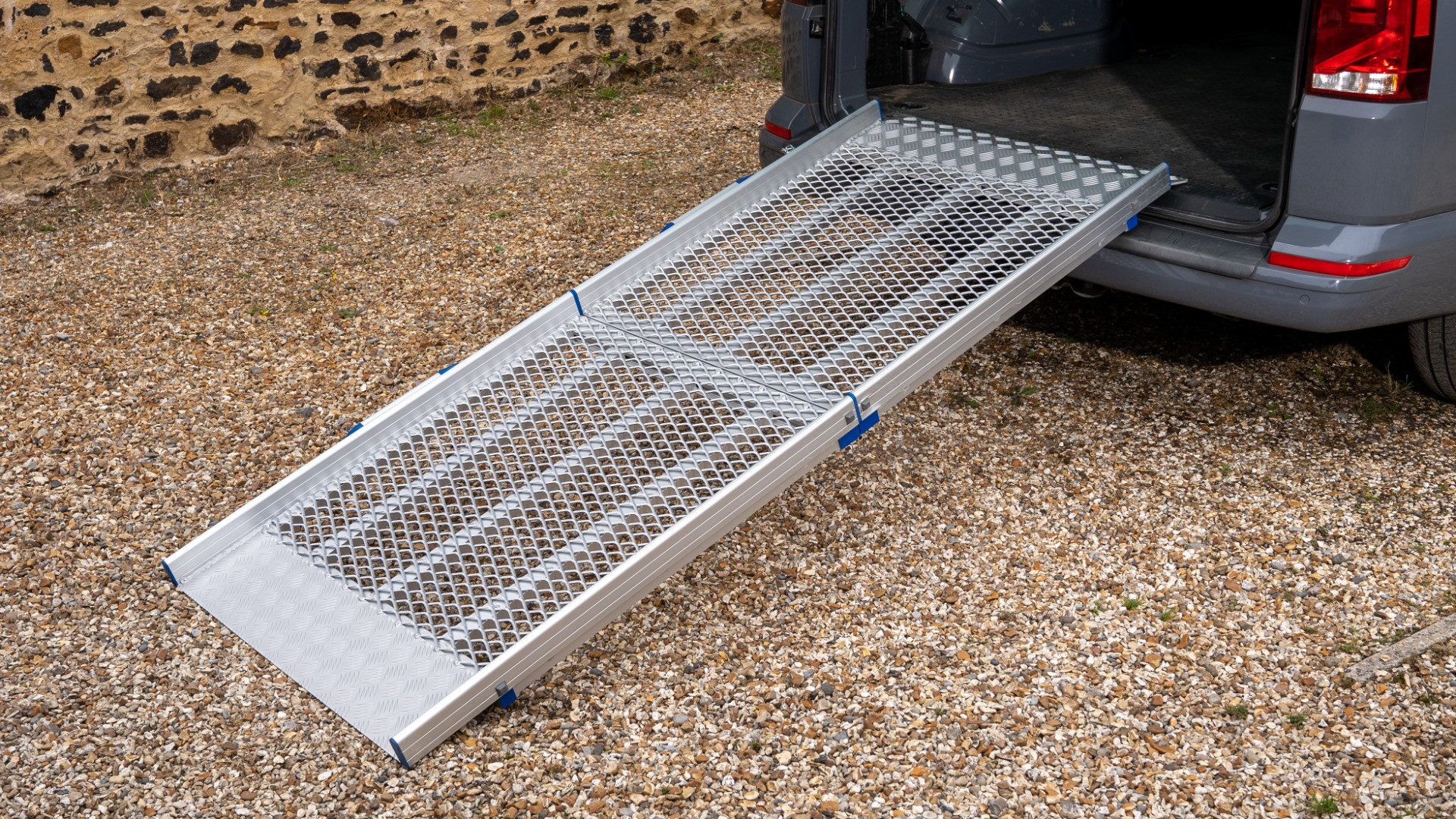

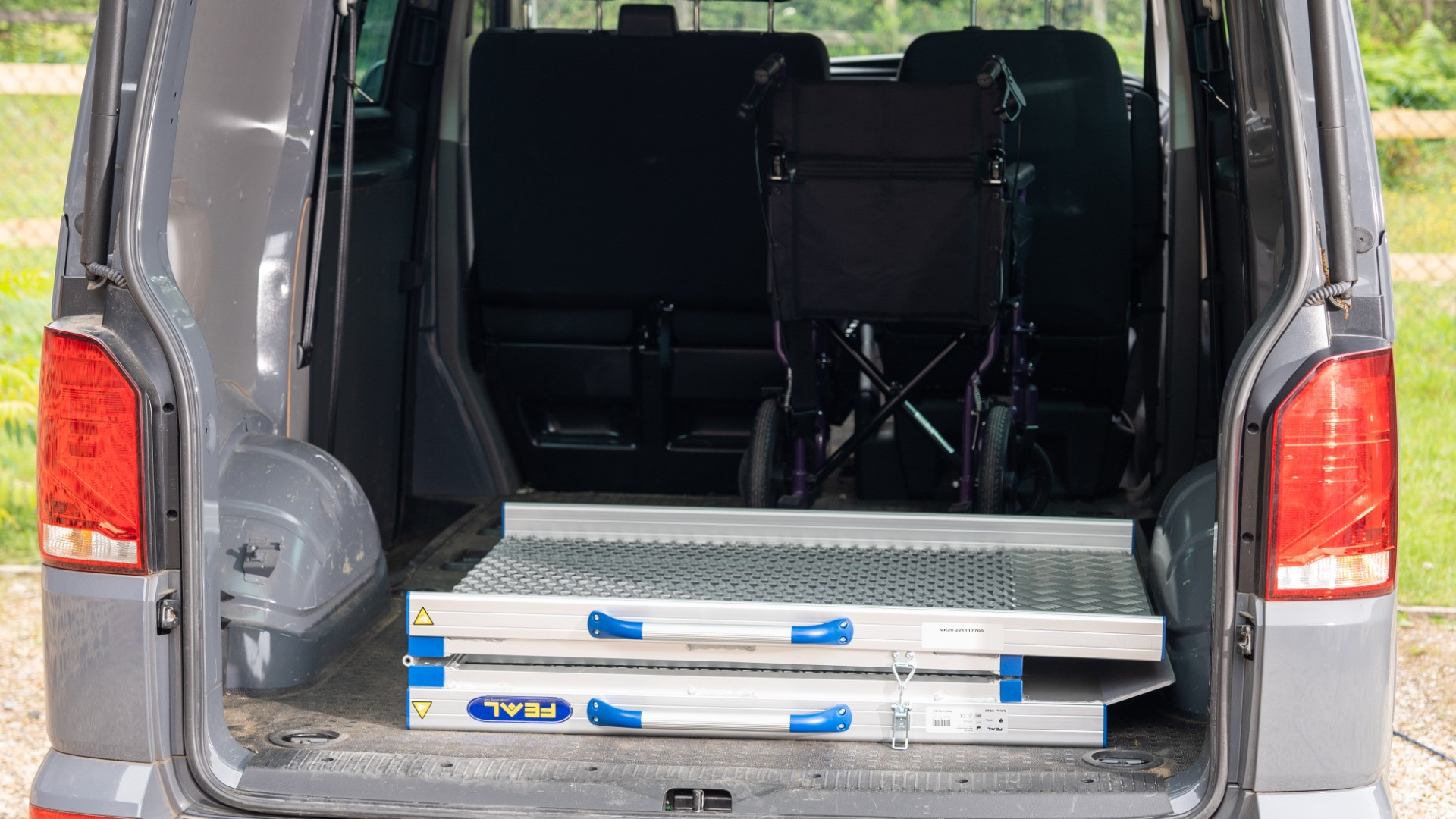

The FEAL AnyRamp allows you to easily overcome steps and kerbs with your wheelchair, electric wheelchair or scooter. The ramp, which folds lengthways, can also be used to load wheelchairs and scooters into vehicles. The Swedish-produced premium ramp includes a 3 year warranty and offers an anti-slip mesh surface for optimum grip.
1000mm
Length (ft)
3.28
Length (mm)
1000
Internal Width (mm)
820
Total Width (mm)
920 (including handles)
Max Load Height (mm)
300
Weight (kg)
11
Capacity (kg)
400
1600mm
Length (ft)
5.24
Length (mm)
1600
Internal Width (mm)
820
Total Width (mm)
920 (including handles)
Max Load Height (mm)
480
Weight (kg)
18
Capacity (kg)
400
2000mm
Length (ft)
6.56
Length (mm)
2000
Internal Width (mm)
820
Total Width (mm)
920 (including handles)
Max Load Height (mm)
600
Weight (kg)
21
Capacity (kg)
400
2500mm
Length (ft)
8.20
Length (mm)
2500
Internal Width (mm)
820
Total Width (mm)
920 (including handles)
Max Load Height (mm)
750
Weight (kg)
25
Capacity (kg)
400
2800mm
Length (ft)
9.18
Length (mm)
2800
Internal Width (mm)
820
Total Width (mm)
920 (including handles)
Max Load Height (mm)
840
Weight (kg)
29
Capacity (kg)
400
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
Certain goods and services for disabled people are zero-rated for VAT, including mobility aids, as long as the customer is eligible and the goods are for domestic or personal use. All of our wheelchair ramps classify as mobility aids and therefore those eligible can purchase these VAT exempt.
Who is eligible?
VAT relief is available for individuals with chronic illnesses and or disabilities. The wheelchair ramp must be for exclusive use by the disabled individual. VAT relief is also available to registered UK charities.
Who is not eligible?
Businesses are not eligible for VAT relief. VAT relief is also not available where the ramp is being purchased for a group of people to use, except for charities. In addition, those with temporary incapacities, such as broken bones, are required to pay the VAT.
How do I claim my VAT back?
At the checkout stage, prior to entering payment details, there is a VAT exemption box. Simply enter the full name of the person the ramp is for and their disability, or the charity name and number, and tick to confirm it is correct. The VAT will then automatically be removed from your purchase.
If you are in any doubt as to whether you are eligible to receive goods or services zero-rated for VAT, please contact our team, consult Notice 701/7 VAT Relief for Disabled People or contact the National Advice Service on 0845 010 9000.
Customisable
Easy to Fit
European Made
Manual Wheelchair
Mobility Scooter
Three Year Warranty
Description

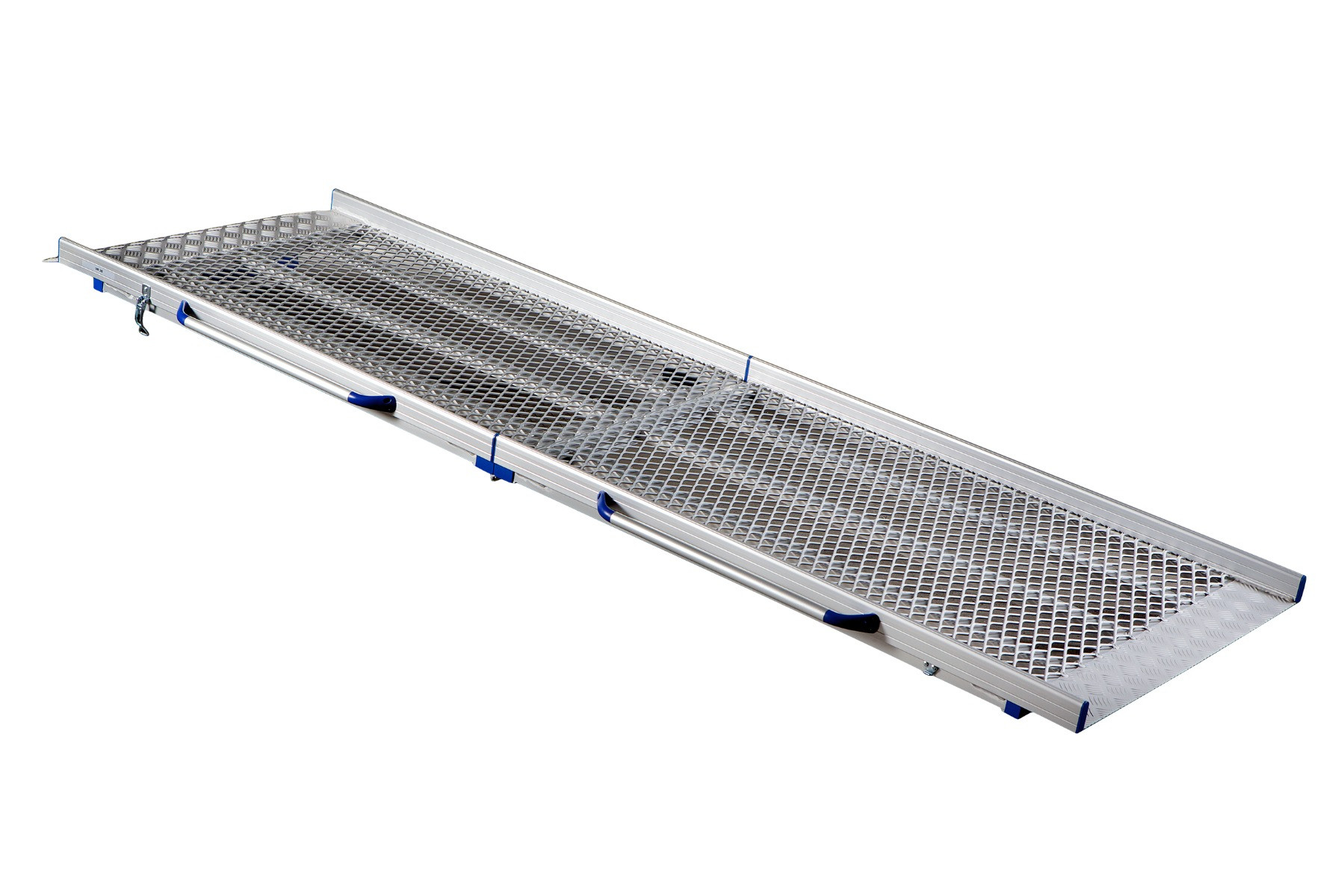

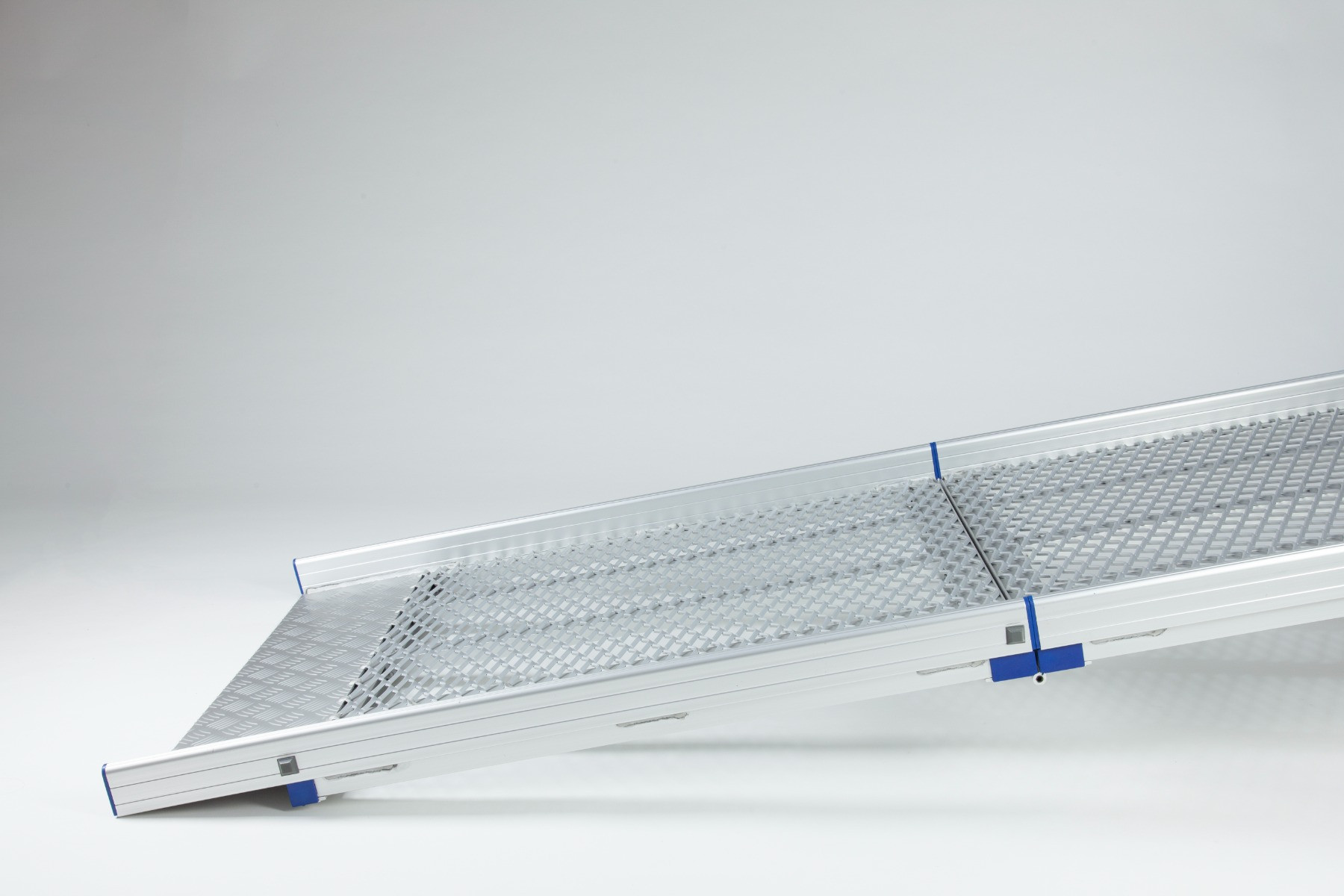

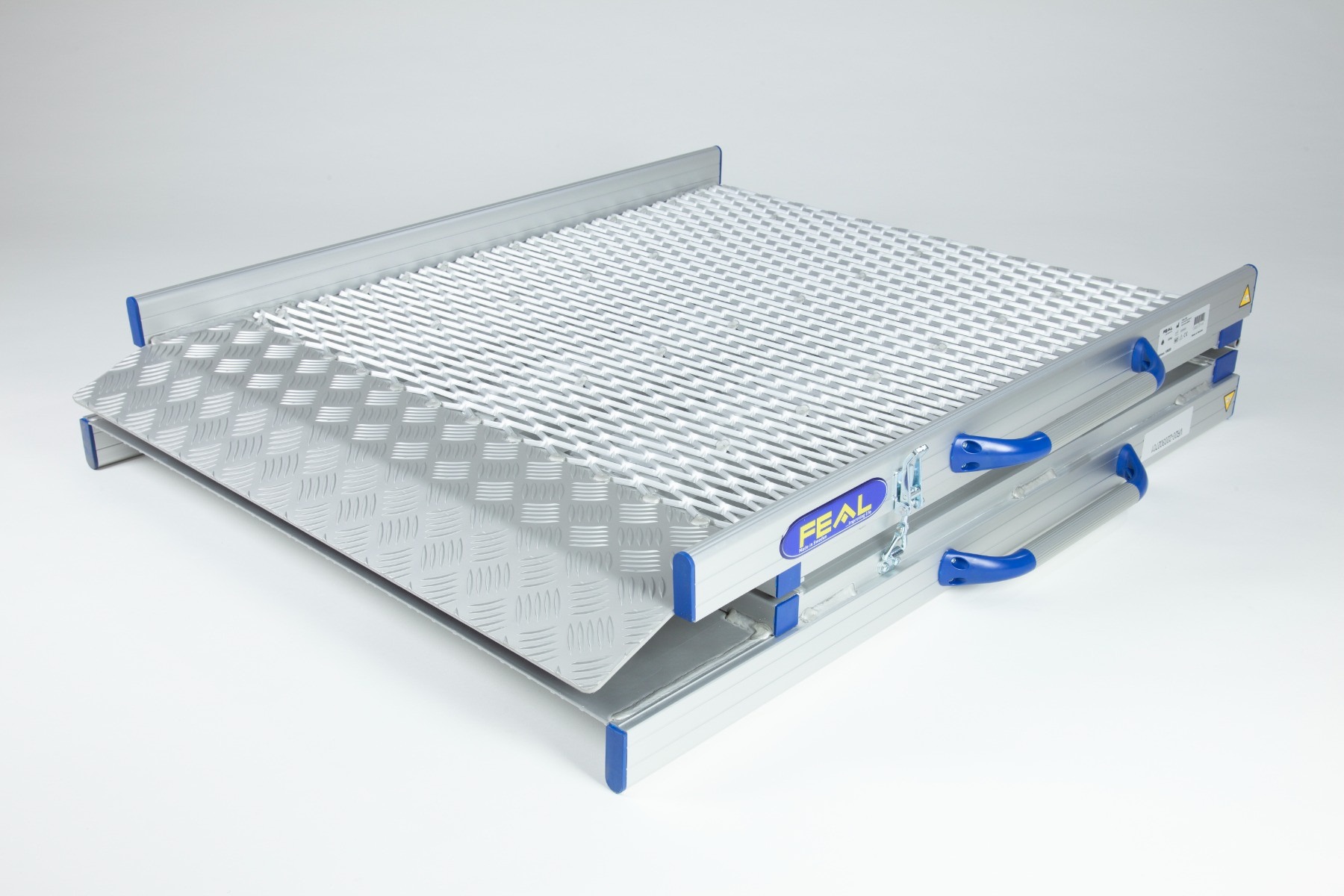

Folding ramp design for easy storage and transport

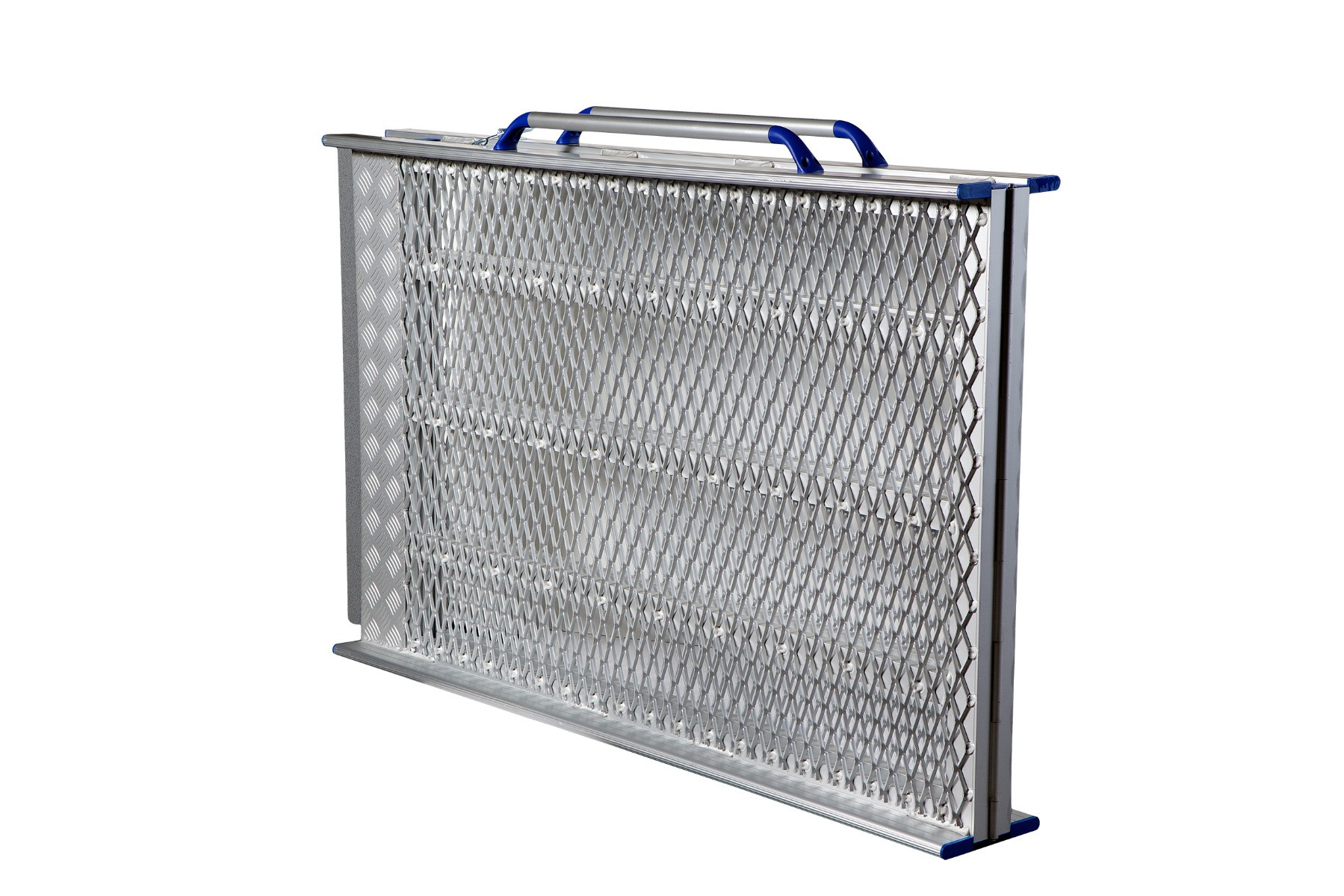

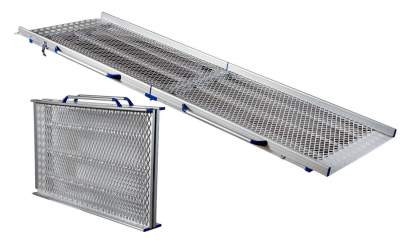

Folds lengthways to half the length

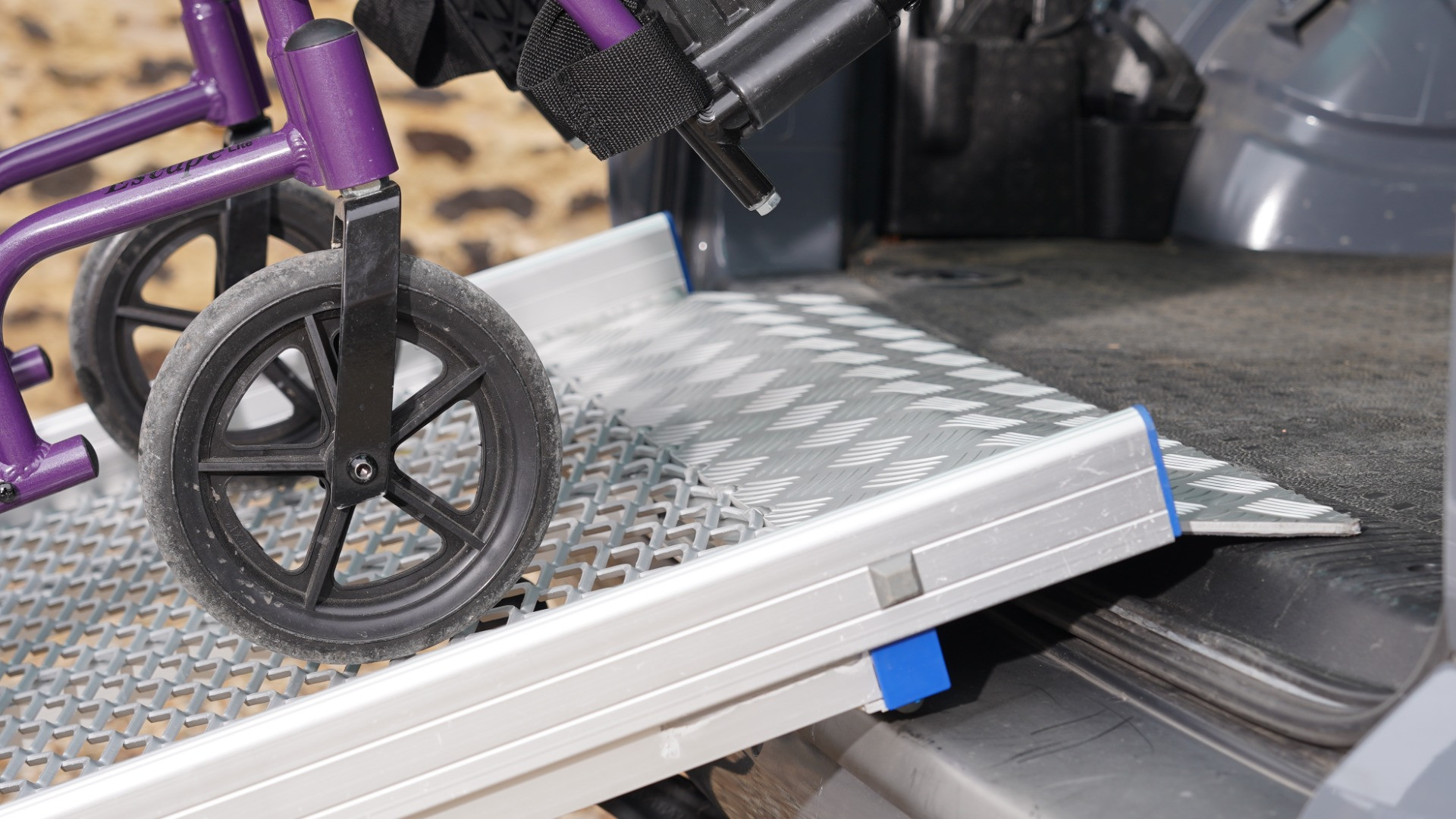

Simply rest on the step and start loading

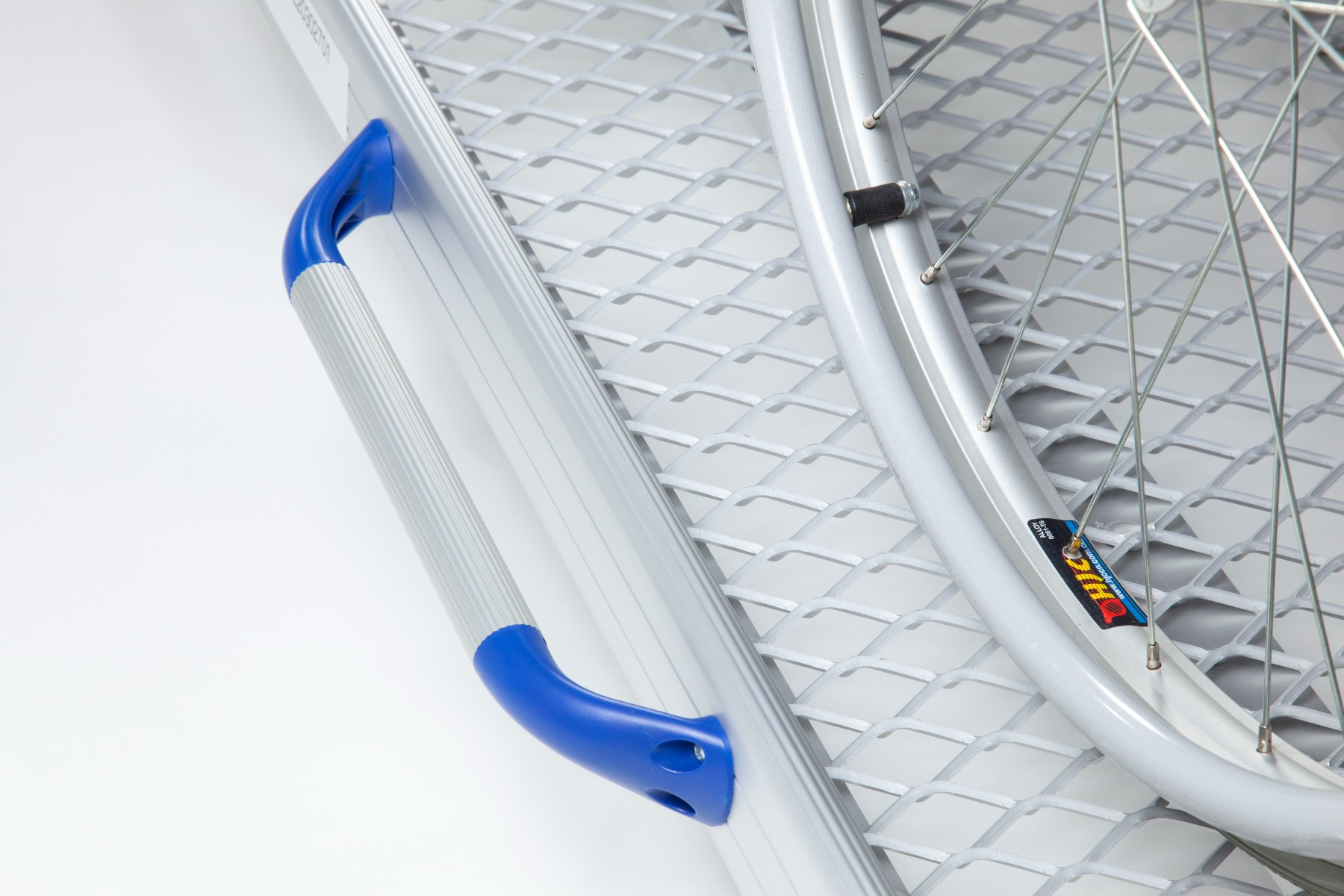

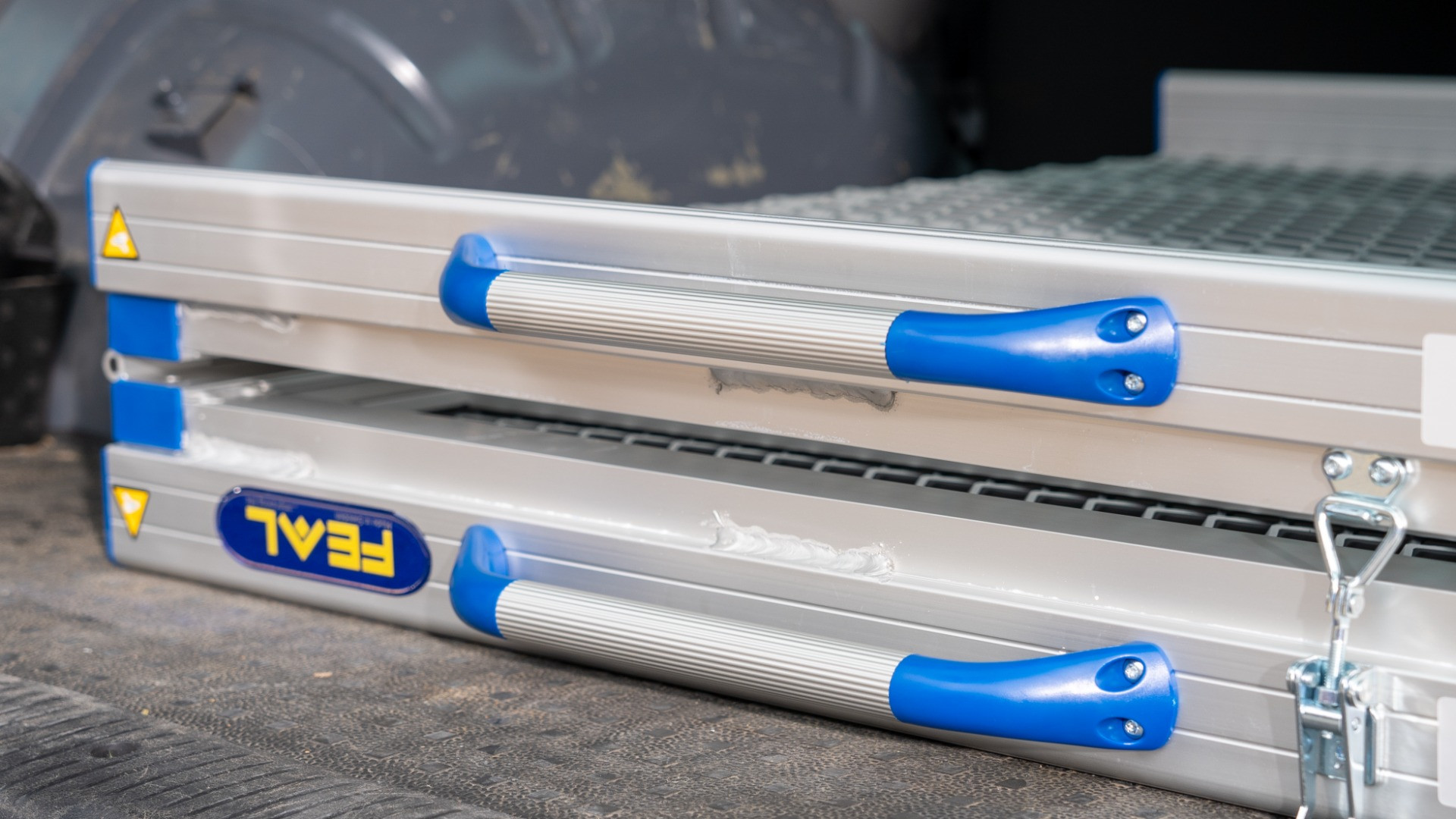

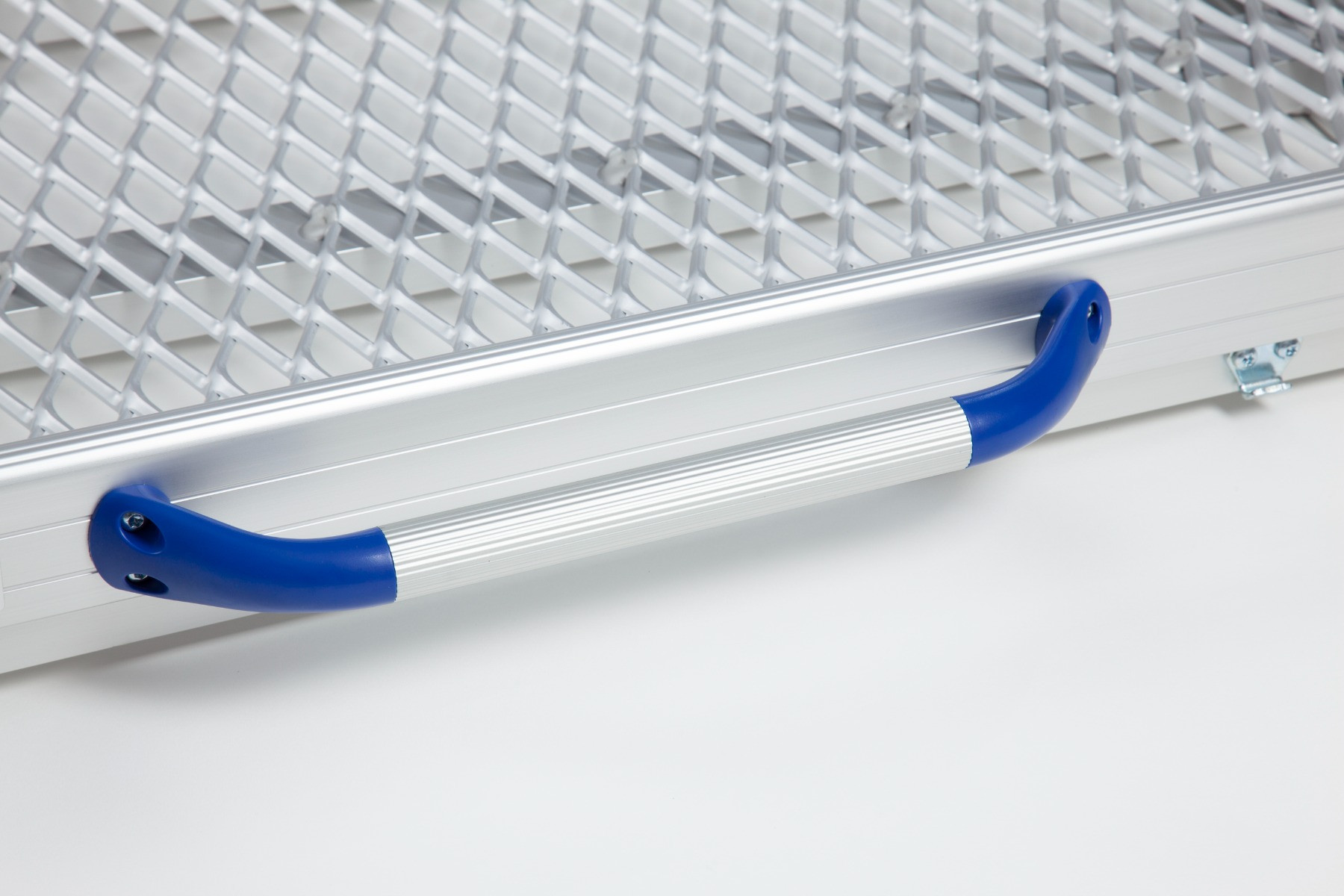

Handles to allow you to easily move the ramp
Suitable for manual and electric wheelchairs

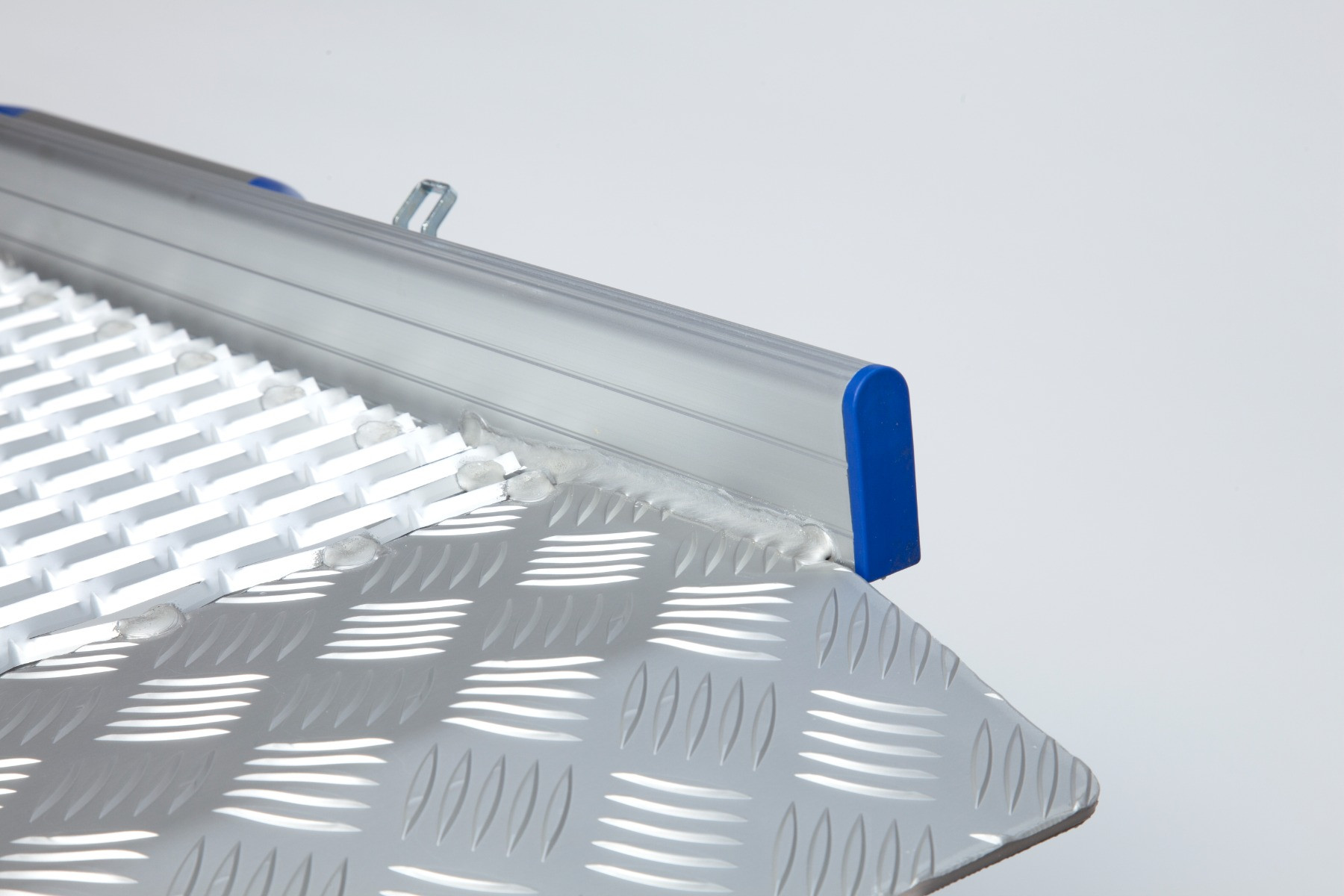

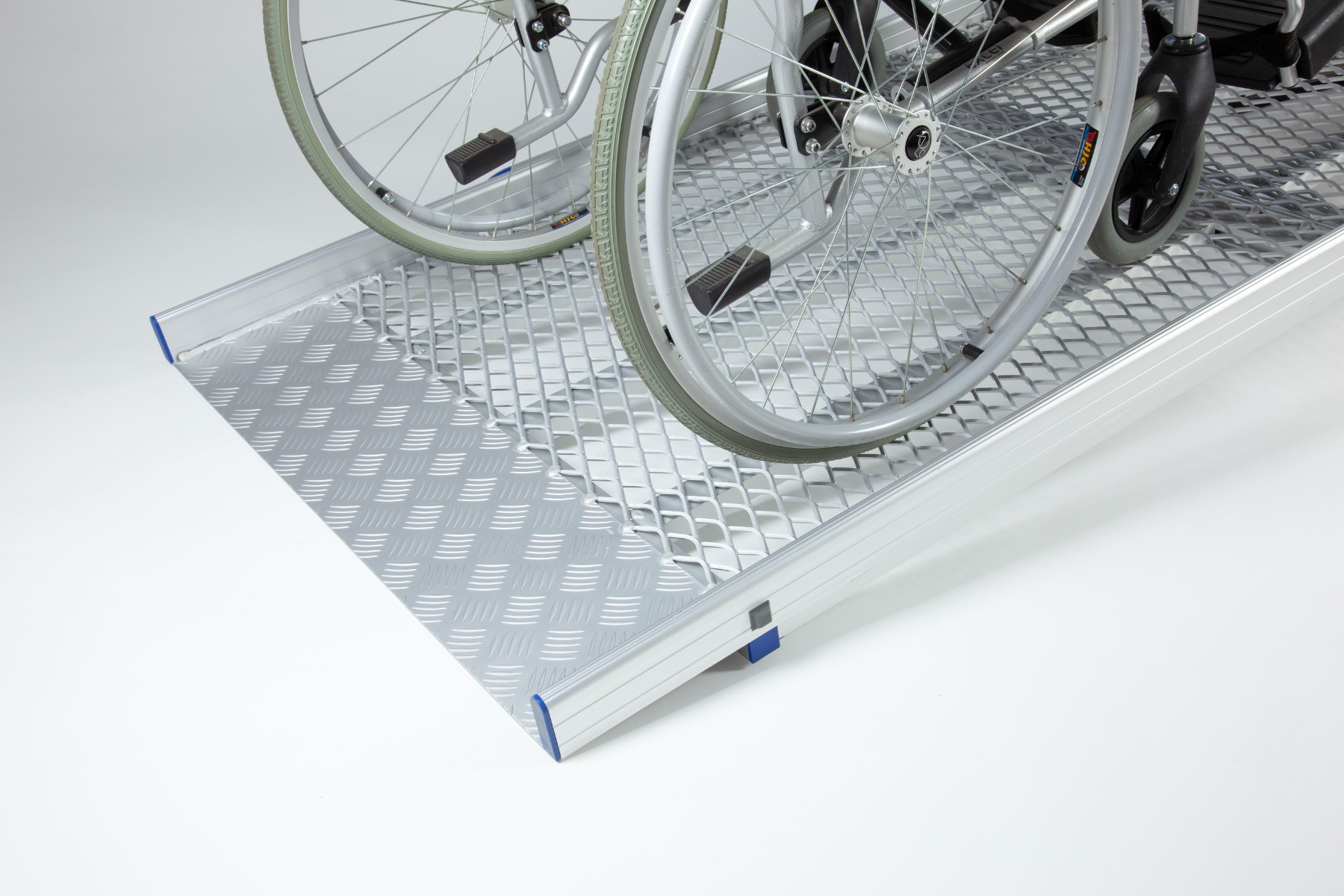

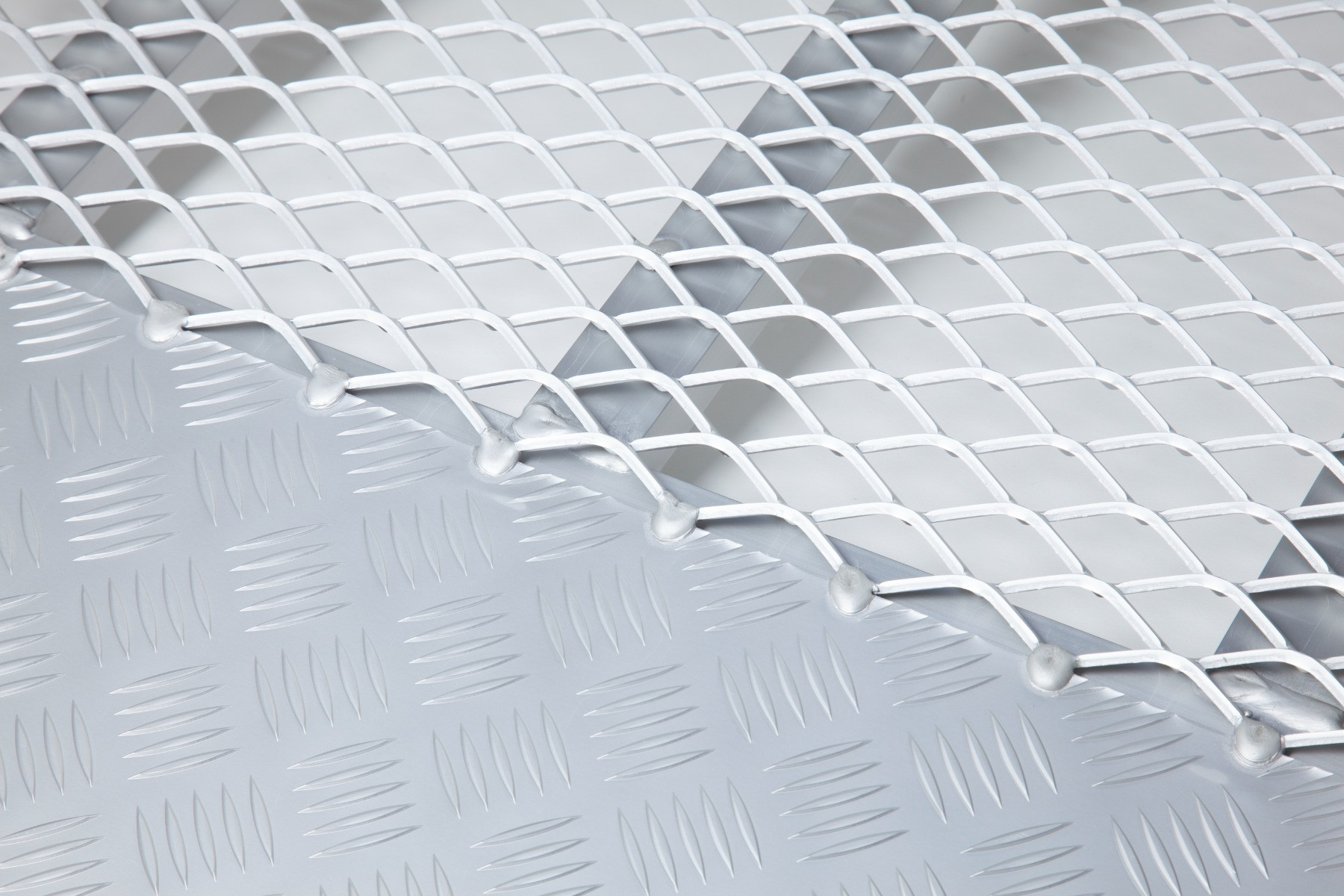

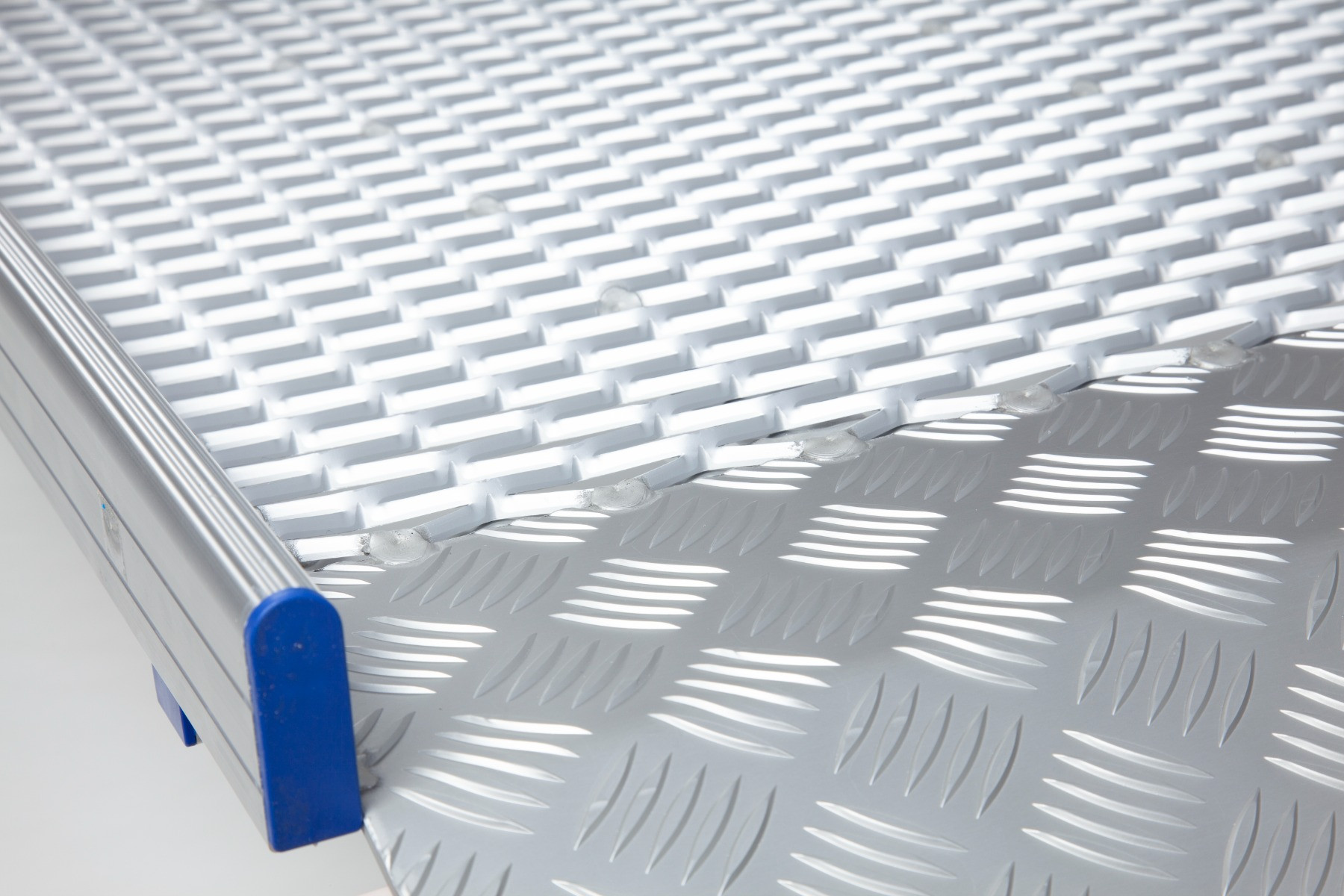

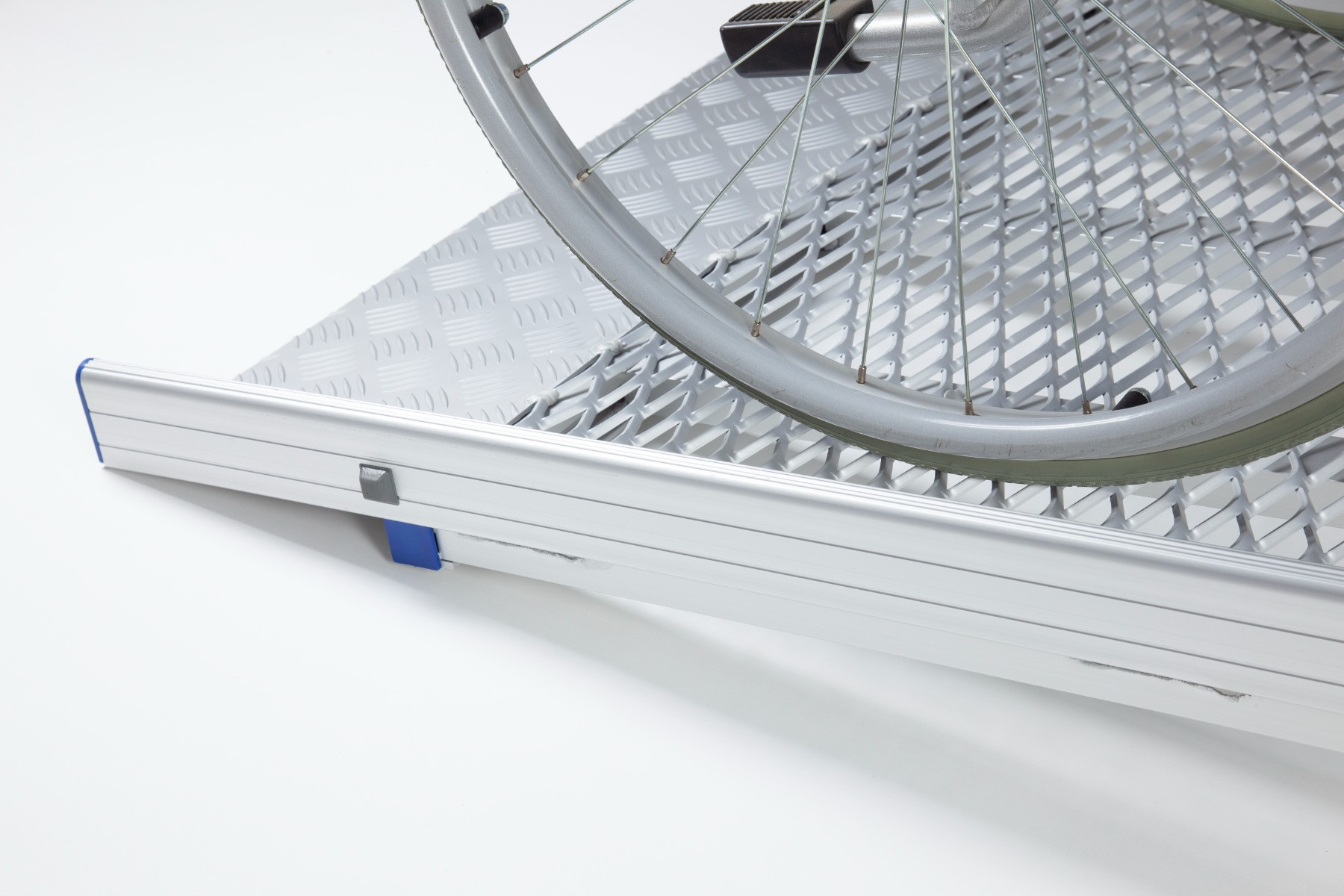

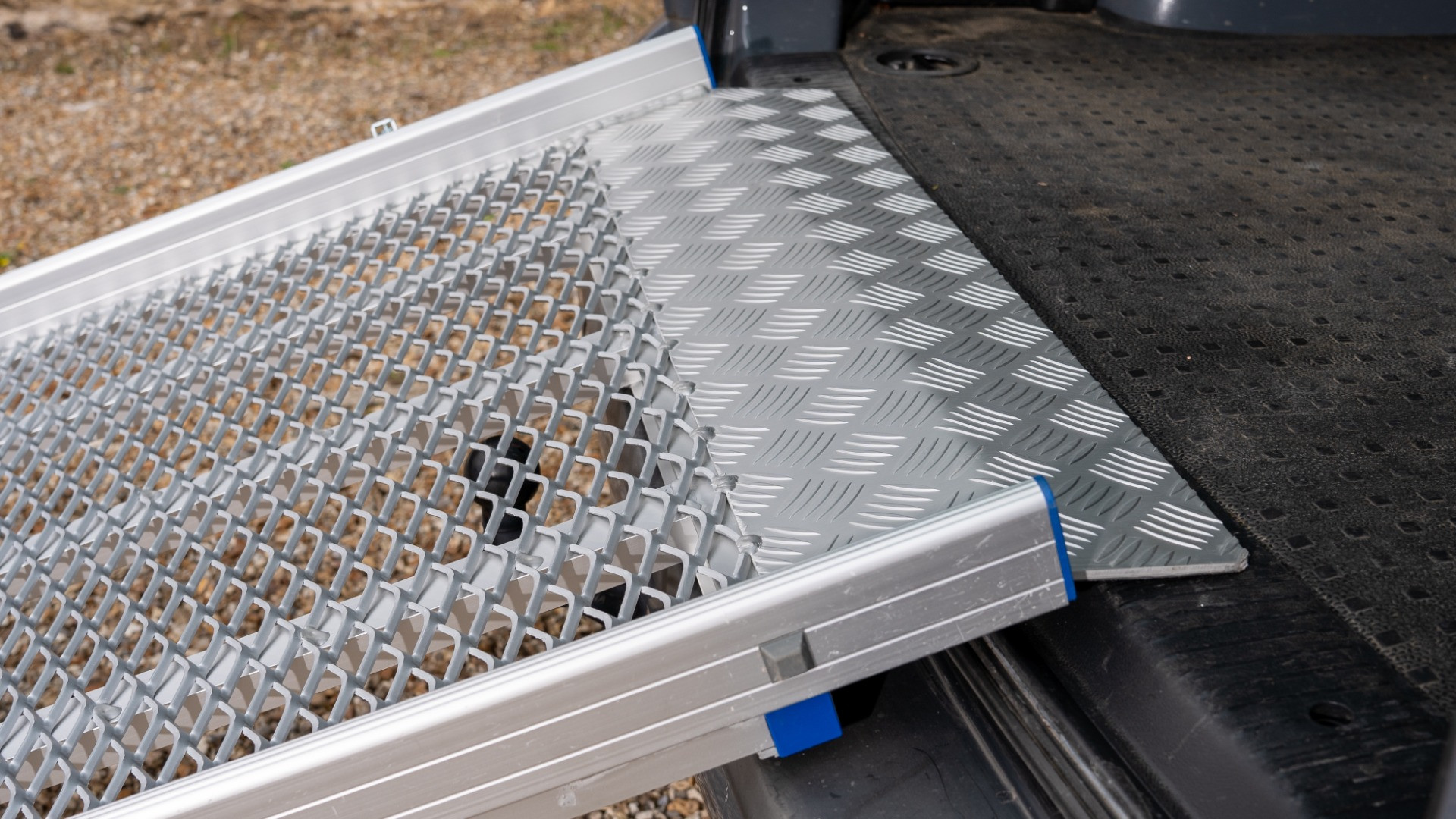

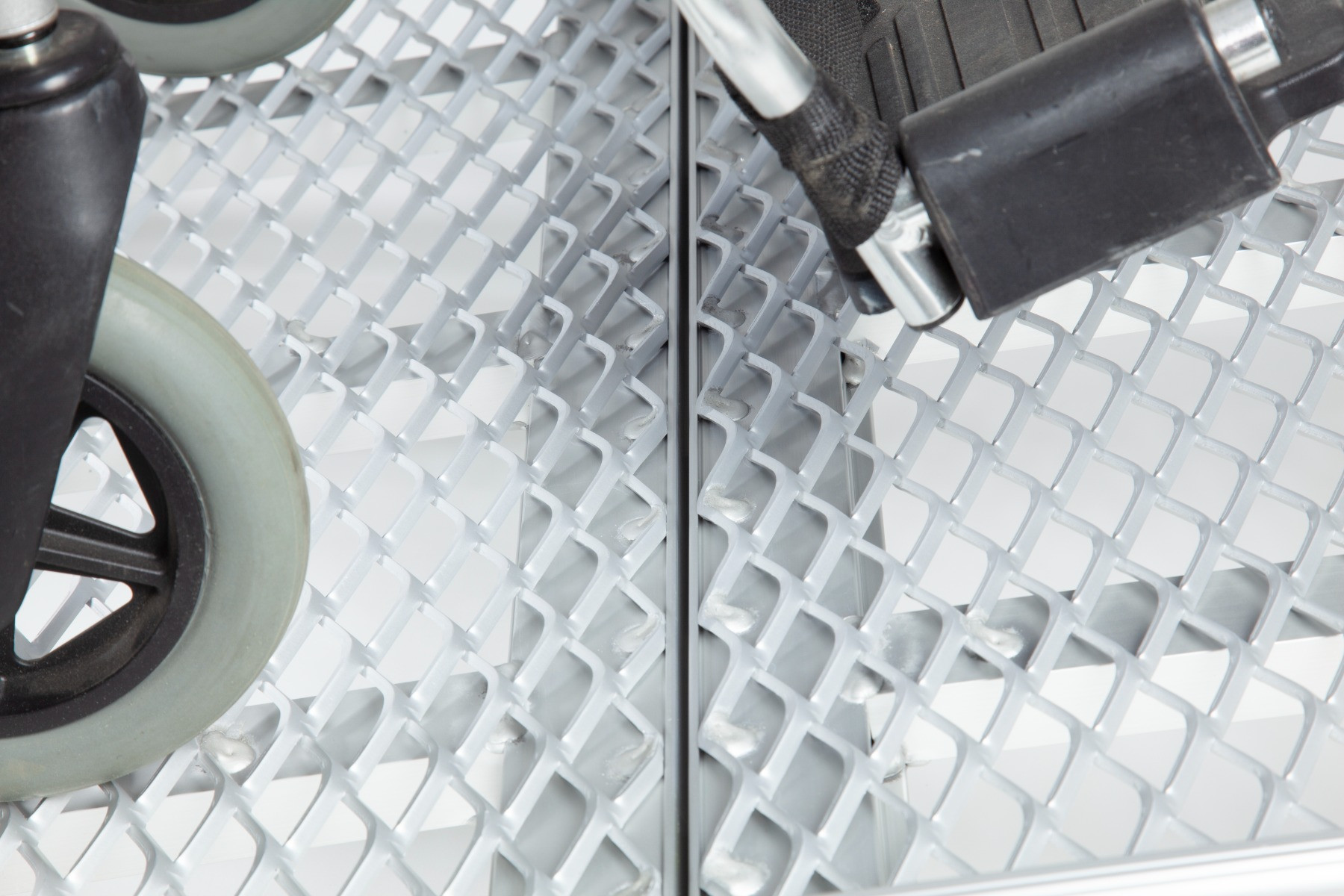

Anti-slip mesh surface, chequered anti-slip rest on connection

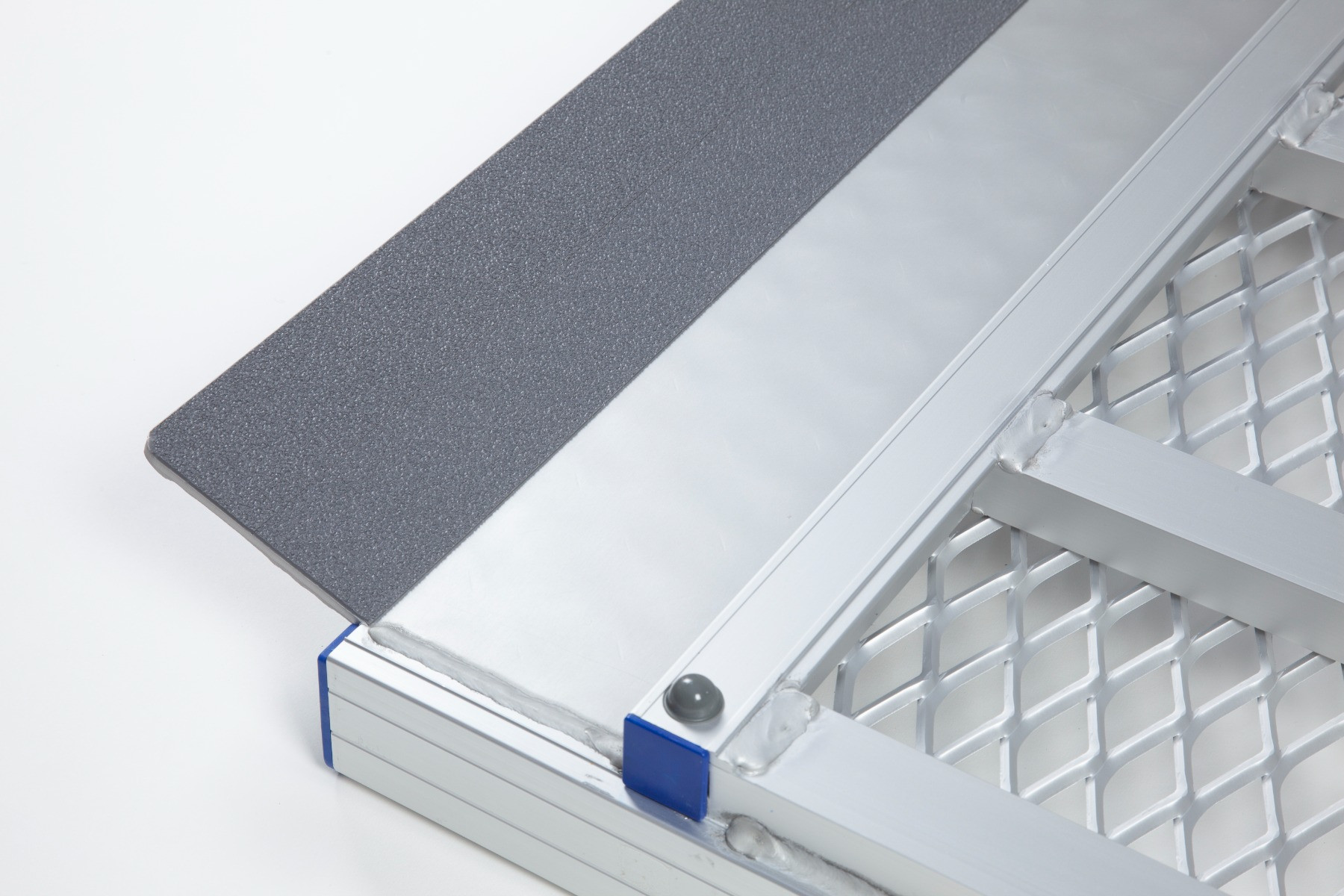

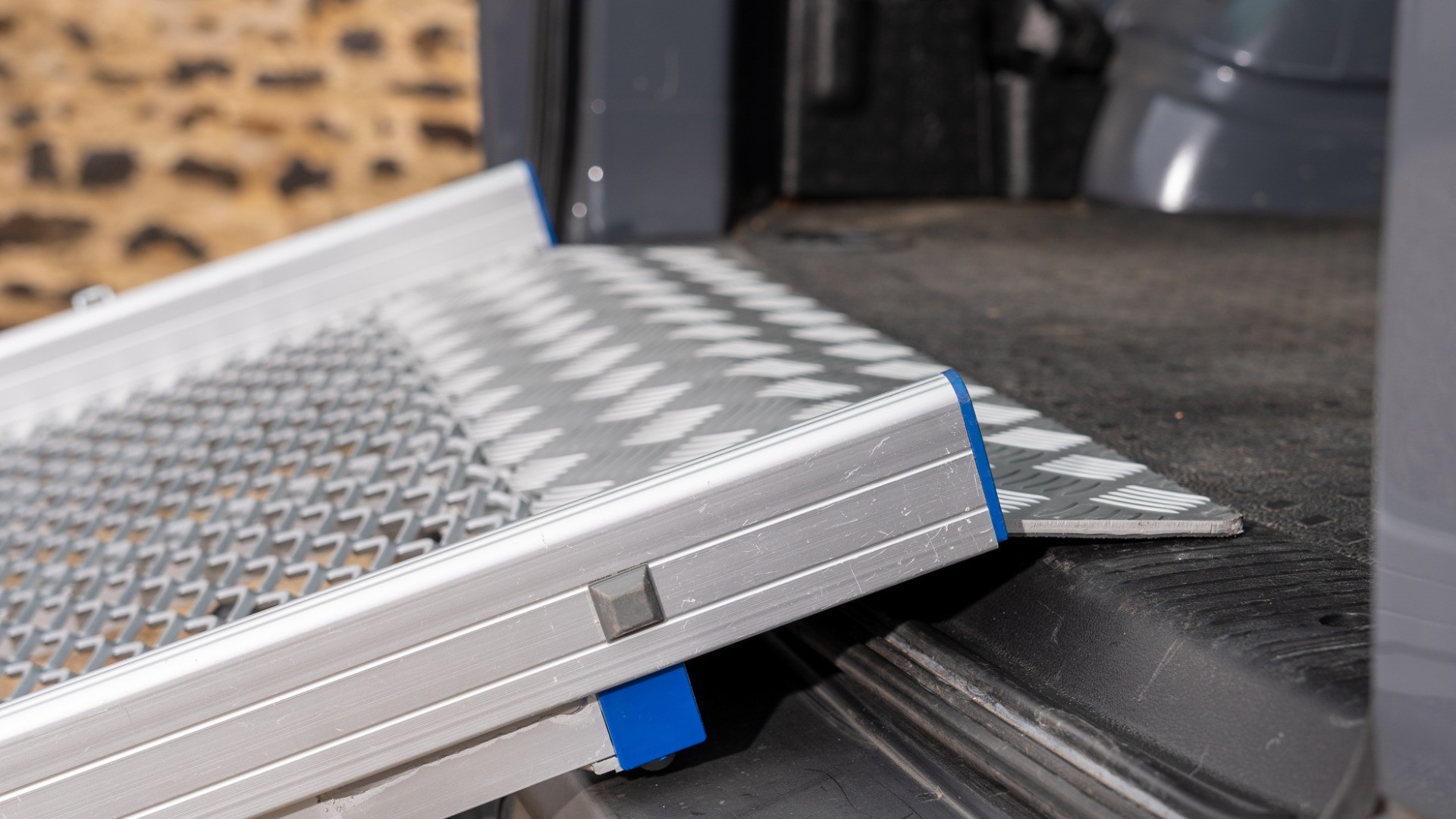

Grip surface on the rest on connection for optimum grip
Maximum gradient = 1 in 6 although 1 in 8 is recommended. For loading an empty electric wheelchair or scooter a steeper gradient can be used.

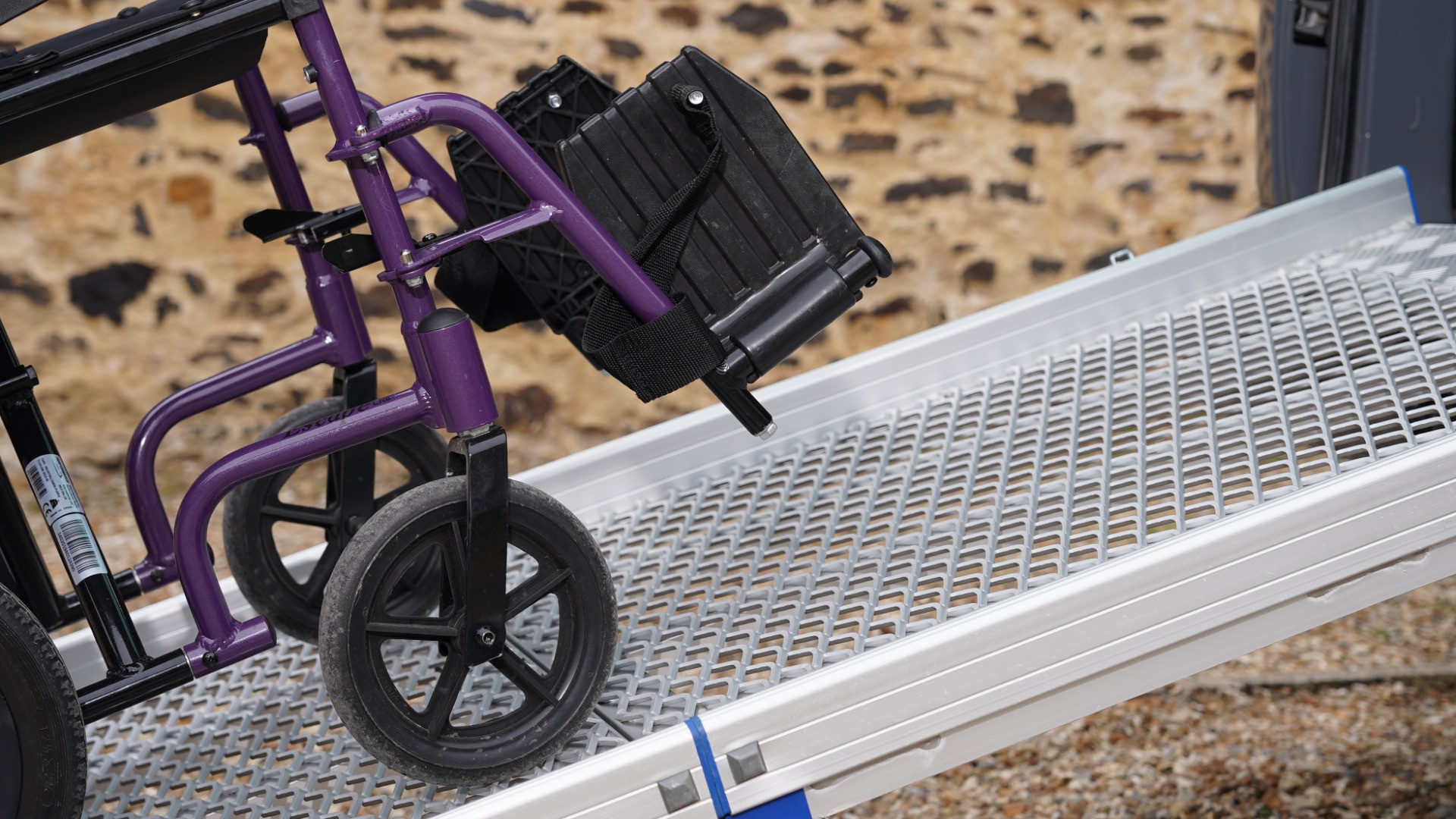

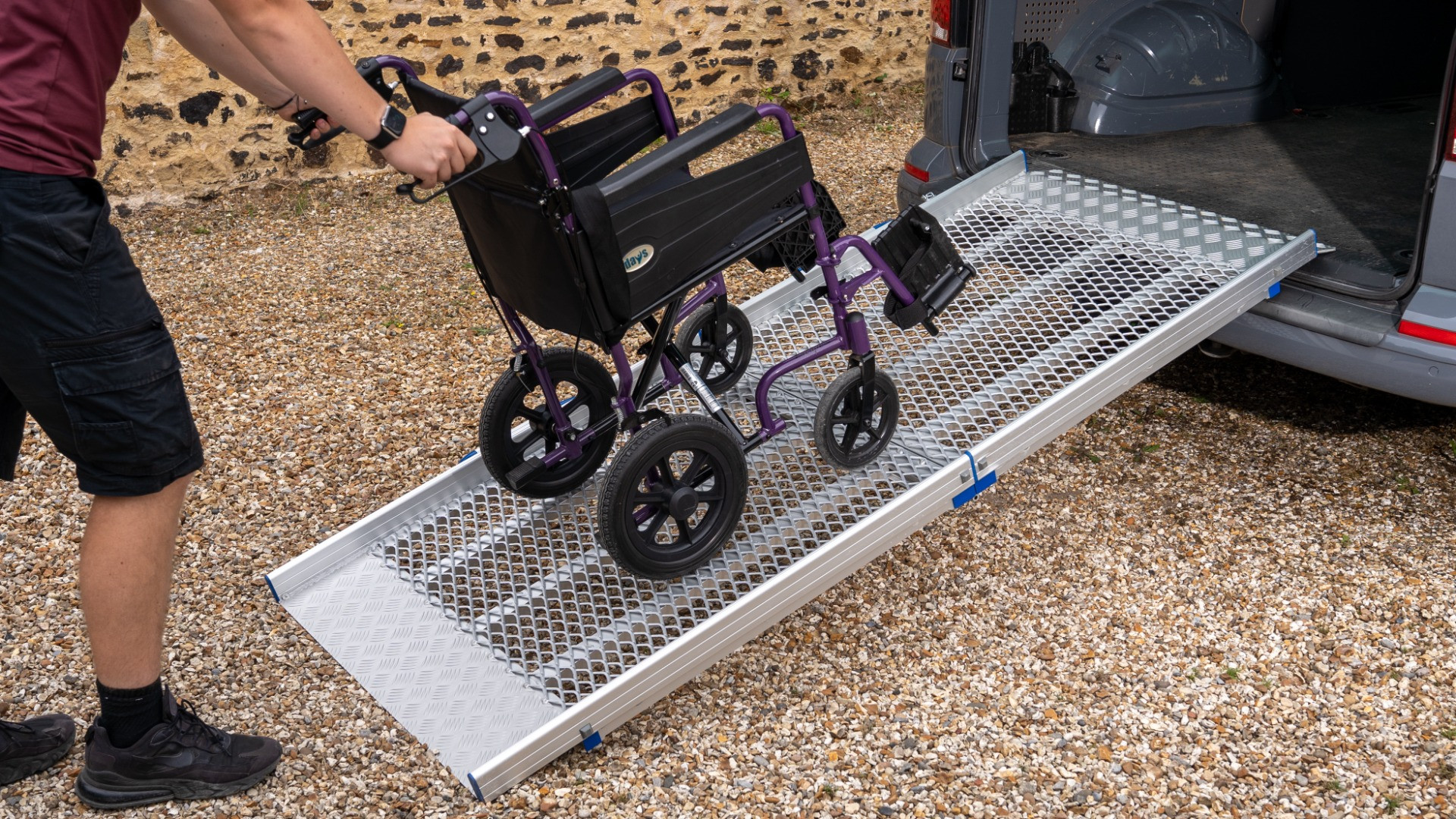

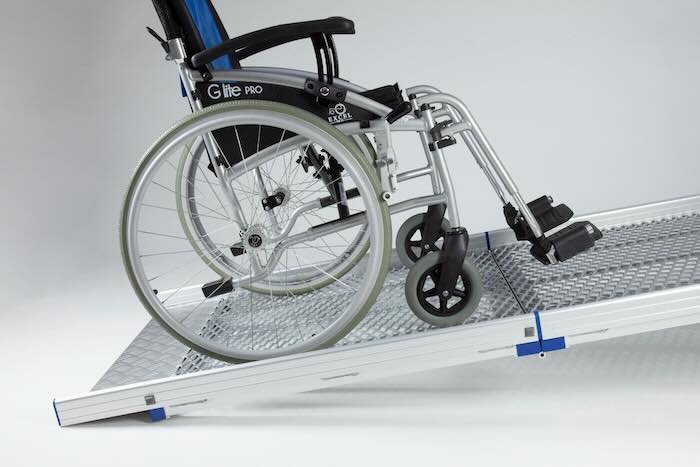

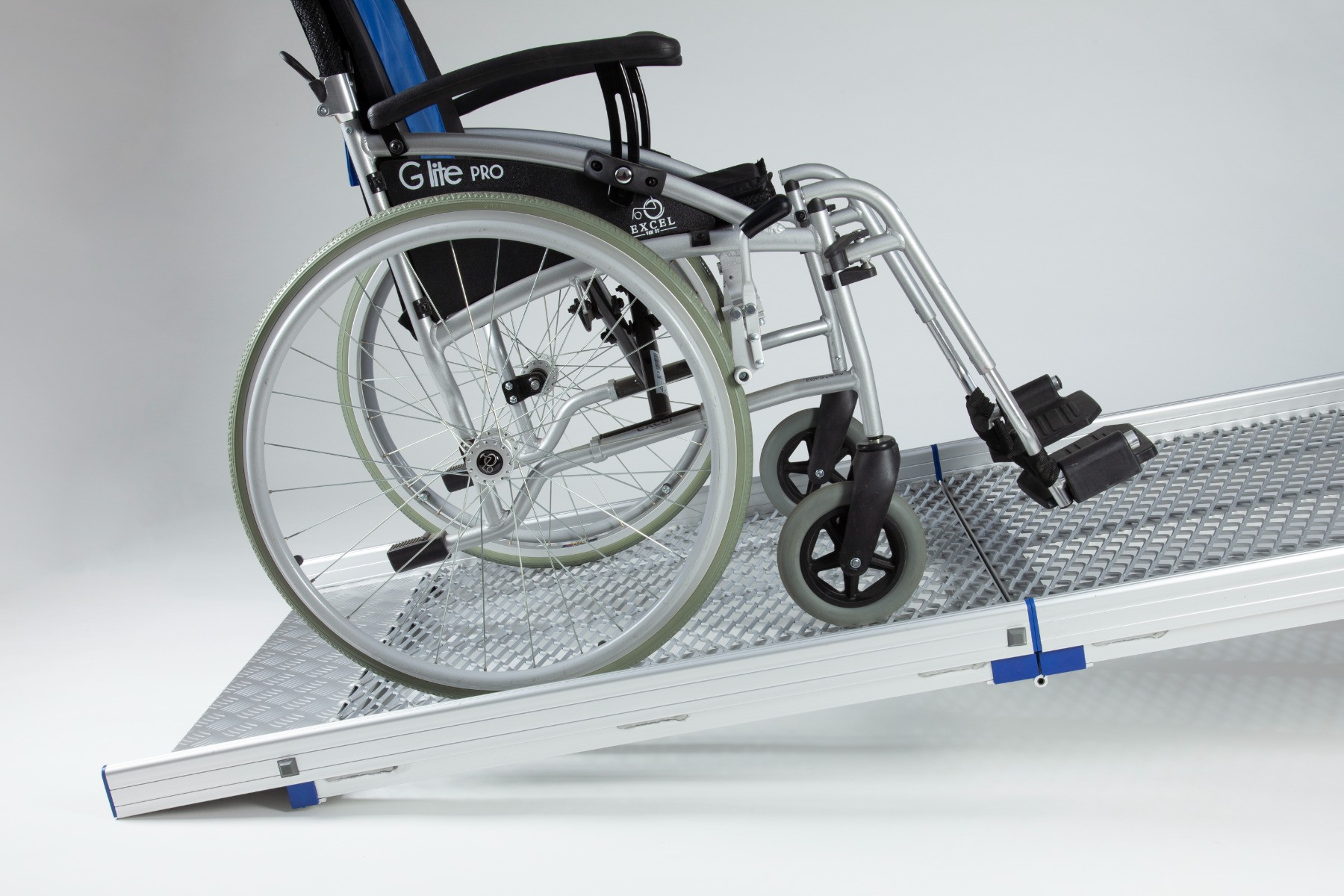

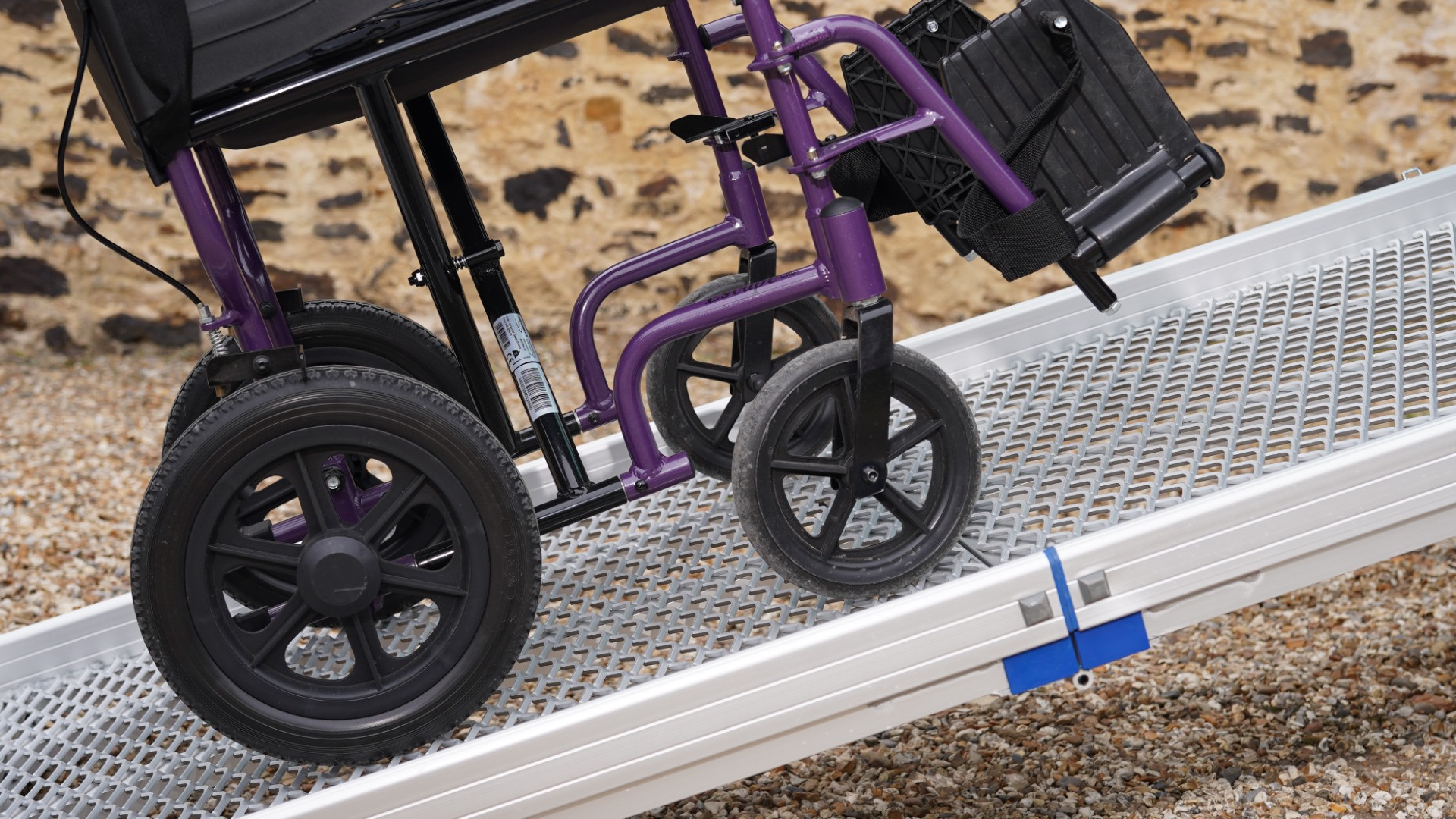

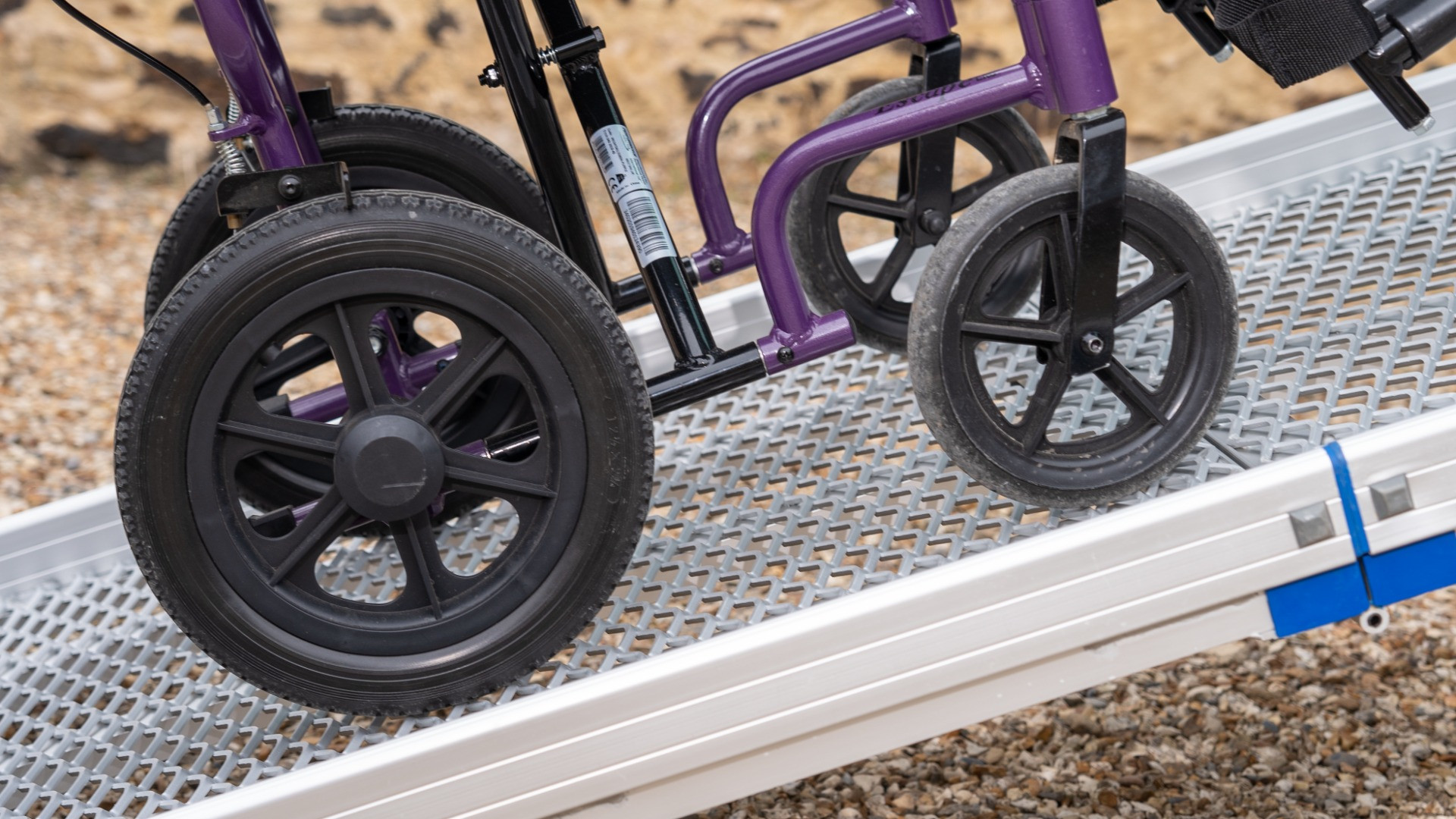

The ramp can be used to load empty or occupied wheelchairs and scooters.

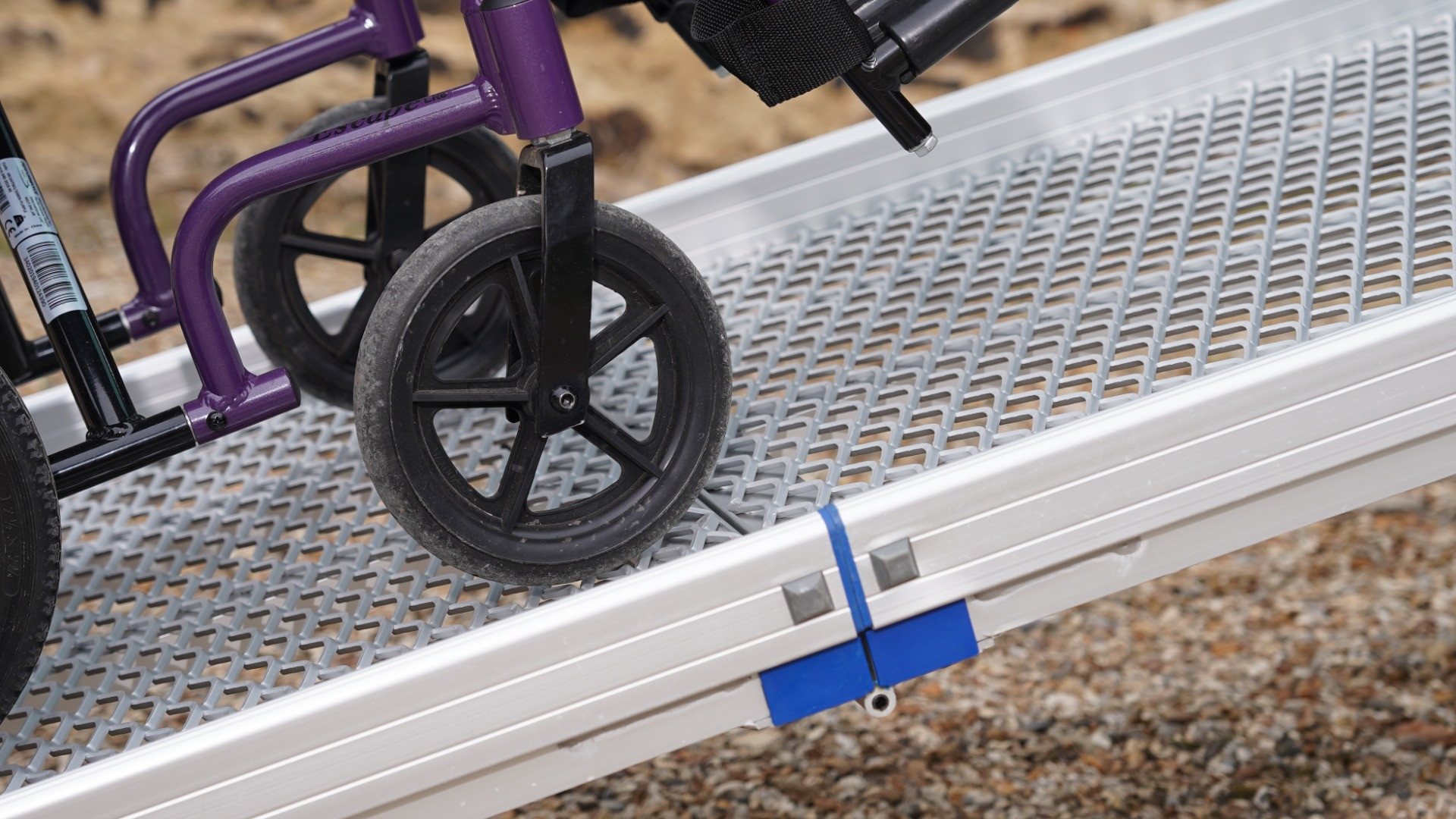

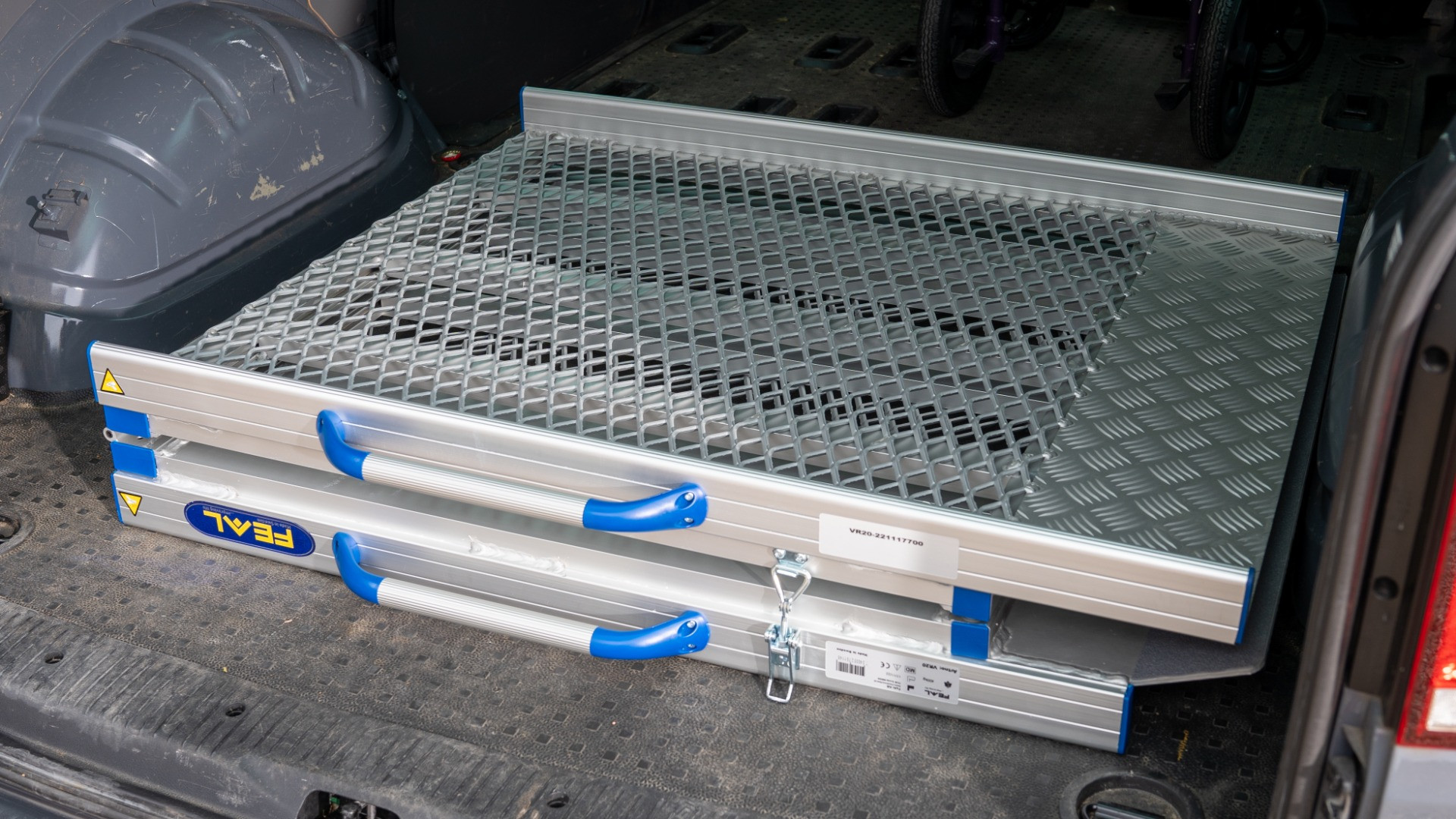

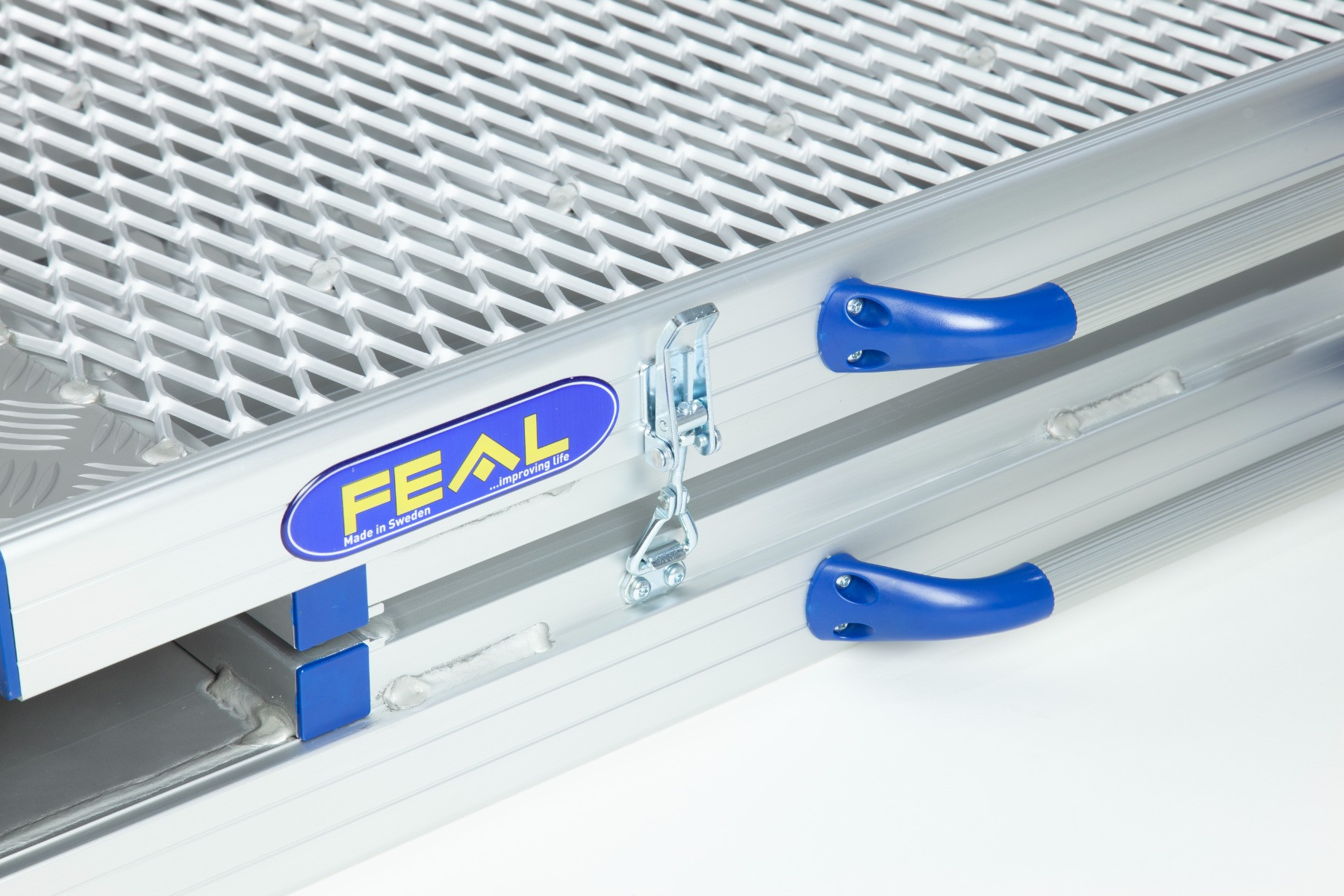

Clips shut for easy and safe storage
Edges on each side of the suitcase ramp to prevent accidentally wheeling off
Edge height: 55mm
Minumum load height is 100mm, for lower heights please contact us
Premium quality, extremly durable
Made in Europe
Three year warranty
