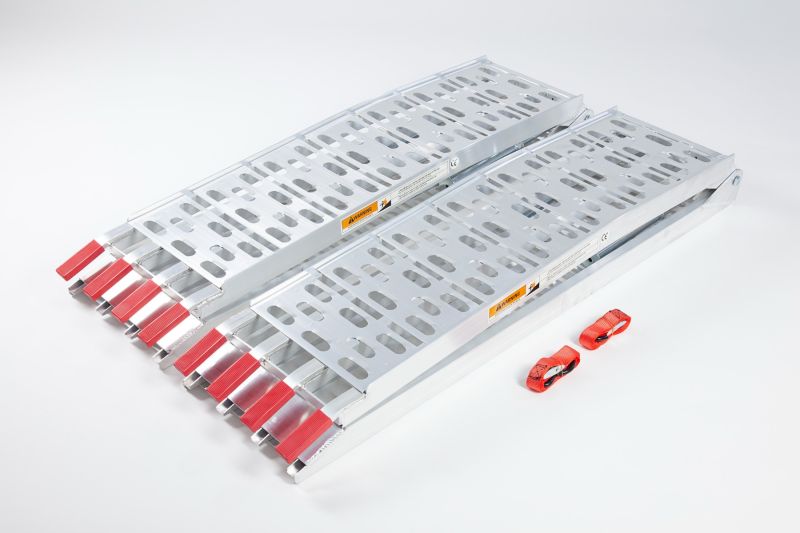

Heavy Duty Loading Ramp with Support Legs (2200mmx285mm)
Lightweight aluminium heavy duty folding loading ramps with cut-out gripping system. These loading ramps include a double support bar and adjustable support legs to increase durability. Suitable for lawnmowers, ATVs/quads and other wheeled garden machines. Slightly curved for better ground clearance. Each ramp has a capacity of 680 kg (1360 kg for the pair).
Please note that these ramps are not suitable for single axle or tracked machines or vehicles, nor are they suitable for casters or solid wheels
The support bar legs can be adjusted from 340mm up to 425mm.
- Comes with a double support bar which adds extra strength and durability
- Rest on connection, simply rest on the vehicle or step and start loading
- Folding ramp design for easy storage and transportation
- Slightly curved for better ground clearance
- Minimum tire width 10cm
- Made of lightweight aircraft-grade aluminum (type 6005A)
- Robot welded for strong and durable construction
- Lightweight for easy handling
- Anti-slip, grip surface/li>
- Angled foot, this allows easy access to the ramp
- Each aluminium ramp has a capacity of 680kg, the capacity of the pair is 1360kg
- Each ramp is 2200mm long x 285mm wide
- Folded length 1100mm
- Suitable for loading between 520mm - 666mm
- The adjustable support bar legs can be adjusted from 340mm up to 425mm
- Straps are supplied with the ramps for extra security during loading
- Suitable for loading items including motorbikes, quad bikes, ATVs, golf buggies and ride-on lawnmowers
- These ramps must be used with the support legs
- All images shown are for illustrative purposes only. Actual product may vary due to product improvement
Please note that these ramps are not suitable for single axle or tracked machines or vehicles, nor are they suitable for casters or solid wheels
Please note these ramps are designed for domestic use only, these are not suitable for industrial use.
SKU | TRP700-L Conf |
---|---|
Capacity (kg) | 680-1360 |
Folded Length (mm) | 1100 |
Height (mm) | 50 |
Length (mm) | 2200 |
Max Load Height (mm) | 666 |
Min. Load Height (mm) | 520 |
Weight (kg) | 17.6 |
Weight per Ramp (kg) | 8.8 |
Width (mm) | 285 |
One Year Warranty | Yes |
Easy to Fit | Yes |
