Yard Ramp (11260x2260x10000kg)

Our TRP-YR10-1 is CE Marked and meets the latest European standards and directives. The yard ramp is a popular choice for those seeking to easily, and quickly, load and unload containers. The fixed swivel clamp allows the ramp to easily be moved to the desired location whilst the hydraulic assist allows the load height to be to amended to heights of between 800mm-1650mm and has a capacity of 10,000kg.

Mobile Yard Ramps FAQ's

Length (mm)11,260
Width (mm)2,260
Min. Height (mm)800
Height (mm)800-1650
Max. Load Height (mm)1,650
Weight (kg)3,800
Capacity (kg)10,000

Got a question?

Product: Yard Ramp (11260x2260x10000kg)
SKU: TRP-YR10-1

  • Customisable
  • Easy to Fit
  • European Made
  • High Visability
  • One Year Warranty
  • Leave Outside
€14,071.20 €11,440.00
Built to Order
TRP-YR10-1
Talk to The Ramp People's sales team

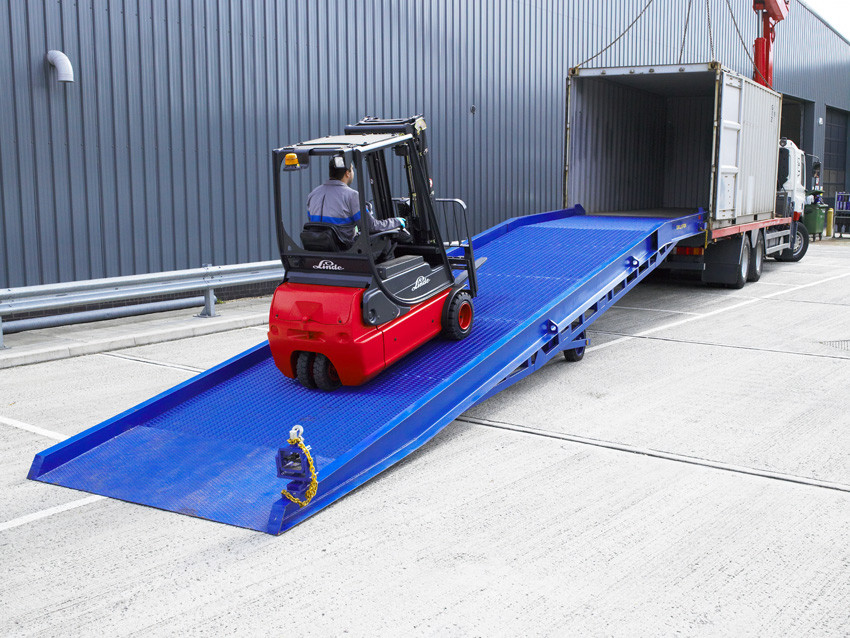

This ramp makes loading and unloading containers much simpler. The fixed swivel clamp allows the ramp to easily be moved with a forklift whilst the hydraulic assist allows the ramp height to be adjusted with ease.

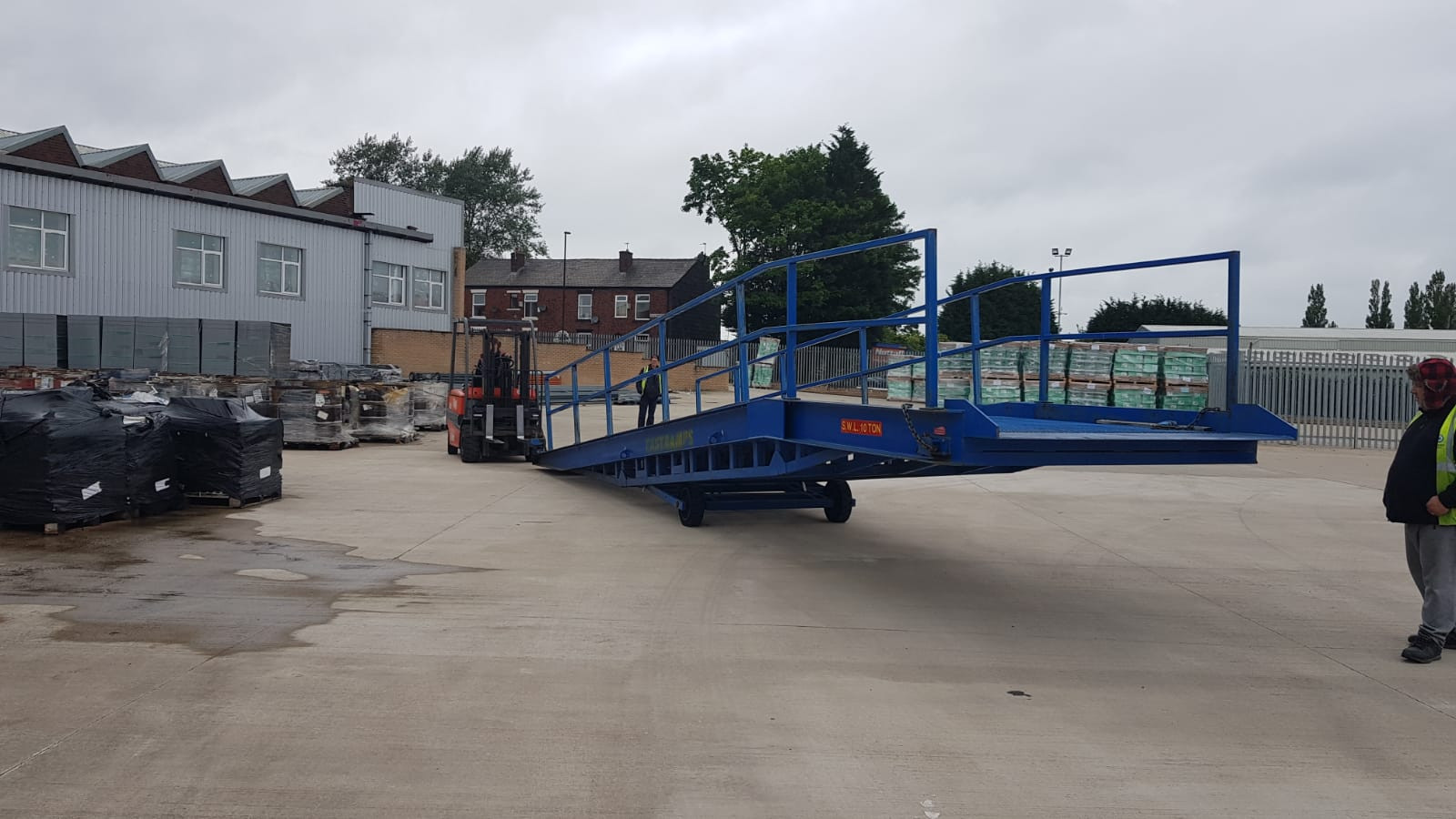

The side profiles of all models are constructed from a single piece of steel giving these the highest levels of performance, durability and safety. They can be customised to include handrails if required, simply ask one of our team for more information. The useable width is 2,260mm

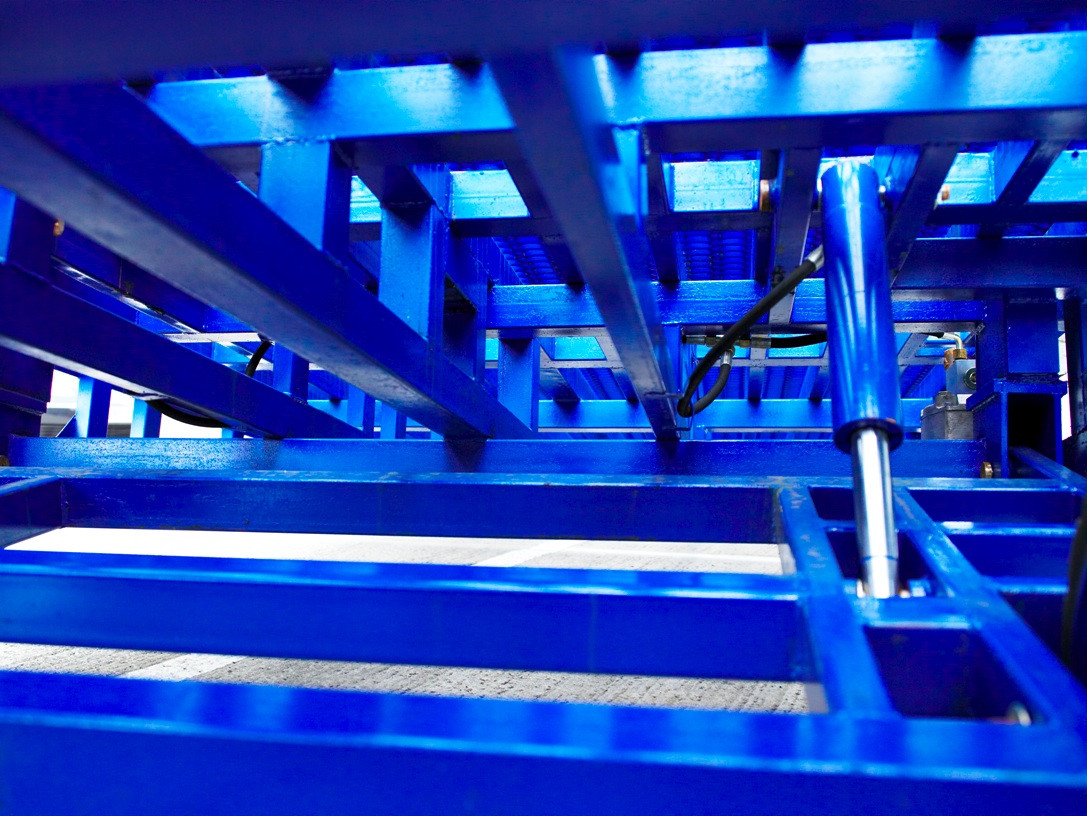

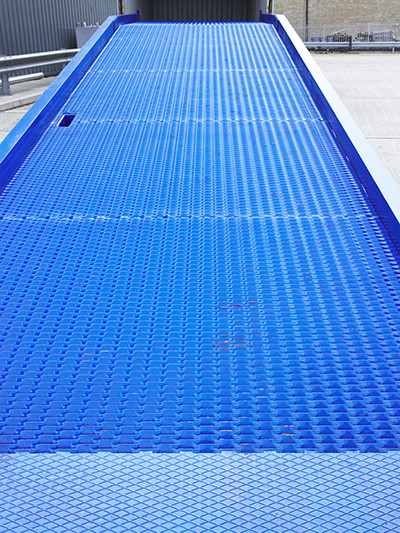

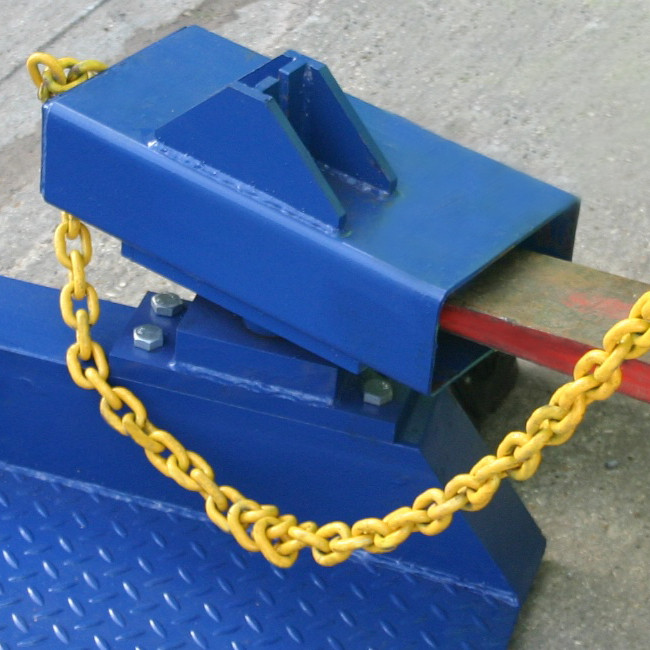

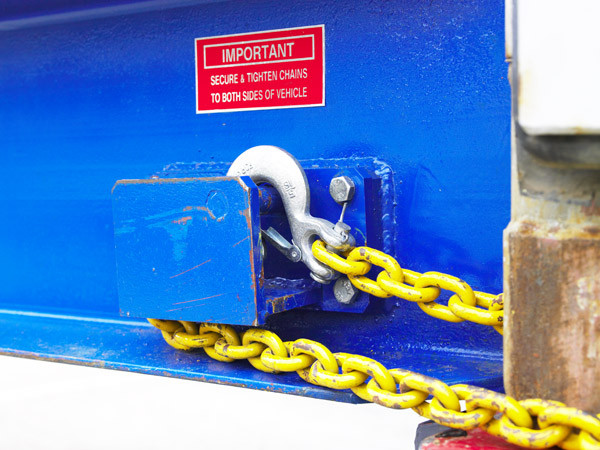

These ramps are fully certified and tested and feature a reinforced steel undercarriage, high traction UK produced mesh anti-slip surface and come supplied with swivel fork mount, steel chains and clamps, hydraulic assist and wheel chocks.

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

SKU TRP-YR10-1
Capacity (kg) 10,000
Height (mm) 800-1650
Inclined Section (mm) 8,440
Length (mm) 11,260
Length Section (mm) 2,520
Min Load Height (mm) 800
Weight (kg) 3,800
Width (mm) 2,260
One Year Warranty Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
High Visability Yes
Leave Outside Yes
