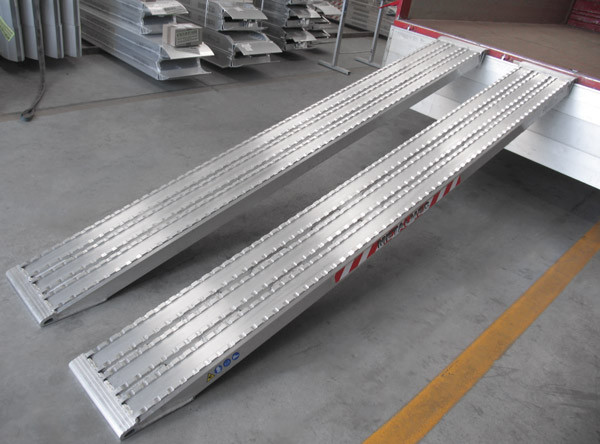

PAIR of ALUMINIUM RAMPS (105X520X2000 - 2900kg) Standard. Milled surface
520mm wide x 2000mm long, with a 105mm profile thickness. Featuring a maximum capacity of 29,000kg, this heavy duty ramp is ideal for use as a plant ramp, digger ramp and for tele-handlers.
Custom built sizes are available on request. Price and capacity stated is for the PAIR.
PAIR of ALUMINIUM RAMPS (105X520X2000 - 2900kg) Standard. Milled surface
Length (mm)
2000
Width (mm)
520
Min. Load Height (mm)
450
Max Load Height (mm)
600
Weight per Ramp (kg)
49
Weight Per Pair (kg)
98
Capacity (kg)
29000
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here

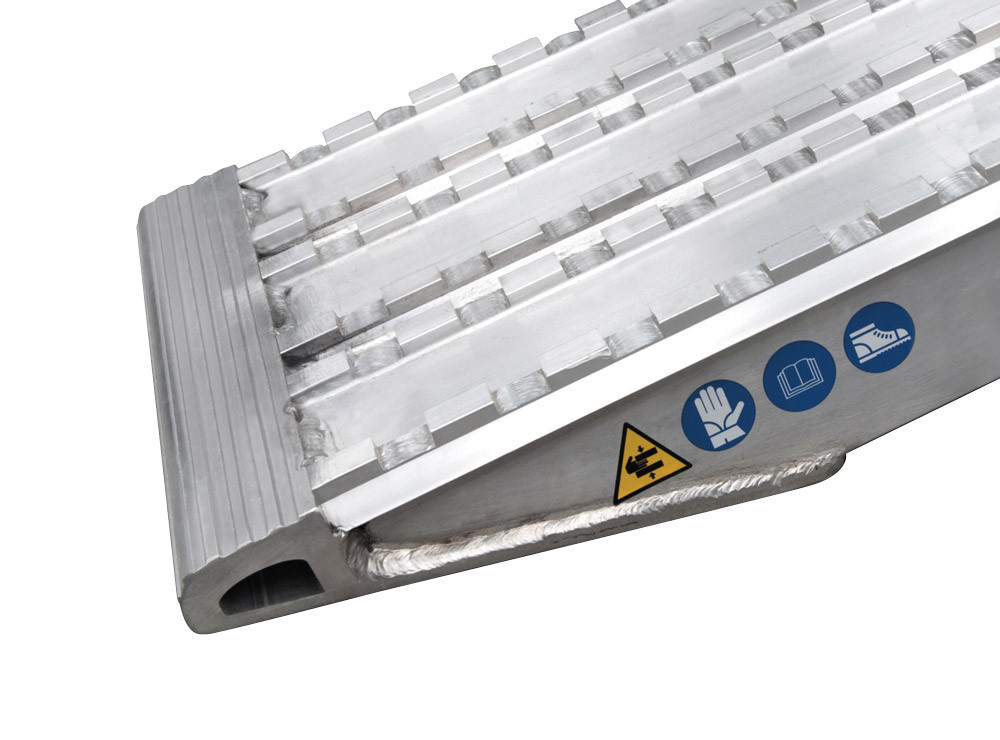

Our heaviest duty ramps, designed to carry steel tracked vehicles and equipment. The Ramp People range of steel tracked ramps' core profile thickness is 105mm. Available 520mm wide, these ramps feature no external welds and offer a capacity of up to 29,000kg. They are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.

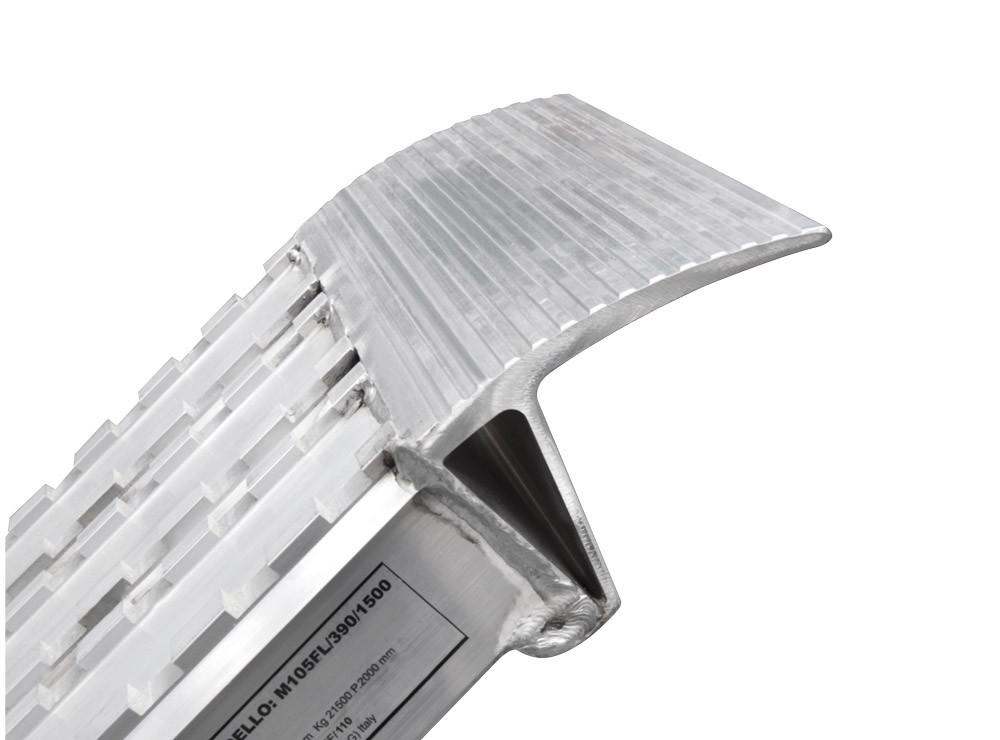

Flat top with no external welds
On capacities over 20,000kg only Bottom Hook Connection or Tube Connection possible
Custom load heights available
Quotes for bespoke ramps can be supplied on request
Special 25/30 surface available on request, suitable for when using rubber tracked and steel tracked machinery
Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
