Ramp Capacity, Length & Load Height
Heavy Duty Loading Ramps for Steel Tracks (2000mm x 600mm x 50,000kg)
600mm wide x 2000mm long, with a 130mm profile thickness. Featuring a maximum capacity of 50,000kg, this heavy duty ramp is ideal for use as a plant ramp, digger ramp and for tele-handlers.
Custom built sizes are available on request. Price and capacity stated is for the PAIR.
|Max. Load Height (mm)||600|
|Weight Per Ramp (kg)||78|
4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.
Our heaviest duty ramps, designed to carry steel tracked vehicles and equipment. The Ramp People range of steel tracked ramps' core profile thickness is 130mm. Available 600mm wide, these ramps feature no external welds and offer a capacity of up to 50,000kg. They are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.

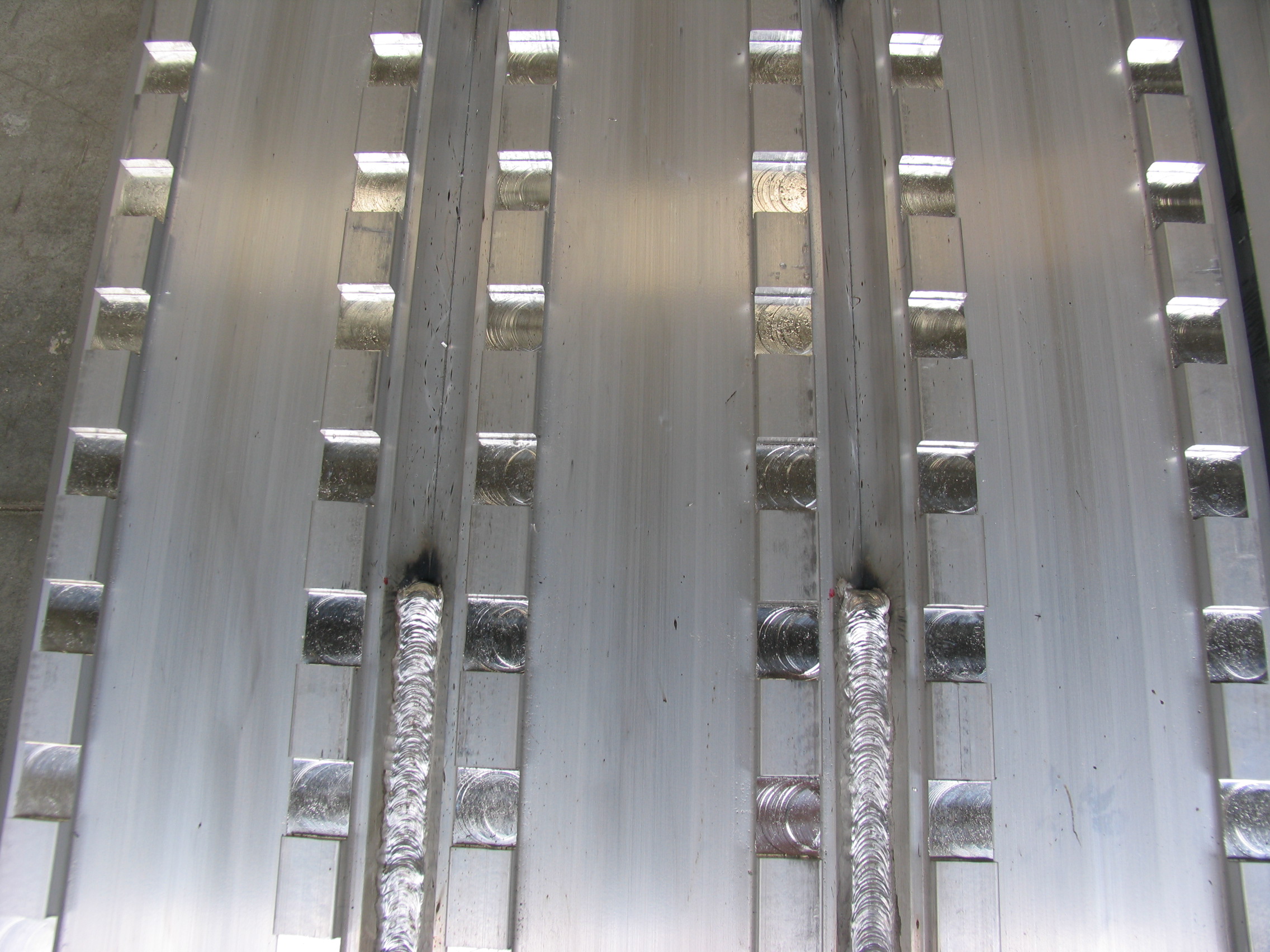

- Flat top with no external welds
- On capacities over 20,000kg only Bottom Hook Connection or Tube Connection possible
- Custom load heights available
- Quotes for bespoke ramps can be supplied on request
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Fully TUV certified
Usage guidelines and safety information for our full vehicle ramp range can be found here.
|Height of Ramps Profile (mm)||130|
|Max Load Height||600|
|Min. Load Height (mm)||450|
|Weight per Ramp (kg)||78|
|One Year Warranty||Yes|
|Connection Options Available||Yes|
|Easy to Fit||Yes|
|Capacity Wheelbase 1500mm (kg)||37,000|
|Capacity Wheelbase 1750mm (kg)||45,000|
|Capacity Wheelbase 2000mm (kg)||50,000|
