Extra Wide Aluminium Loading Ramps (4000x510x6320kg)

SKU
TRP160/40L

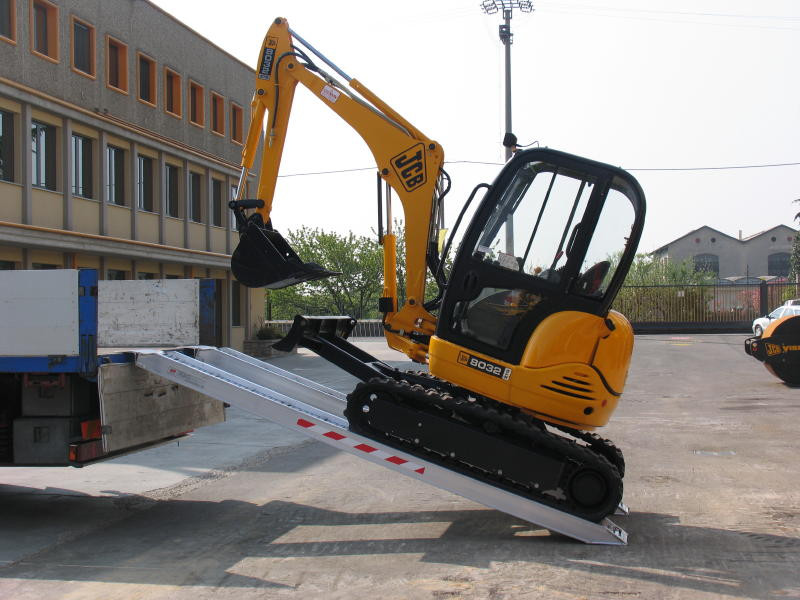

510mm wide x 4000mm long with a 160mm profile thickness. Featuring a maximum capacity of 6320kg, this ramp is ideal for use with rubber tracked excavators, as a plant ramp, digger ramp and for tele-handlers. Please note the minimum track width is 200mm. The maximum width of the wheel or track 430mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

The TRP160 Series has a core profile thickness of 160mm and a width of 510mm. They feature a capacity of up to 9000kg and are ideally suited for use with rubber tracked excavators, as plant ramps, digger ramps and for tele-handlers.

On the TRP160 series the minimum width of tracks/wheels is 200mm. The maximum width of the tracks/wheels is 430mm.

  • These ramps are available both with and without edges. You can also have one raised edge. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Quotes for bespoke ramps can be supplied on request
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Fully TÜV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.

Product Questions
I am looking to purchase a pair of loading ramps, how do I select an alternative connection option?
As standard the ramps come with a rest on connection with a pre-drilled hole. If you require an alternative connection option, such as a hook connection, please let our team know following your purchase.
How do I identify which ramp length is most suitable for my van or trailer?
Measure the vertical height from the ground to where the ramp will rest on your vehicle, this is your 'load height'. The product specifications state the minimum and maximum load height. For items with low clearance, contact us to check suitability.
I require a pair of customised Aluminium Loading Ramps, what information do The Ramp People need to prepare a quote?
We will need your load height (vertical height from the ground to where the ramp will rest), details of what you are loading and the maximum weight of the load. For items with low clearance please provide the vehicles data sheet.
Details
SKUTRP160/40L
Default ConnectionRest On Connection
Capacity (kg)6320
Height of Ramps Profile (mm)160
Length (mm)4000
Max Load Height (mm)1200
Min. Load Height (mm)1050
Weight per Ramp (kg)56
Weight Per Pair (kg) 112
Width (mm)510
Minimum Track Width (mm)200
Maximum Track Width (mm)430
One Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
Not Solid WheelsYes
Capacity Wheelbase 1000mm (kg)4210
Capacity Wheelbase 1500mm (kg)5060
Capacity Wheelbase 2000mm (kg)6320
