Vehicle Gangway (5055mm long, 1250mm wide, 1292kg)

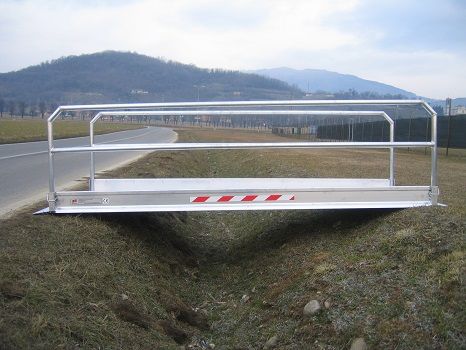

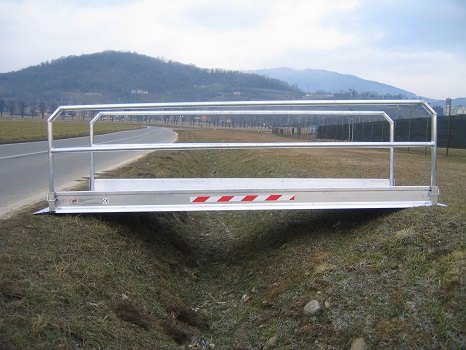

Aluminium vehicle gangway provided with a non-slip surface and handrails. The gangway provides a safe solution for pedestrians and vehicles, including tracked vehicles, to overcome architectural barriers, such as trenches and streams.
Length (mm)5055
Weight Per Ramp (kg)149
Capacity (kg)1292

Got a question?

Product: Vehicle Gangway (5055mm long, 1250mm wide, 1292kg)
SKU: TRP-VG50/12

  • Easy to Fit
  • One Year Warranty
  • Leave Outside
€2,706.00 €2,200.00
Built to Order
TRP-VG50/12
Talk to The Ramp People's sales team

TRP Vehicle Gangway features include:

  • Rest on connections - simply put ramp in place and start using it
  • Foldable edges to reduce ramp size during transportation
  • 200mm high footstops
  • Ergonomic handrails 1018mm high

For safety remember:

  • Do not exceed a maximum gradient of 5%
  • There must be a minimum rest of 330mm on both sides of the walkway
  • Minimum rubber footprint 200mm x 200mm
  • Maximum distribution of load on vehicle axles should be between 40% and 60%

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP-VG50/12
Capacity (kg) 1292
Capacity for Rubber Tyre Vehicle Width 900mm (kg) 1204
Capacity for Tracked Vehicle Width 750mm (kg) 1292
Internal Width (mm) 1250
Length (mm) 5055
Weight per Ramp (kg) 149
One Year Warranty Yes
Easy to Fit Yes
Leave Outside Yes
External Width (mm) 1370
