GENERAL INFORMATION
The Ramp People’s range of speed bumps are made from recycled high density rubber and are available in high - visibility black and yellow.
Our 50mm high speed bumps have been designed to be crossed comfortably at speeds up to 10mph where as our 75mm high speed bumps have been designed to be crossed comfortably at speeds up to 5mph.
At The Ramp People we also speed cushions which are available in black or red. Speed cushions are designed to slow vehicles whilst ensuring emergency vehicles can safely bypass them without having to significantly reduce their speed. Our range of speed cushions are designed to reduce vehicle speeds down to 6mph.
Our speed bump kits are sold as a complete package of all the components required to install the speed bumps. All standard speed bump mid-sections have cats - eye style reflectors fitted as standard. Our 50mm high and 75mm high road humps are designed to support up to a 20,000kgs. Please note these speed ramps are not designed for articulated lorry. For HGV traffic management and speed ramps for industrial estates, please select the heavy duty speed bumps which offer a 60,000kg capacity.
The Ramp People's Speed Bump Features Include:
- Can support vehicles up to 60,000kg
- Embedded light reflectors are standard on both sides of all middle sections
- High visibility yellow sections contrasting with pure black sections
- Non-slip textured surface
- FREE 14mm x 280mm long SDS Max drill bit and fixing kit included with all purchases (suitable for tarmac and concrete)
- Large stock of speed bumps / speed ramps held for free mainland UK delivery
- Volume pricing available on request
- Suitable for car parks, housing and industrial estates, construction sites, camping and caravan parks etc.
INSTALLATION GUIDE
Before installing your speed bumps, make sure that the road surface that you will be fitting them onto is clean, dry, and undamaged. Any damage to the surface should be repaired before the speed ramps are installed to provide a reasonably flat and consistent surface.
Lay out your speed bumps in the area you want to install them to make sure that they fit comfortably in your available space and that they lie flat on the surface ensuring they are tight and well aligned. Mark out on the substrate surface where the road humps are to be drilled and fitted. Then either drill the holes in the substrate through the bumps’ pre-made fixing holes, or remove the ramps after marking the position of the drill holes, and drill the holes independently of the speed bumps. The holes should be 120mm-1400mm to accommodate the fixings. We strongly suggest you drill a couple of test holes first to ensure the drill bit is of the correct size for the material you are drilling into. Finally, ensuring the holes are free from dust and debris, insert the fixings into the hole, and secure your speed bumps in place. We recommend that hand tools are used to prevent damage to fixings, however, power tools can be used with caution while ensuring bolts are not overtightened and damaged, but this is at the customer's own risk.
IMPORTANT - Positioning of your speed bumps:
- To maximise the life of your speed bumps, vehicles should drive over the product in a straight line. Vehicles turning on the speed bump may damage the speed bump and fixings and will likely cause excessive discomfort to the driver and passengers.
- Speed bumps should be set back from junctions to reduce the chance of vehicles stalling when pulling away. For more information on speed hump regulations visit gov.uk.
All our speed bumps and speed cushions are supplied with universal fixings suitable for tarmac and/or concrete, as per image below:
At The Ramp People we also stock a range of wall and pole mounted speed bump warning signs featuring a high contrast reflective surface for installation in car parks, private roads and areas where traffic calming has been installed.
GENERAL MAINTENANCE
The security of the fixings / adhesive should be checked on a regular basis. Circumstances will vary, based upon the volume of foot traffic etc., but as a guide, monthly inspections would be advisable.
Pallet Truck Ramp Buying Guide
Pallet Trucks are regularly used in the warehouse, businesses, shops and commercial sites to safely transport goods. Due to their low clearance, and to ensure safe loading, ramps are generally required to allow pallet trucks to safely overcome kerbs, steps and access ground level shipping containers.
This guide will walk you through everything you need to know before buying a pallet truck ramp. We will look at what to consider prior to purchasing the ramp, types of ramps available, safety features and more.
What To Check
Measure the vertical height from the ground to where the end of the ramp will rest.
Check the total width of the pallet truck and the width of the area you are overcoming, for example the step.
Check the weight of the pallet truck and any weight it will be carrying
Pallet trucks generally have low clearance. Most manual pallet trucks can climb a gradient up to 12%. The gradient an electric pallet truck can climb varies depending on your model so we suggest checking your user manual prior to purchase. If you are unsure of the ramps suitability please contact our team. We can carry out a CAD simulation to check if the chosen ramp is suitable for your needs.
If you are looking to load a pallet truck into a van, it is important to select the correct ramp length for safe loading. Most van ramps are designed for use at a 30% gradient so, in many instances, due to pallet trucks low clearance the ramps need to be custom cut to provide a smoother gradient. Please contact our team for further advice.
Things to consider
Aluminium solutions are often more lightweight whilst rubber options are generally heavier but more durable when left outside.
Pallet trucks have low clearance so a smooth gradient is normally required, check the product manual for the maximum gradient it can climb.
Wedge ramps are designed for specific heights so, if using the ramp in various areas a ramp which rests onto the step may be more suitable.
For use in a warehouse and commercial sites, you may wish to ensure the ramp is also suitable for loading cages and forklifts.
For ease of manual handling, check the ramp weight is suitable. For aluminium solutions, handles can be added where required.
Check the ramp is certified to your required standards. The aluminium ramps are TÜV certified and often offer certified anti-slip ratings.
Types of Pallet Truck Ramps
- Lengths from 1.8m to 2.4m for heights up to 400mm
- 1m wide, ideal for pallet trucks and cages
- Highly durable 1,000kg capacity TÜV certified
- Portable design, rest in place
- Pre-drilled hole to secure in place during loading
- R13 slip resistance for enhanced safety
- Height from 10mm to 170mm, overcome steps and kerbs
- 1m wide, ideal for pallet trucks and cages
- Capacities up to 1,000kg, TÜV certified
- Portable design, rest in place
- Made in Italy, customisable solutions available
- R13 slip resistance for enhanced safety
- For 150mm to 300mm heights, load and unload shipping containers
- 2.2m wide, covers the full container width
- 10,000kg capacity - for pallet trucks and forklifts
- Modular design, create your required width
- Rests onto the step or container
- Overcome obstacles including cables up to 85mm high
- 950mm wide, ideal for pallet trucks and cages
- 1,000kg capacity, TÜV certified
- Portable design, simply rest in place
- Smooth gradient for easy loading
- R13 slip resistance for enhanced safety
- Allow the pallet truck to safely pass from the loading bay to the van or container
- Widths up to 1250mm, ideal for pallet trucks and cages
- Range of lengths to meet your loading needs
- Capacities up to 3420kg, TÜV certified
- Portable design, simply rest in place

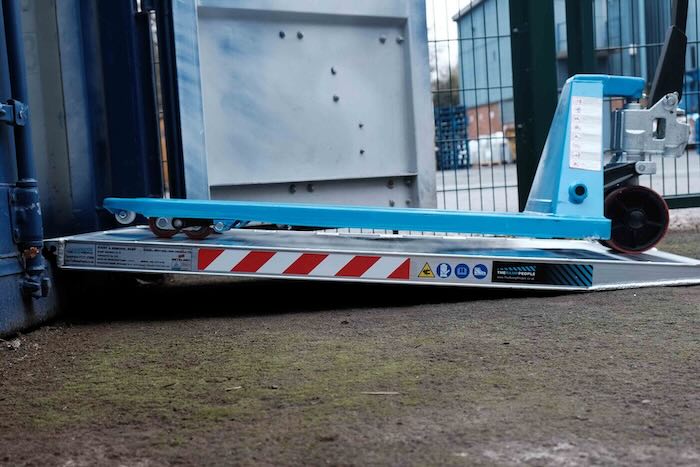

Pallet Truck Ramps
- Lengths from 1.8m to 2.4m for heights up to 400mm
- 1m wide, ideal for pallet trucks and cages
- Highly durable 1,000kg capacity TÜV certified
- Portable design, rest in place
- Pre-drilled hole to secure in place during loading
- R13 slip resistance for enhanced safety

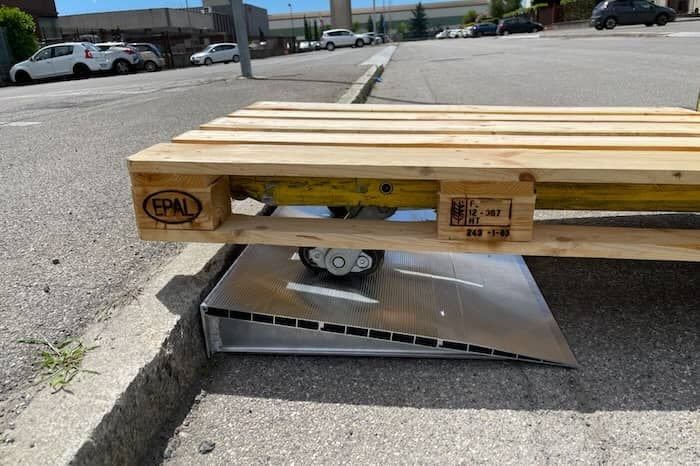

Aluminium Wedge Ramp
- Height from 10mm to 170mm, overcome steps and kerbs
- 1m wide, ideal for pallet trucks and cages
- Capacities up to 1,000kg, TÜV certified
- Portable design, rest in place
- Made in Italy, customisable solutions available
- R13 slip resistance for enhanced safety

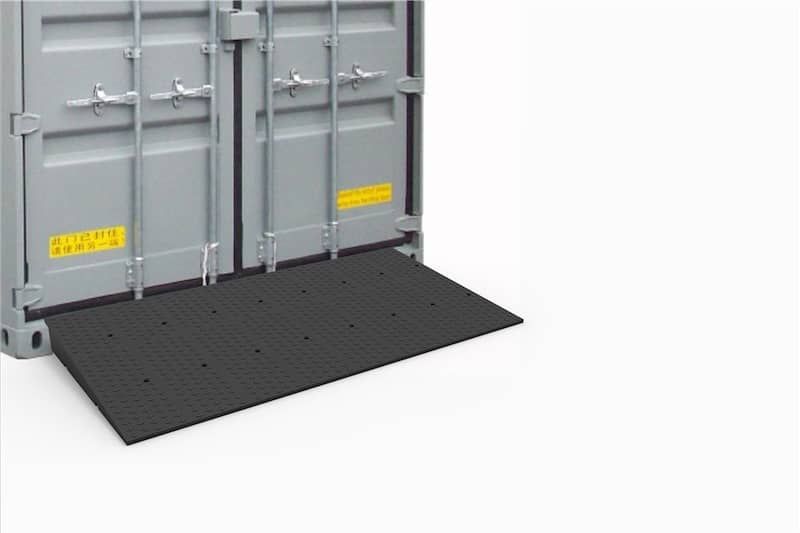

Rubber Container Ramp
- For 150mm to 300mm heights, load and unload shipping containers
- 2.2m wide, covers the full container width
- 10,000kg capacity - for pallet trucks and forklifts
- Modular design, create your required width
- Rests onto the step or container
- Rubber design, can be left outside

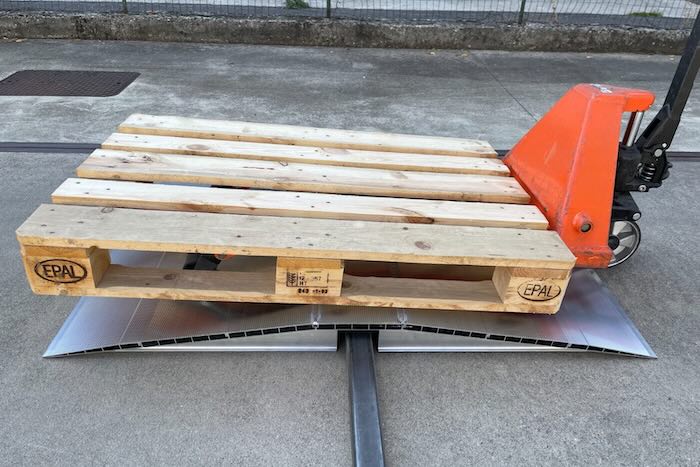

Bridge Ramp
- Overcome obstacles including cables up to 85mm high
- 950mm wide, ideal for pallet trucks and cages
- 1,000kg capacity, TÜV certified
- Portable design, simply rest in place
- Smooth gradient for easy loading
- R13 slip resistance for enhanced safety

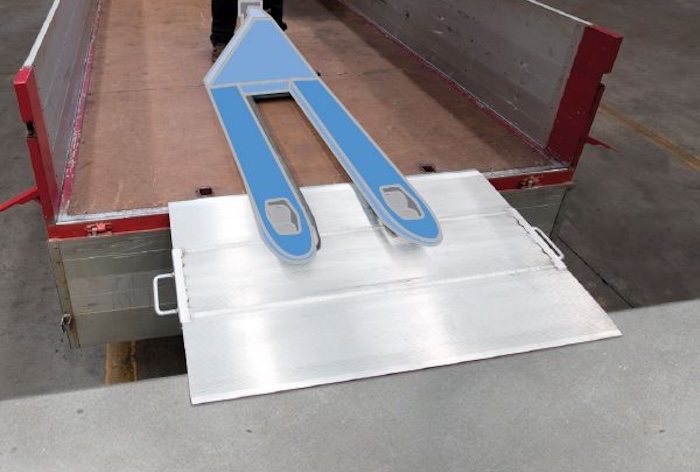

Loading Bridge
- Allow the pallet truck to safely pass from the loading bay to the van or container
- Widths up to 1250mm, ideal for pallet trucks and cages
- Range of lengths to meet your loading needs
- Capacities up to 3420kg, TÜV certified
- Portable design, simply rest in place
Care & Maintenance
- Minimal maintenance is required, they can simply be wiped clean with a damp cloth when needed. Ensure ramps remain free from debris, dirt, and grease to prevent slip hazards and maintain optimum traction.
- Check your loading ramp frequently for signs of wear or damage. If any issues are found, contact the manufacturer for guidance. Do not continue to use the ramp if it is damaged.
- When ramps are used in a professional setting setting, they should be inspected regularly in accordance with the Provision and Use of Work Equipment Regulations 1998 (PUWER).
Assembling, Positioning & Use
- All of the ramps are designed as portable, temporary solutions and are easy to use. The portable pallet truck ramps offer a curved rest on connection with a pre-drilled hole to allow the ramps to be secured to the step or container during use. The aluminium wedge ramps can simply be placed in front of the step, kerb or container. The loading bridge simply rests in place on the loading bay and vehicle. The modular rubber ramps do require assembly, the ramps can be connected together using the modular bone connectors. Connect the required number of pieces to cover your required width.
- When using any loading ramp, it is essential to follow the guidance provided on our website and in the user manual supplied with the product. Never exceed the recommended capacity or load height, as doing so can damage the ramp and compromise safety. If you have any concerns about suitability, please contact our team for expert advice.
- In workplace settings, a health and safety assessment should be carried out if employees are required to lift ramps. Companies must comply with the Manual Handling Operations Regulations and the Lifting Operations and Lifting Equipment Regulations (LOLER). Appropriate PPE, including safety boots and gloves, should always be worn when handling ramps.
Custom Solutions
- At The Ramp People we offer customised pallet truck ramps to meet your specific requirements. For loading pallet trucks with specifically low clearance we can undertake a CAD simulation to identify and create a solution suitable for your loading needs. Further customisations include adding carry handles to the ramps to make it easier to lift and move, adding or removing safety edges, modifying the width and length and cutting the angle of the foot of the ramp to achieve a smoother gradient.
