4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

€1,015.00
SKU
TRP65/35L
Built to Order

Extra Wide Aluminium Loading Ramps (3500x500x1000kg)

500mm wide x 3500mm long, with a 65mm profile thickness. Featuring a maximum capacity of 1000kg, this ramp is ideal for use as a car ramp or lightweight plant ramp. Please note the minimum track width is 300mm.

Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

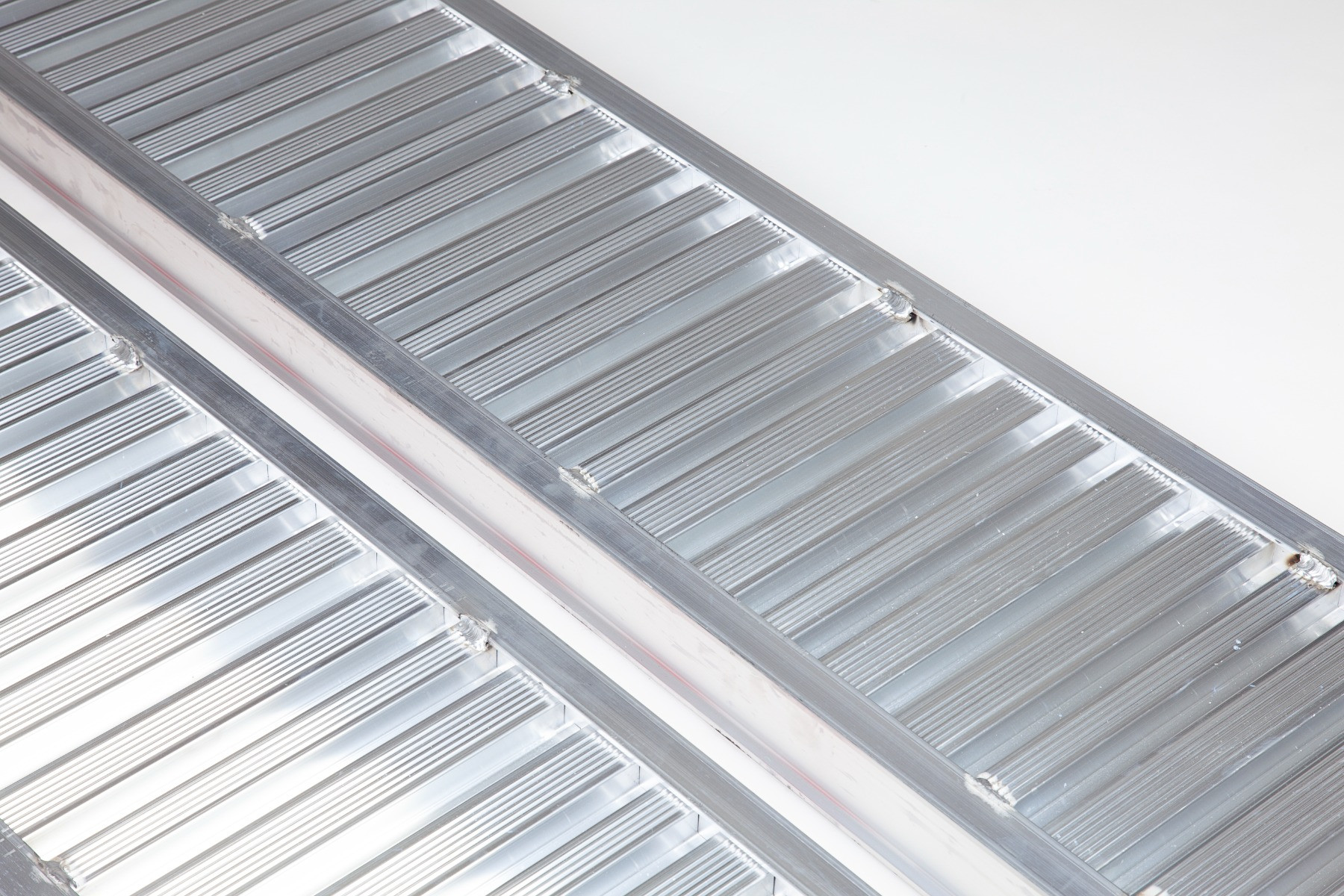

The TRP65L Series has a core profile thickness of 65mm and a width of 500mm. On the TRP65L Series the minimum width of tracks/wheels is 300mm.

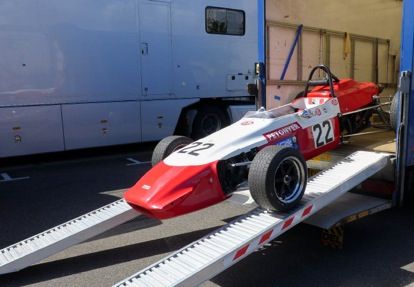

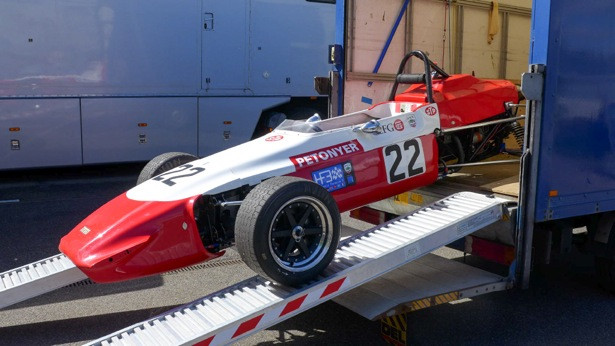

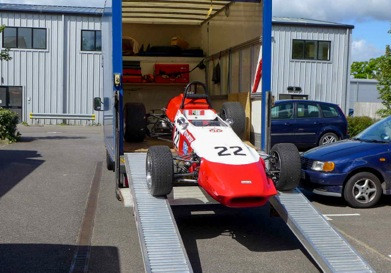

They feature a capacity of up to 1000kg and are ideal for use as car ramps or lightweight plant ramps.

Designed for a maximum gradient of 30%

  • These ramps are available both with and without edges, the default is however without edges
  • Four different connection options available, however the default connection is the rest on connection which is a popular choice for flat bed vehicles and tipper trucks. For beaver tail trailers, a hook connection is normally recommended
  • Foot of the ramp is cut for the load height to ensure smooth entry onto the ramp

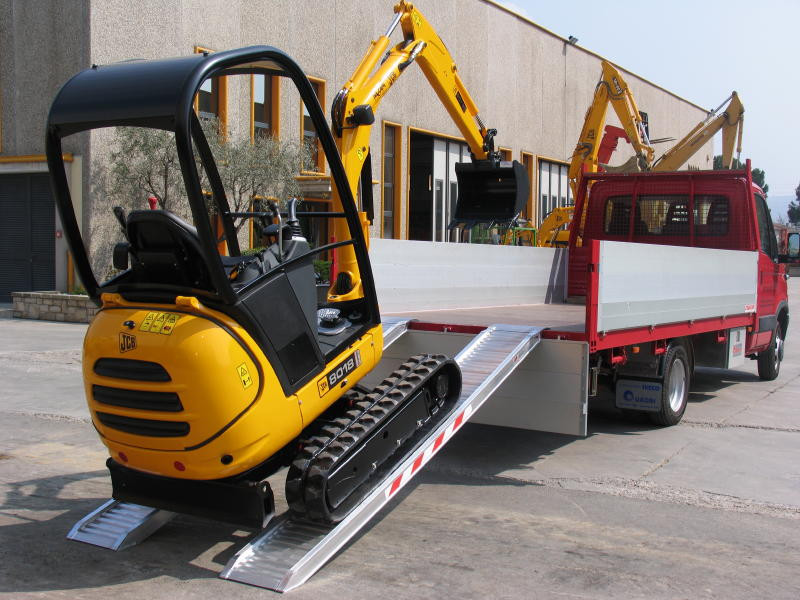

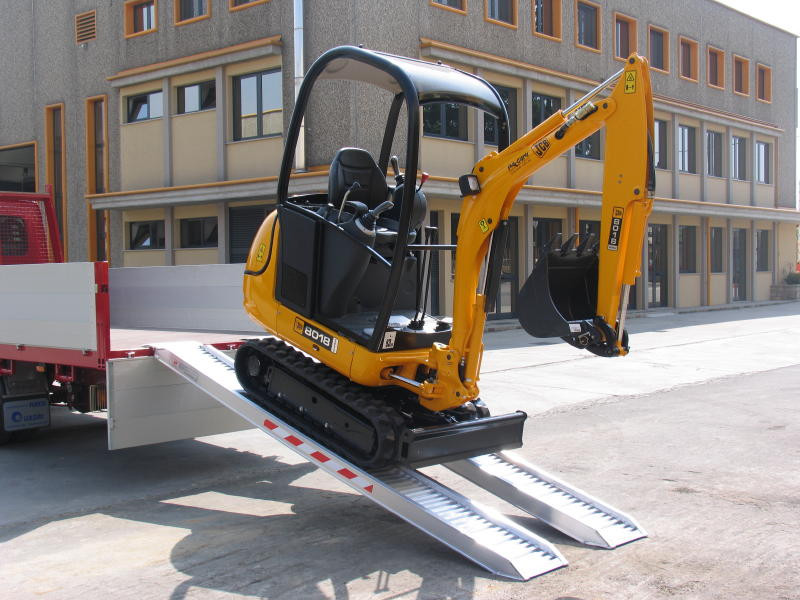

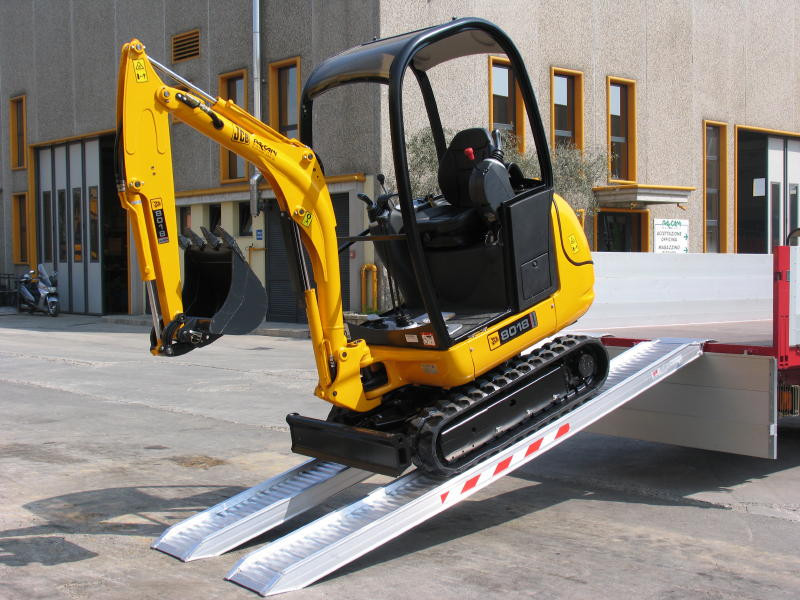

  • Designed for loading tracked plant machinery and vehicles including diggers, tractors, excavators and ride on mowers
  • Custom load heights available
  • Made in Europe
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKUTRP65/35L
Default ConnectionRest On Connection
Capacity (kg)1000
Height of Ramps Profile (mm)65
Length (mm)3500
Max Load Height (mm)1050
Min. Load Height (mm)900
Weight per Ramp (kg)25
Weight Per Pair (kg) 50
Width (mm)500
Minimum Track Width (mm)300
Maximum Track Width (mm)420
One Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
Not Solid WheelsYes
Capacity Wheelbase 1000mm (kg)800
Capacity Wheelbase 1250mm (kg)880
Capacity Wheelbase 1500mm (kg)1000
