Ramp Capacity, Length & Load Height
Lightweight Loading Ramps For Domestic Use Only (2000mm x 300mm x 1000kg Capacity)
|Max. Load Height (mm)||600|
|Weight Per Ramp (kg)||8.75|
4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.
Multi-purpose aluminium loading ramps designed for lightweight garden machinery and tractors up to a maximum weight of 1000kg over the pair, for domestic use only. These ramps are TV certified and comply with Health and Safety Legislation.
These loading ramps are designed for a load height of between 460mm - 600mm and are straight for regular ground clearance.
Please note these ramps are not suitable for tracked machinery, please see our TRP70 and 80 series when using tracked machinery.
- Single Piece Ramp Design, featuring zero welding
- Ramps lay flat for easy storage when not being used
- Manufactured from lightweight aircraft grade aluminium (type 6005A)
- Lightweight for easy handling and compliance with Health & Safety Guidelines
- Fully EU TUV Certified
- Manufactured in the EU

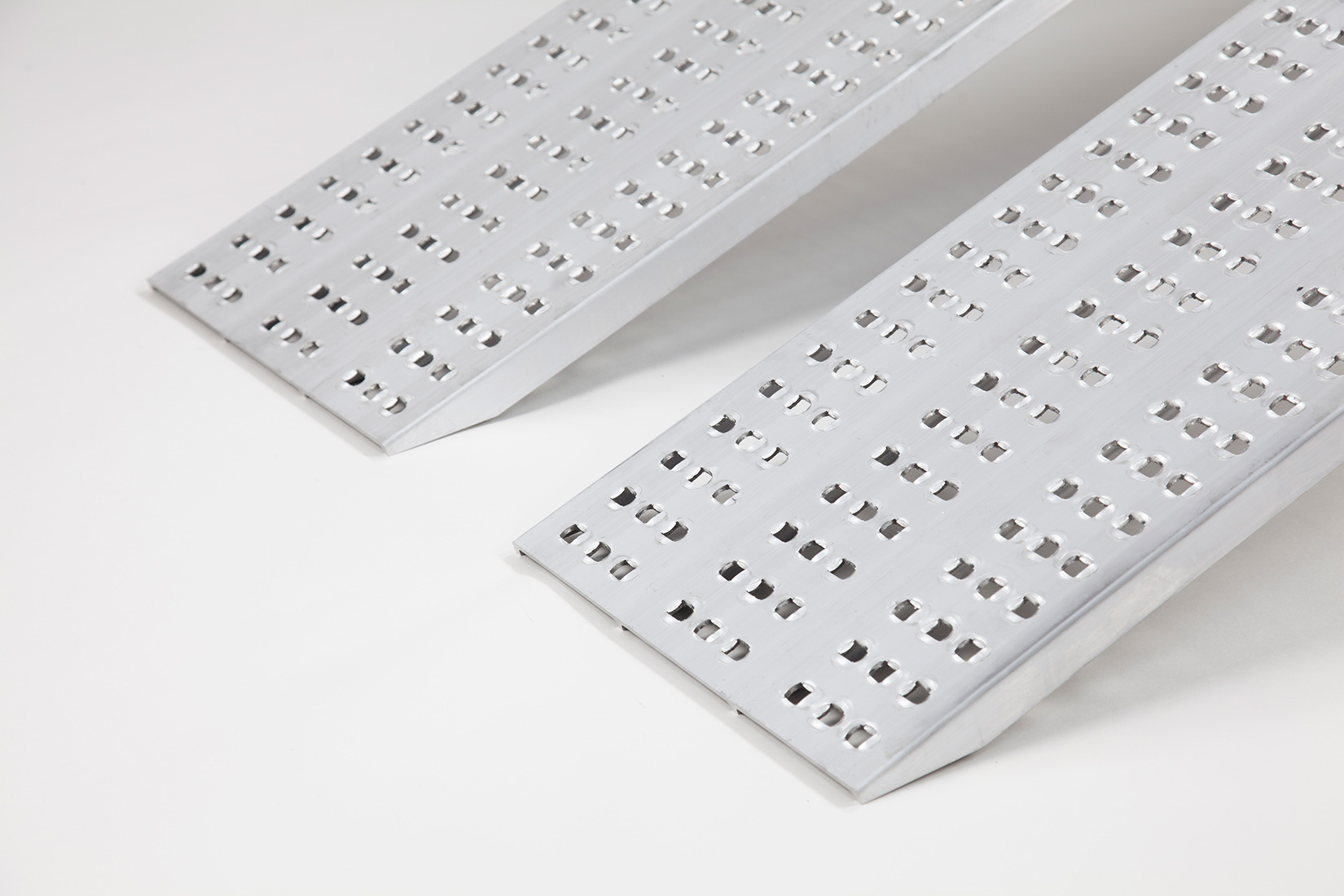

- Angled foot, this allows for smooth access onto the ramp
- Flat-top/no edge design gives greater flexibility of use
Please use gloves when handling those ramps.
Usage Guidelines and Safety Information for our loading ramps can be found here.
|Max Load Height||600|
|Weight per Ramp (kg)||8.75|
|One Year Warranty||Yes|
|Connection Options Available||Yes|
|Easy to Fit||Yes|
|Not Solid Wheels||Yes|
|Capacity Wheelbase 500mm (kg)||780|
|Capacity Wheelbase 750mm (kg)||900|
|Capacity Wheelbase 1000mm (kg)||1000|
|Capacity Wheelbase 1250mm (kg)||1000|
|Min - Max Load Height (mm)||460mm - 600mm|
