Lightweight Loading Ramps - Domestic Use Only (1485x300x1000kg)
Pair of 1485mm long x 300mm wide, straight single piece aluminium ramps. Ideal for use at home when loading or moving machines that weigh up to 1000kg. Price and capacity stated is for the PAIR.
Lightweight Loading Ramps - Domestic Use Only (1485x300x1000kg)
Length (mm)
1485
Total Width (mm)
315
Height (mm)
30
Min. Load Height (mm)
350
Max Load Height (mm)
450
Weight per Ramp (kg)
8
Weight Per Pair (kg)
16
Capacity (kg)
1000
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here

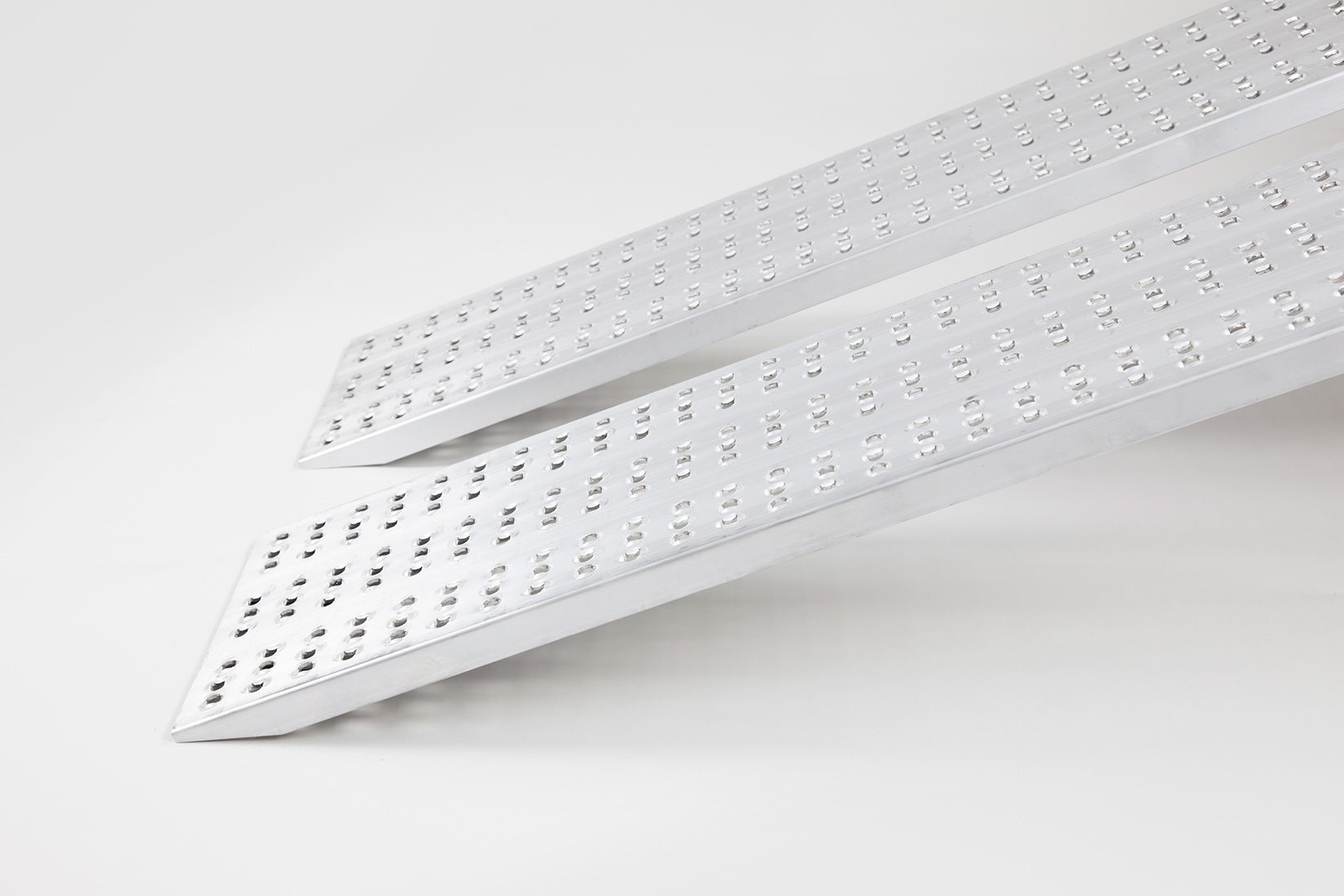

Multi-purpose aluminium loading ramps designed for lightweight garden machinery and tractors up to a maximum weight of 1000kg over the pair, for domestic use only. These ramps are TUV certified and comply with Health and Safety Legislation.
These loading ramps are designed for a load height of between 350-450mm and are straight for regular ground clearance.
Please note these ramps are not suitable for tracked machinery, please see our TRP70 and 80 series when using tracked machinery.
Single Piece Ramp Design, featuring zero welding
Ramps lay flat for easy storage when not being used
Manufactured from lightweight aircraft grade aluminium (type 6005A)
Lightweight for easy handling and compliance with Health & Safety Guidelines
Fully EU TUV Certified
Manufactured in the EU
Tested to 200% loading capacity
Angled foot, this allows for smooth access onto the ramp
Flat-top/no edge design gives greater flexibility of use
Please use gloves when handling those ramps.
Usage Guidelines and Safety Information for these ramps lightweight loading ramps can be found here.
Usage Guidelines and Safety Information for our loading ramps can be found here.
