This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
Connection Options
Easy to Fit
European Made
One Year Warranty
Description

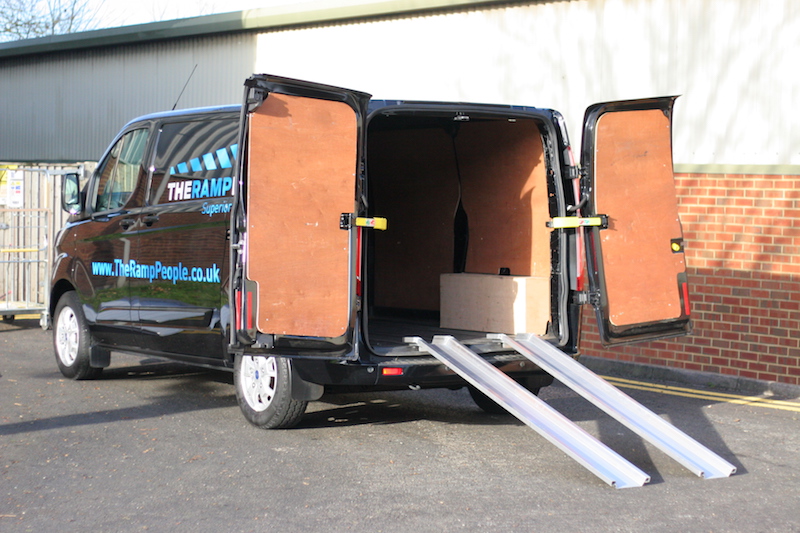

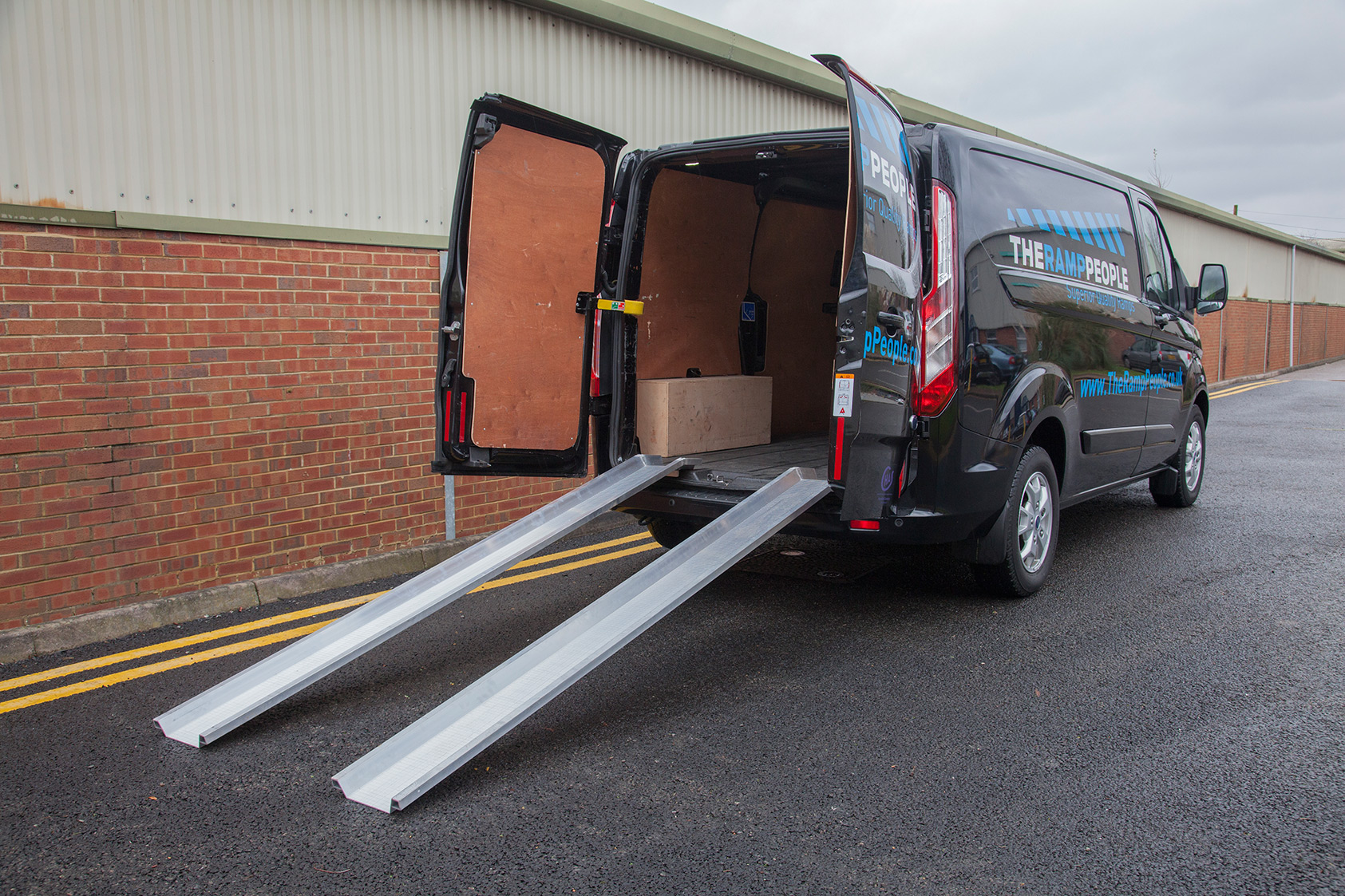

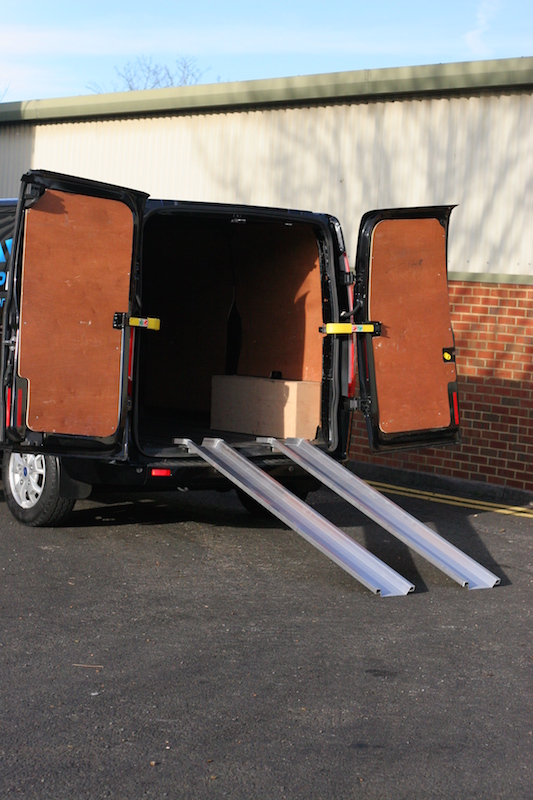

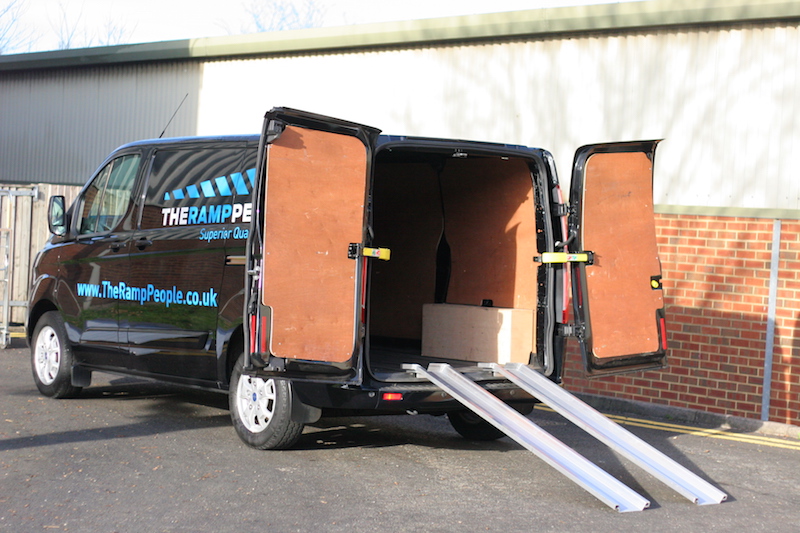

Aluminium Channel Ramp 3000mm Long

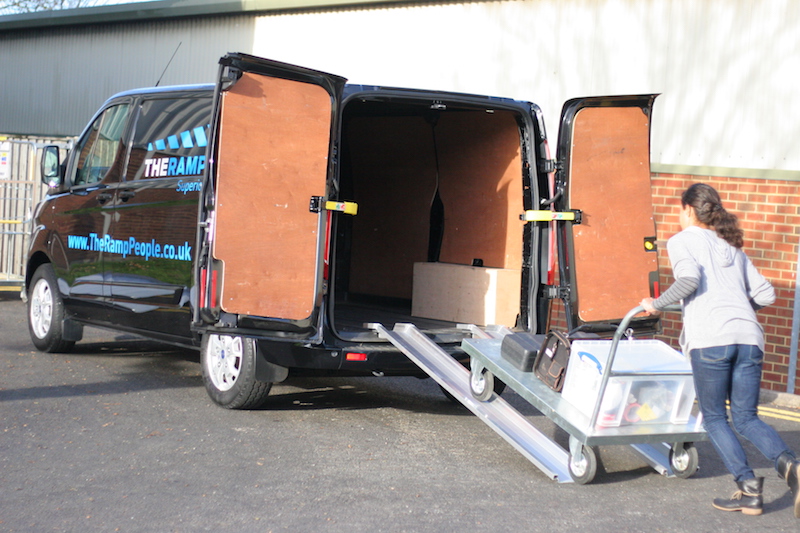

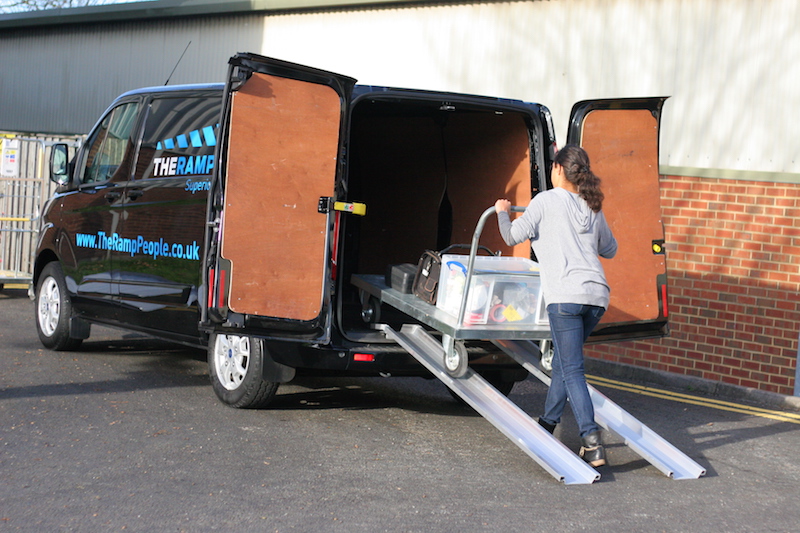

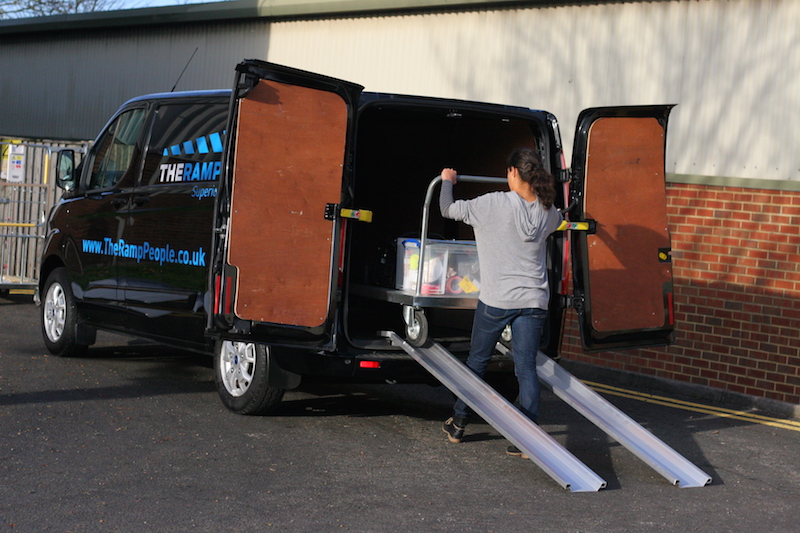

The TRP50 core profile thickness is 50mm and feature a capacity of up to 628kg. These channel ramps or cable ramps are ideally suited for safely loading and unloading large spools of electrical wire or plastic piping or even when using sack barrows.

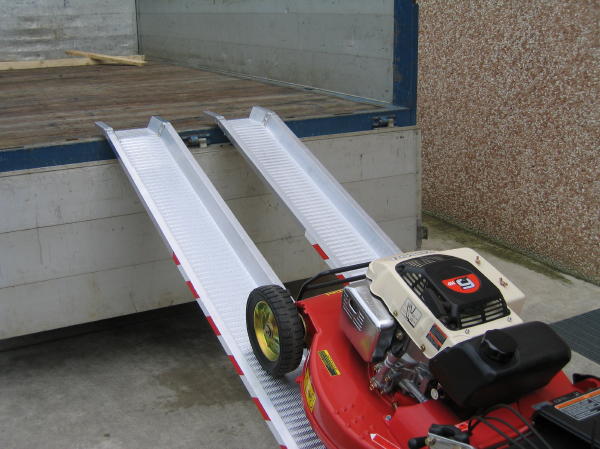

Images to the Left Show The Series Not Necessarily The Exact Length

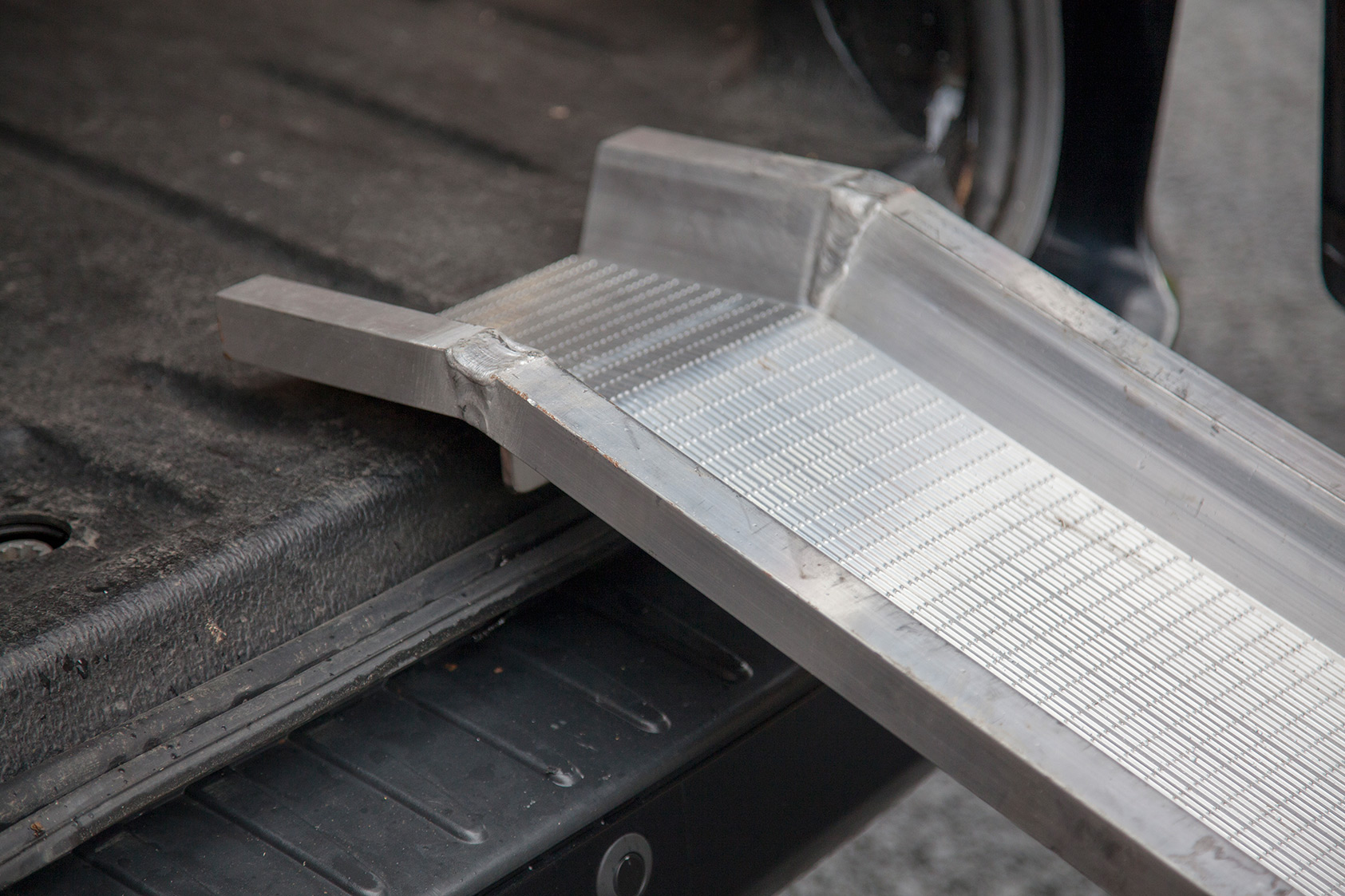

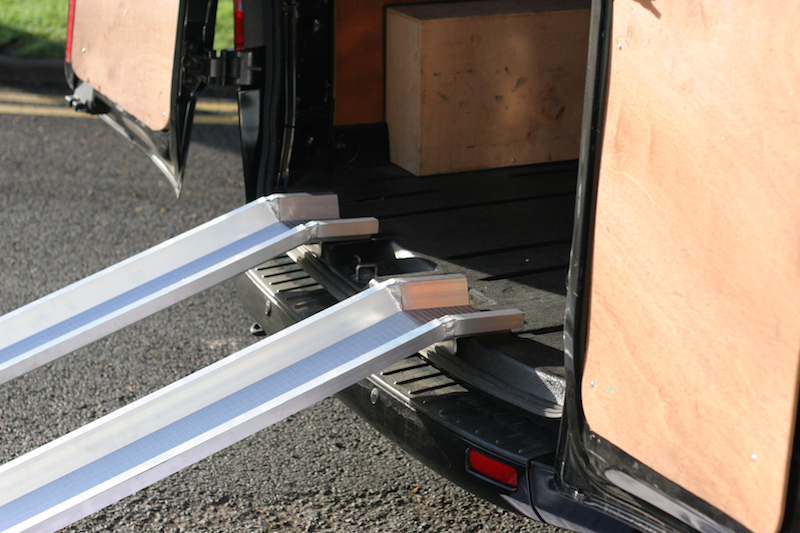

Rest on connection: to fit just rest on and start loading
Extended connection terminal bridges most bumpers, crash bars and tow bars
No vehicle modification required
Manufactured from lightweight aluminium (type 6005A)
Lightweight for easy handling and compliance with Health & Safety Guidelines
Up to 628kg Fully TUV Certified Loading Capacity
Tested to 200% loading capacity
Virtually zero flex on heavy loads prevents vehicle damage

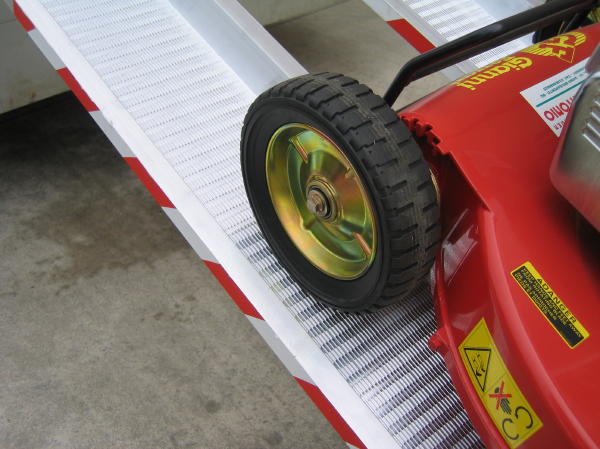

Edges on each side of the ramp to prevent accidentally wheeling off
Bespoke ramps built to any length
Folding versions available on request
Multi-section channel ramps with bayonet fitting available on request
